Vacuum Diagrams: Introduction: TOUAREG: Notes

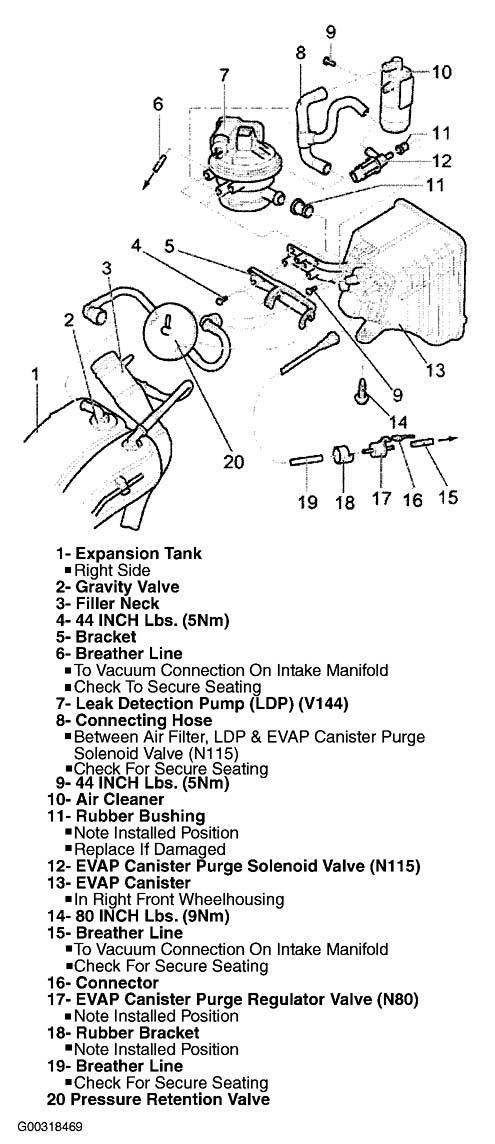

Fig 1: Vacuum Diagram EVAP System (3.2L, Engine Codes AZZ & BAA) (4.2L, Engine Code AXQ)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

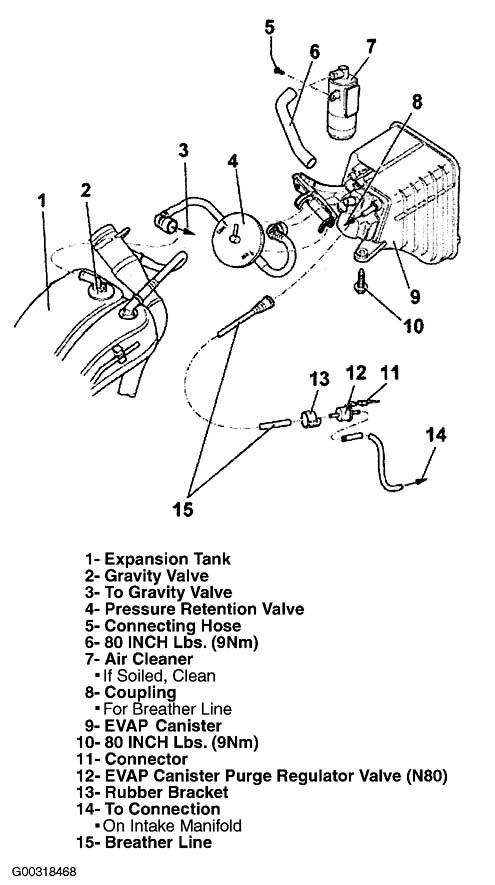

Fig 2: Vacuum Diagram EVAP System (4.2L, Engine Code BHX)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

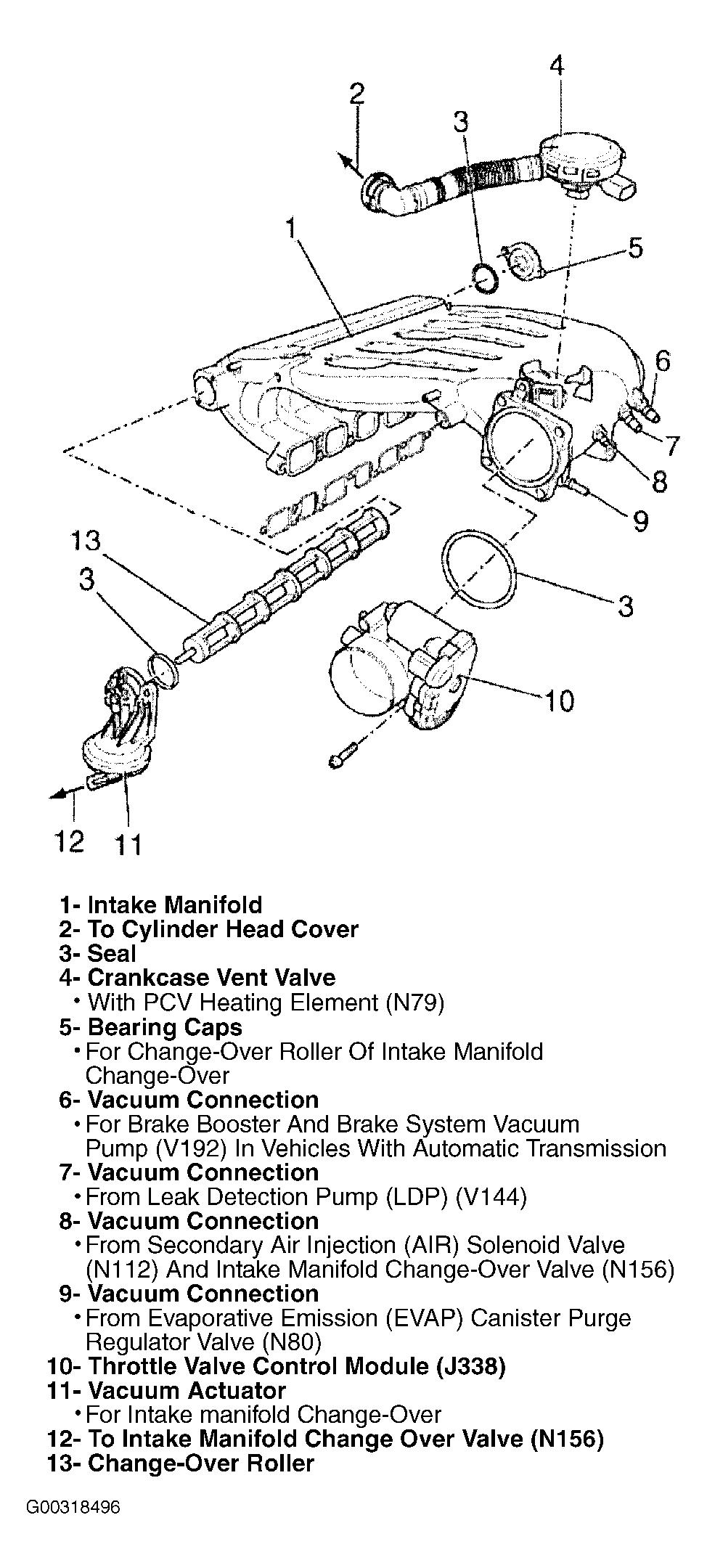

Fig 3: Vacuum Diagram Intake Manifold, Upper Section (3.2L, Engine Code BAA)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

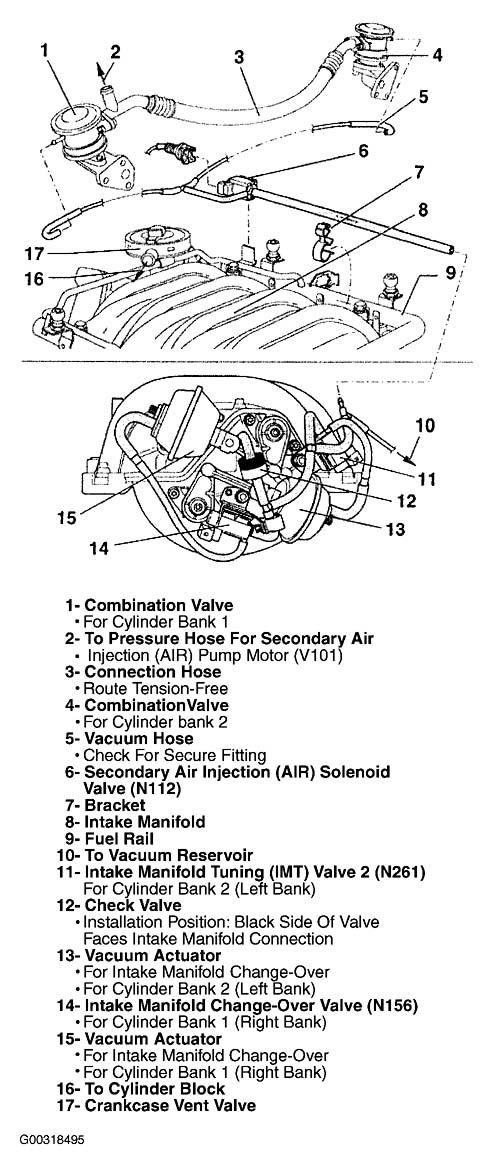

Fig 4: Vacuum Diagram Intake Manifold Change-Over System, With Secondary Air Injection System (4.2L, Engine Codes AXQ & BHX)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

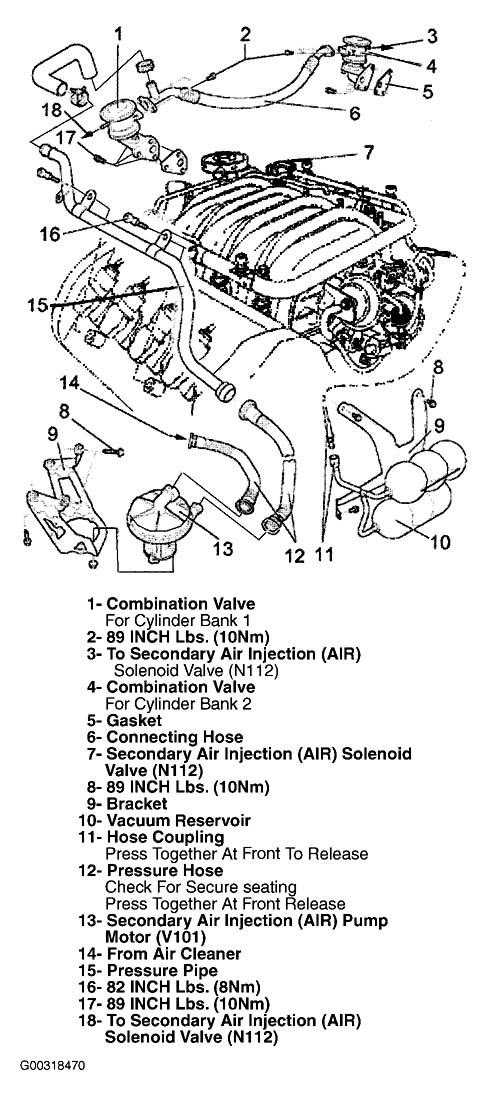

Fig 5: Vacuum Diagram Secondary Air Injection System (4.2L V8)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
