Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

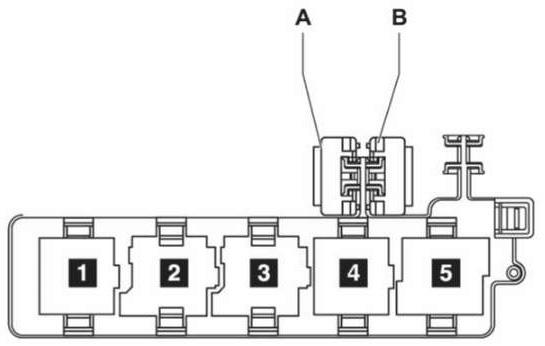

Convertible Top Motor Circuit Breaker (A) On relay panel. See Figure.
Electronics Box High Left side of engine compartment.
Electronics Box Low Left side of engine compartment.

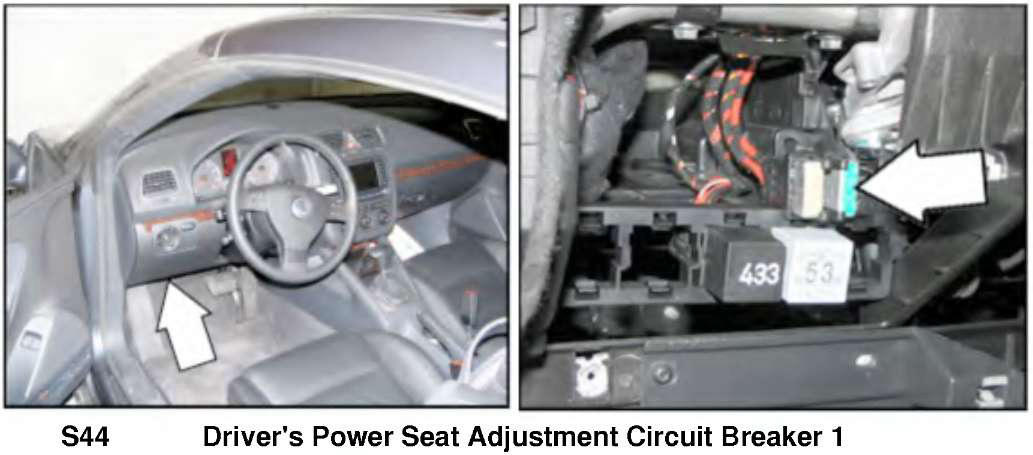

Power Seat Adjustment Circuit Breaker 1 (Driver's) Under left side of dash, on relay panel. See Figure.
Relay Panel Under left side of dash.

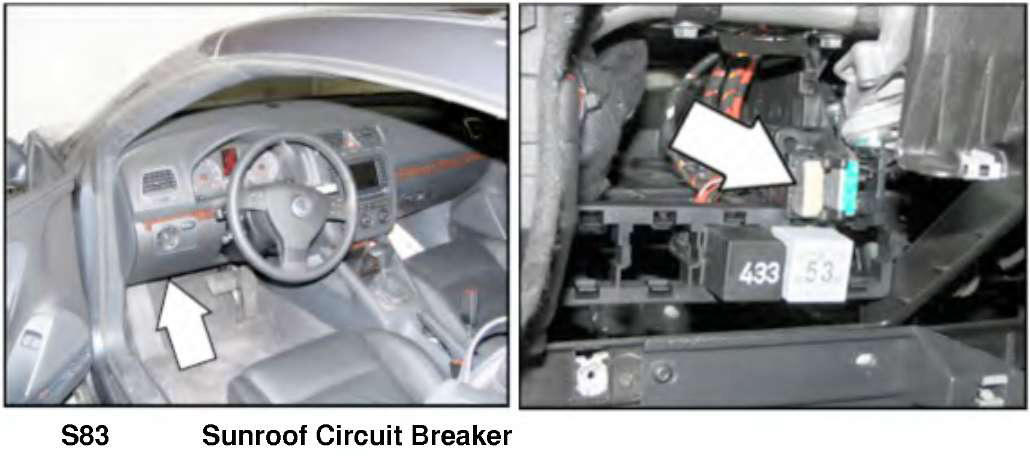

Sunroof Circuit Breaker Under left side of dash, on relay panel. See Figure.
