Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

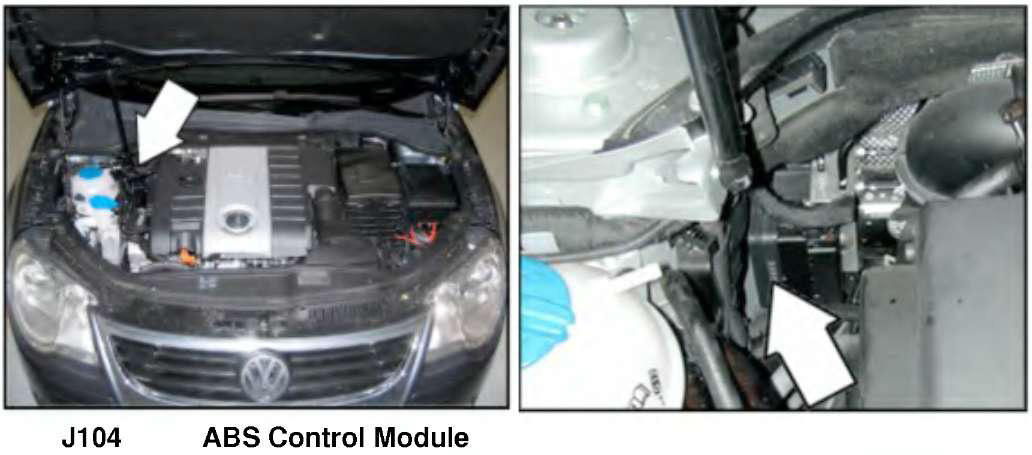

| ABS Control Module | Right rear of engine compartment. See Figure. |

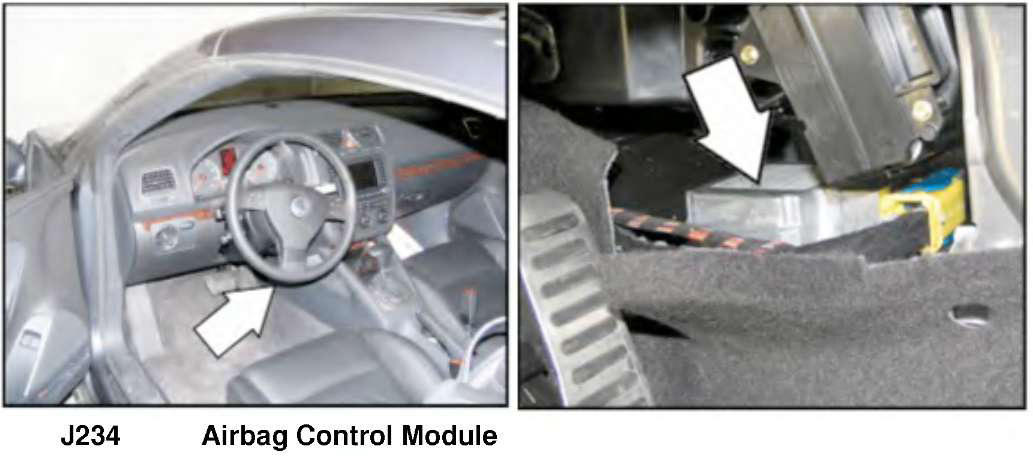

| Airbag Control Module | Under front of center console. See Figure. |

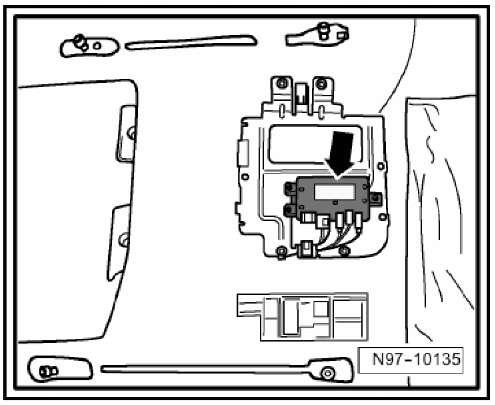

| Antenna Selection Control Module | Under front passenger's seat. See Figure. |

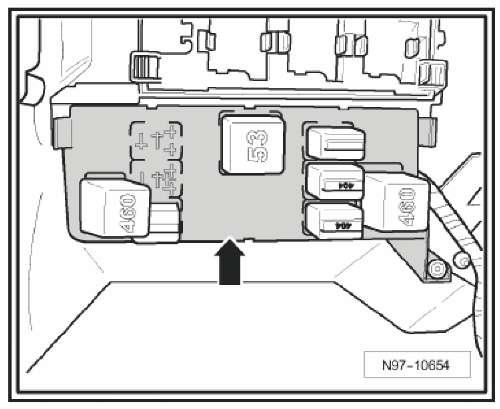

| Anti-Theft Immobilizer Control Module | Behind left side of dash, under relay carrier. See Figure. |

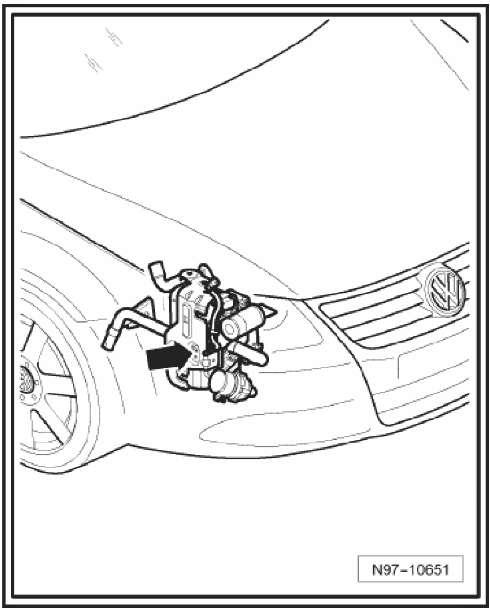

| Auxiliary Heater Control Module | Right front corner of engine compartment. See Figure. |
| Comfort System Central Control Module | Behind glove box. See Figure. |

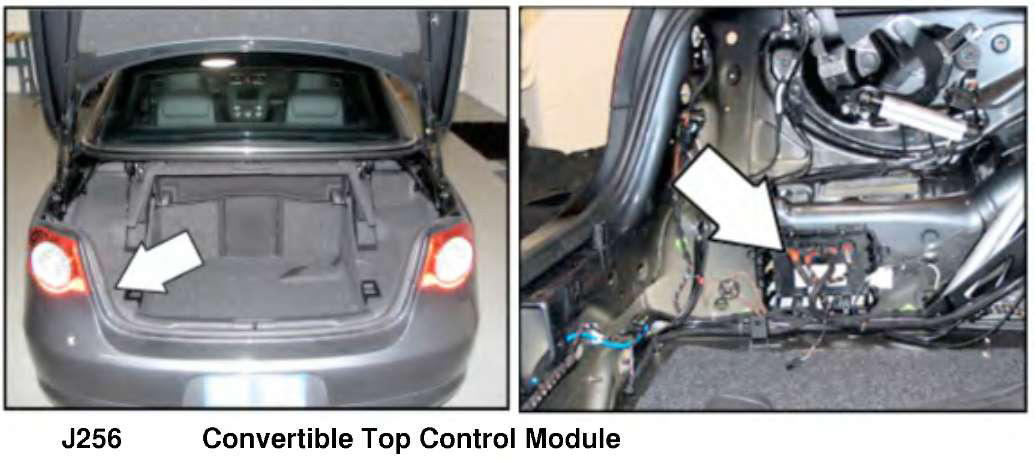

| Convertible Top Control Module | Left side of luggage compartment. See Figure. |

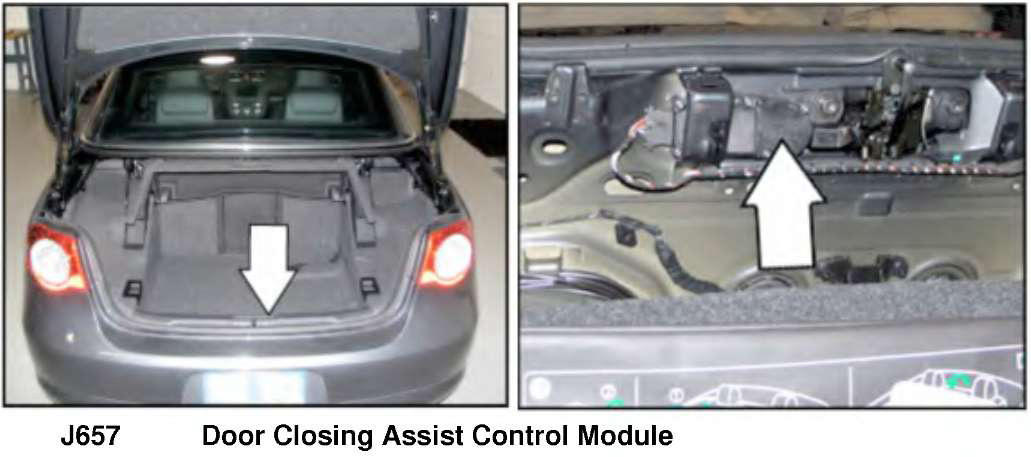

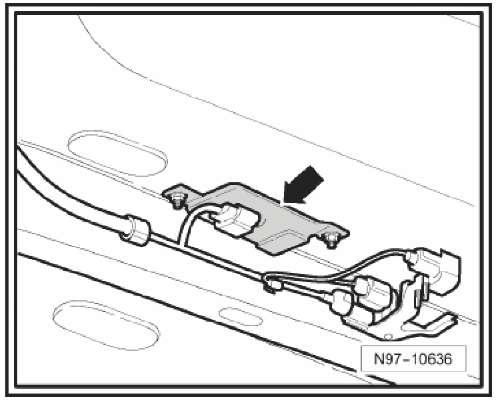

| Door Closing Assist Control Module | At trunk lid latch. See Figure. |

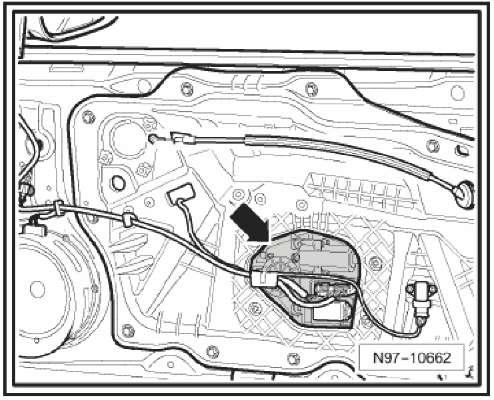

| Door Control Module (Driver's/Passenger's) | In respective front door. See Figure. |

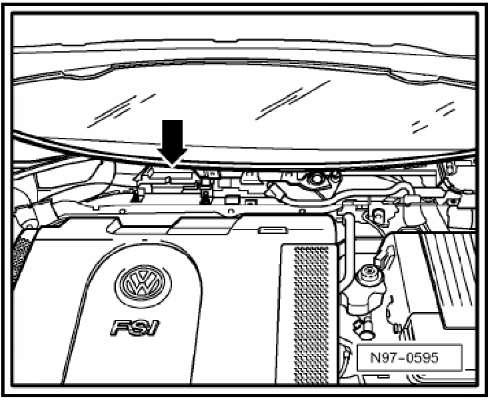

| Engine Control Module (ECM) | Center rear of engine compartment. See Figure. |
| Entry Assistance Control Module (Driver's/Front Passenger's) | Under respective front seat. See Figure. |

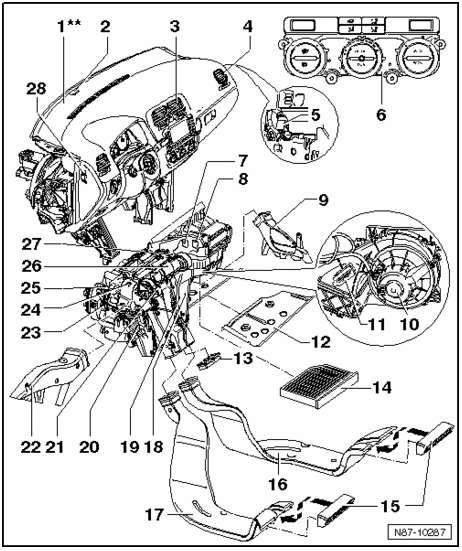

| Fresh Air Blower Control Module (10) | Integral to fresh air blower, under right side of dash. See Figure. |

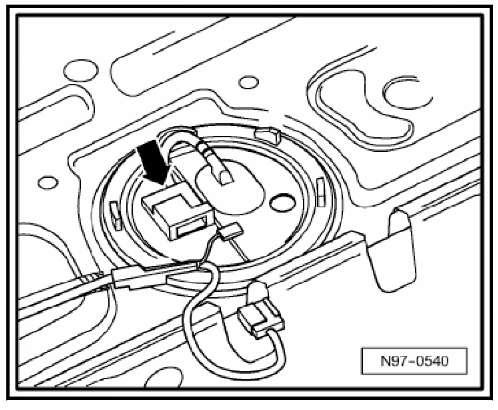

| Fuel Pump (FP) Control Module | Top of fuel tank. See Figure. |
| Headlight Range/Cornering Light Control Module | Behind glove box. See Figure. |

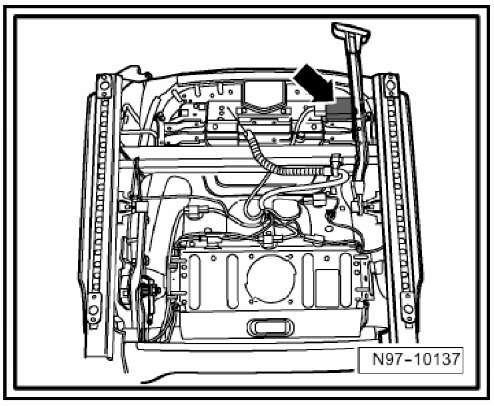

| Heated Seat Control Module (Driver's) | Under driver's seat. See Figure. |
| Heated Seat Control Module (Front Passenger's) | Under front passenger's seat. See Figure. |
| High-Intensity Gas Discharge Lamp Control Module (Left) | On left headlight assembly. |
| High-Intensity Gas Discharge Lamp Control Module (Right) | On right headlight assembly. |
| Instrument Cluster Control Module | Behind left side of dash, under relay carrier. See Figure. |

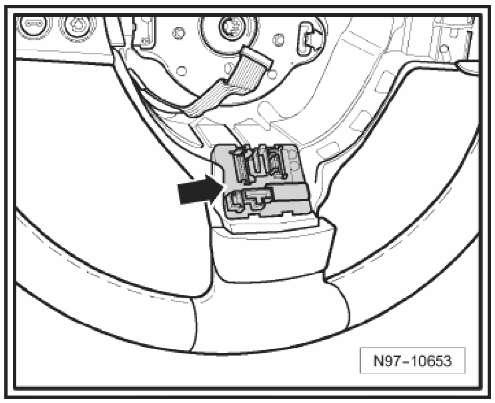

| Multi-Function Steering Wheel Control Module | Bottom of steering wheel. See Figure. |
| NOX Sensor Control Module | Under right front of vehicle. See Figure. |
| Parking Aid Control Module (B) | Right side of luggage compartment, behind trim. See Figure. |

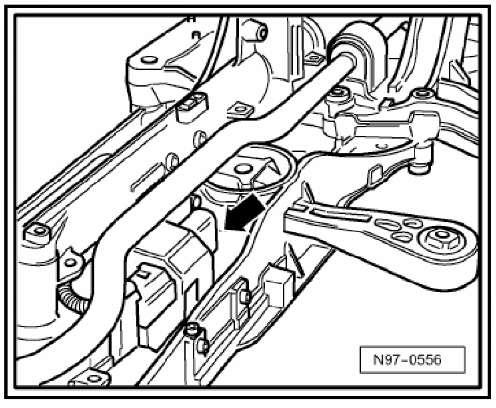

| Power Steering Control Module | At steering, on subframe. See Figure. |

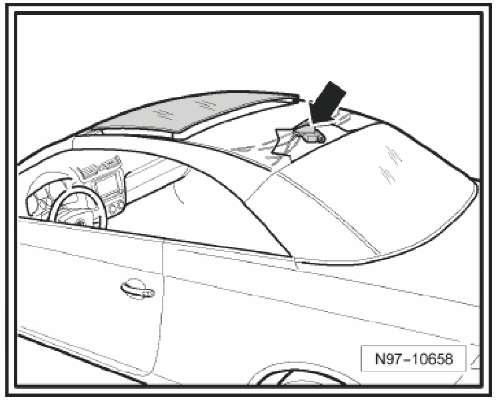

| Power Sunroof Control Module | Behind sunroof. See Figure. |
| Radar Interior Monitoring Control Module 1 | Under rear of center console. See Figure. |
| Radar Interior Monitoring Control Module 2 | Under center of rear seat. See Figure. |

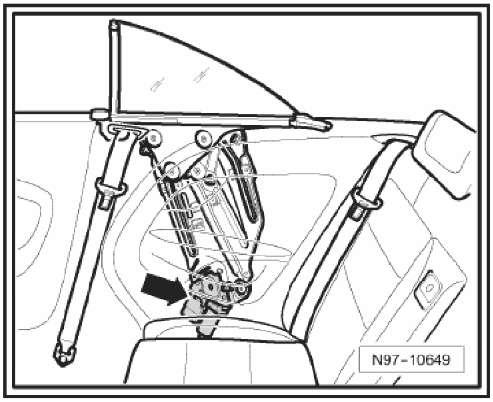

| Rear Window Control Module (Left/Right) | Behind respective side panel. See Figure. |

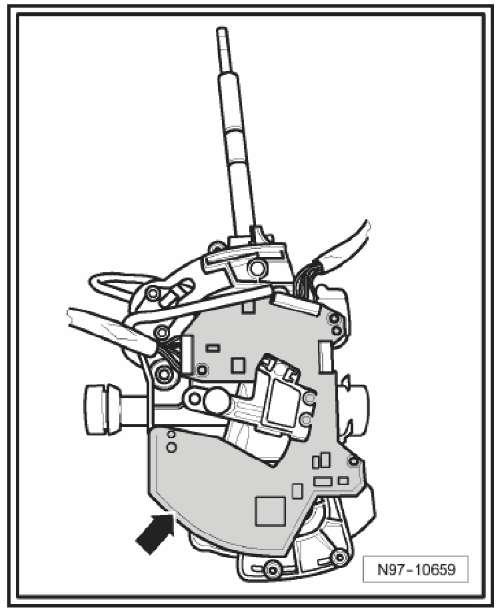

| Selector Lever Sensors Control Module | On base of selector lever. See Figure. |

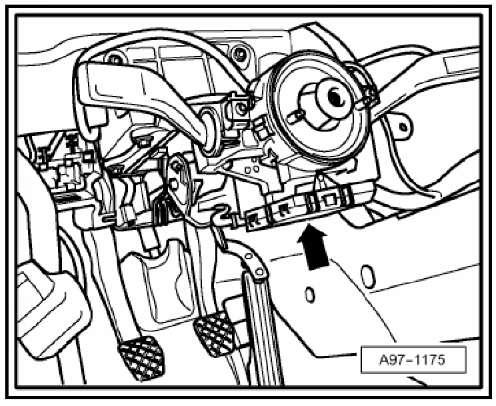

| Steering Column Electronic Systems Control Module | Bottom of steering column. See Figure. |

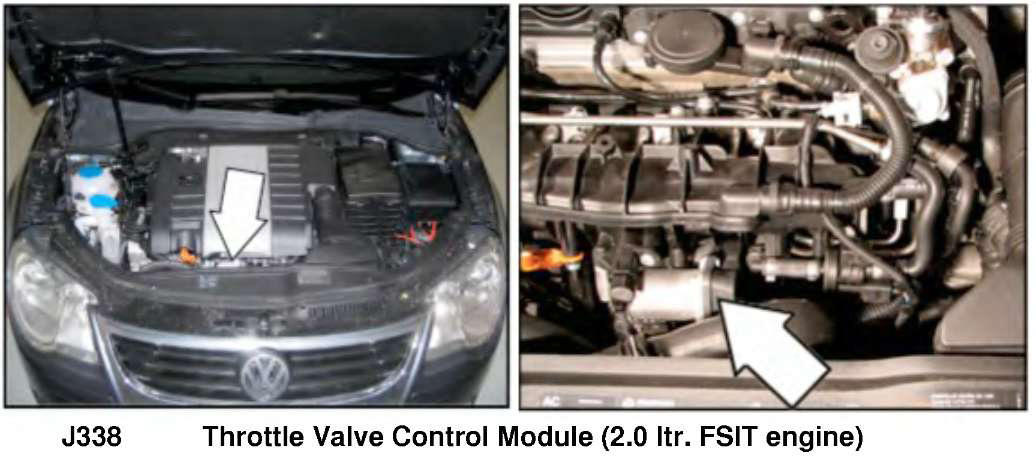

| Throttle Valve Control Module | On throttle body. See Figure. |
| Towing Recognition Control Module | Left side of luggage compartment. See Figure. |
| Vehicle Electrical System Control Module | Under left side of dash. See Figure. |

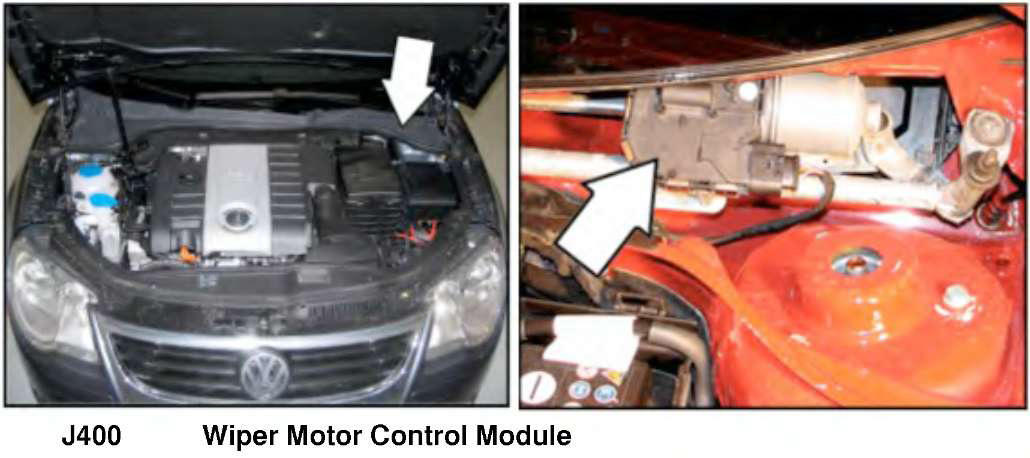

| Wiper Motor Control Module | In left plenum. See Figure. |
