External Multimedia Device Interface -R215-

Special tools and workshop equipment required

Removal

The external multimedia device interface is located inside the storage compartment inside the center armrest.

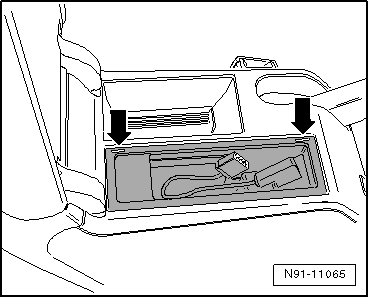

-- Insert the T10057 into the openings -arrows- until it engages.

Fig 1: Identifying Openings For Radio Removal Tool T10057

Courtesy of VOLKSWAGEN UNITED STATES, INC.

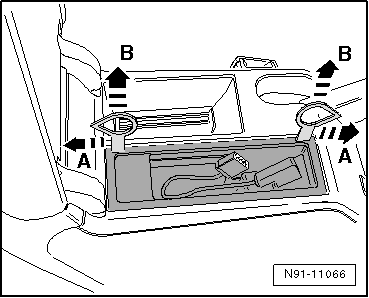

-- Press the tools in direction -A- and pull the control module in direction -B-.

Fig 2: Identifying Radio Removal Tools T10057 Inserted In Openings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Release the connector -arrow- and pull the connector -A- off the control module.

Fig 3: Identifying Multimedia System Control Module Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

Install in reverse order of removal.
