Control Units
NOTE:
All engine specific components listed in the following tables below apply to the 2.0L only. Component location information for the 3.6L engine is not supplied by the manufacturer. For additional information regarding 3.6L components, see appropriate system repair article.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

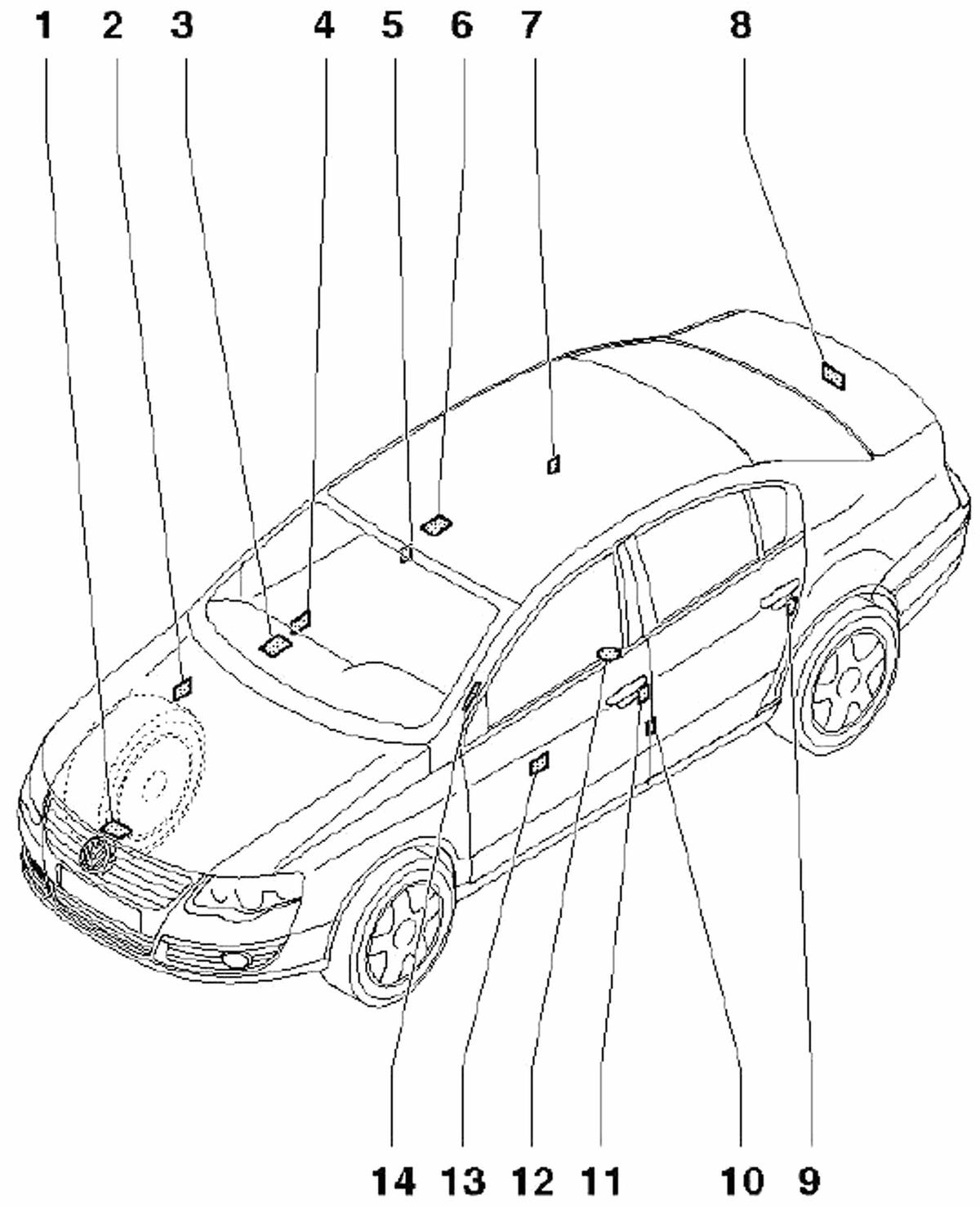

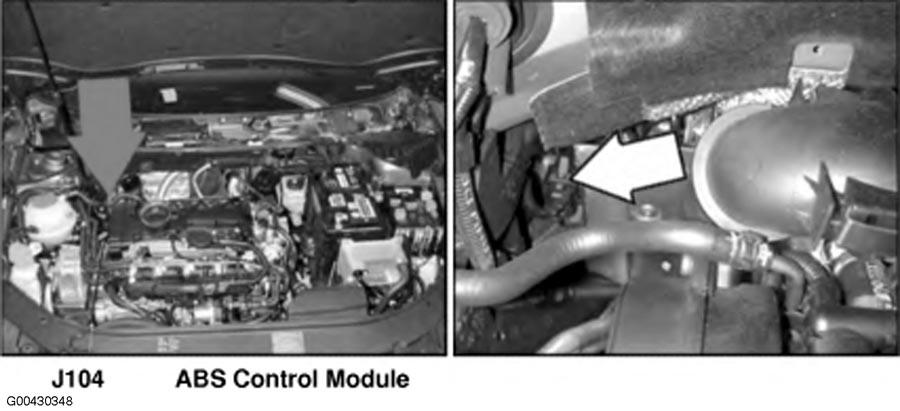

| ABS Control Module | Right rear of engine compartment. See Figure. |

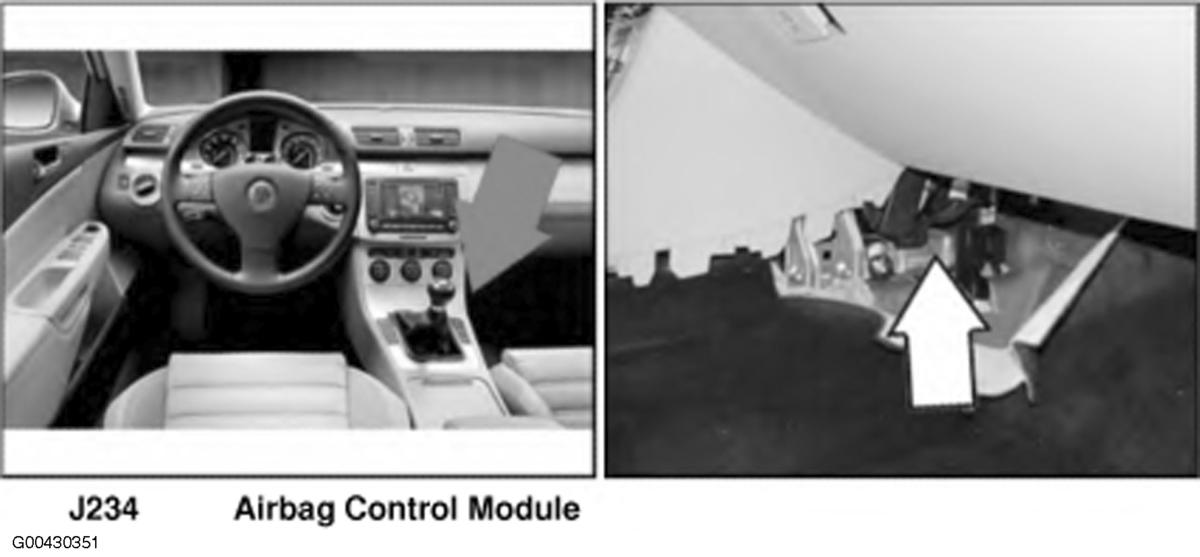

| Airbag Control Module | Mounted on floor in front of center console. See Figure. |

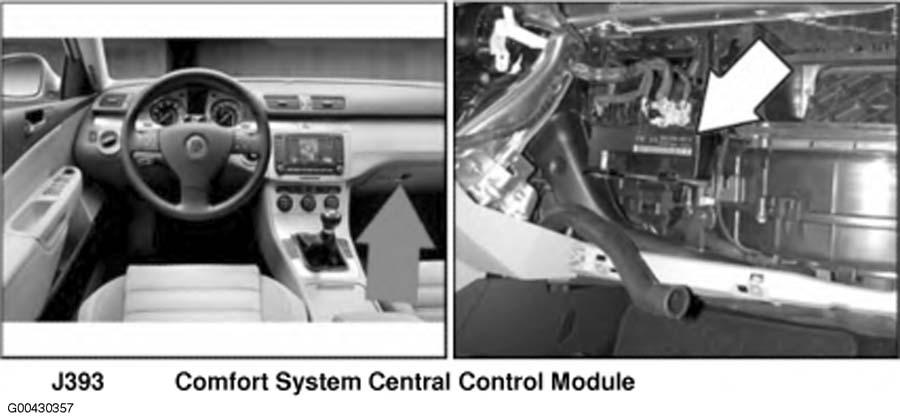

| Comfort System Central Control Module | Behind right side of dash. See Figure. |

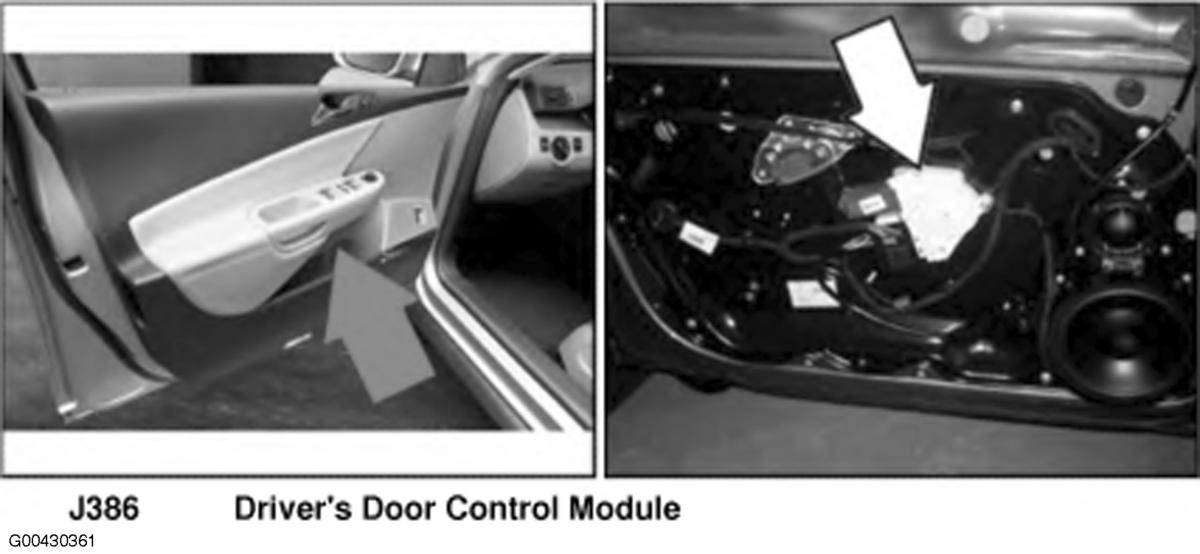

| Door Control Module (Driver's Side) | In driver's door. See Figure. |
| Door Control Module (Front Passenger's) (4) | In front passenger's door. See Figure. |

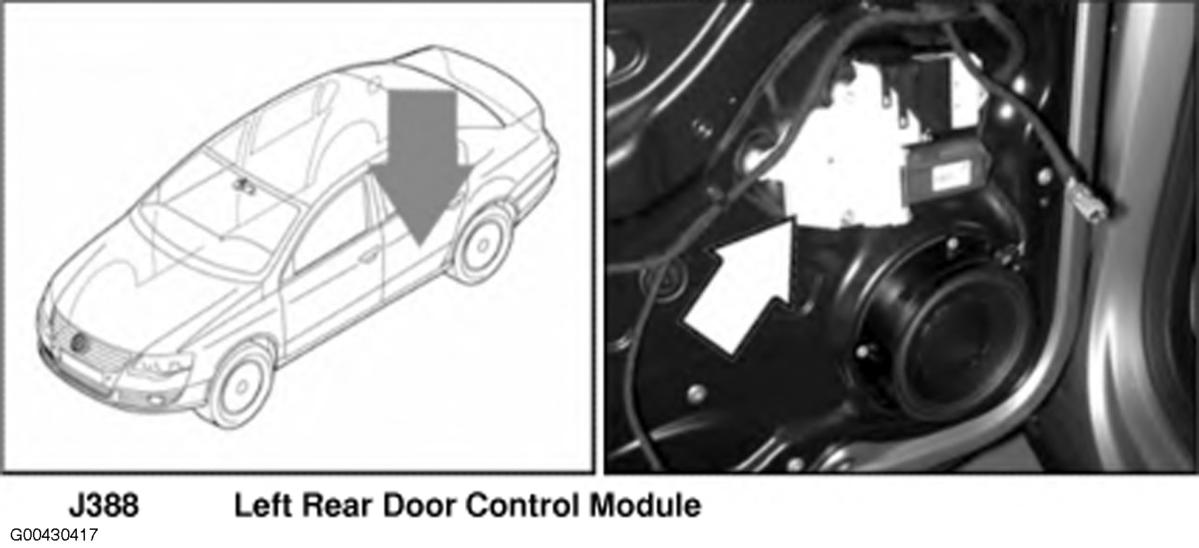

| Door Control Module (Left Rear) | In left rear door. See Figure. |

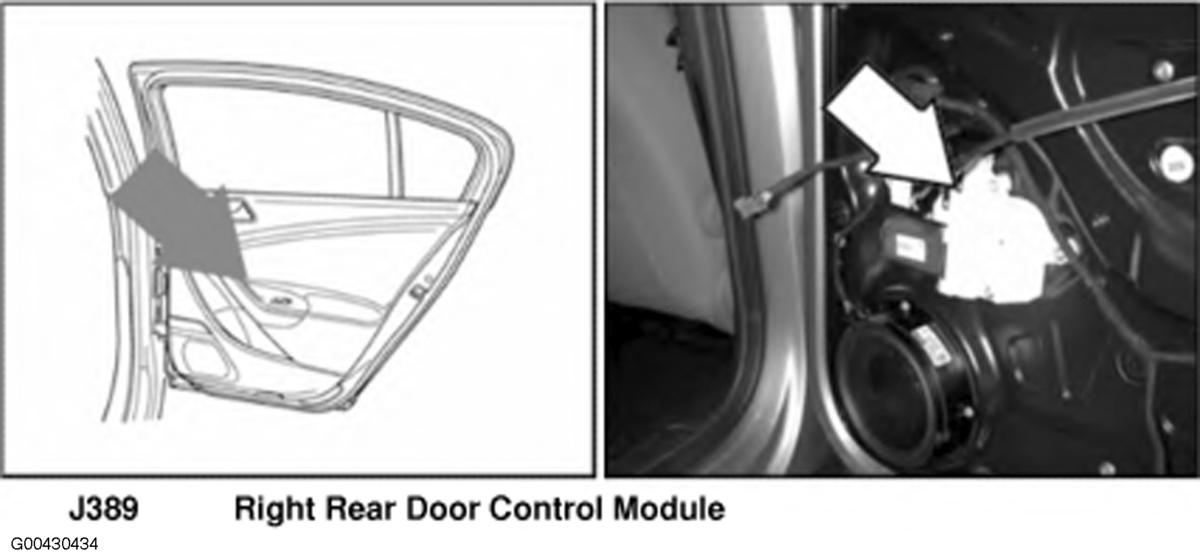

| Door Control Module (Right Rear) | In right rear door. See Figure. |

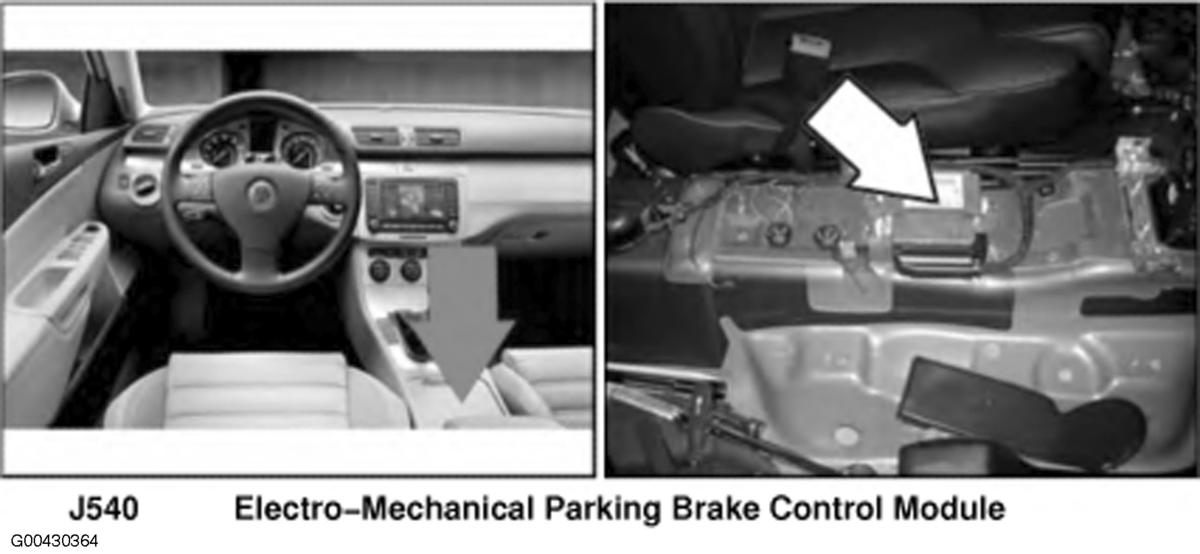

| Electro-Mechanical Parking Brake Control Module | Under center console. See Figure. |

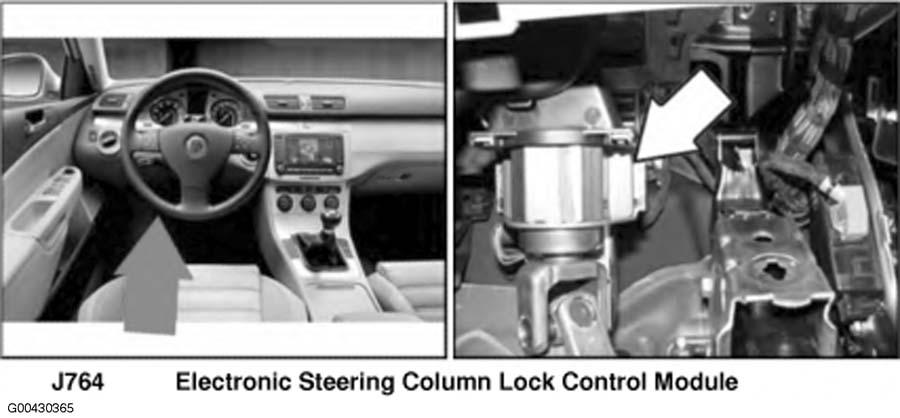

| Electronic Steering Column Lock Control Module | Under left side of dash. See Figure. |

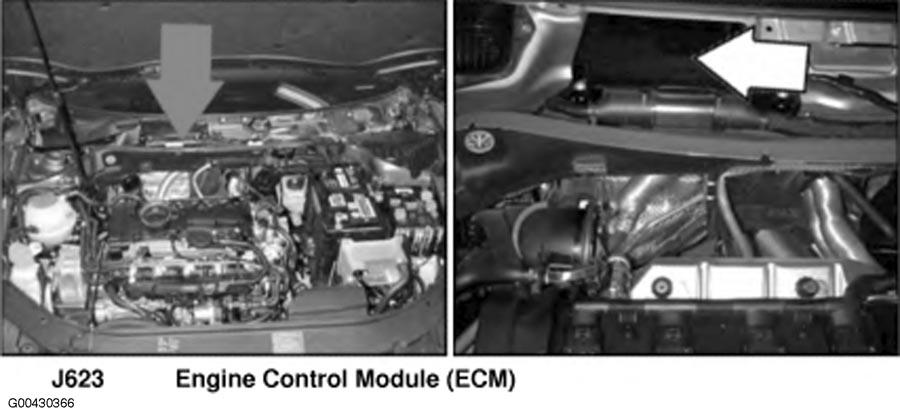

| Engine Control Module | In center of plenum. See Figure. |

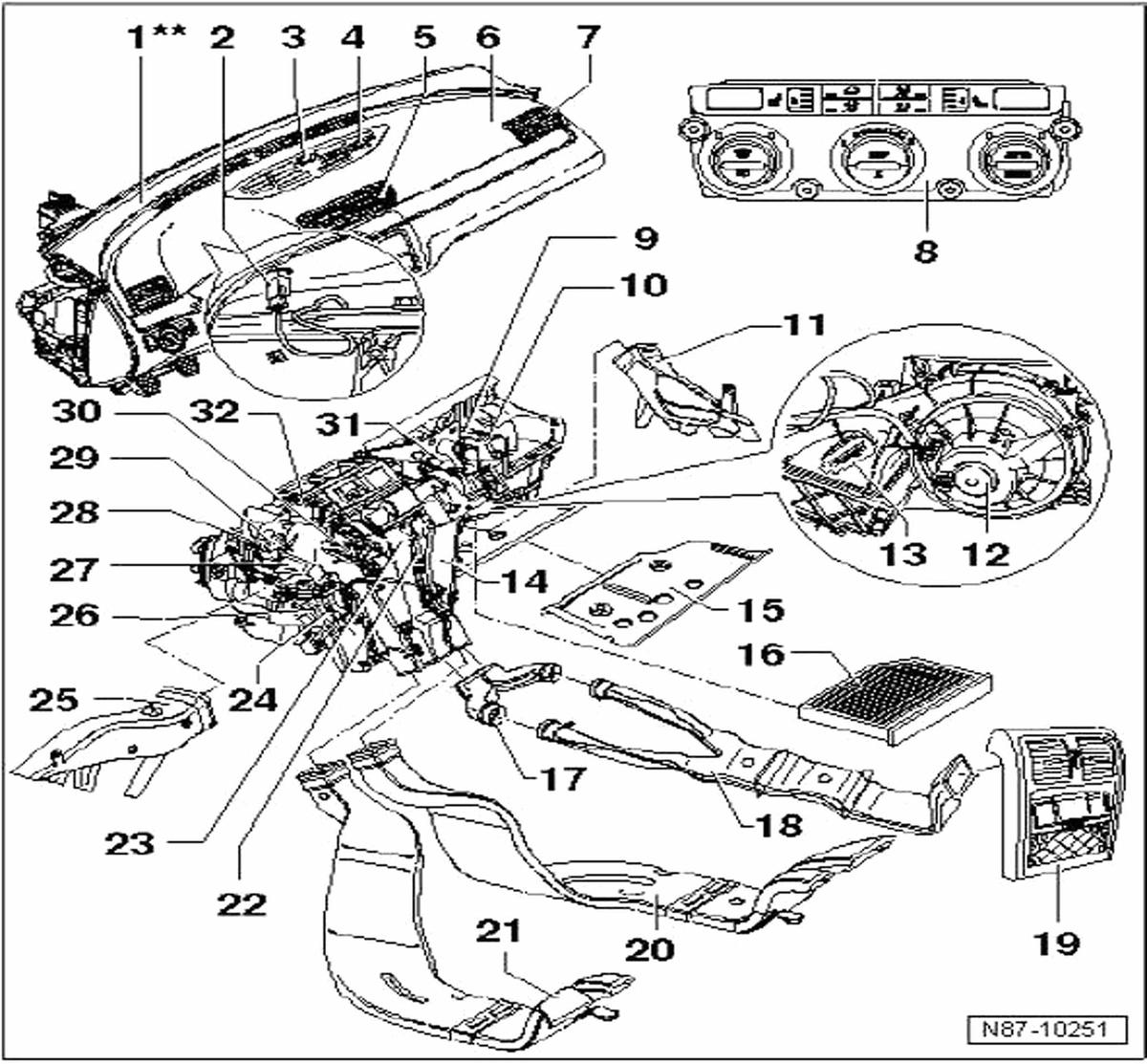

| Fresh Air Blower Control Module (12) | On fresh air blower motor. See Figure. |

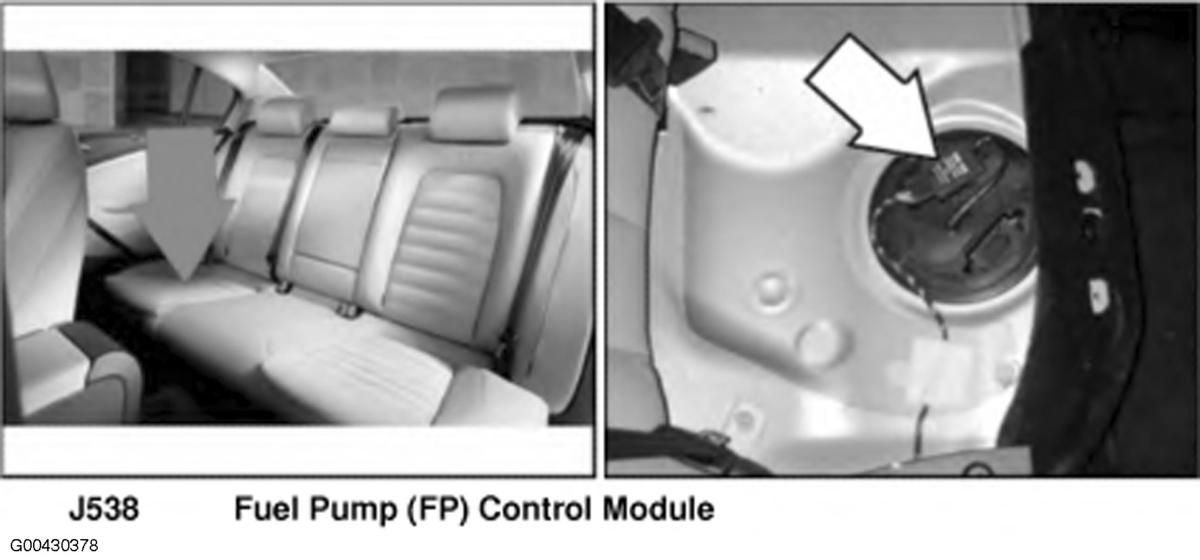

| Fuel Pump Control Module | Under right rear seat. See Figure. |

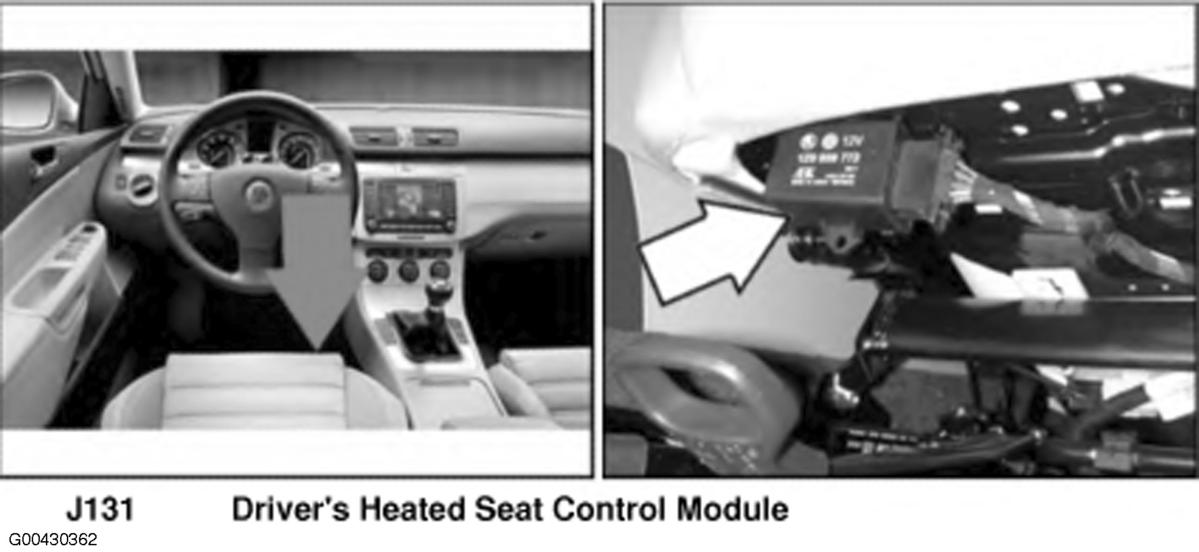

| Heated Seat Control Module (Driver's) | On driver's seat frame. See Figure. |
| Parking Aid Control Module | Right side of trunk. |

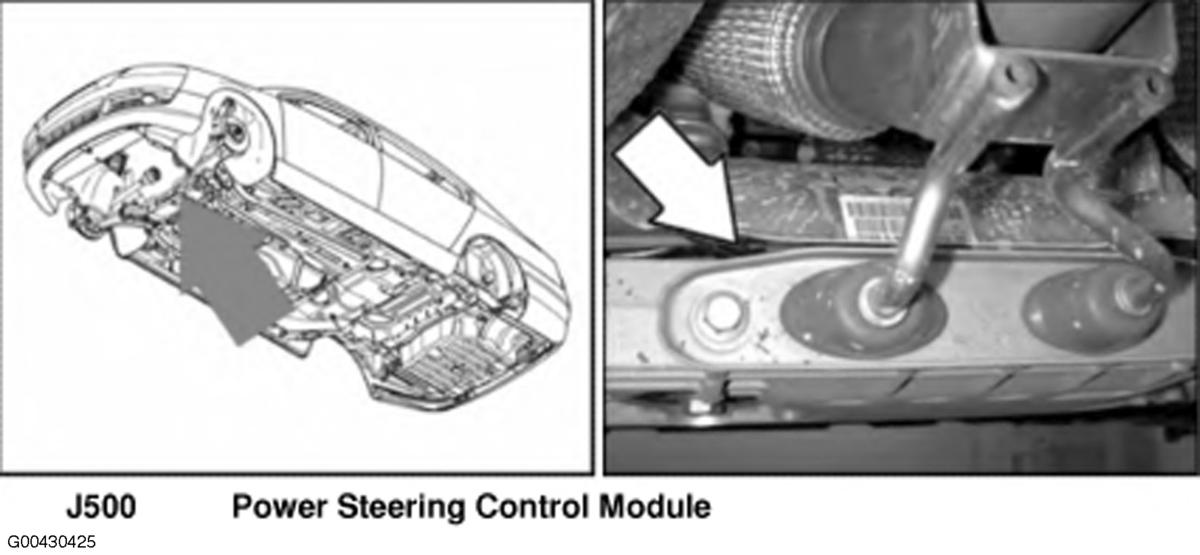

| Power Steering Control Module | Integral with steering gear assembly. See Figure. |
| Radar Interior Monitoring Control Module 1 (6) | In roof console. See Figure. |
| Radiator Fan Control Unit | Integrated into radiator fan assembly. |

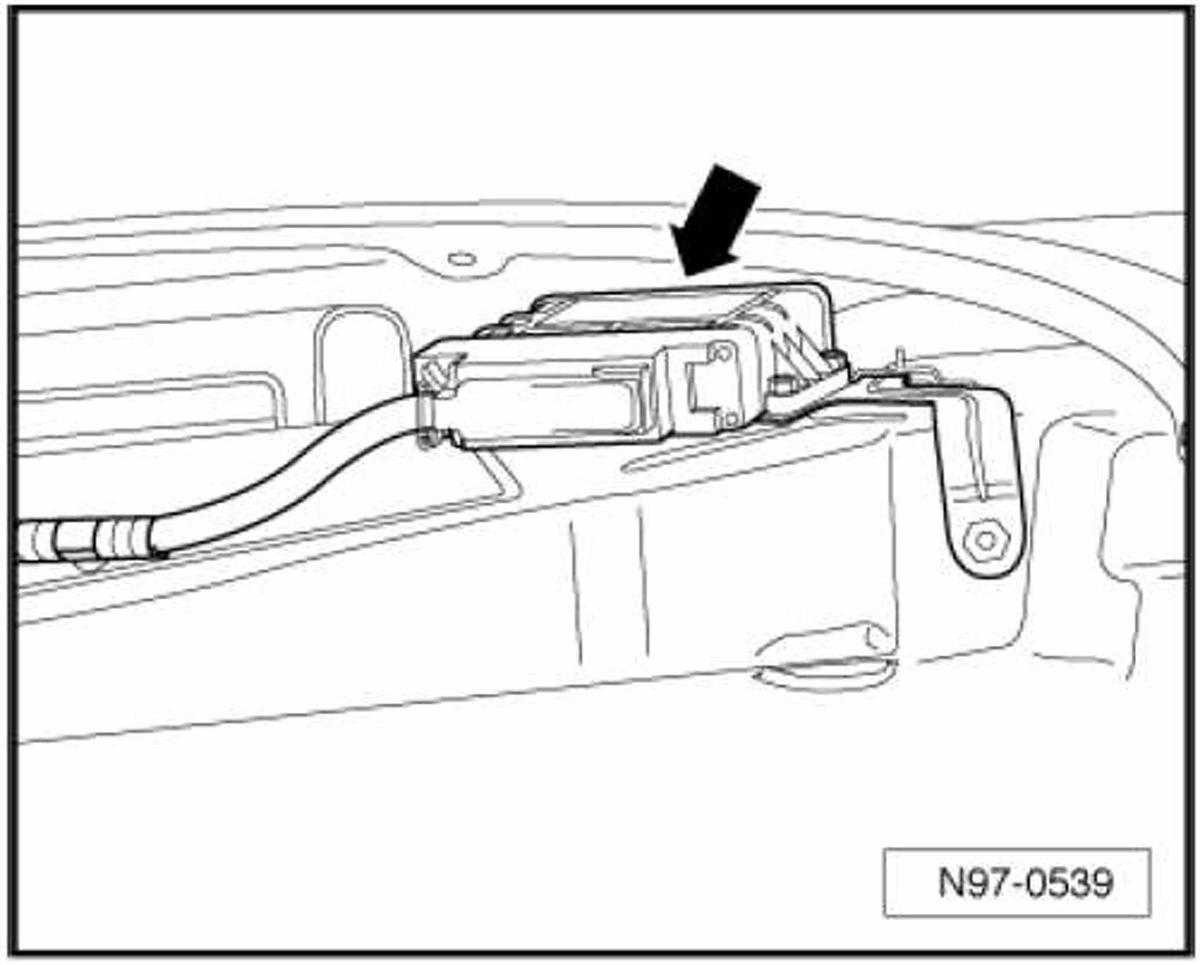

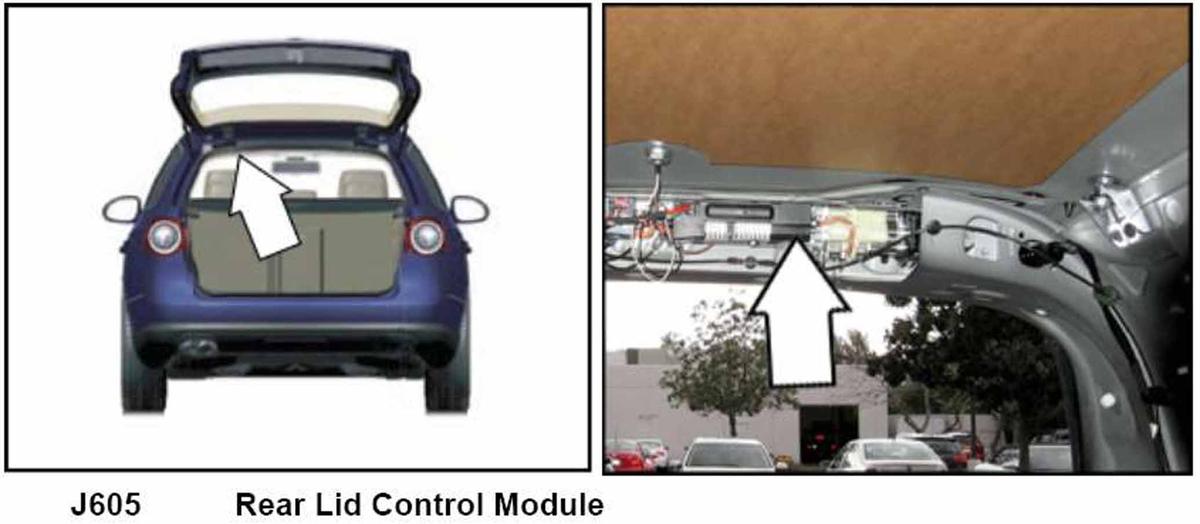

| Rear Lid Control Module | Left rear of roof. See Figure. |

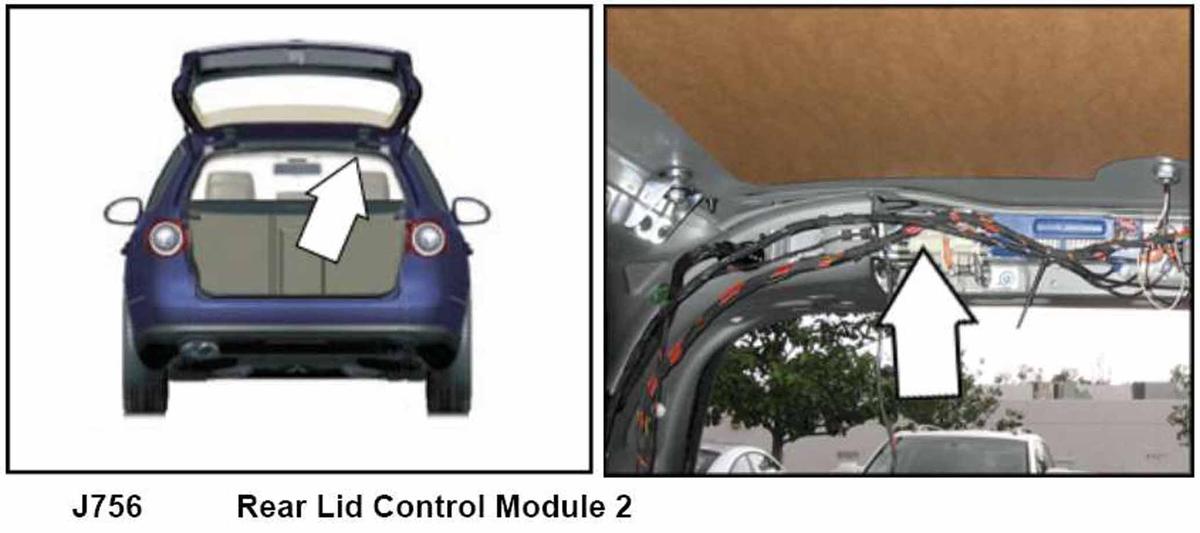

| Rear Lid Control Module 2 | Right rear of roof. See Figure. |

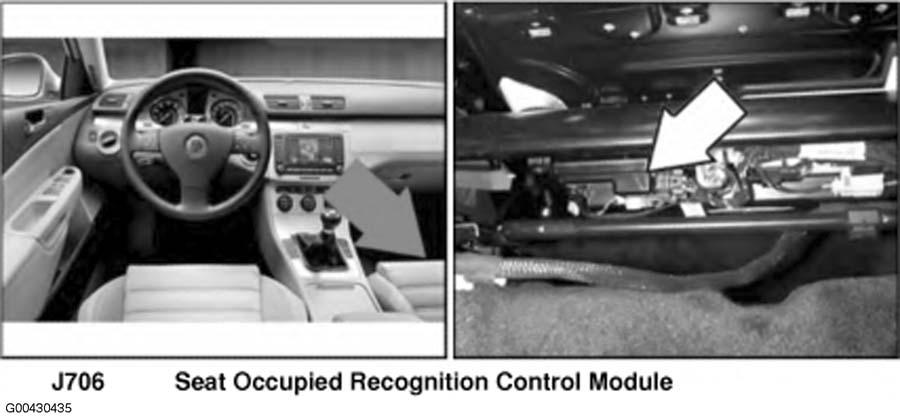

| Seat Occupied Recognition Control Module | Under front passenger's seat. See Figure. |

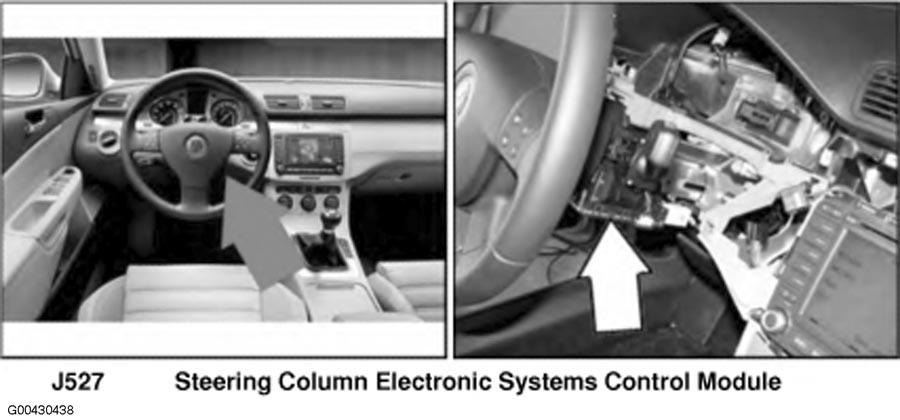

| Steering Column Electronic Systems Control Module | On steering column. See Figure. |

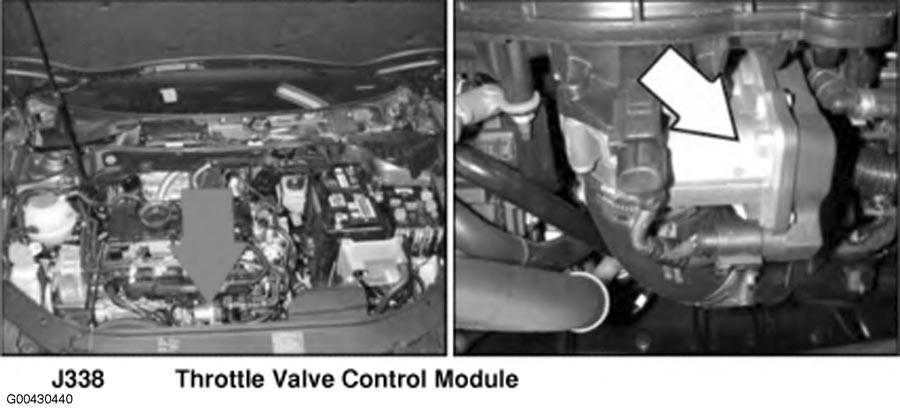

| Throttle Valve Control Module | On left side of engine. See Figure. |
| Transmission Control Module (TCM) | In left front wheelwell. See Figure. |

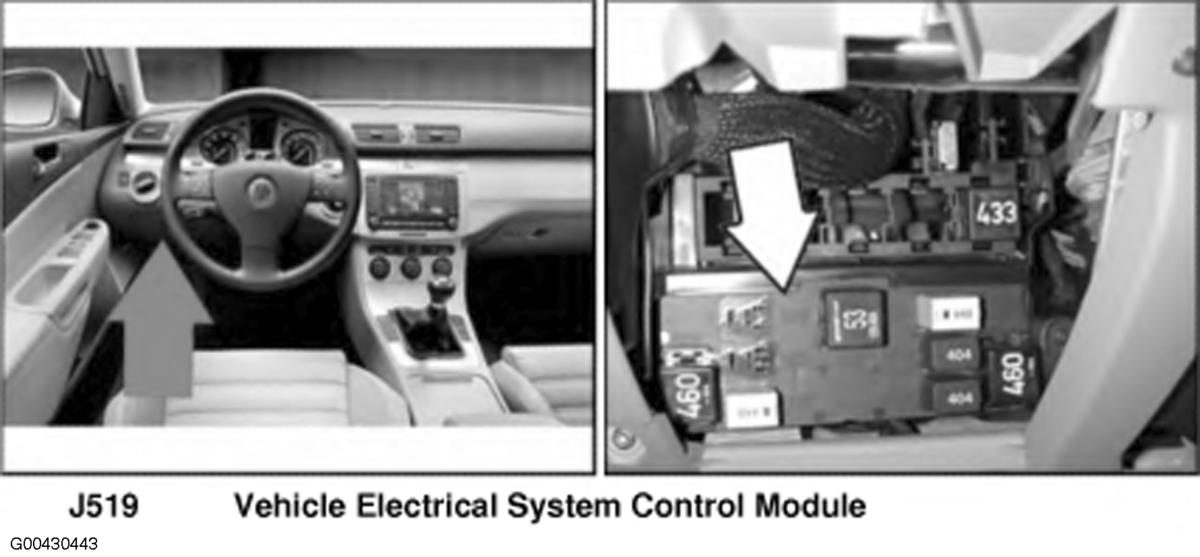

| Vehicle Electrical System Control Module | Behind left side of dash. See Figure. |

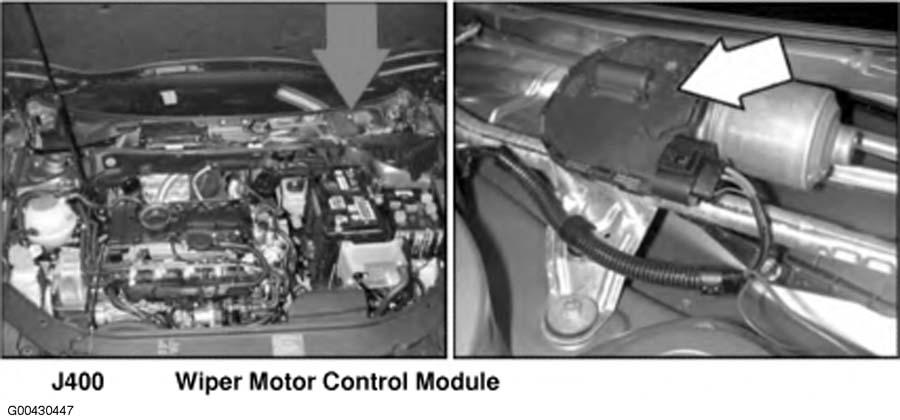

| Wiper Motor Control Module | In left side of plenum. See Figure. |
