Multimedia Control Module

Removing

Before starting repair work, perform the following:

-- Switch off ignition, switch off all electrical consumers and remove ignition key.

-- Remove drawer, or with corresponding equipment, both drawers under front right seat. Refer to Removal and Installation

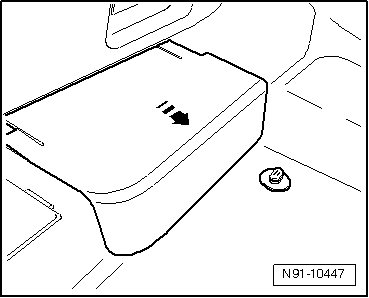

-- Remove cover under seat in -direction of arrow-.

Fig 1: Identifying Cover At Bottom Of Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

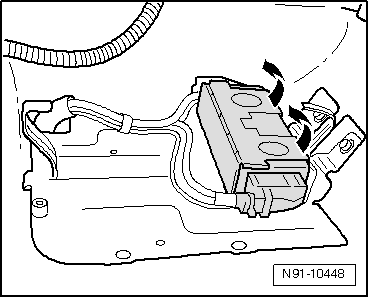

-- Fold mount bracket -arrows- up and remove control module.

Fig 2: Fold Mount Bracket Up

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

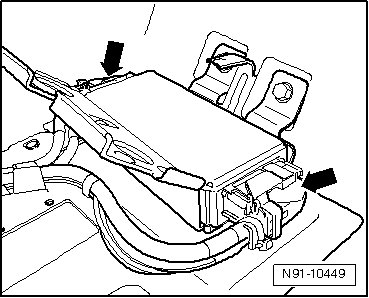

-- Disengage connectors -arrows- at control module and disconnect them.

Fig 3: Control Module Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove control module.

Installing

-- Installation is performed in the reverse order of removal.

-- If necessary, reinstall drawers. Refer to Removal and Installation

-- Finally, check multimedia system for functionality.

Special tools and workshop equipment required

Removing

The multimedia control module is located in the center console.

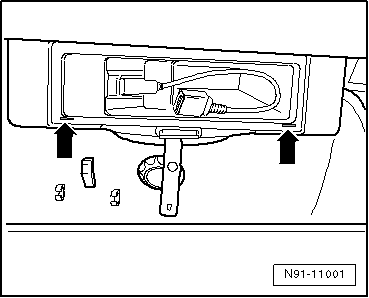

-- Insert the radio unlock tool T10057 into the provided openings -arrows- until it locks into place.

Fig 1: Inserting T10057 Into Provided Openings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

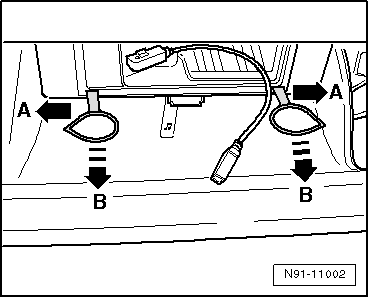

-- Press the tools in direction -A- and pull the control module in direction -B-.

Fig 2: Pressing Tools And Pulling Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

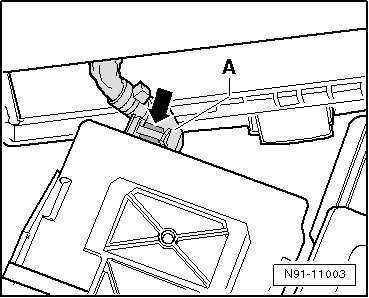

-- Release the connector -arrow- and pull the connector -A- off the control module.

Fig 3: Identifying Multimedia System Control Module Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
