Rearview Camera System Control Module

Control module is installed in luggage compartment behind right side wall trim.

Removing

-- Turn off the ignition and all electrical consumers and remove the key.

-- Remove the right side trim panel in the luggage compartment. Refer to Removal and Installation .

-- Release and disconnect both of the connections -1- and remove the control module -arrow- out of the mount.

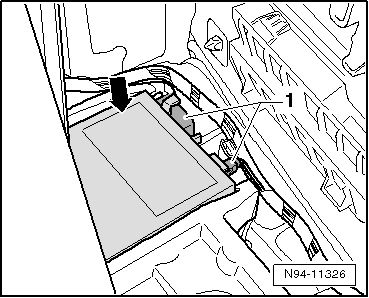

Fig 1: Identifying Control Module & Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.

Only if the control module was replaced

-- Calibrate the system again. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
