Amplifier -R12-: Removing

Perform the following steps before starting:

-- Turn off the ignition and all electrical consumers and remove the key.

-- Move the seat into the uppermost and furthest toward the rear position.

-- Unclip the lower cover from the seat in the -direction of the arrow-.

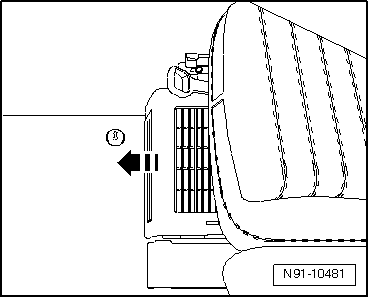

Fig 1: Identifying Cover On Seat At Bottom

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- from the amplifier.

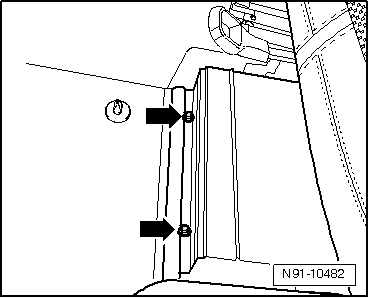

Fig 2: Identifying Bolts On Amplifier, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the amplifier far enough until the amplifier connectors are accessible.

-- Release and remove the connectors from the amplifier -arrows-.

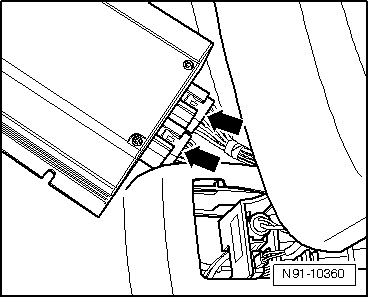

Fig 3: Identifying Electrical Connections At Amplifier

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the amplifier.
