External Audio Source Connection -R199-: Removing

-- Remove the center console extension. Refer to Removal and Installation .

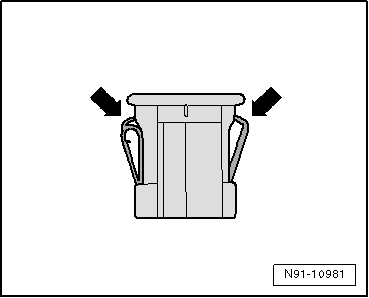

-- Press the clips -arrows- on the external audio source connection with the help of the Trim Removal Wedge 3409 together and remove the connection flange.

Fig 1: External Audio Source Connection Socket Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

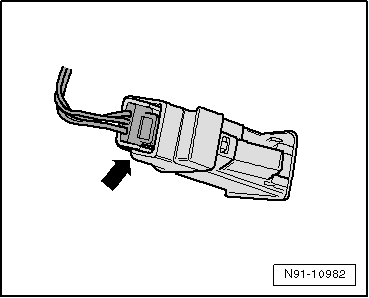

-- Disconnect the connector -arrow-.

Fig 2: External Audio Source Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
