Instrument Cluster: Assembly

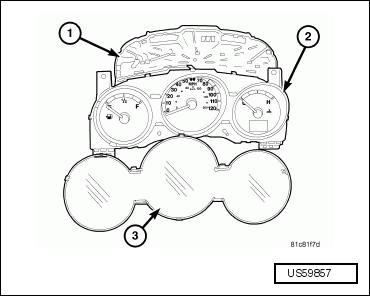

-- Position the cluster lens over the face of the cluster hood and mask unit. Be certain that the odometer/trip odometer switch push button is inserted through the clearance hole in the lens.
-- Working around the perimeter of the cluster, press the lens over the face of the hood and mask until each of the integral latch features is fully engaged in the receptacles of the hood and mask or the cluster housing.
-- Install the instrument cluster. Refer to INSTRUMENT CLUSTER .
-- Connect the negative battery cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
