Multi Media Control Module Overview

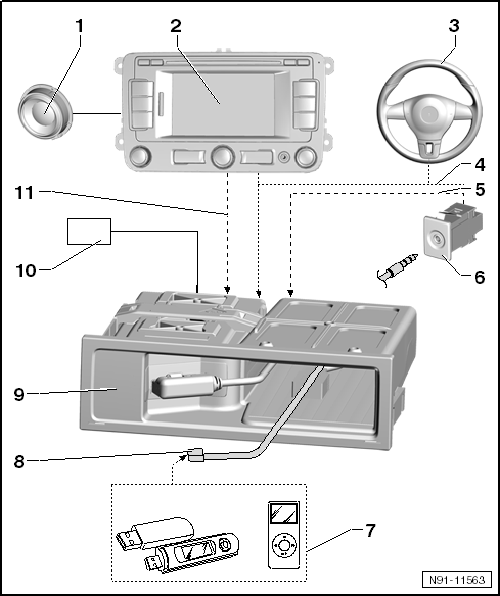

Fig 1: Multi Media Control Module Overview
GWWN91-11563Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Radio and Radio/Navigation System Speaker System
  2. Radio Or Radio/Navigation System
  3. Multifunction Steering Wheel
  4. Can Bus
  5. LF Line
    • The audio signal from the unit connected to the AUX IN socket runs through this wire and into the external multimedia device interface.
  6. AUX IN Socket
  7. Input Units For Connecting To The External Multimedia Device Interface -R215-
    • MP3-Player
    • Memory sticks
    • iPod player
    • Connection to the external multimedia device interface via the USB port
  8. Wire Connection To The External Multimedia Device Interface -R215-
    • In the form of specific adapter cables depending on the unit to be connected.
  9. External Multimedia Device Interface -R215-
  10. Positive and Negative Voltage Supply Connection For The External Multimedia Device Interface -R215-
  11. LF Line
    • The audio signal of the unit connected to the AUX IN socket runs from the multimedia interface into the AUX input of the radio or radio/navigation system.
