Antenna Module

Removing

Perform the following steps before starting:

-- Switch off ignition, switch off all electrical consumers and remove ignition key.

It is necessary to remove the rear lid trim panel first in order to be able to remove the antenna module.

-- Disconnect the connectors on the antenna module.

-- Remove screws -arrow-.

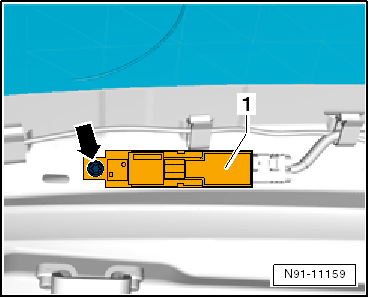

Fig 1: Identifying Antenna Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the antenna module in -direction of arrow- to the right and remove it from the rear lid.

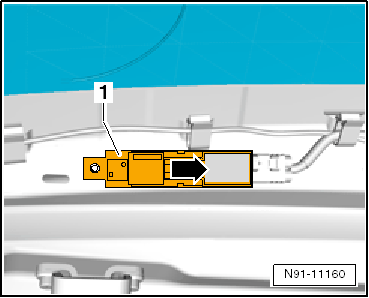

Fig 2: Identifying Antenna Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
