Control Module In Steering Wheel

Removing

Removal and installation is identical for right and left button block.

-- Remove the driver side airbag. Refer to Removal and Installation .

-- Remove screw -arrow-.

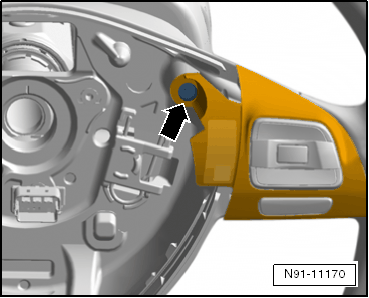

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove button block.

-- Disconnect the connector -arrow-.

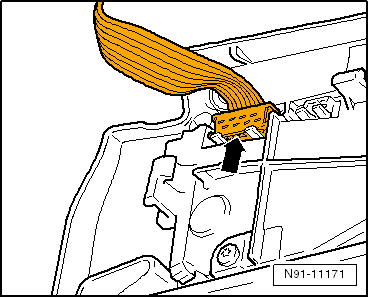

Fig 2: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.

NOTE:

Make sure to route the wires between both blocks of buttons as illustrated -arrows-.

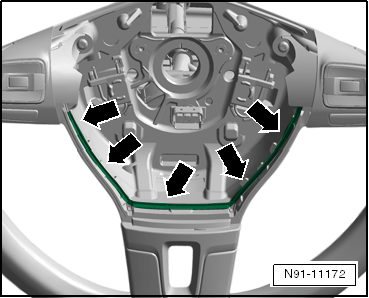

Fig 3: Locating Routed Wire

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Make sure the black connector is connected to the left block of buttons -arrow-.

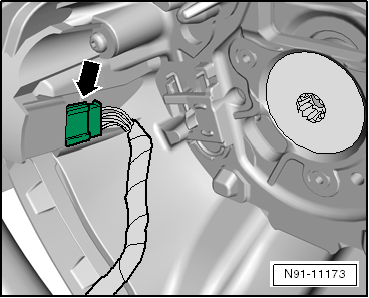

Fig 4: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Code Control unit for the steering column electronics, refer to MULTIFUNCTION STEERING WHEEL, ADAPTING .
