Instrument Cluster Multi-Pin Connector Pin Assignment

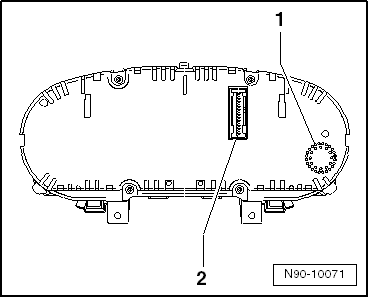

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Buzzer
2. 32-pin connector

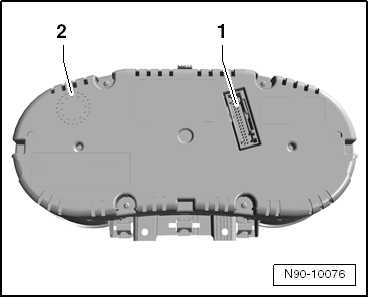

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. 32-pin connector
2. Buzzer

Do not disassemble Instrument Cluster -KX2-. If necessary, replace the entire Instrument Cluster -KX2-.

Connector assignment for the connector on the Instrument Cluster -KX2-. Refer to the appropriate WIRING DIAGRAM.
