Engine Number/Engine Specifications

Engine number ("engine code" and "serial number") is located next to vibration damper -arrow- on cylinder block.

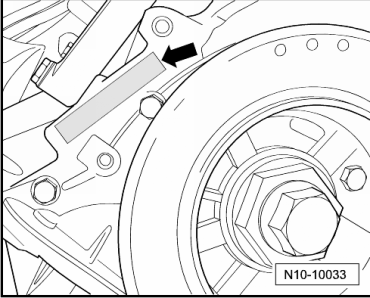

Fig 1: Identifying Engine Number Located Next To Vibration Damper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

In addition, a label with the "engine code" and "serial number" is affixed to the intake manifold.

The first three digits describe the mechanical structure of the engine and are stamped on the engine. The fourth letter describes the engine torque and output and is dependent on the engine control module. Four-digit engine codes are found on the type label and vehicle data label. It can also be read via the engine control module.

Engine Specifications
