Component Location Overview - Control Modules

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

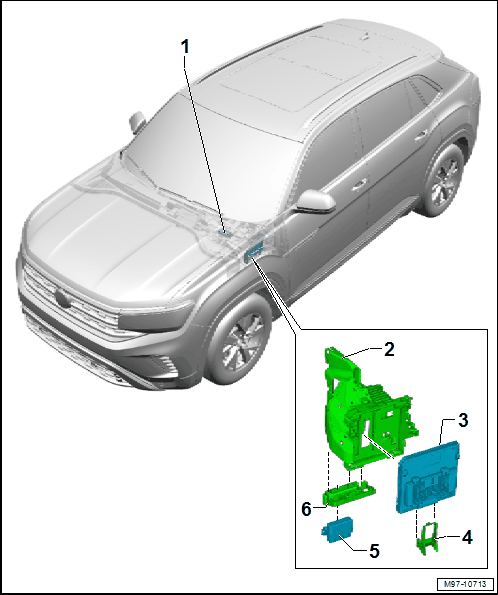

1. Data Bus on Board Diagnostic Interface -J533-
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
2. Bracket
   • For the Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
3. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
4. Guide
   • For the center connector
5. Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
   • Parking Aid Control Module -J446- Overview. Refer to Parking Aid / Parallel Parking Assist / Autonomous Parking .
   • Parallel Parking Assistance Control Module -J791- Overview. Refer to Parking Aid / Parallel Parking Assist / Autonomous Parking .
6. Bracket
   • For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
   • Removing and installing. Refer to PARKING AID / PARALLEL PARKING ASSISTANCE CONTROL MODULE, REMOVING AND INSTALLING .
7. Garage Door Opener Control Module -J530-
   • Removing and Installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
