All Models

While rotating hub, torque nut to 50 ft. lbs. Loosen nut 1/3 turn and check for hub rotating freely with no end play. If necessary to align cotter key holes loosen nut and install cotter key.

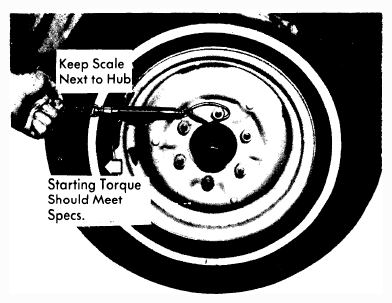

Fig 1: Using a Pull Scale to Measure Wheel Bearing Starting Torque

Courtesy of VOLVO CARS CORPORATION

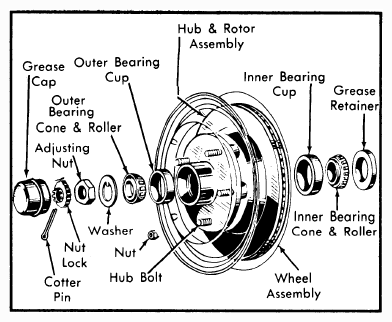

Fig 2: Exploded View of Wheel Bearing Components with Disc Brakes

Courtesy of VOLVO CARS CORPORATION
