Home >> Volvo >> 1978 >> 264 Automatic Trans >> Repair and Diagnosis >> Maintenance >> Procedures >> Wheel Bearing Adjustment >> VOLVO >> All Models

All Models

While rotating hub, torque nut to 50 ft. lbs. Loosen nut 1/3 turn and check for hub rotating freely with no end play. If necessary to align cotter key holes loosen nut and install cotter key.

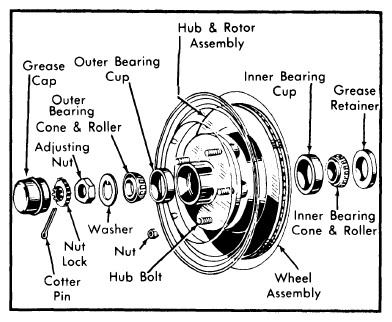

Fig 1: Exploded View of Wheel Bearing Components with Disc Brakes
G09329977Courtesy of VOLVO CARS CORPORATION
