All Models

While rotating hub, torque nut to 50 ft.lbs. (6.9 mkg). Loosen nut 1/3 turn and check for hub rotating freely with no end play. If necessary to align cotter pin holes, loosen nut and install cotter pin.

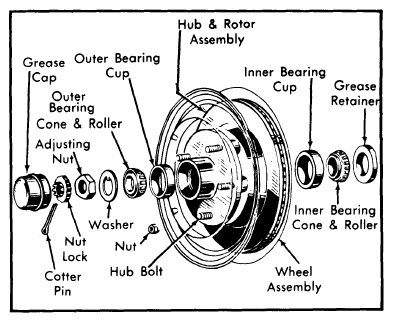

Fig 1: Exploded View of Wheel Bearing Components with Disc Brakes

Courtesy of VOLVO CARS CORPORATION
