Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Constant Idle Speed (CIS) Control Unit (Turbo) | Behind right kick panel, below EFI control unit. See Figure . |

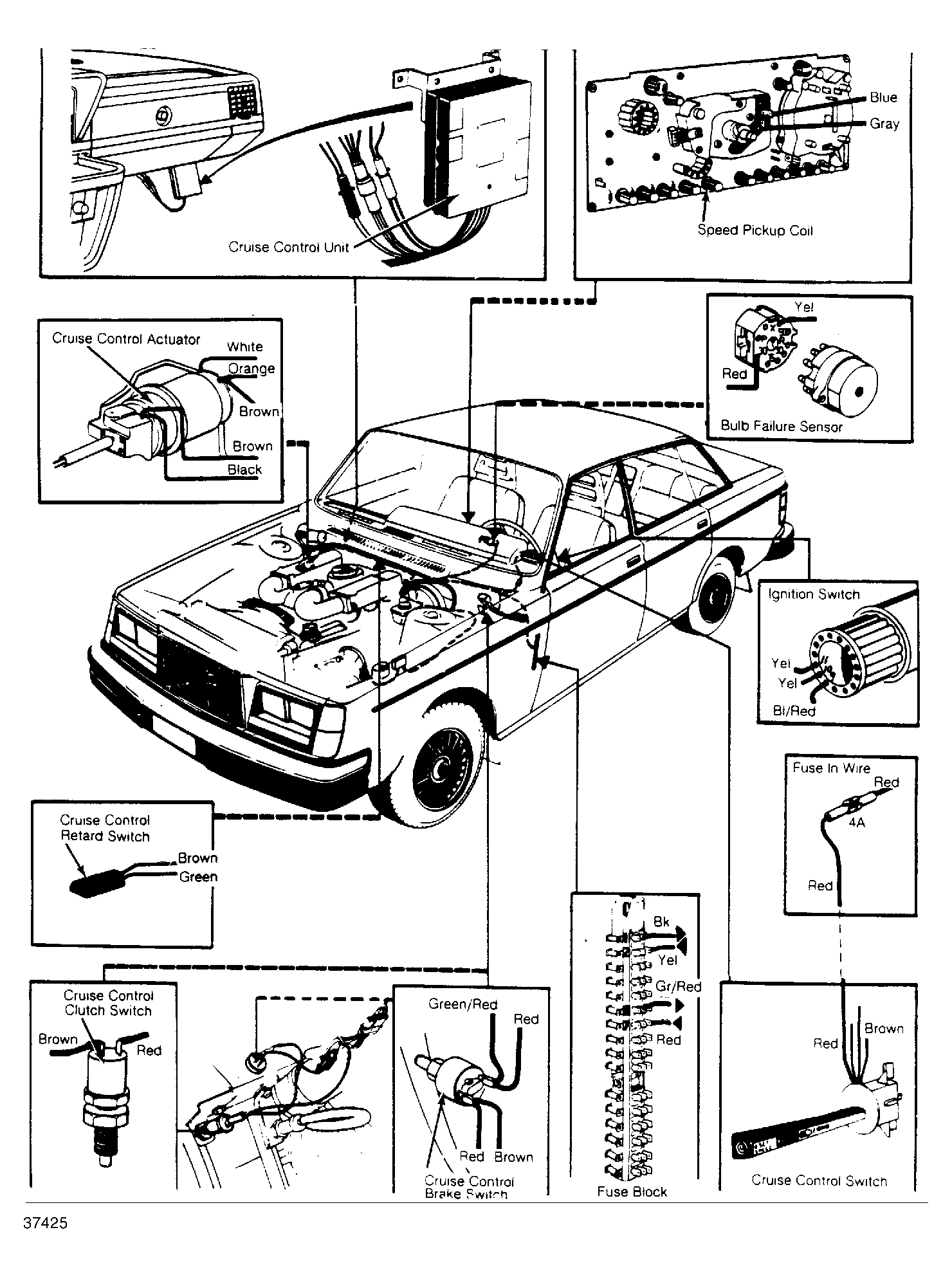

| Cruise Control Unit | Under right side of instrument panel. See Figure . |
| Diesel Control Unit | At top of left kick panel. See Figure . |

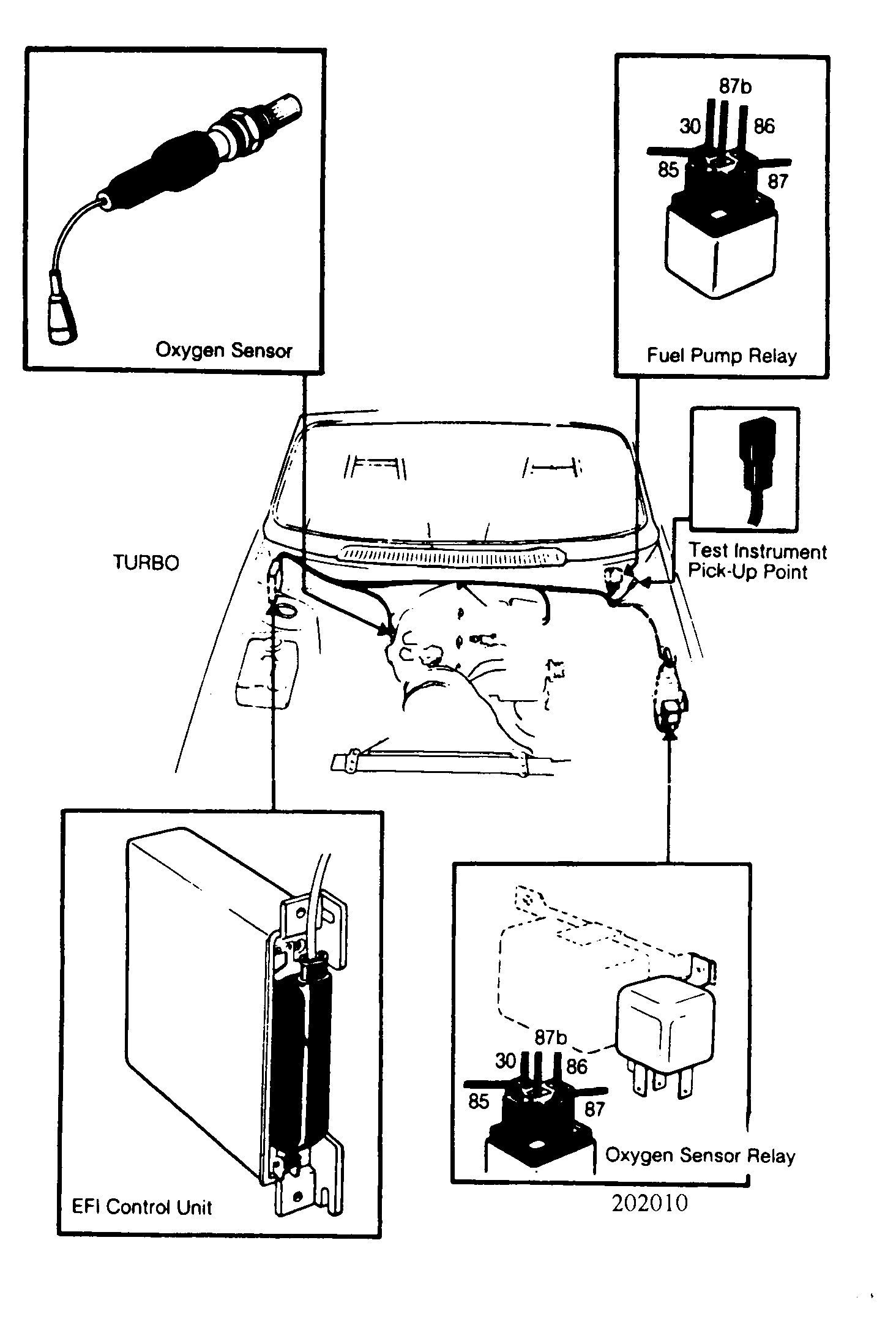

| EFI Control Unit, (Graphic 2) | Behind right kick panel. See Figure , Figure & Figure . |

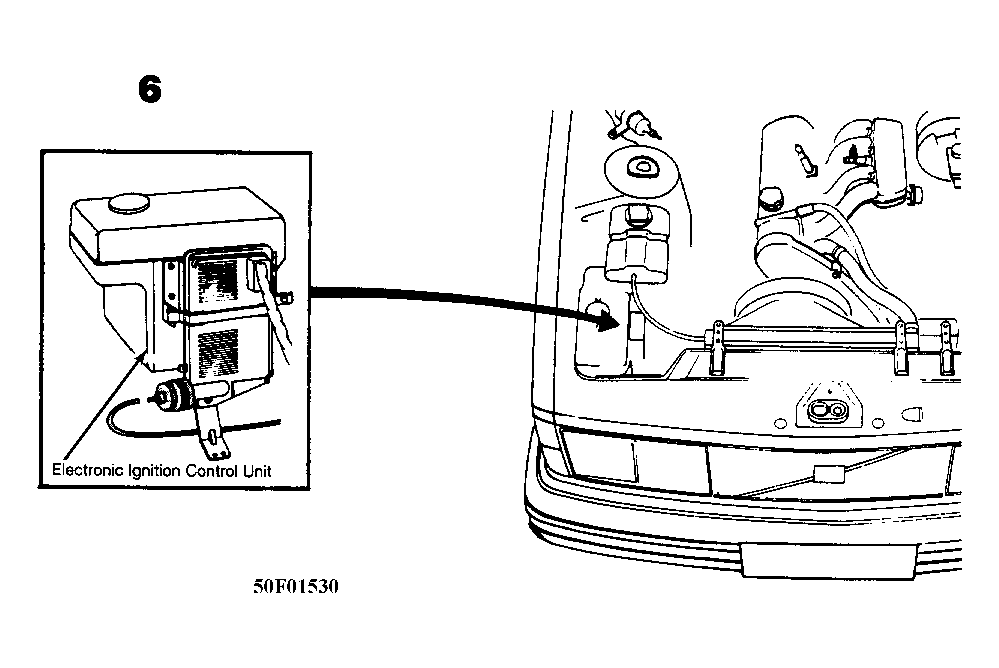

| Electronic Ignition Control Unit | At right front corner of engine compartment. See Figure . |

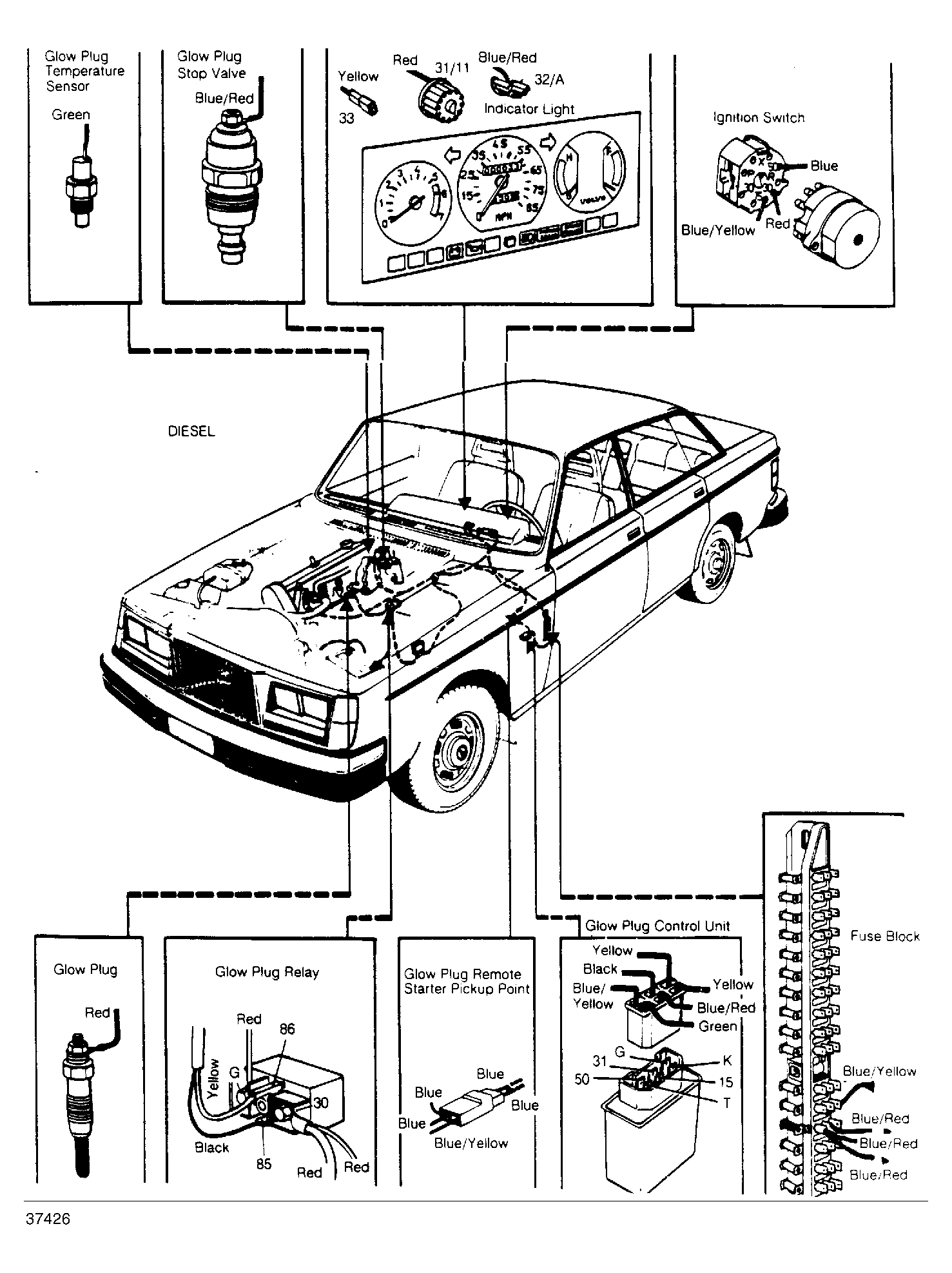

| Glow Plug Control Unit | On rear of left inner fender panel in engine compartment. See Figure . |
| Fuel Pump Relay (Turbo Models) | Behind left side of dashboard. |
