Service Point Locations

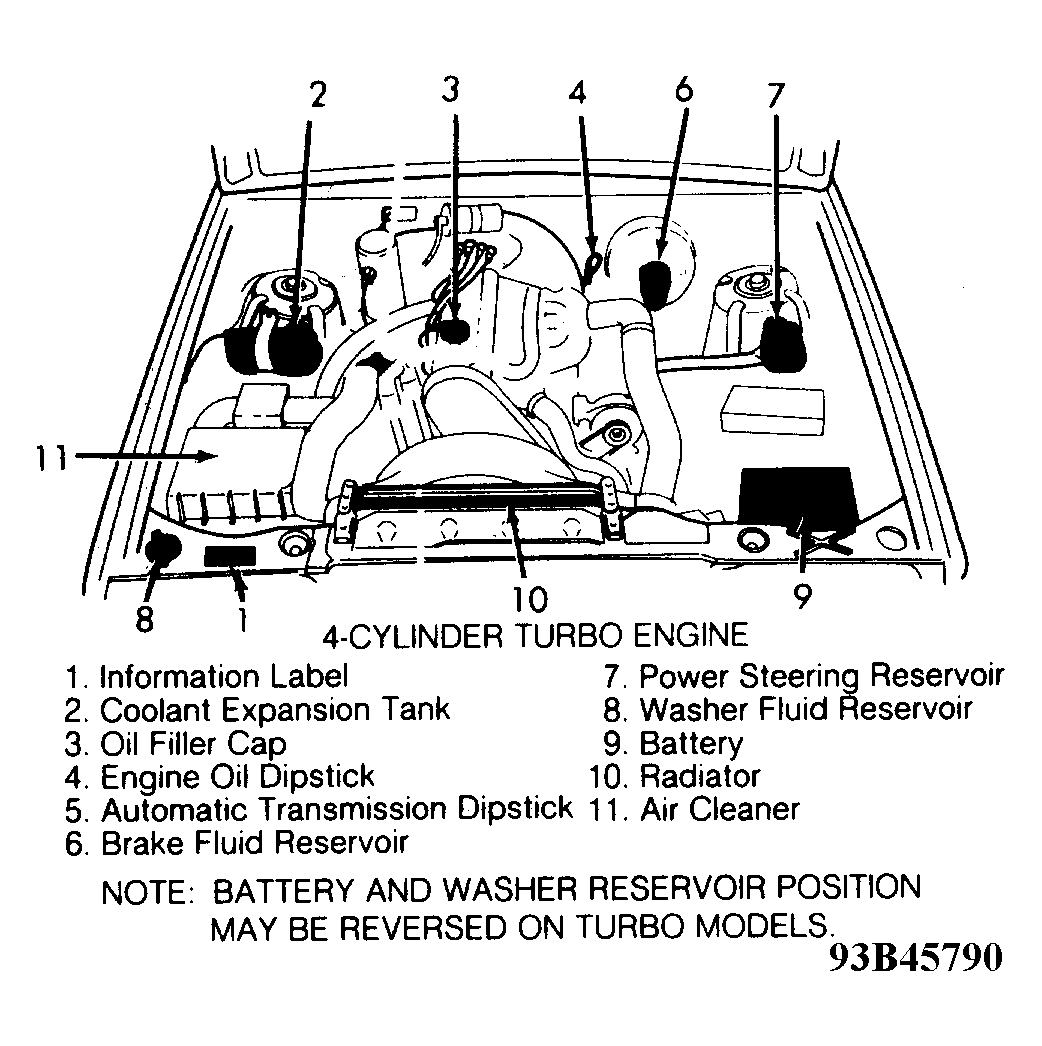

Fig 1: Service Point Locations (2.3L 4-Cyl. Turbo)

Courtesy of VOLVO CARS OF NORTH AMERICA.

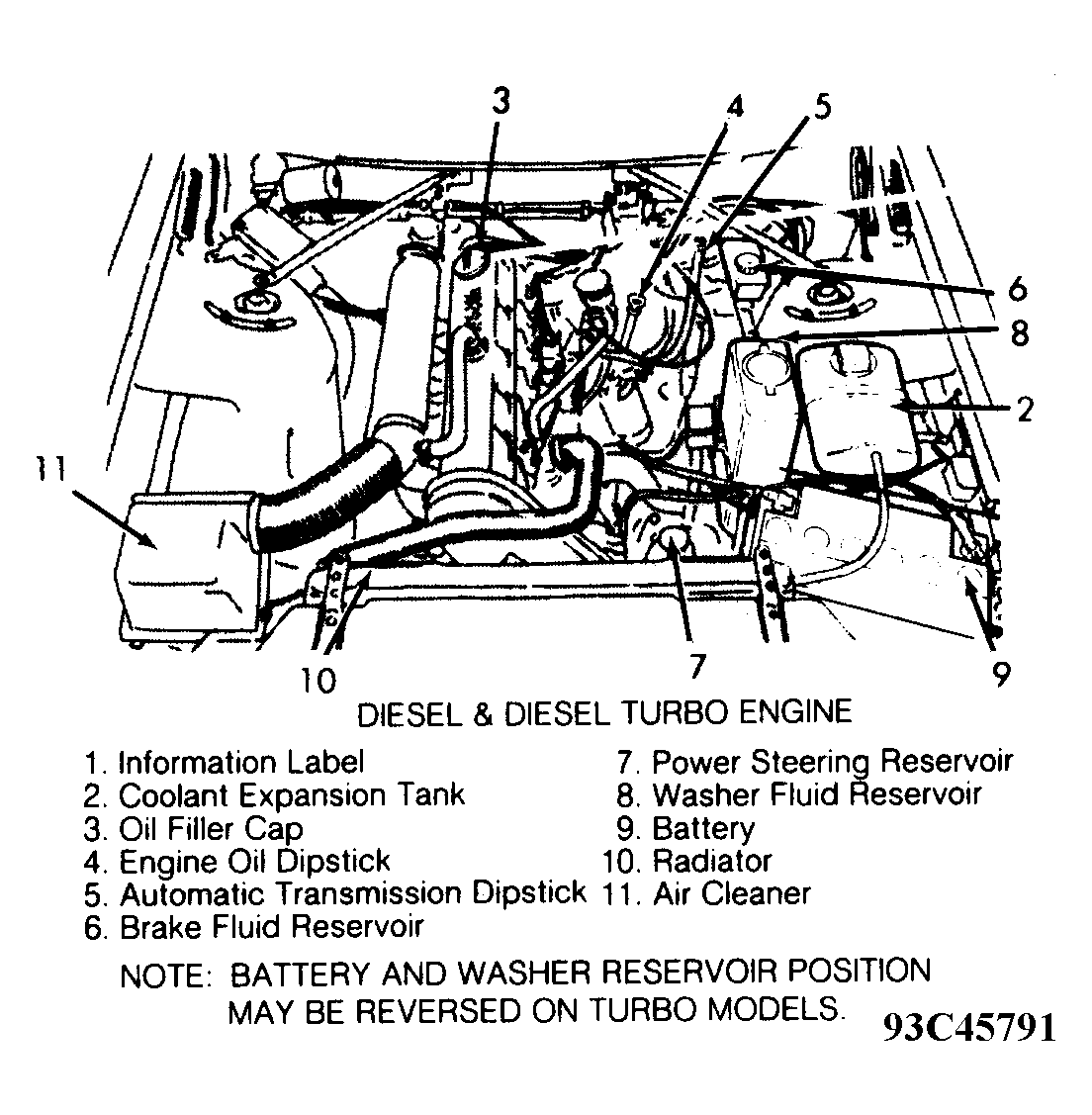

Fig 2: Service Point Locations (Diesel Engine)

Courtesy of VOLVO CARS OF NORTH AMERICA.

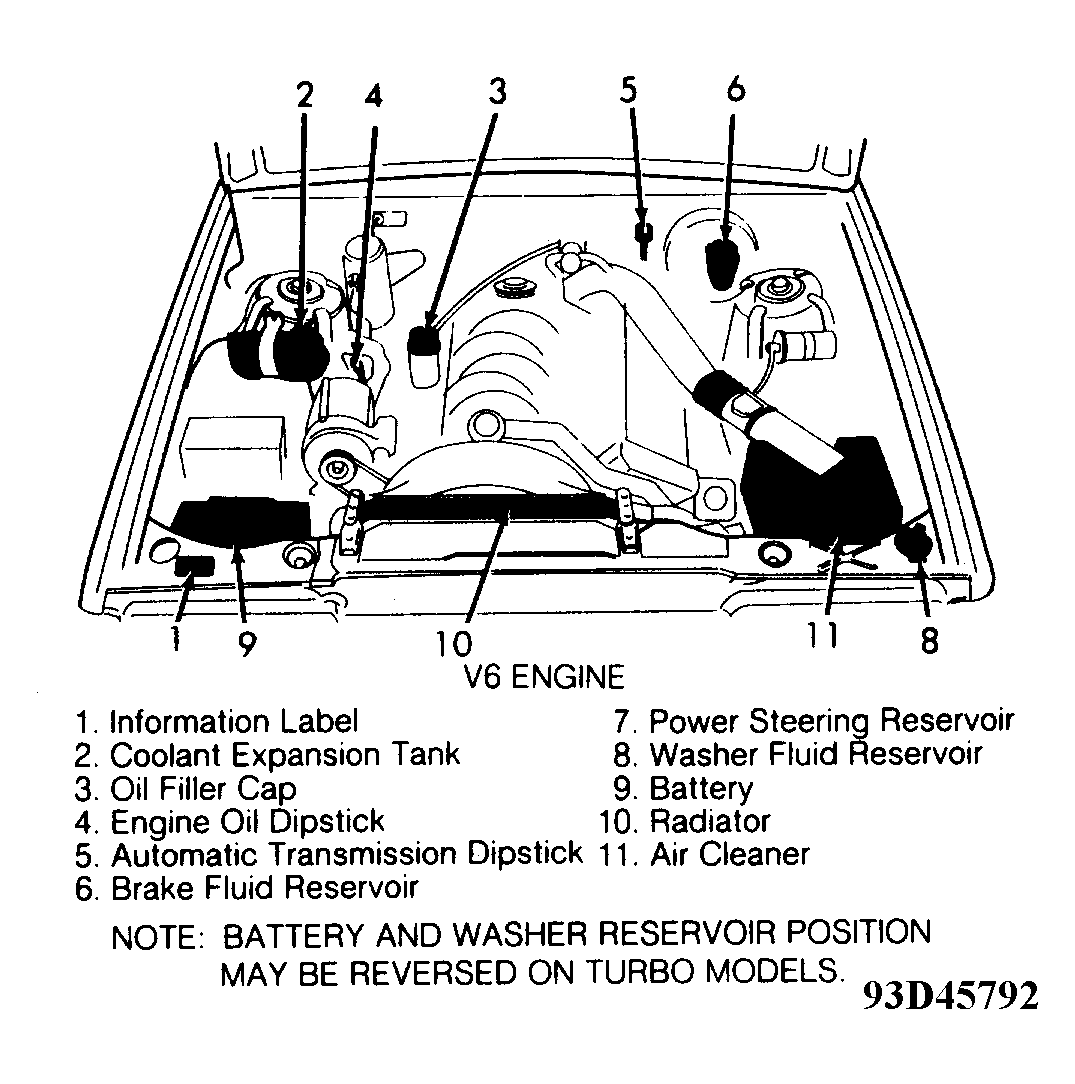

Fig 3: Service Point Locations (2.8L V6)

Courtesy of VOLVO CARS OF NORTH AMERICA.
