Suspension Torque Specifications

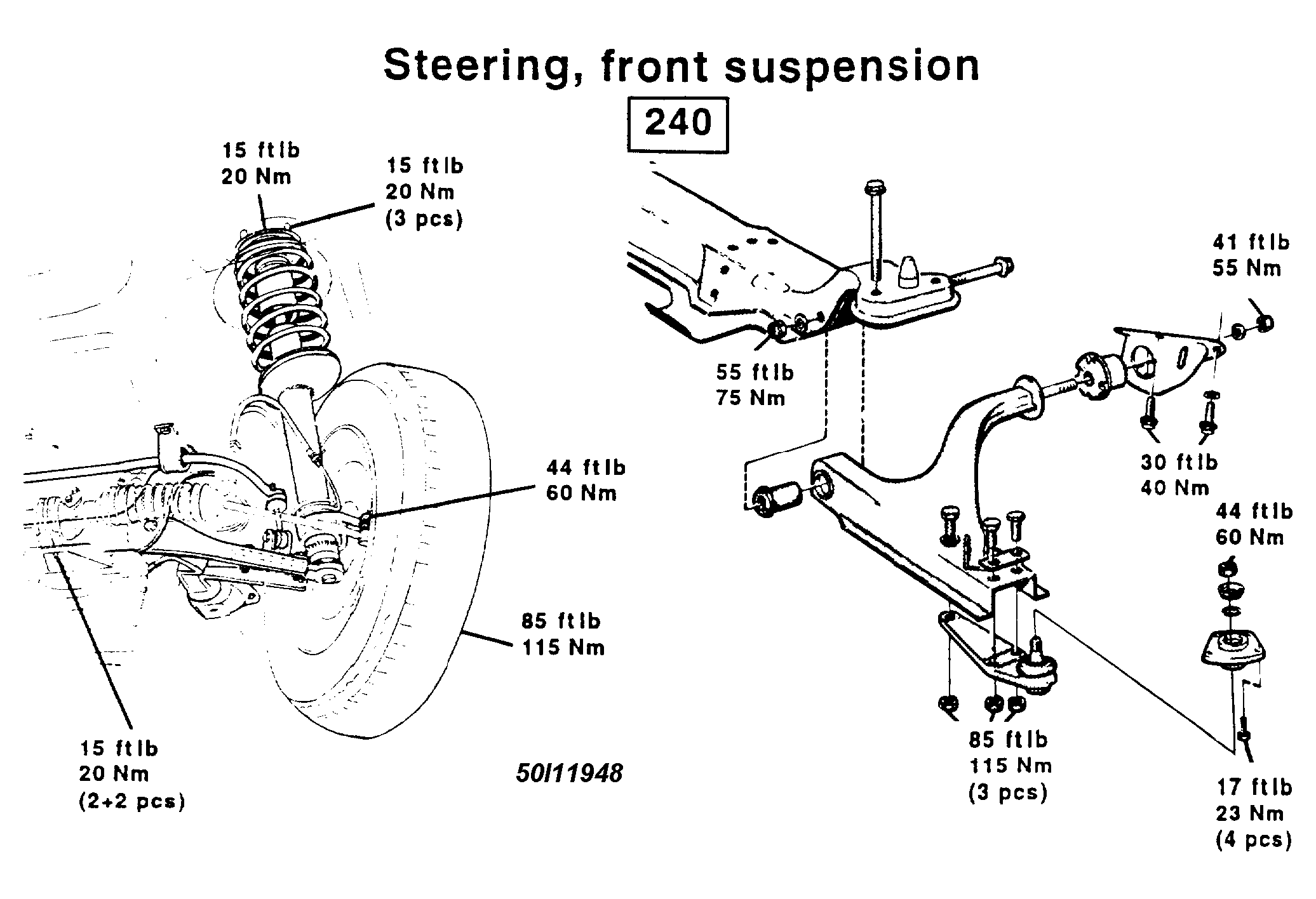

Fig 1: Front Suspension Torque Specifications (Typical)

Courtesy of VOLVO CARS OF NORTH AMERICA

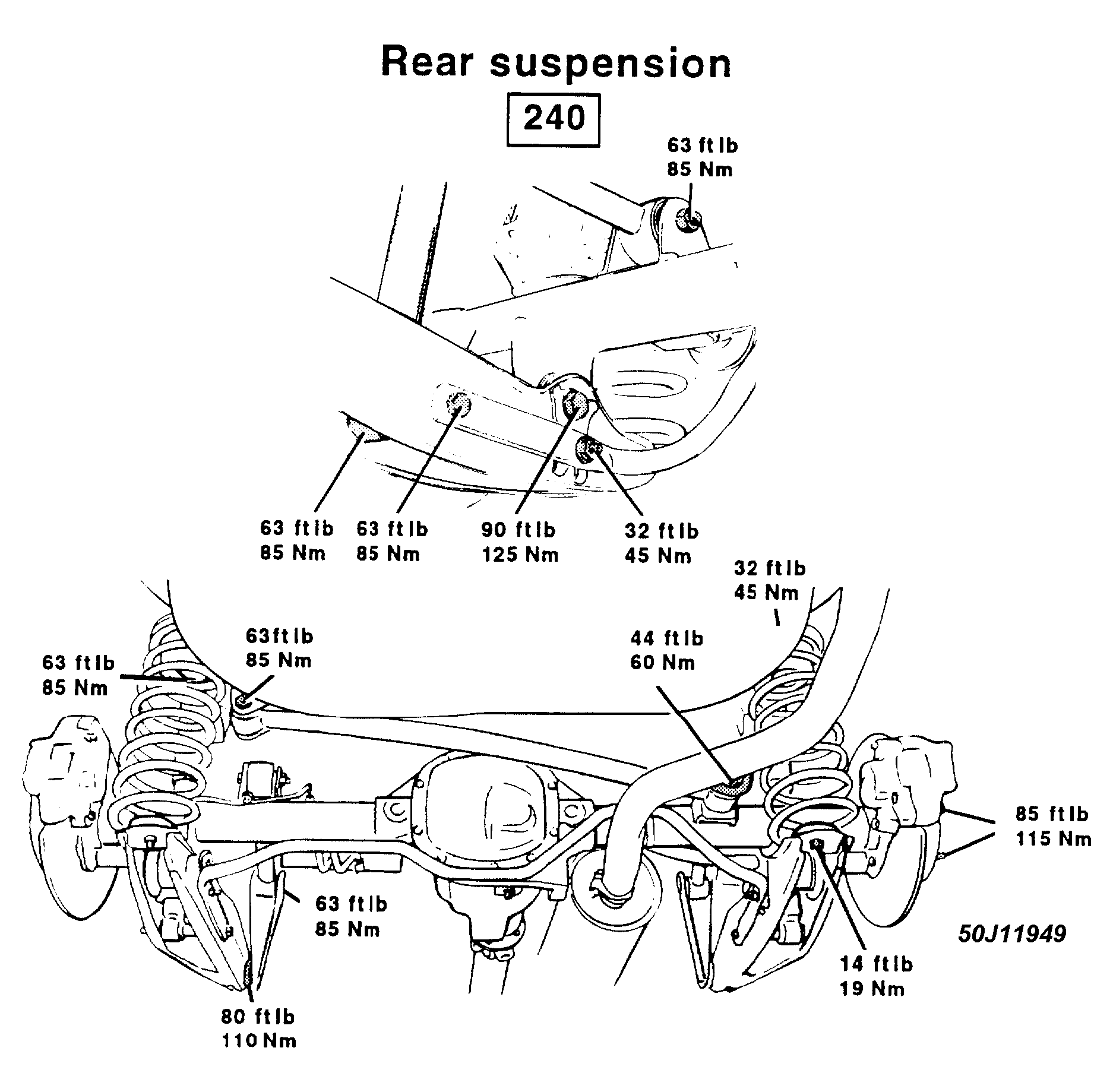

Fig 2: Rear Suspension Torque Specifications (Typical)

Courtesy of VOLVO CARS OF NORTH AMERICA
