Circuit Checks: Notes
NOTE:

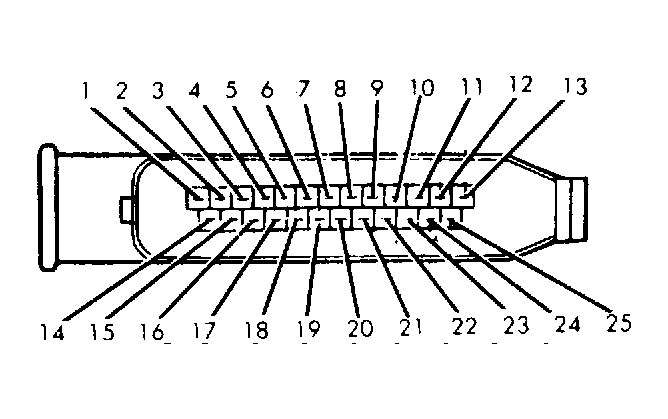

Unless otherwise mentioned, the connector referenced in following checks is the control unit (ignition ECU) connector. See
Figure
.
