Anti-Lock Brake System: Fuses

On 740 Series, check fuses No. 9 and No. 10. On 760 Series, check fuses No. 21, 22 and 23. On 740 and 760 Series, check 80-amp fuse at top of right side wheelwell. Check 10-amp transient surge protector fuse, mounted on bracket near ECU.

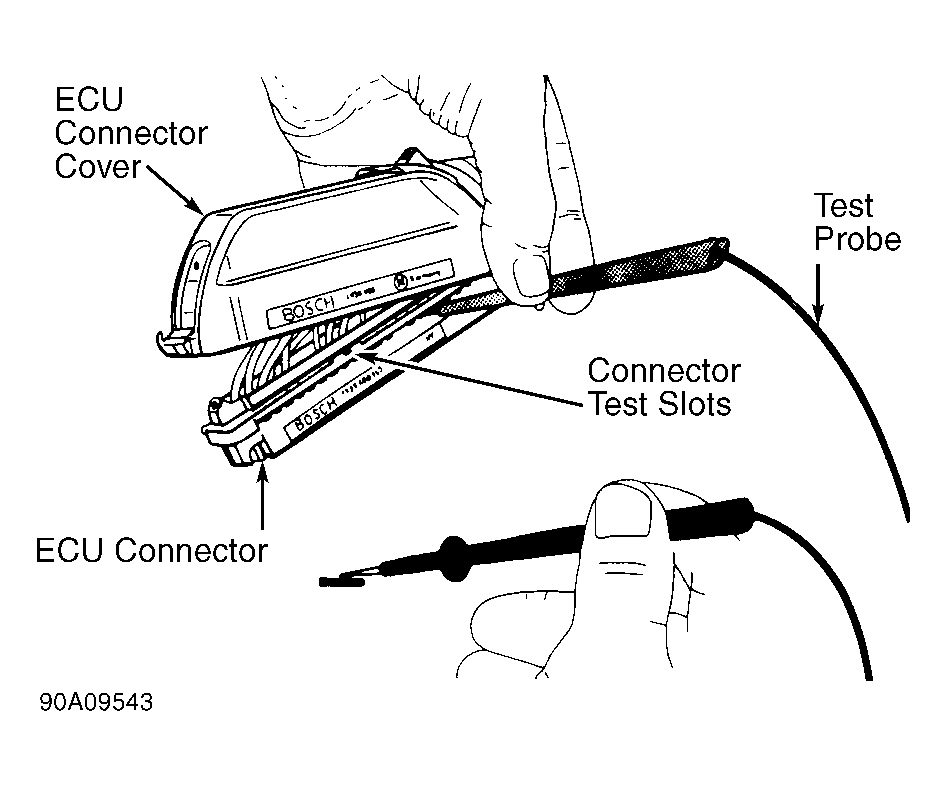

Fig 1: Accessing ECU Connector Test Slots
G90A09543Courtesy of VOLVO CARS OF NORTH AMERICA.
