Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Electronic Climate Control Unit | Under right side of dash, on A/C-heater housing. |
| ABS Control Unit | Under left side of dash, above hood release handle. |
| Cooling Fan Control Unit | Under left side of dash. |
| Cruise Control Unit | Under left side of dash, behind driver's kick panel. |
| Fuel Injection Control Unit | Under right side of dash, behind passenger's kick panel. |
| Heated Seat Control Units | Under driver's seat and passenger's seat. |
| Ignition Control Unit | Under left side of dash, above steering column. |

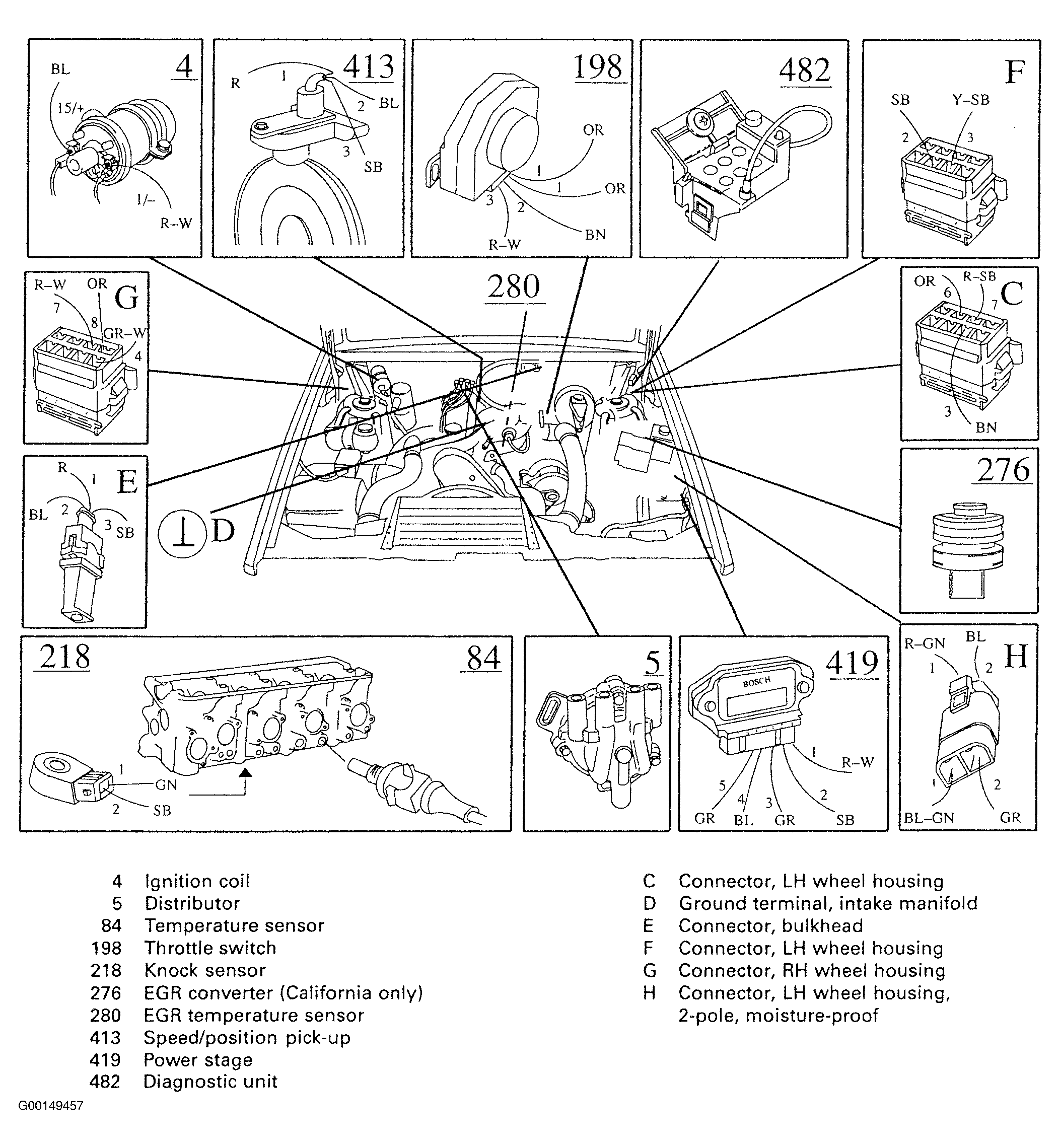

| Ignition Power Stage Unit (740) | In engine compartment, on left inner fender. See Figure . |
| MCC Climate Control Module | Behind right side kick panel. |
| SRS Stand-By Power Unit | In floor cavity, under driver's seat. |
