Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | ||
| 1989-90 | Behind glove compartment, on right side of dash. | |
| 1991-92 | Under right front seat. | |
| Cruise Control Unit | At base of steering column. | |

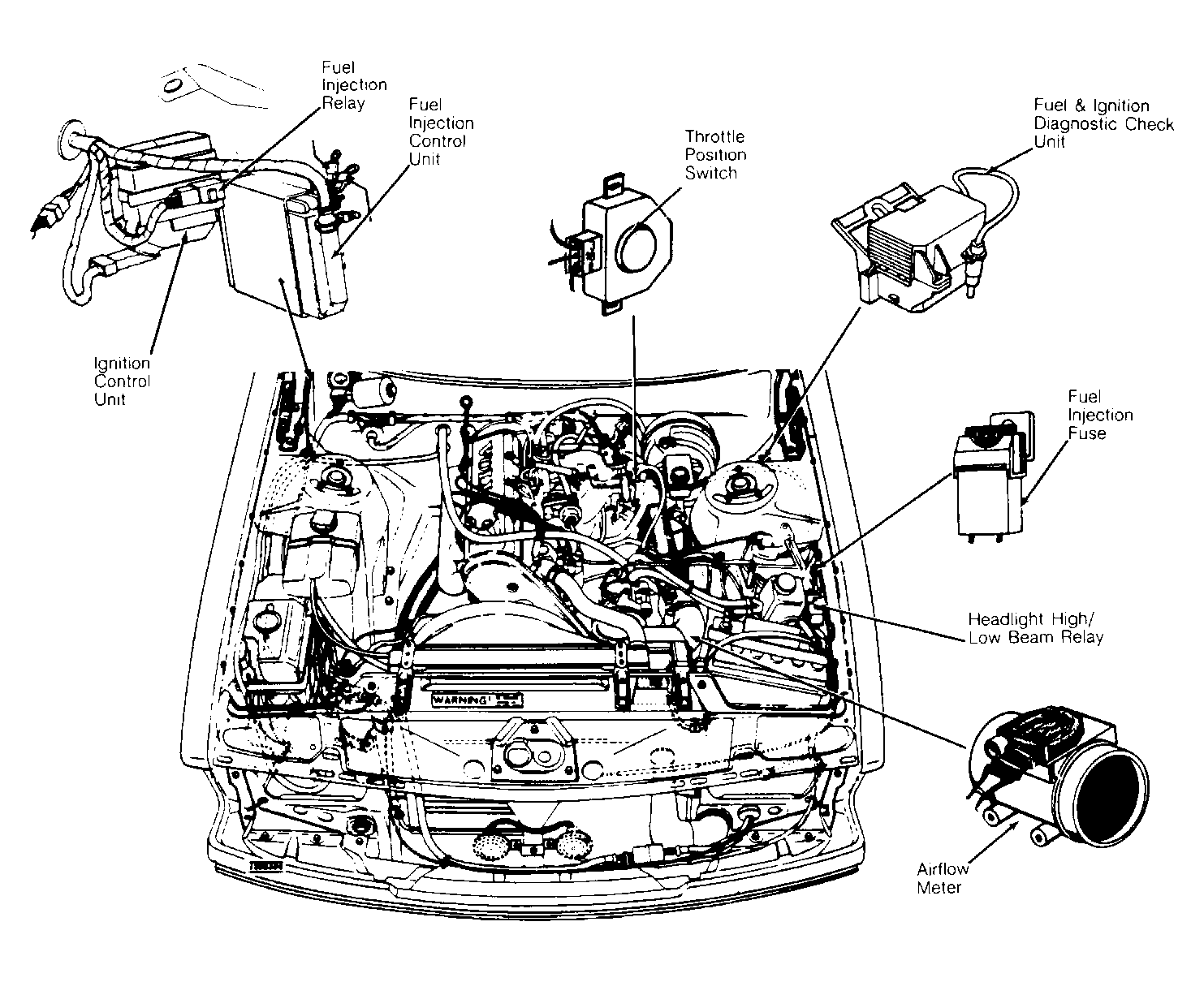

| Fuel Injection (LH-Jetronic) Control Unit | Under right side of dash, behind passenger's kick panel. See Figure . | |
| Ignition Control Unit | Under right side of dash, behind passenger's kick panel. See Figure . | |
| Ignition System, Power Stage | Left front corner of engine compartment, near battery. | |

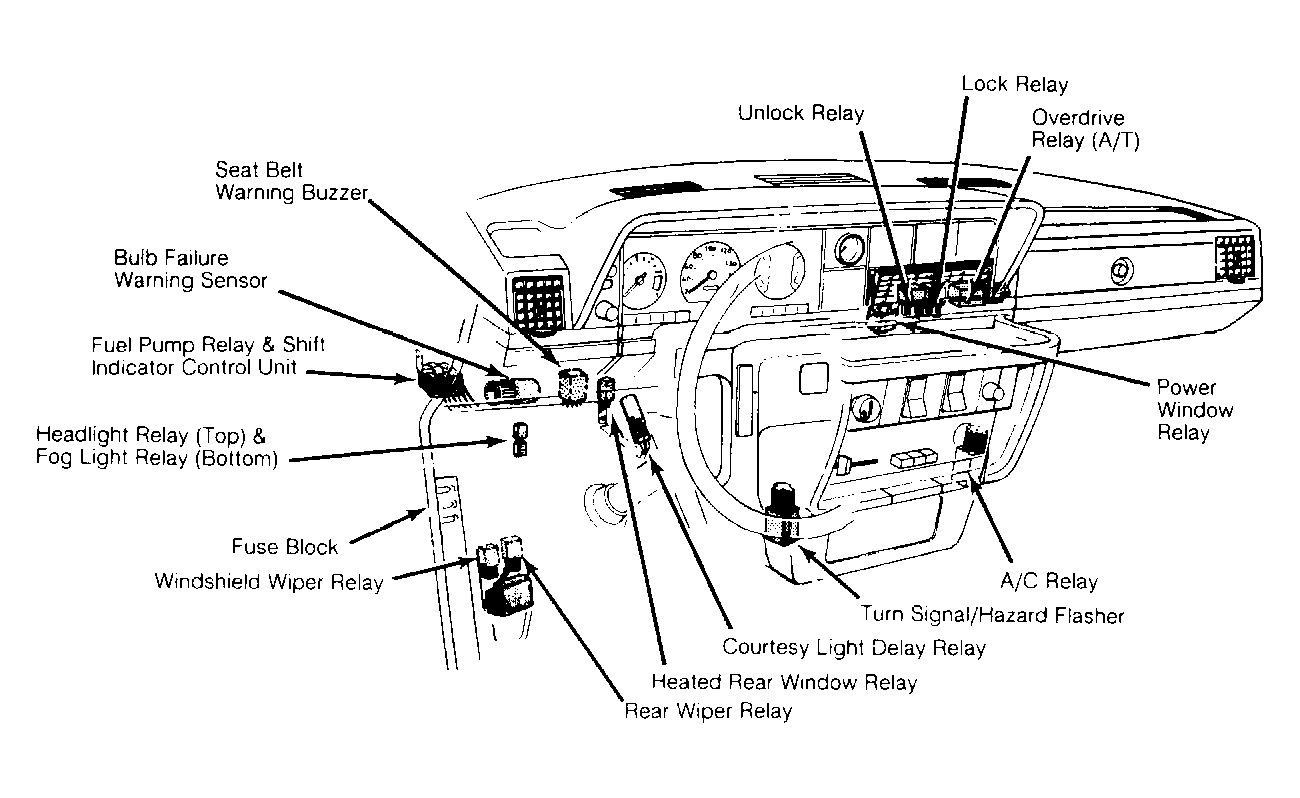

| Shift Indicator Control Unit | Under left side of dash, above fuse block. See Figure . | |
