Service Point Locations: Notes

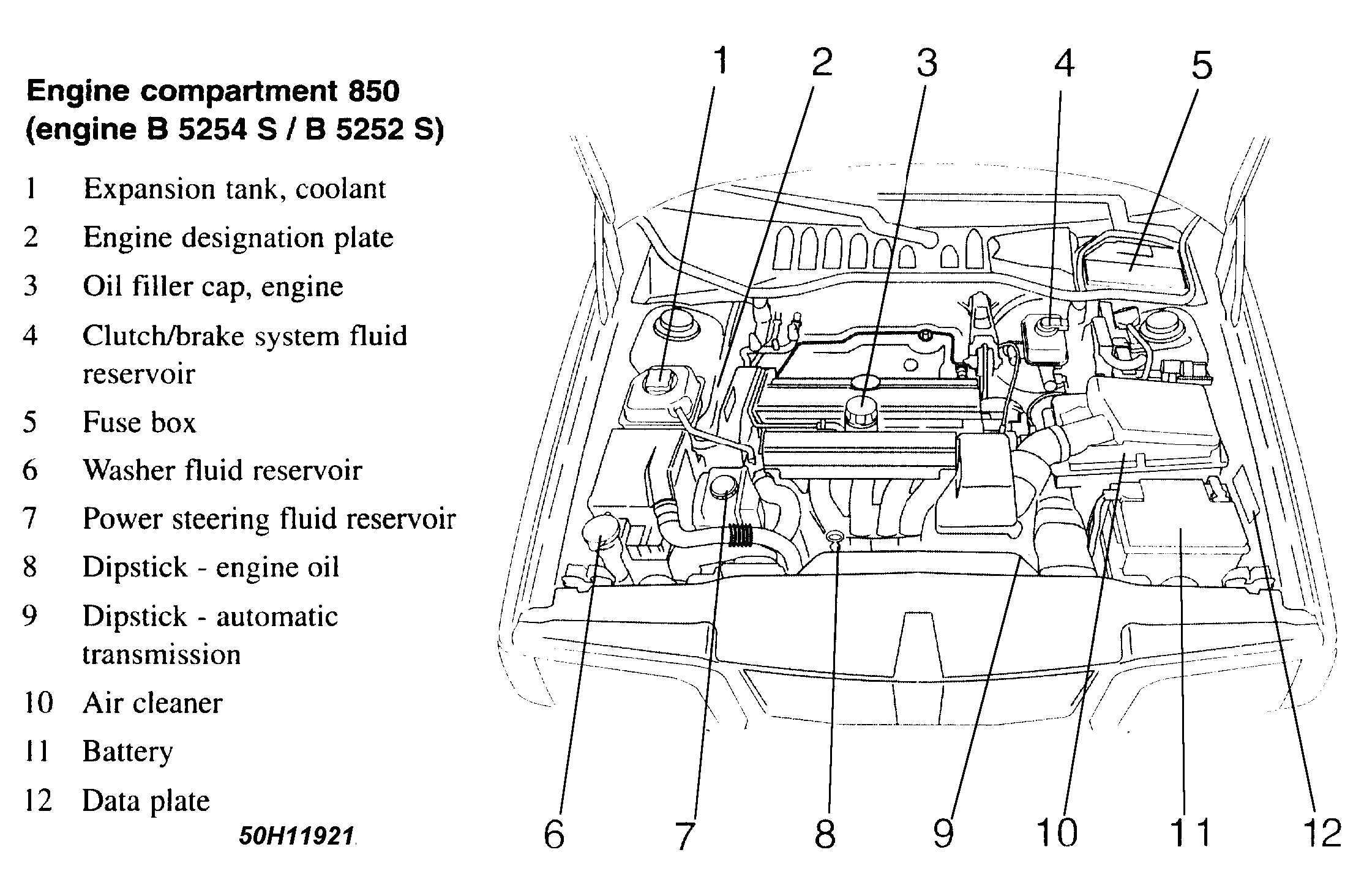

Fig 1: Service Point Locations (Non-Turbo)
G50H11921Courtesy of VOLVO CARS OF NORTH AMERICA.

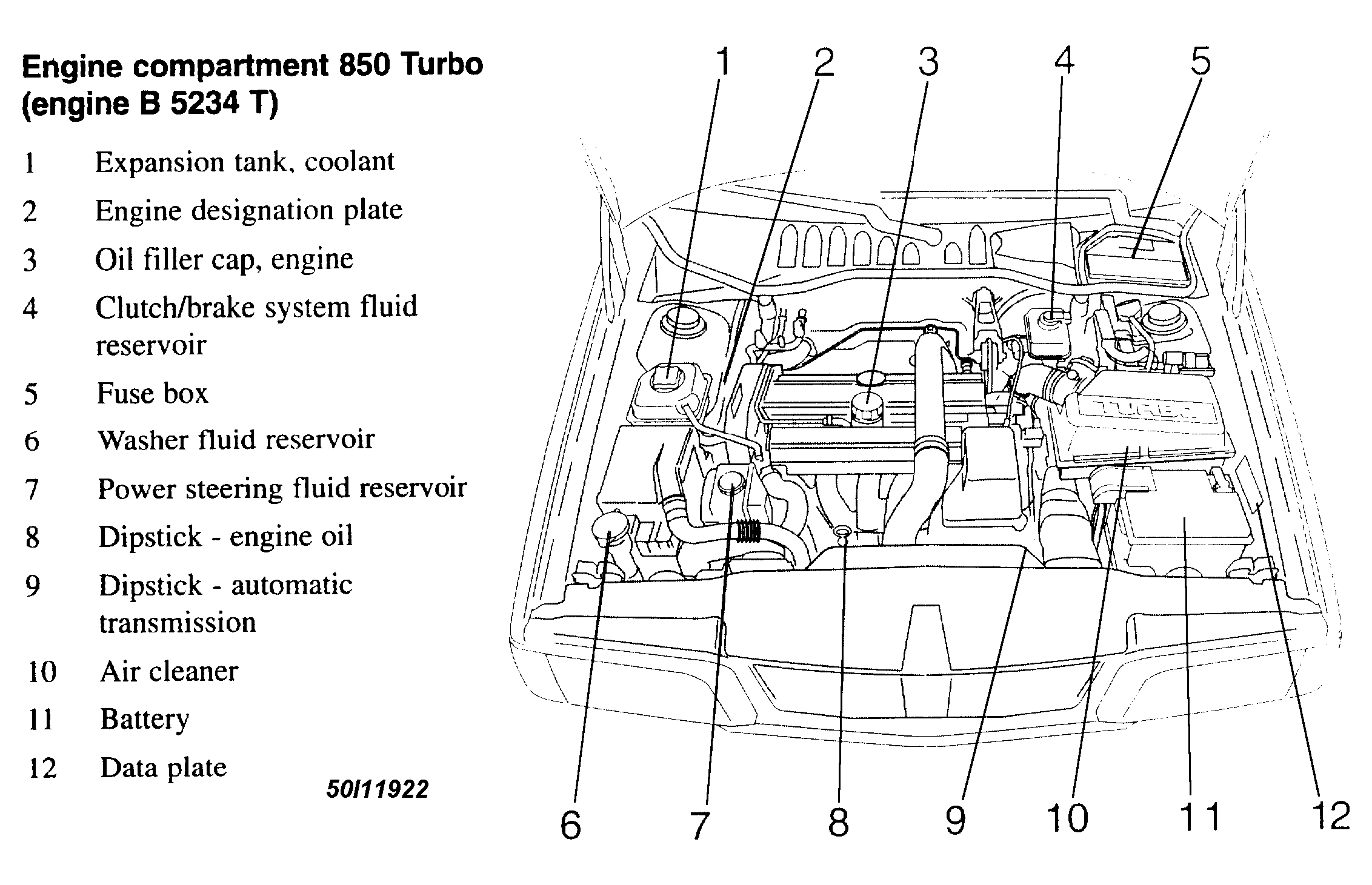

Fig 2: Service Point Locations (Turbo)
G50I11922Courtesy of VOLVO CARS OF NORTH AMERICA.

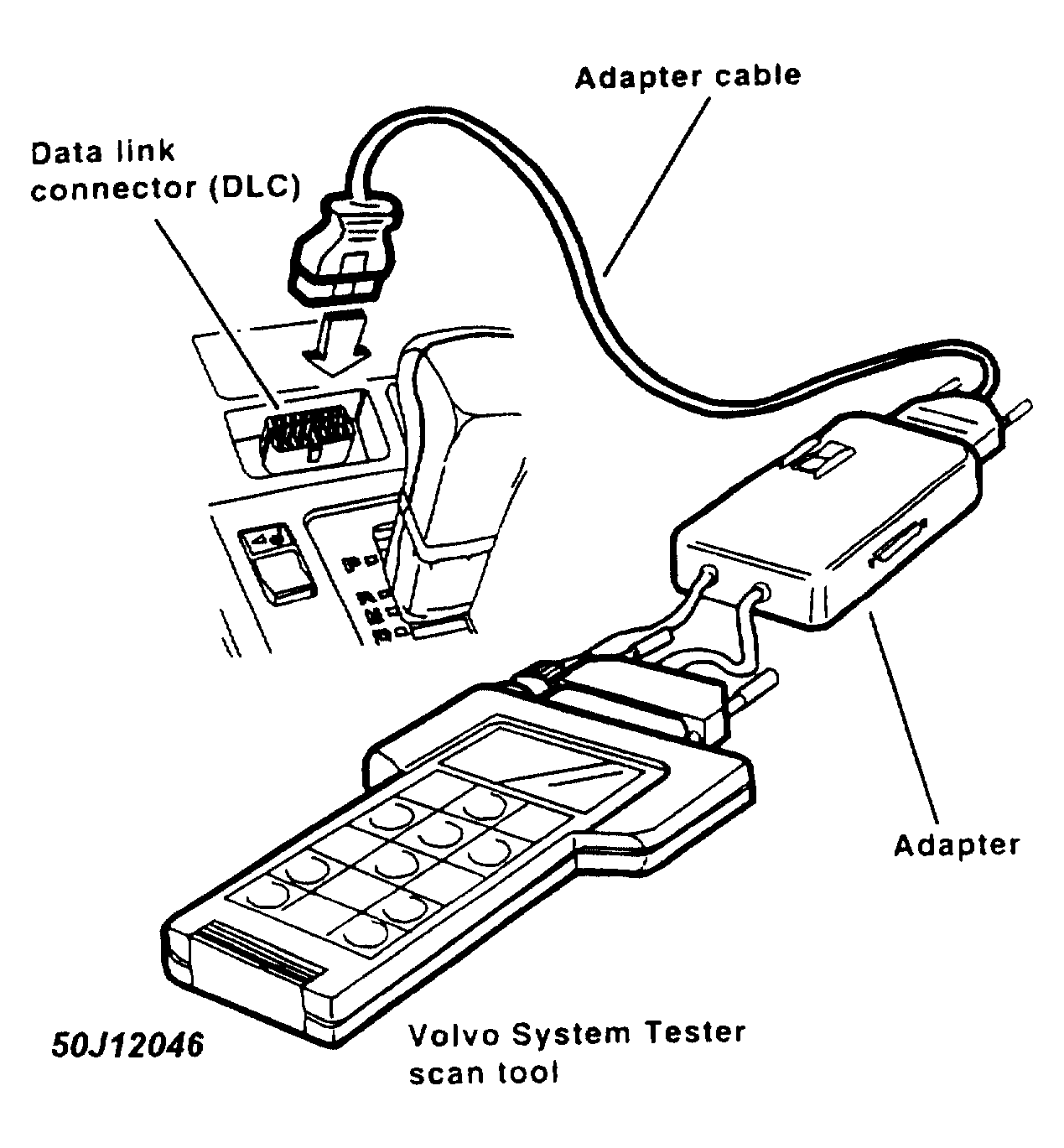

Fig 3: OBD II Diagnostic Link Connector Location (1996)
G50J12046Courtesy of VOLVO CARS OF NORTH AMERICA.
