Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

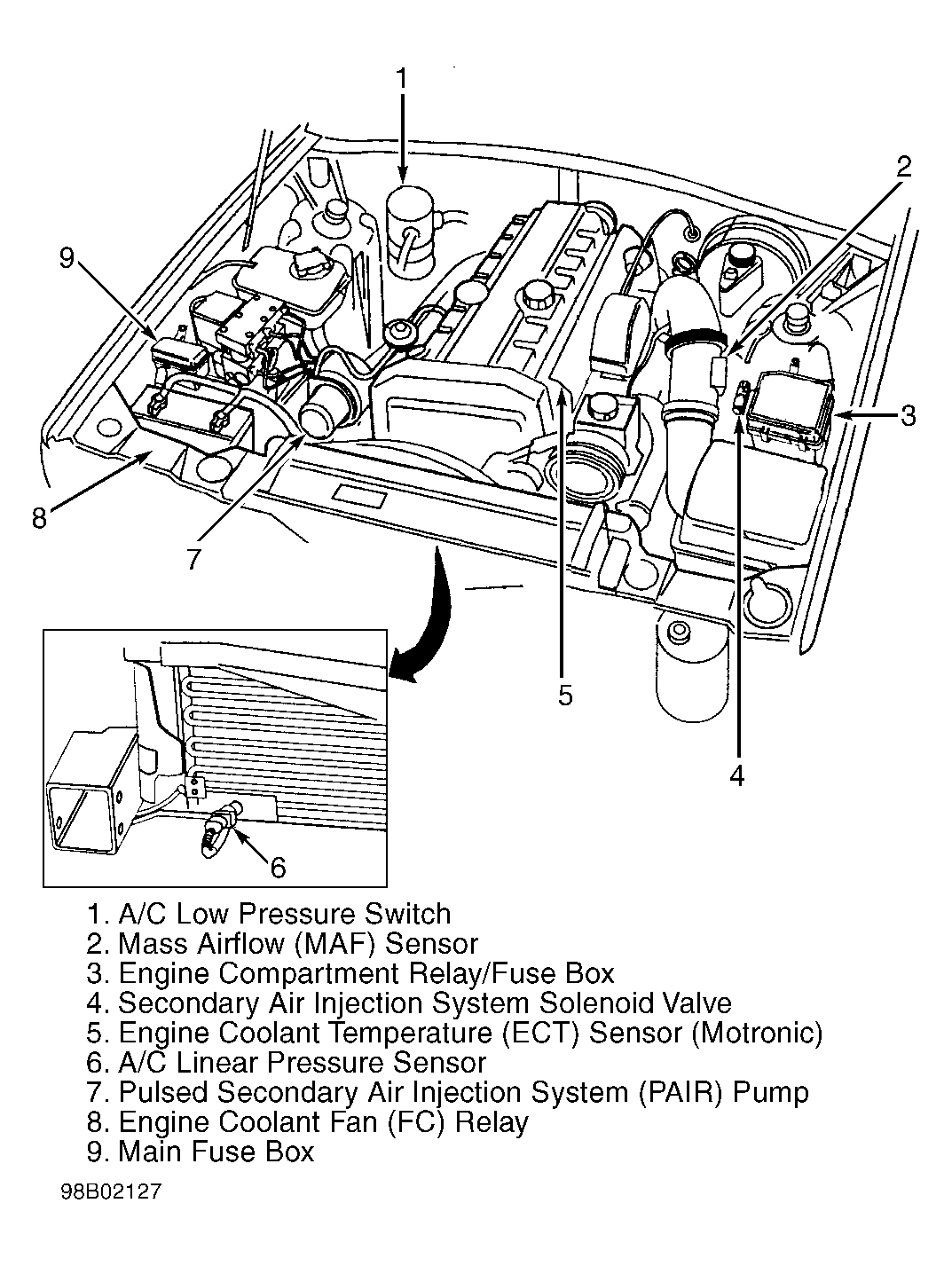

Fig 1: Engine Compartment

Fig 2: Left Rear Of Engine

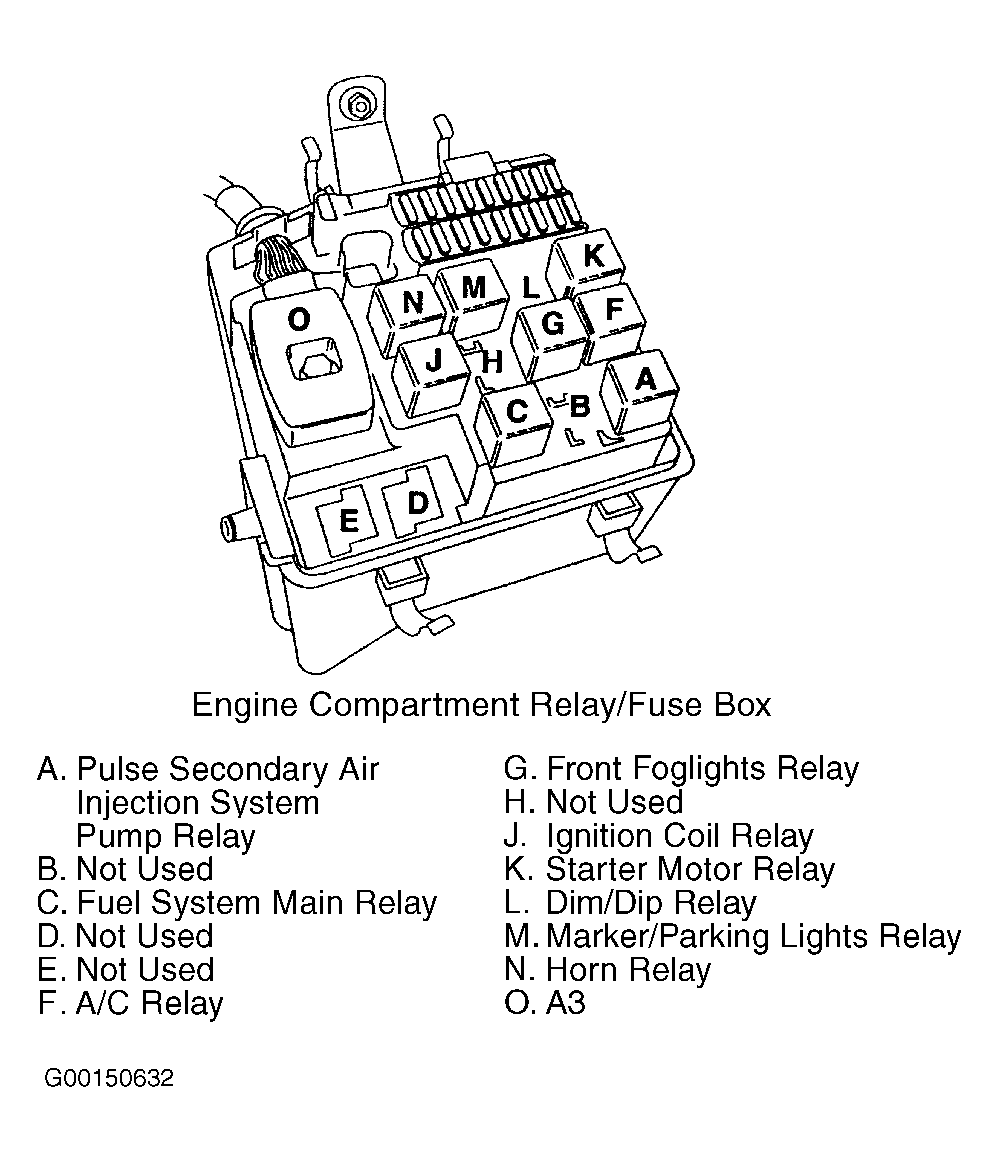

Fig 3: Engine Compartment Relay/Fuse Box

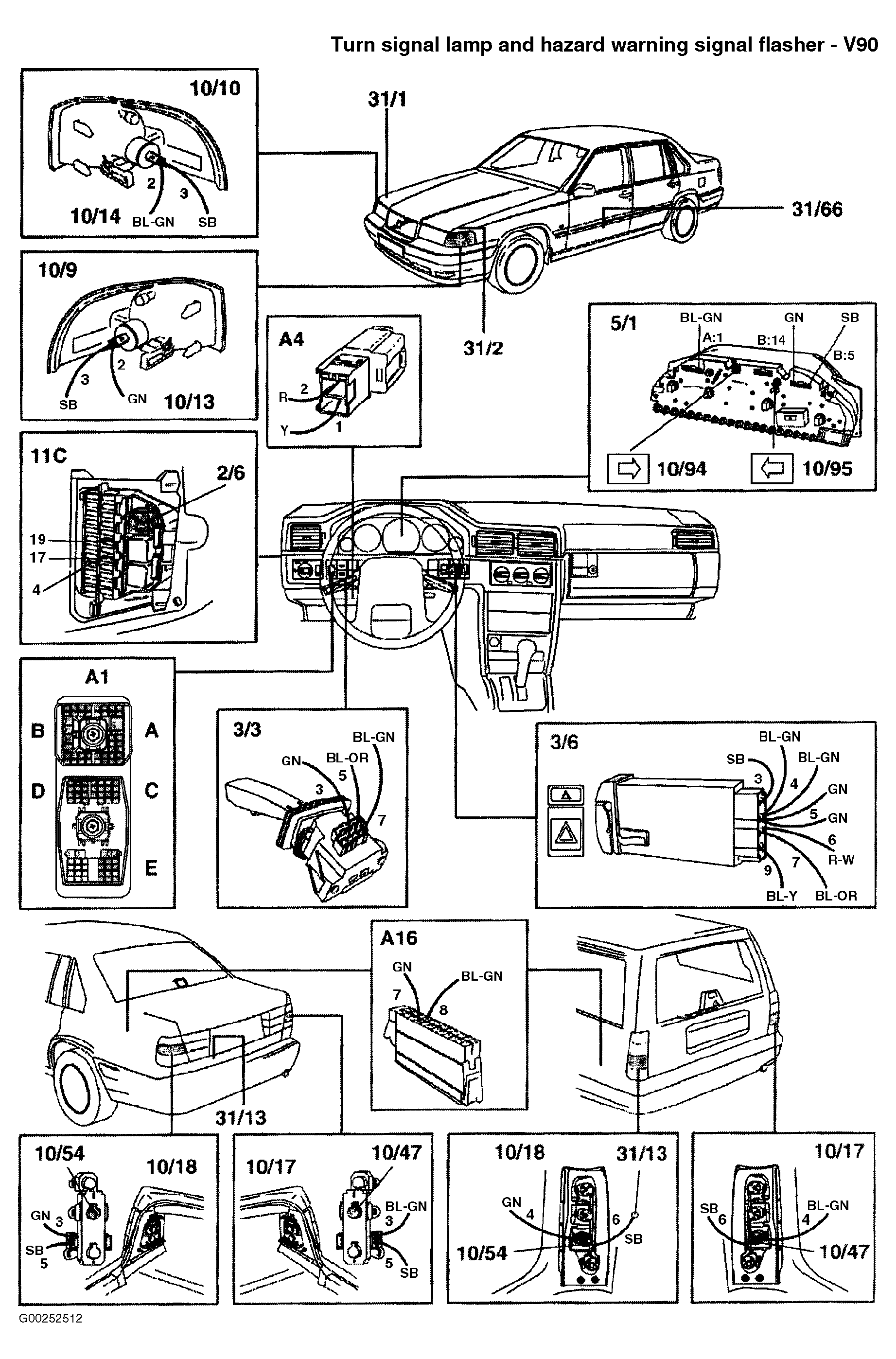

Fig 4: Locating Turn Signal & Hazard Flasher System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

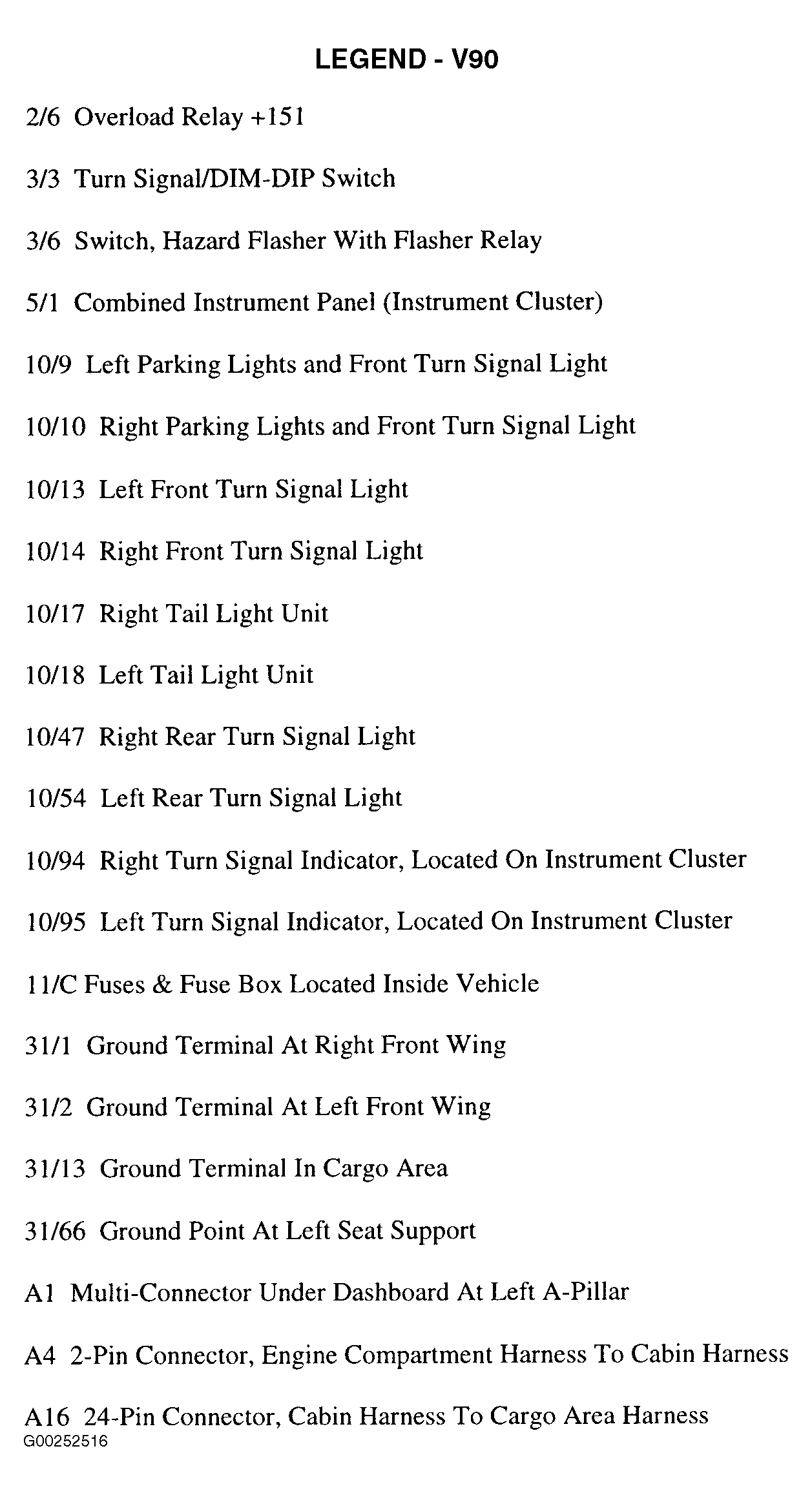

Fig 5: Locating Turn Signal & Hazard Flasher System Components (Legend)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Passenger Compartment Fuse Box

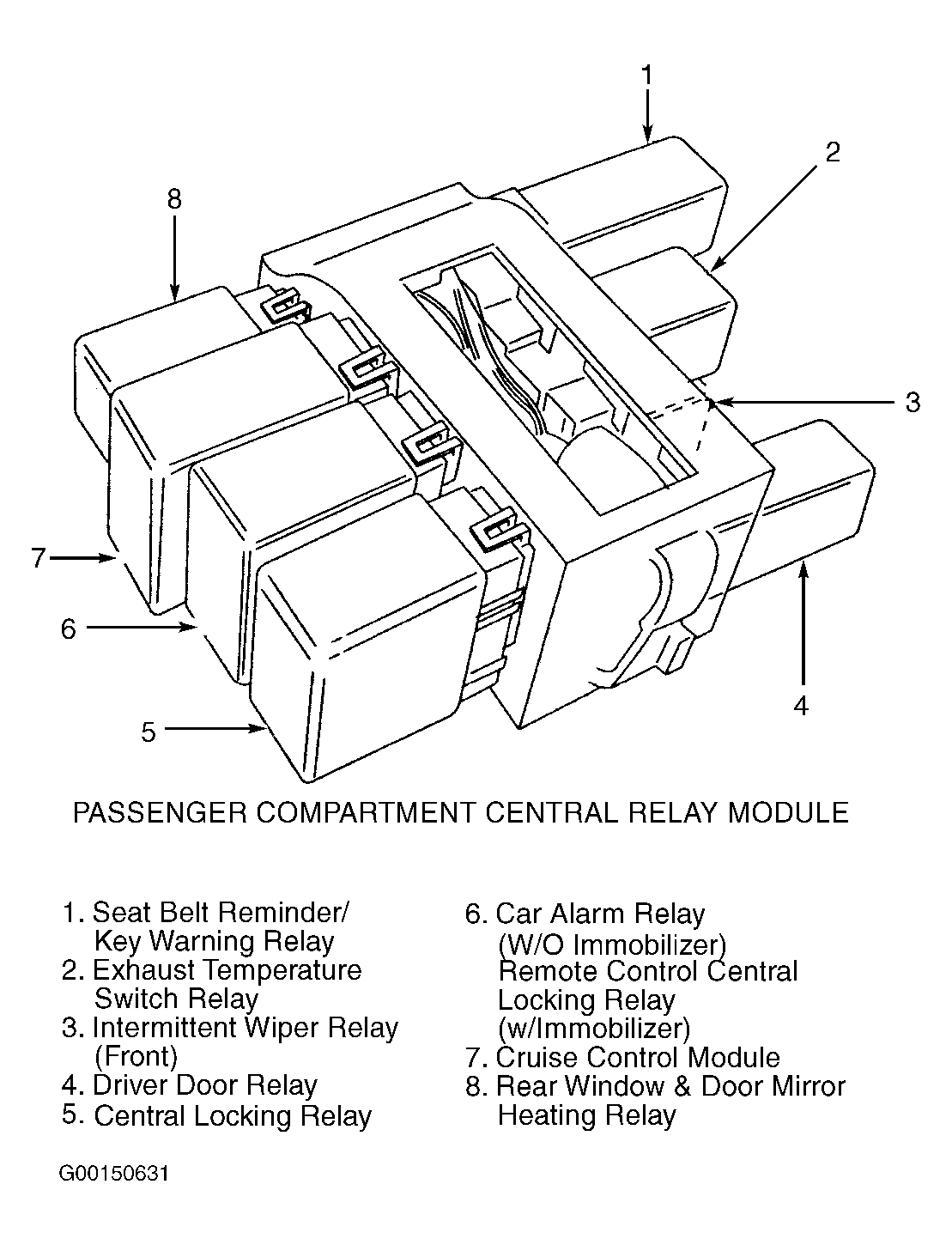

Fig 7: Passenger Compartment Central Relay Module
