Solenoid Test

With starter on bench, connect negative battery lead to starter solenoid terminal "M". Connect positive battery lead to solenoid terminal No. 50. See Fig 1. If plunger does not extend firmly, replace solenoid.

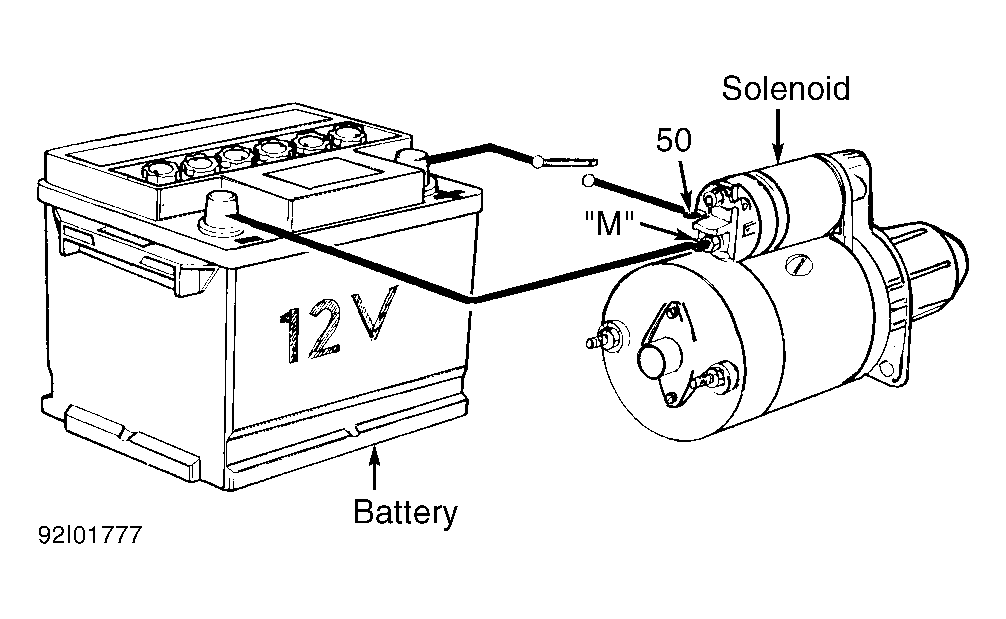

Fig 1: Testing Starter Solenoid

Courtesy of VOLVO CARS OF NORTH AMERICA.
