Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Fig 2: Left Side Of Engine

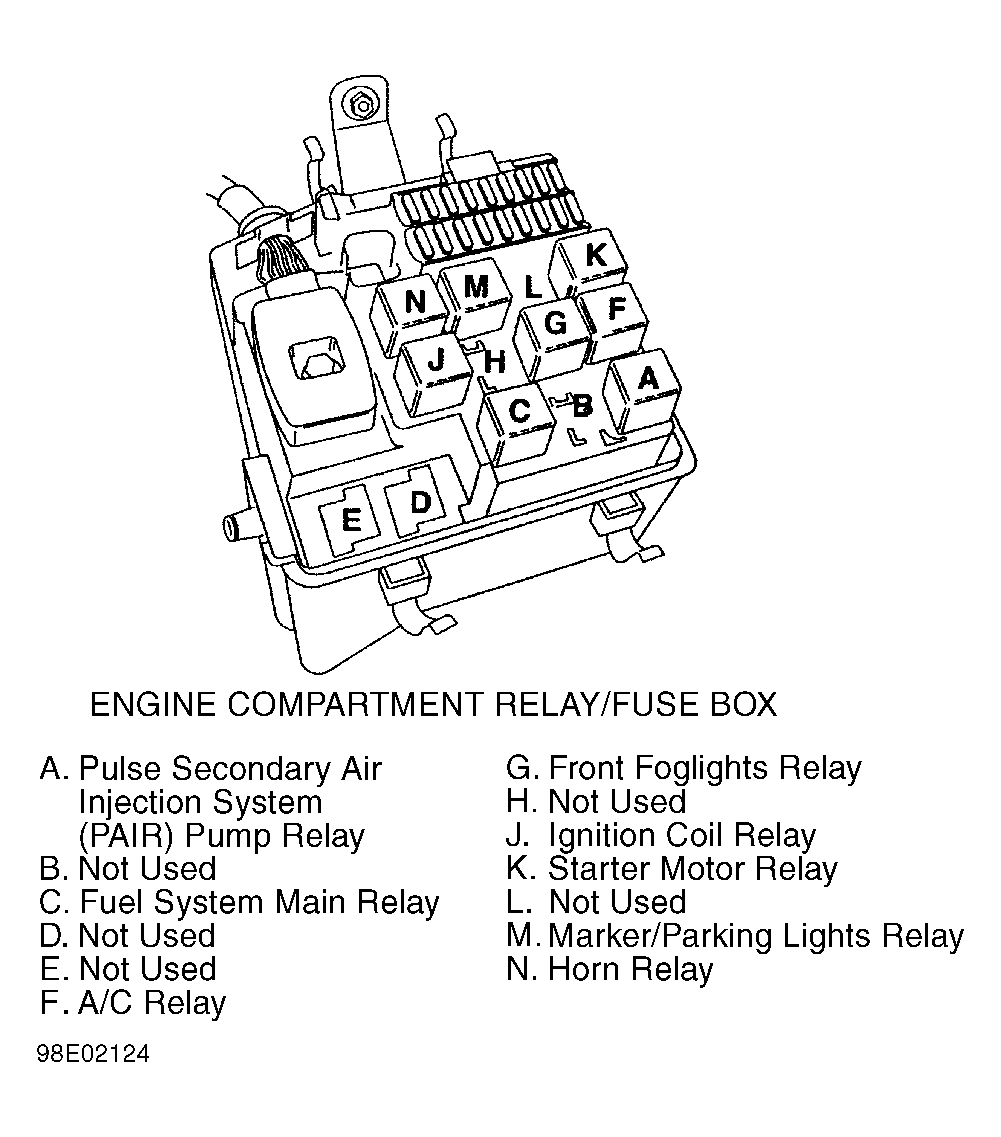

Fig 3: Engine Compartment Relay/Fuse Box

Fig 4: Passenger Compartment Fuse Box

Fig 5: Passenger Compartment Central Relay Module

Fig 6: Locating Turn Signal & Hazard Flasher System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Locating Turn Signal & Hazard Flasher System Components (Legend)

Courtesy of VOLVO CARS OF NORTH AMERICA.
