Engine Compartment Central Electrical Unit - Removal And Installation
>>
Engine Electrical
>>
Central electrical unit, engine compartment, replacing
>>
Removal
>>
Base section
Base section

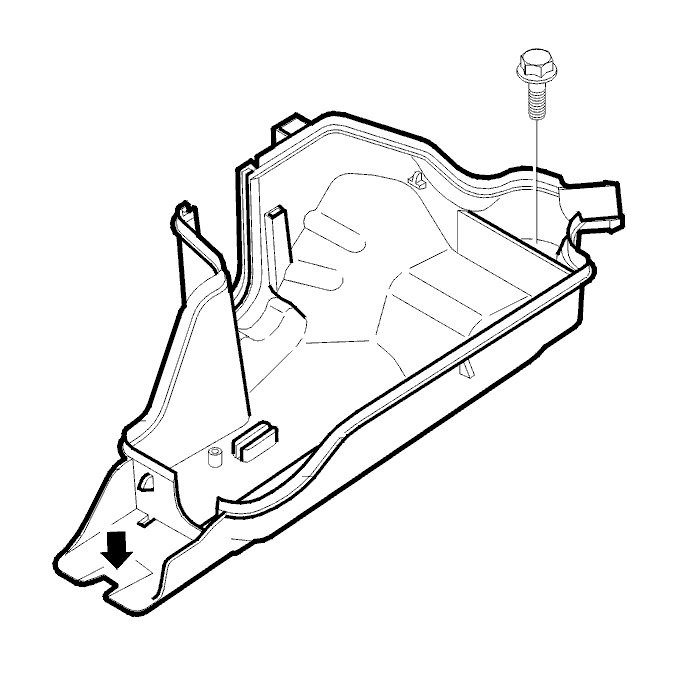

Fig 1: Base Section
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the screw from the rear edge
front edge from the hook on the member and remove the base section.
