Primary lock

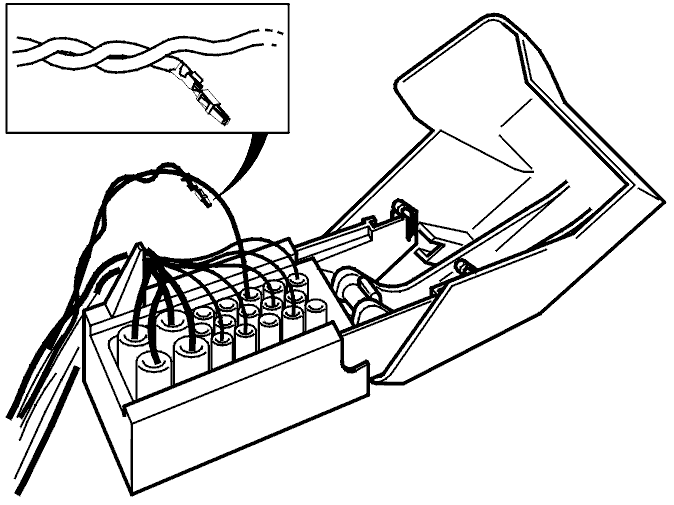

Fig 1: Identifying Cable Terminal Is Properly Locked By Pulling Carefully On Cable
GLL102203Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the cable terminal is undamaged.

Press the cable terminal into the housing.

Check that the cable terminal is properly locked by pulling carefully on the cable.
