B-Post, Replacing

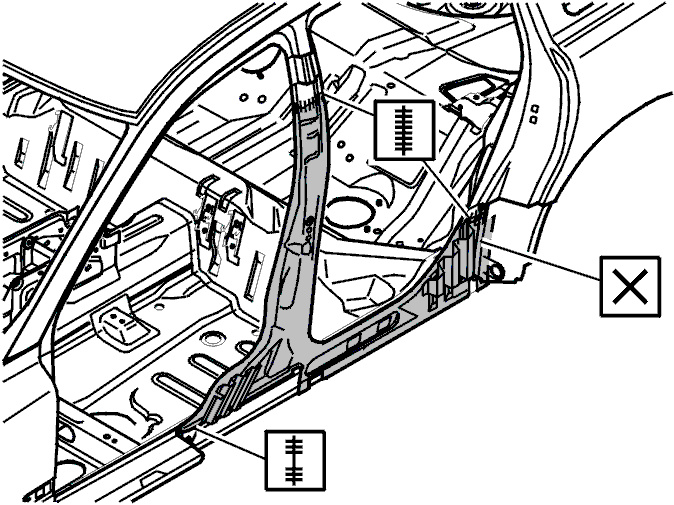

Fig 1: B-Post Cut Lines And Measurement Points

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull out the damaged section.

Cut, grind or saw off the damaged components.

The B-post cut is displaced as illustrated.

Dimension C = 50 mm.

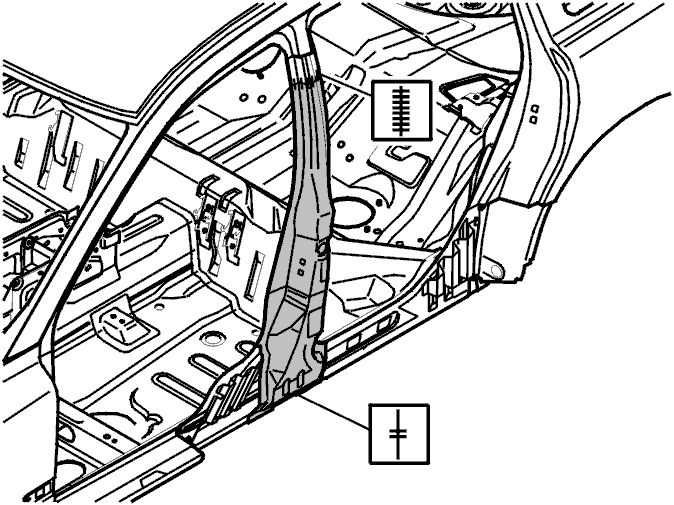

Fig 2: B-Post Inner Door Sill Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the B-post inner door sill.

Weld into place.

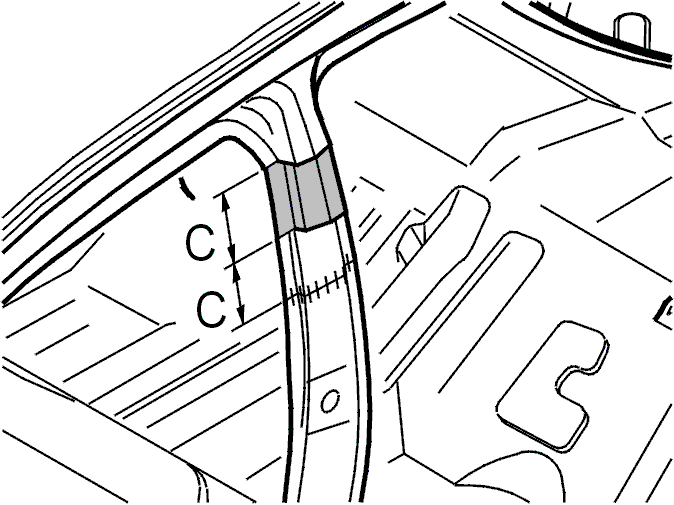

Fig 3: B-Post Reinforcement Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the B-post reinforcement.

Weld into place.

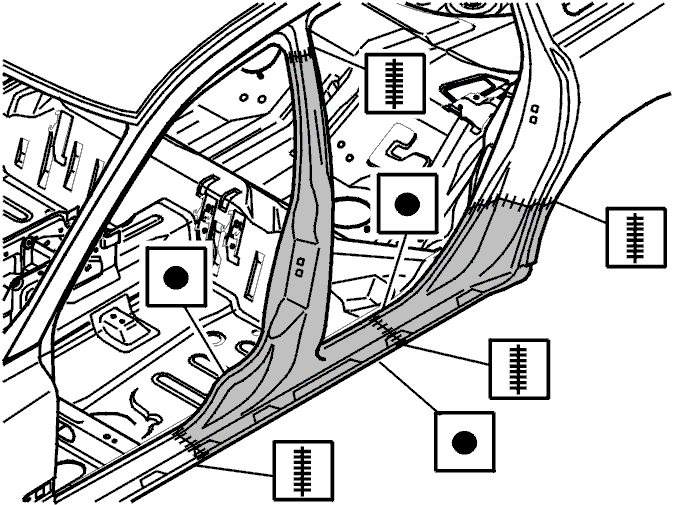

Fig 4: Outer B-Post And Outer Door Sill Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the outer B-post and outer door sill.

Saw and weld the sill and the door sill.

Spot-weld at the underside towards the rear of the sill.

Seam-weld the joint.
