Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |
|---|---|---|
| Generator Belt Pulley | ||
| Fixed Pulley | 48 (65) | |
| Freewheel | 59 (80) | |
| Generator Mounting Bolt (M8) | 18 (24) | |
| INCH Lbs. (N.m) | ||
| B+ Terminal | 133 (15) | |
| Battery Connector | 22 (2.5) | |
NOTE:

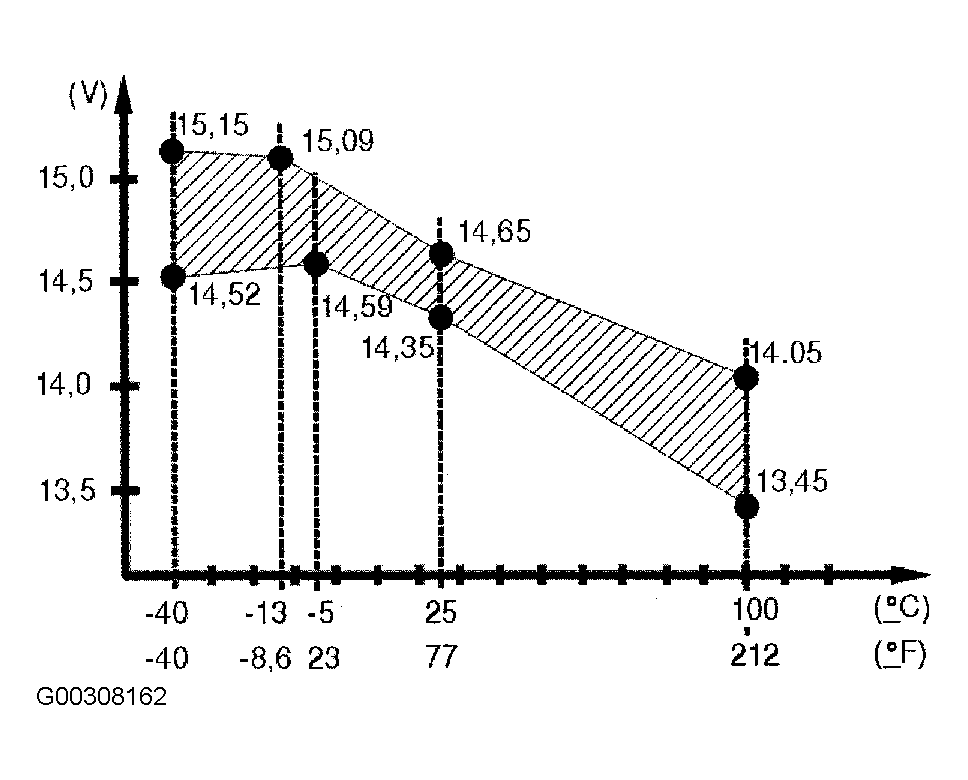

Charging voltage shown in Fig 1
is with a 25-45 amp generator load at about 2300 RPM.
