Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Engine Compartment Fuse & Relay Box (11/1) |

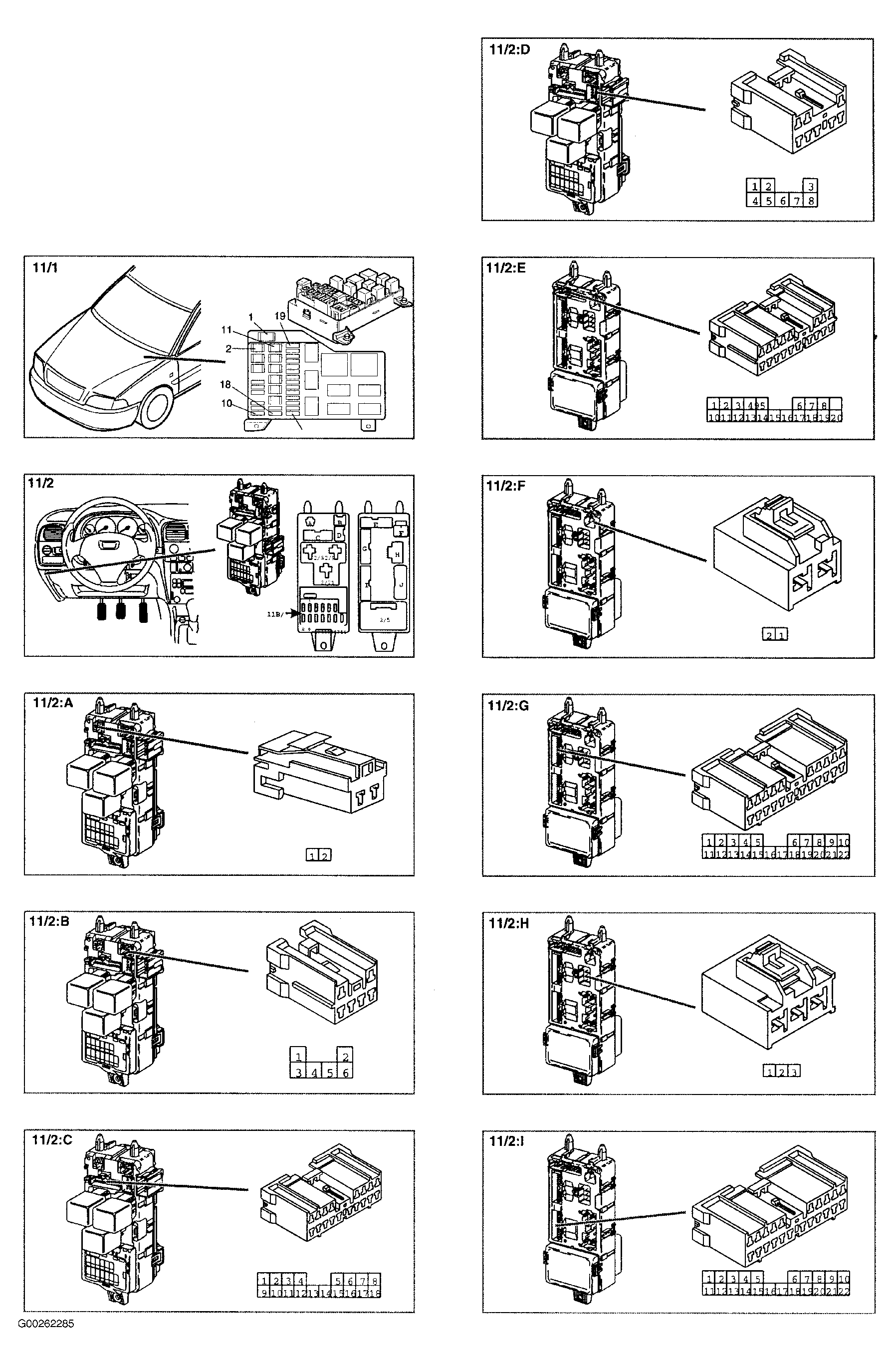

At left rear corner of engine compartment. See Figure
. |
| Passenger Compartment Fuse & Relay Box (11/2) |
Behind left side of dash. See Figure
. |
