Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

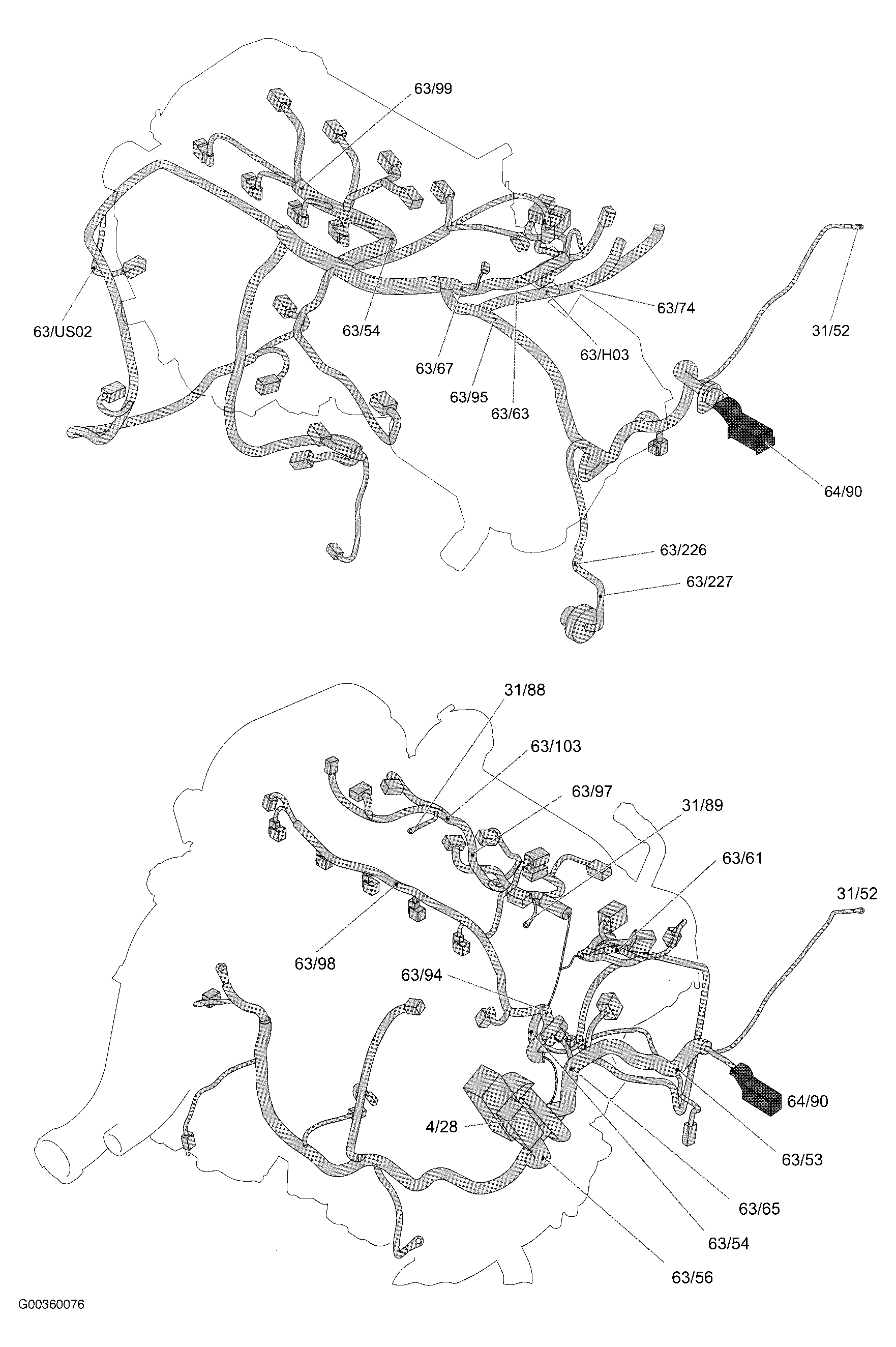

Fig 1: Engine (2.4L)
G00360076Courtesy of VOLVO CARS OF NORTH AMERICA.

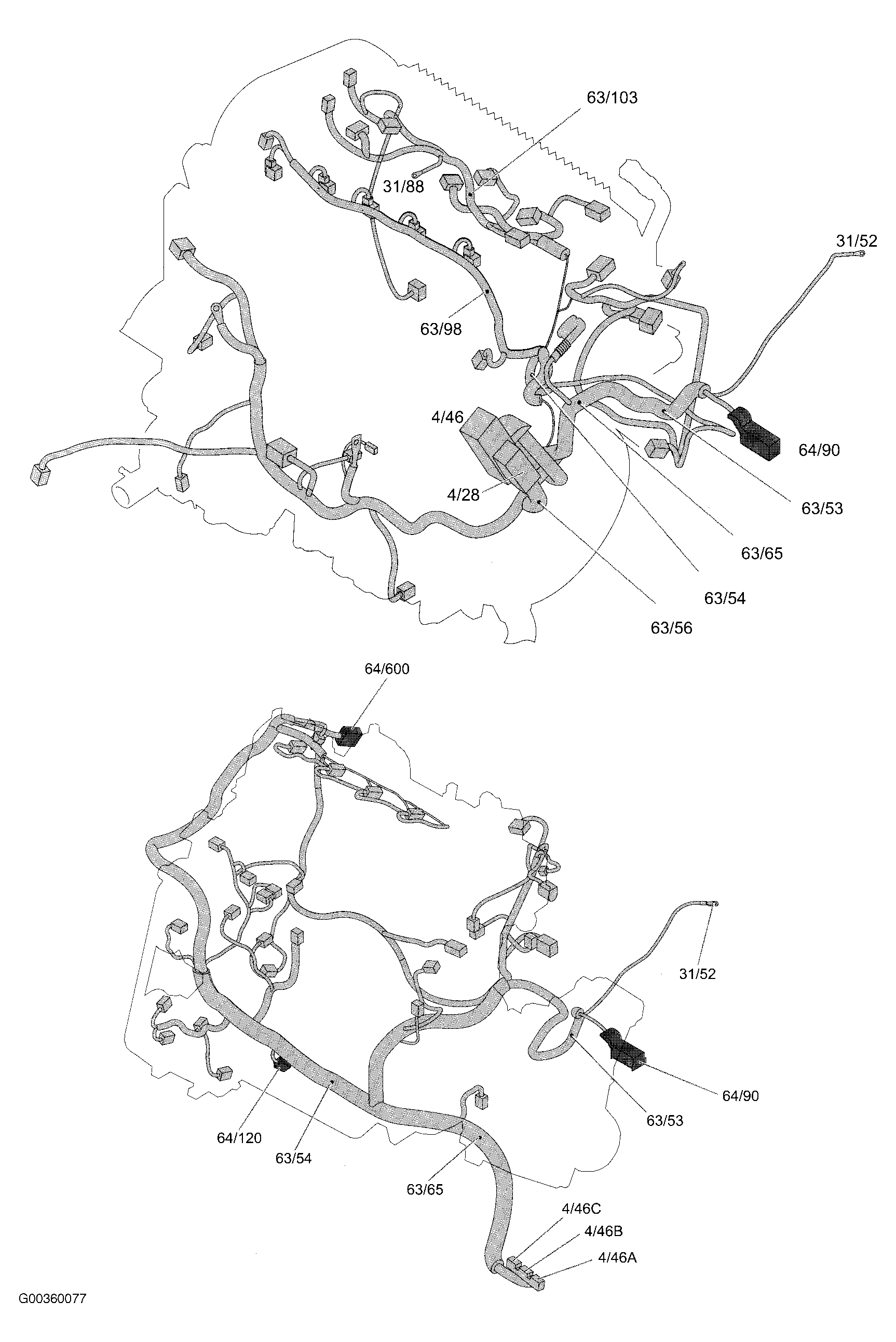

Fig 2: Engine (2.5L Turbo)
G00360077Courtesy of VOLVO CARS OF NORTH AMERICA.

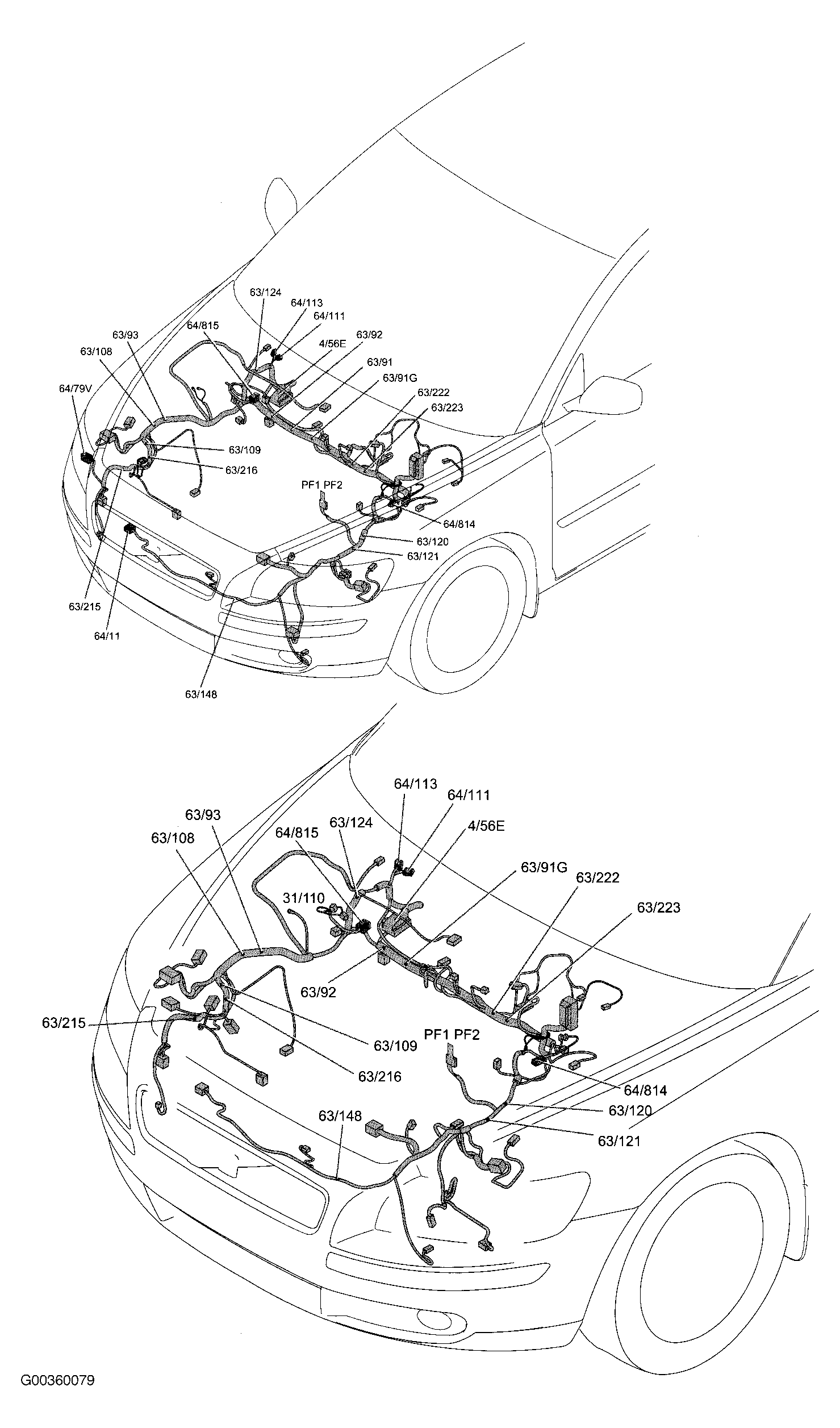

Fig 3: Engine Compartment
G00360079Courtesy of VOLVO CARS OF NORTH AMERICA.

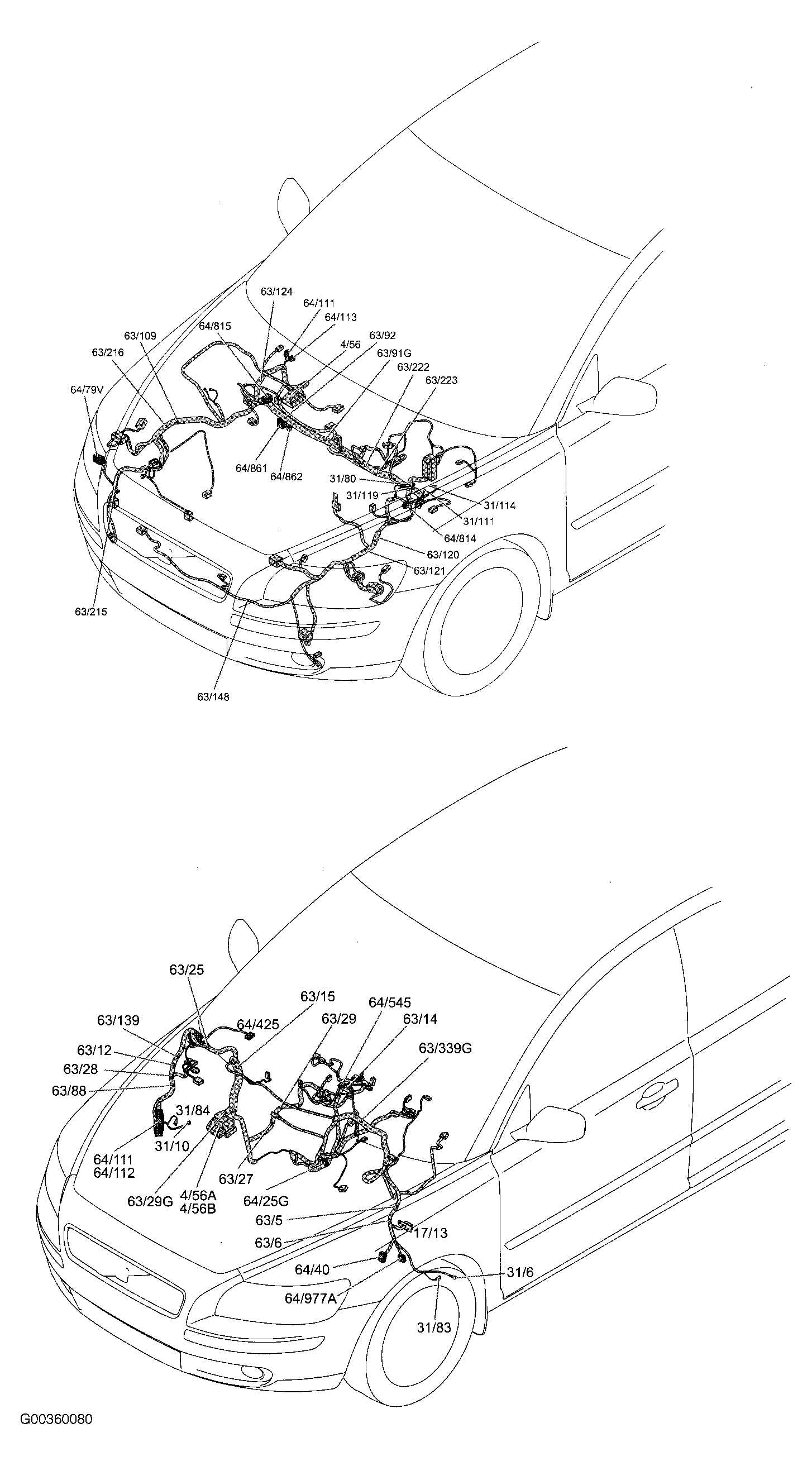

Fig 4: Dash
G00360080Courtesy of VOLVO CARS OF NORTH AMERICA.

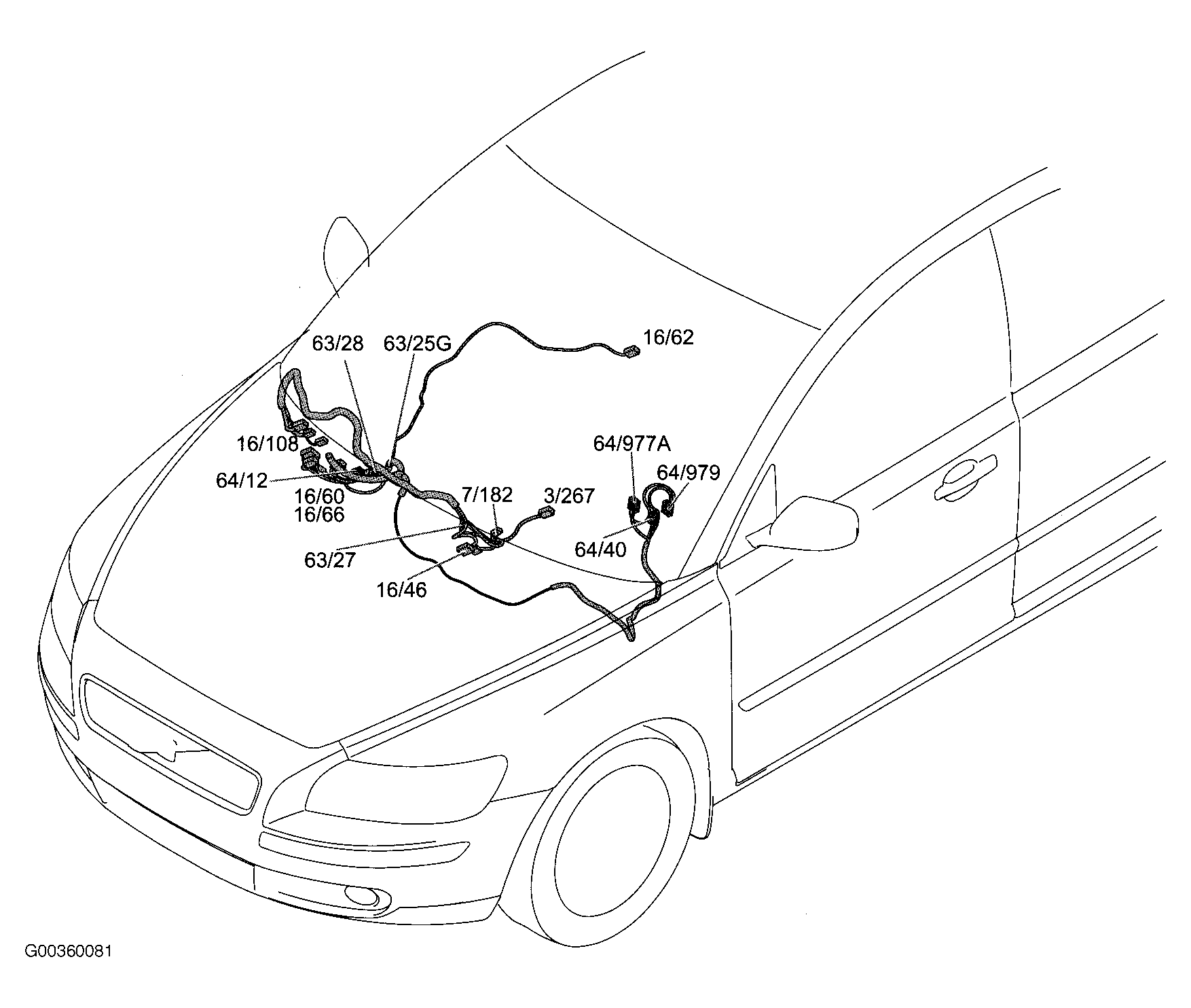

Fig 5: Infotainment Harness Routing
G00360081Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 6: Vehicle Overview (S40)
G00360082Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 7: Vehicle Overview (V50)
G00360083Courtesy of VOLVO CARS OF NORTH AMERICA.

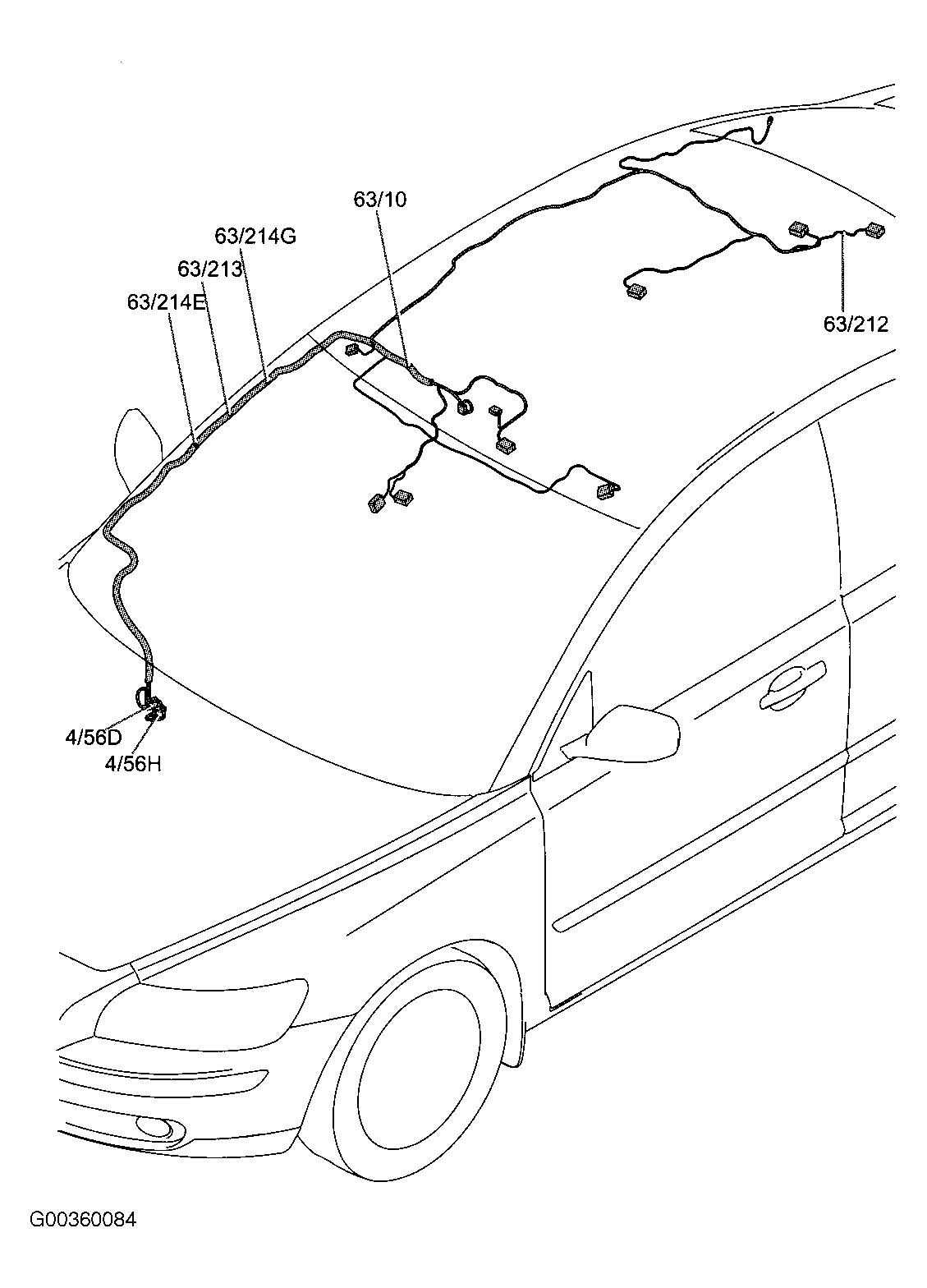

Fig 8: Roof (S40)
G00360084Courtesy of VOLVO CARS OF NORTH AMERICA.

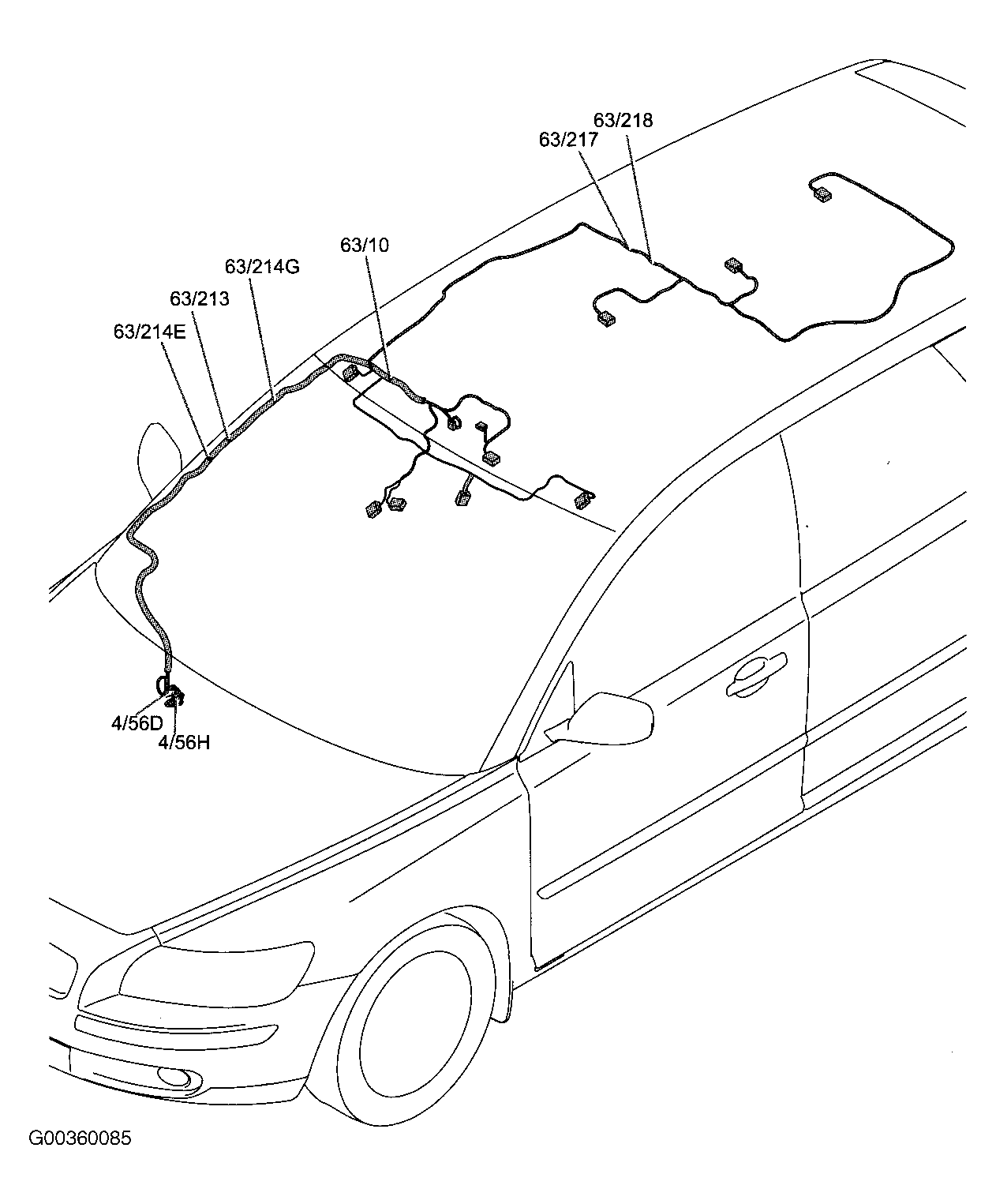

Fig 9: Roof (V50)
G00360085Courtesy of VOLVO CARS OF NORTH AMERICA.

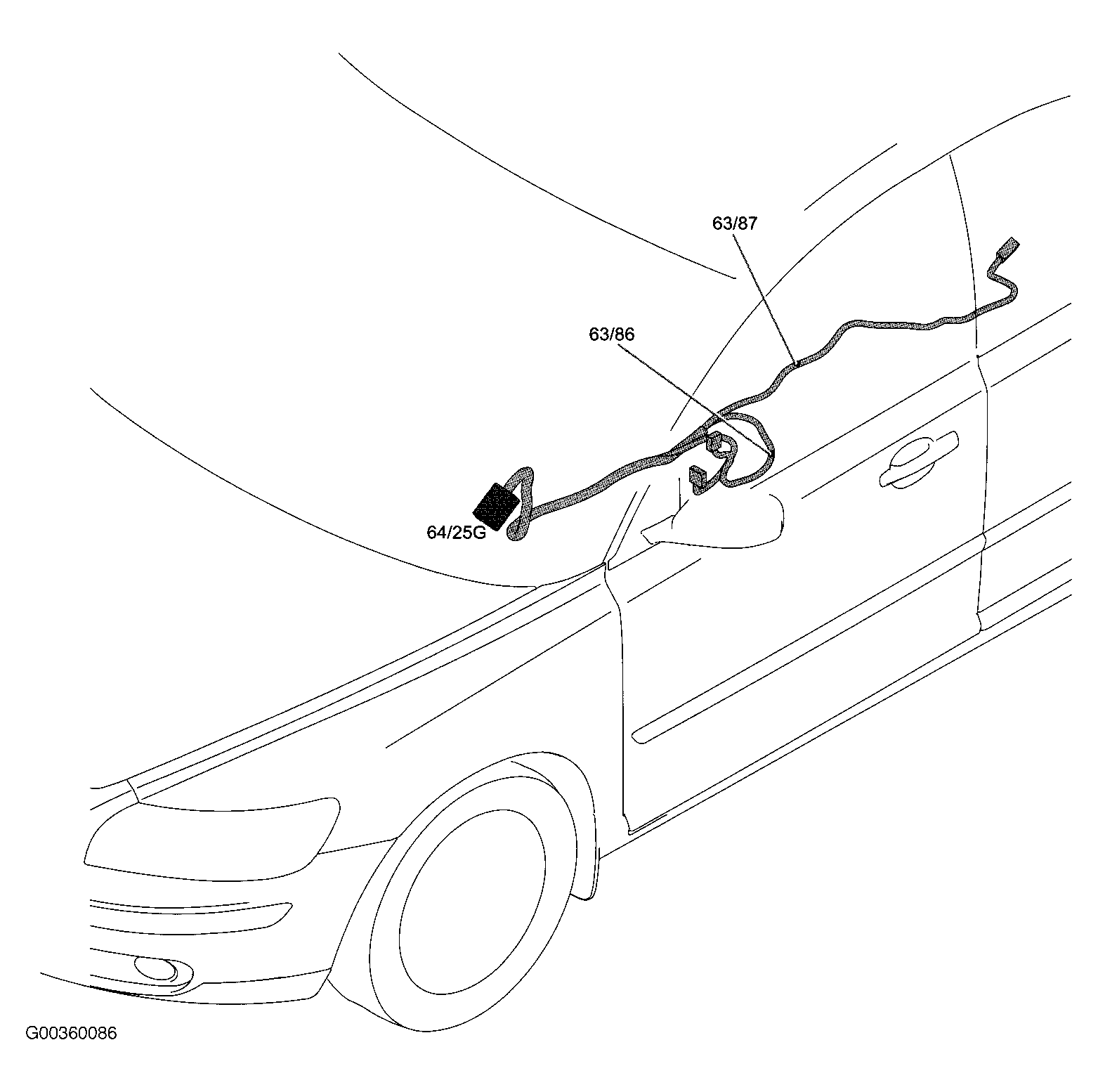

Fig 10: Harness Tunnel
G00360086Courtesy of VOLVO CARS OF NORTH AMERICA.

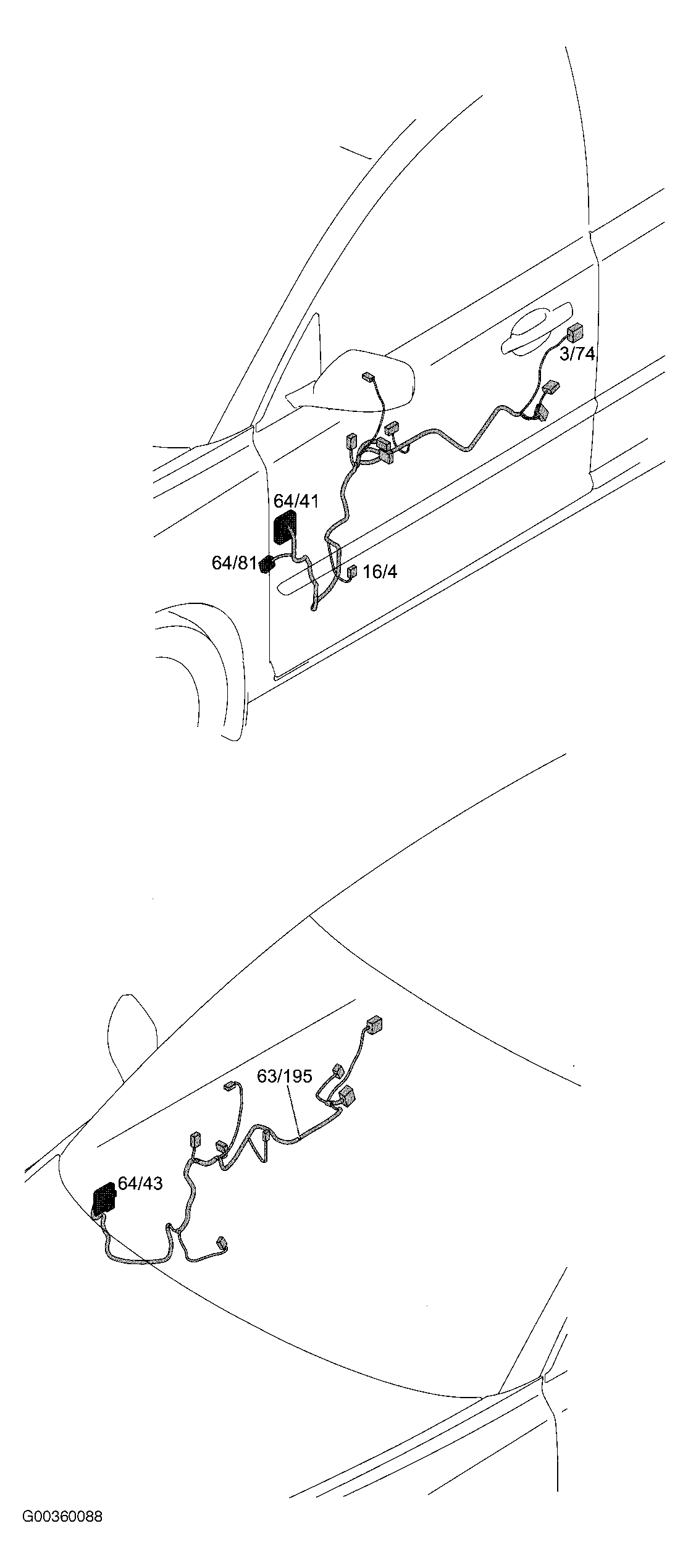

Fig 11: Passenger Door
G00360088Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 12: Right Rear Door
G00360089Courtesy of VOLVO CARS OF NORTH AMERICA.

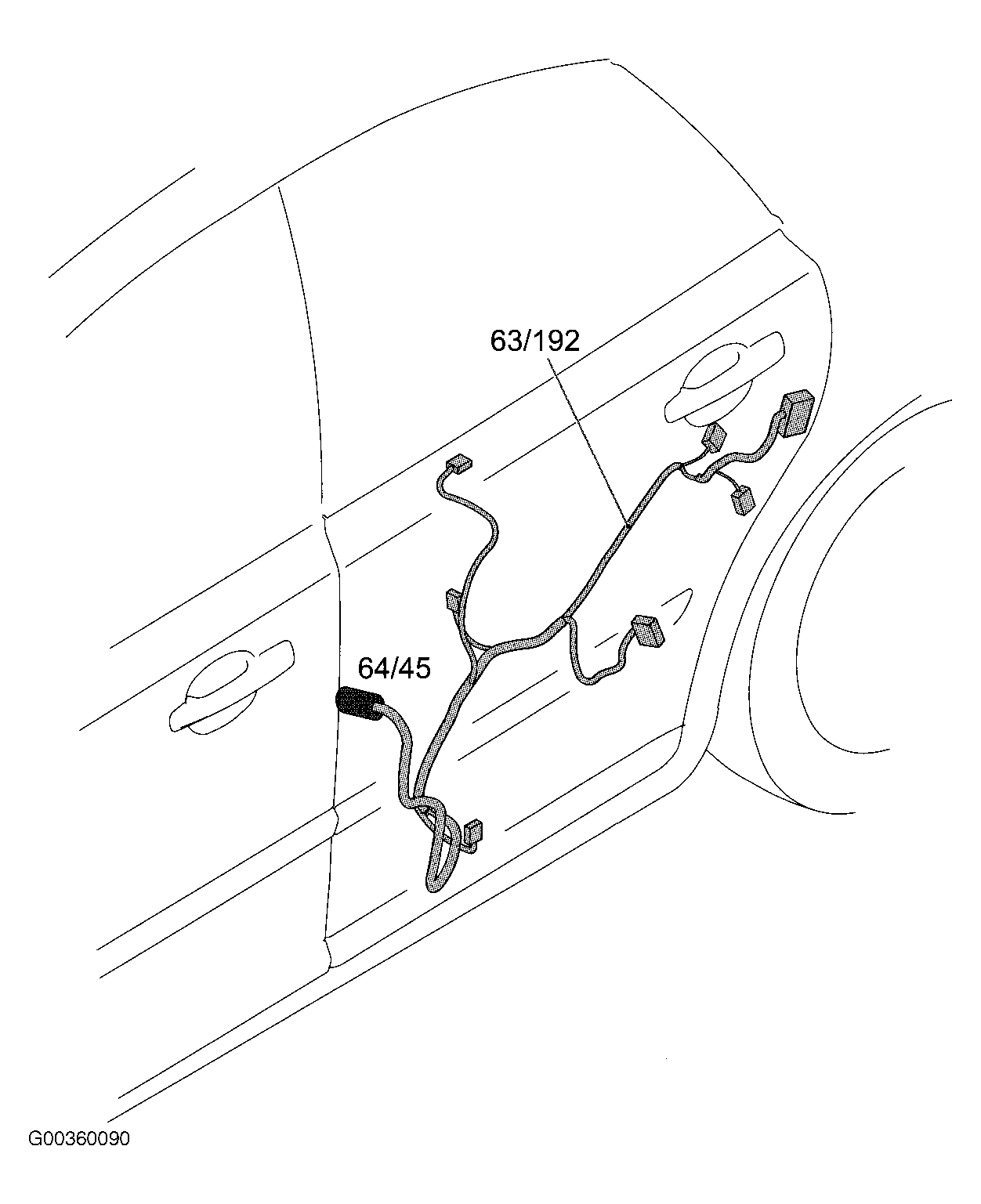

Fig 13: Left Rear Door
G00360090Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Trunk
G00360091Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Tailgate
G00360092Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Components 1/1 To 2/64
G00365535Courtesy of VOLVO CARS OF NORTH AMERICA.

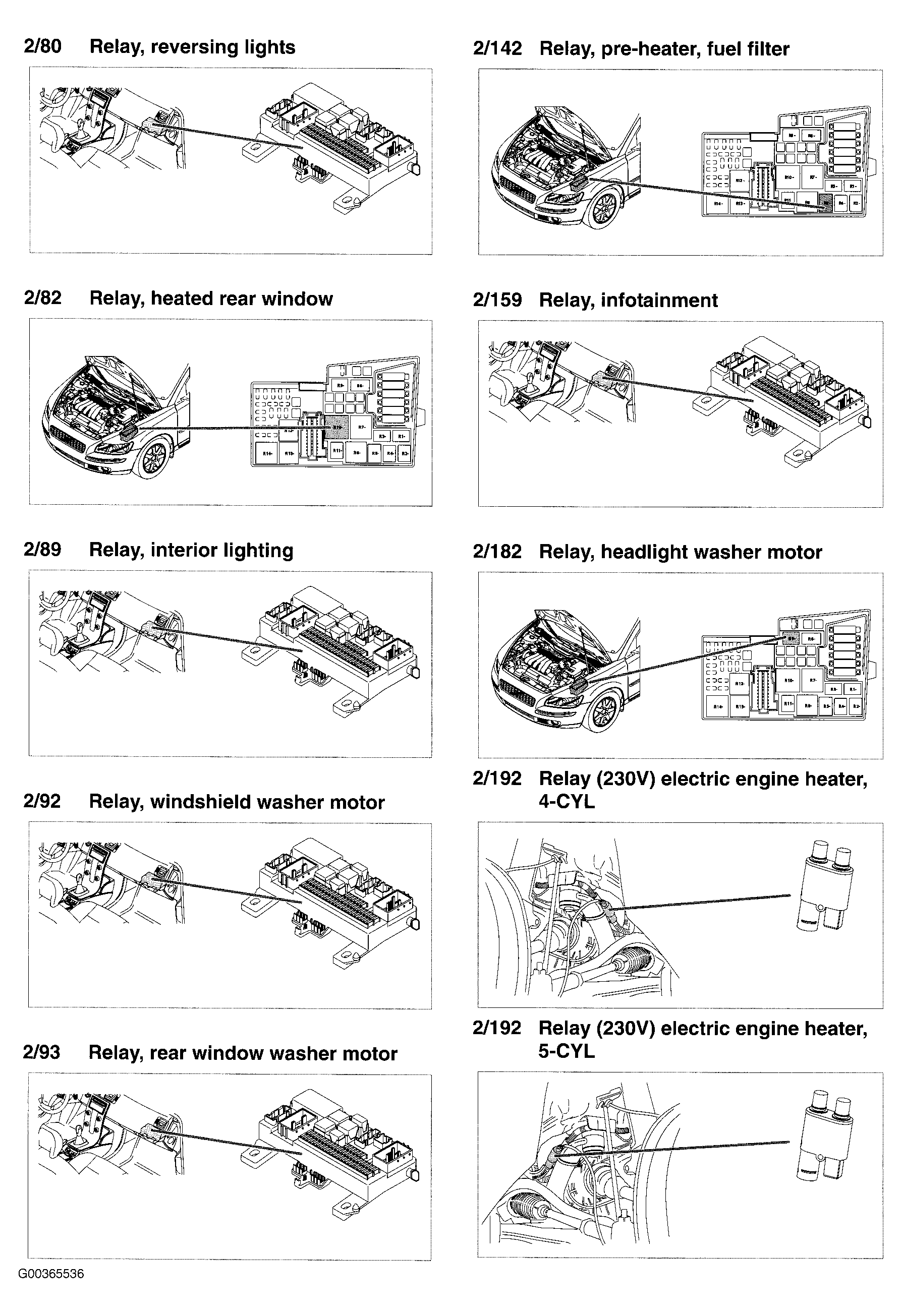

Fig 17: Components 2/80 To 2/192
G00365536Courtesy of VOLVO CARS OF NORTH AMERICA.

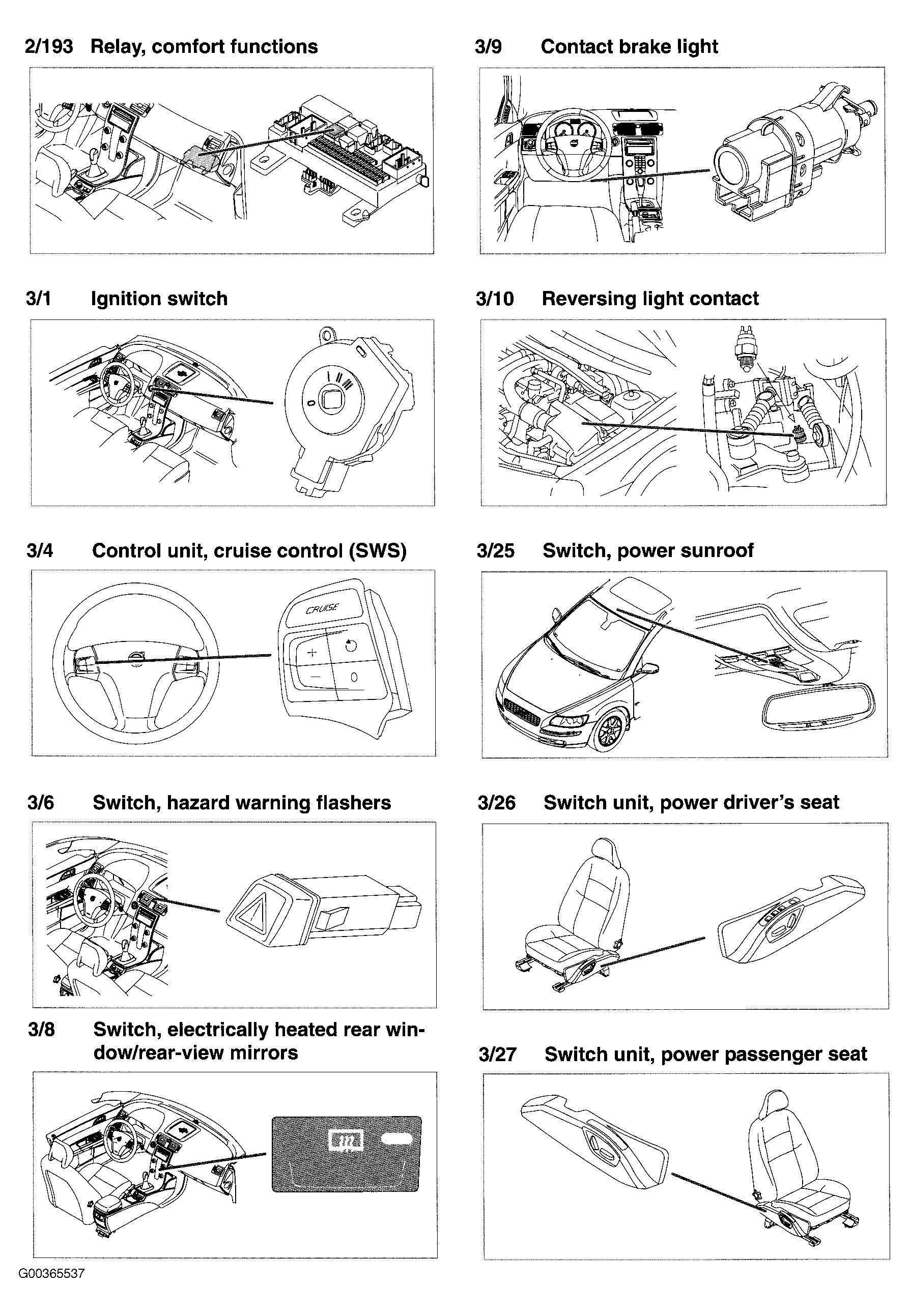

Fig 18: Components 2/193 To 3/27
G00365537Courtesy of VOLVO CARS OF NORTH AMERICA.

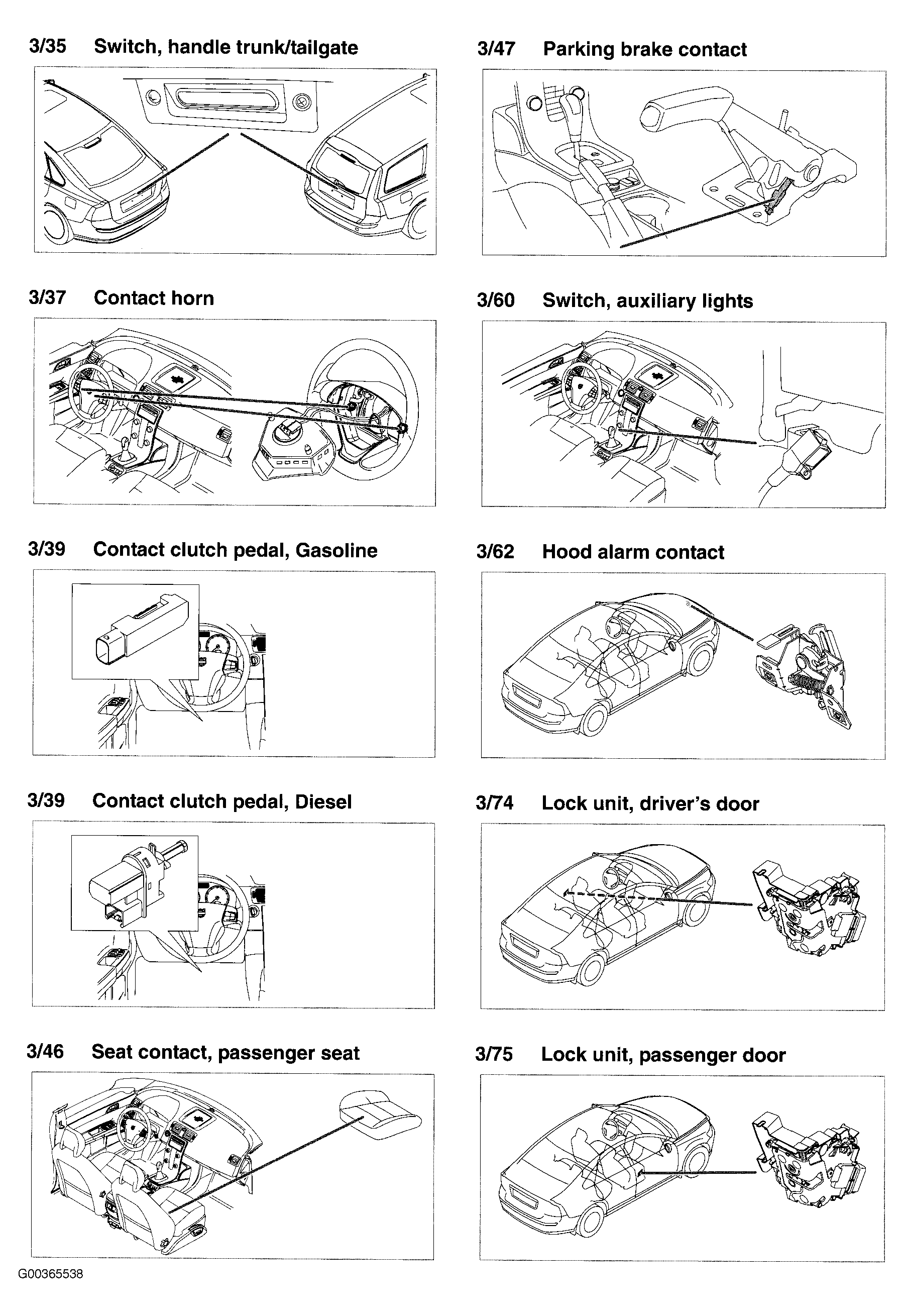

Fig 19: Components 3/35 To 3/75
G00365538Courtesy of VOLVO CARS OF NORTH AMERICA.

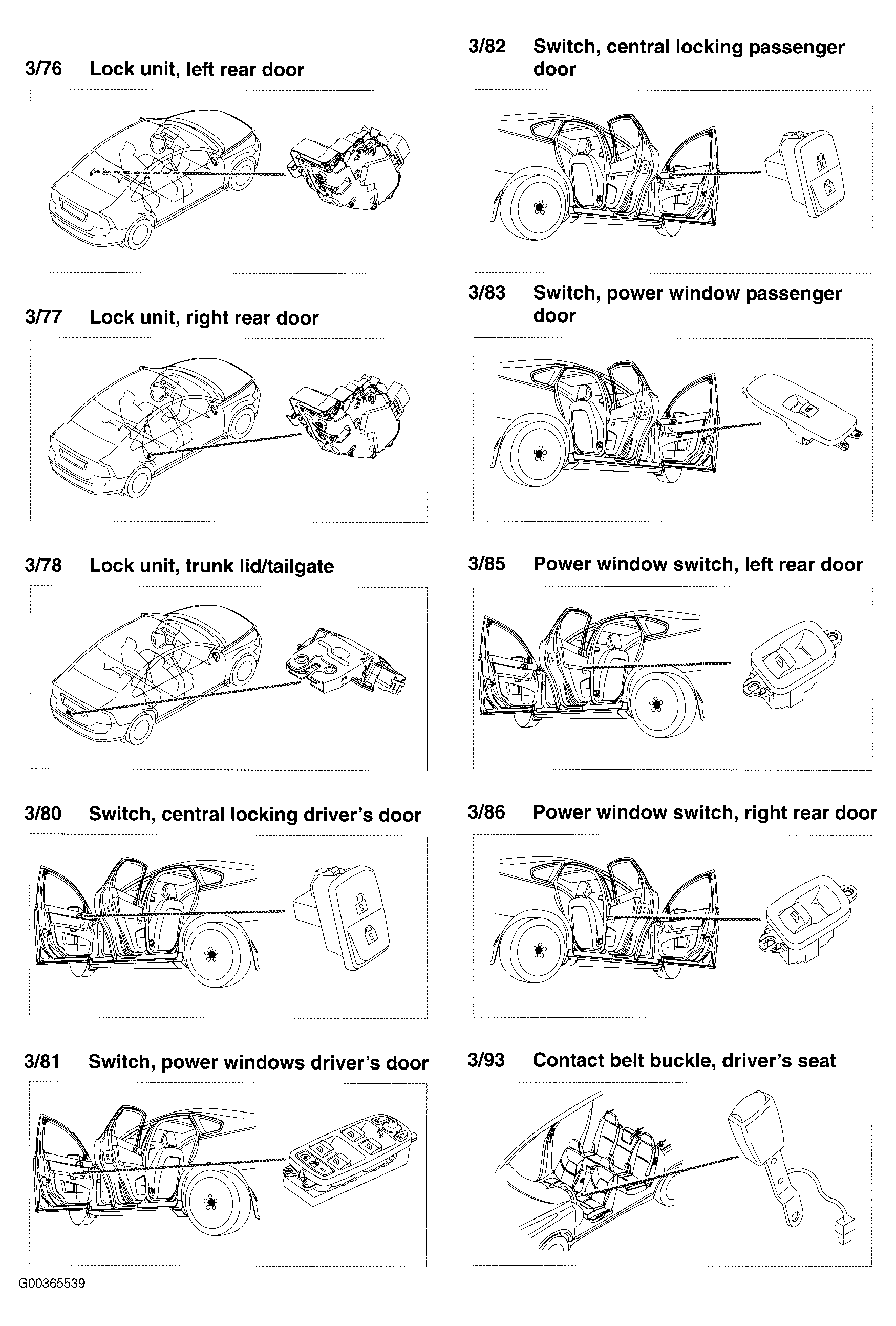

Fig 20: Components 3/76 To 3/93
G00365539Courtesy of VOLVO CARS OF NORTH AMERICA.

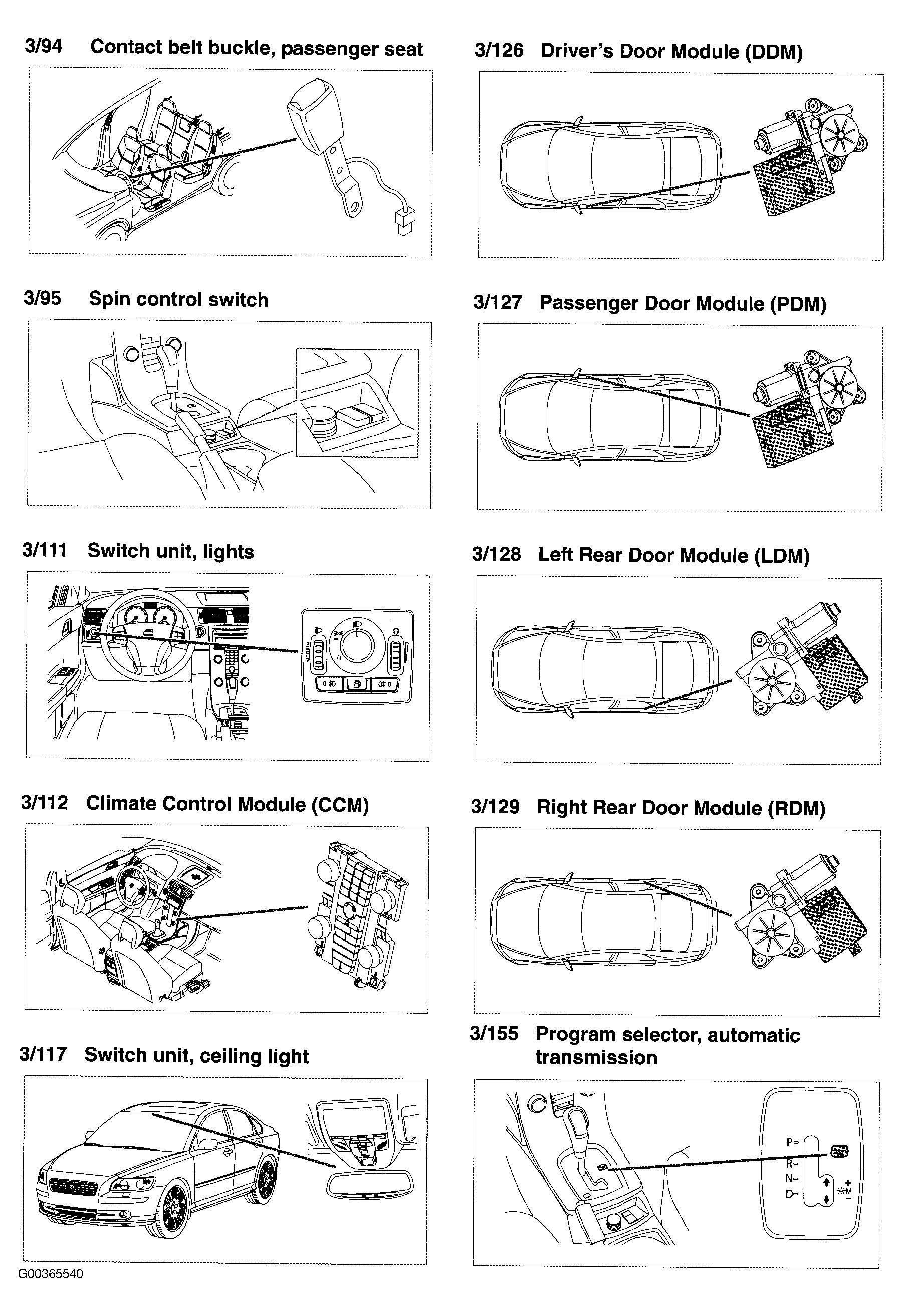

Fig 21: Components 3/94 To 3/155
G00365540Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 22: Components 3/156 To 3/256
G00365541Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 23: Components 3/258 To 4/46
G00365542Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 24: Components 4/46 To 4/93
G00365543Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 25: Components 4/102 To 6/1
G00365544Courtesy of VOLVO CARS OF NORTH AMERICA.

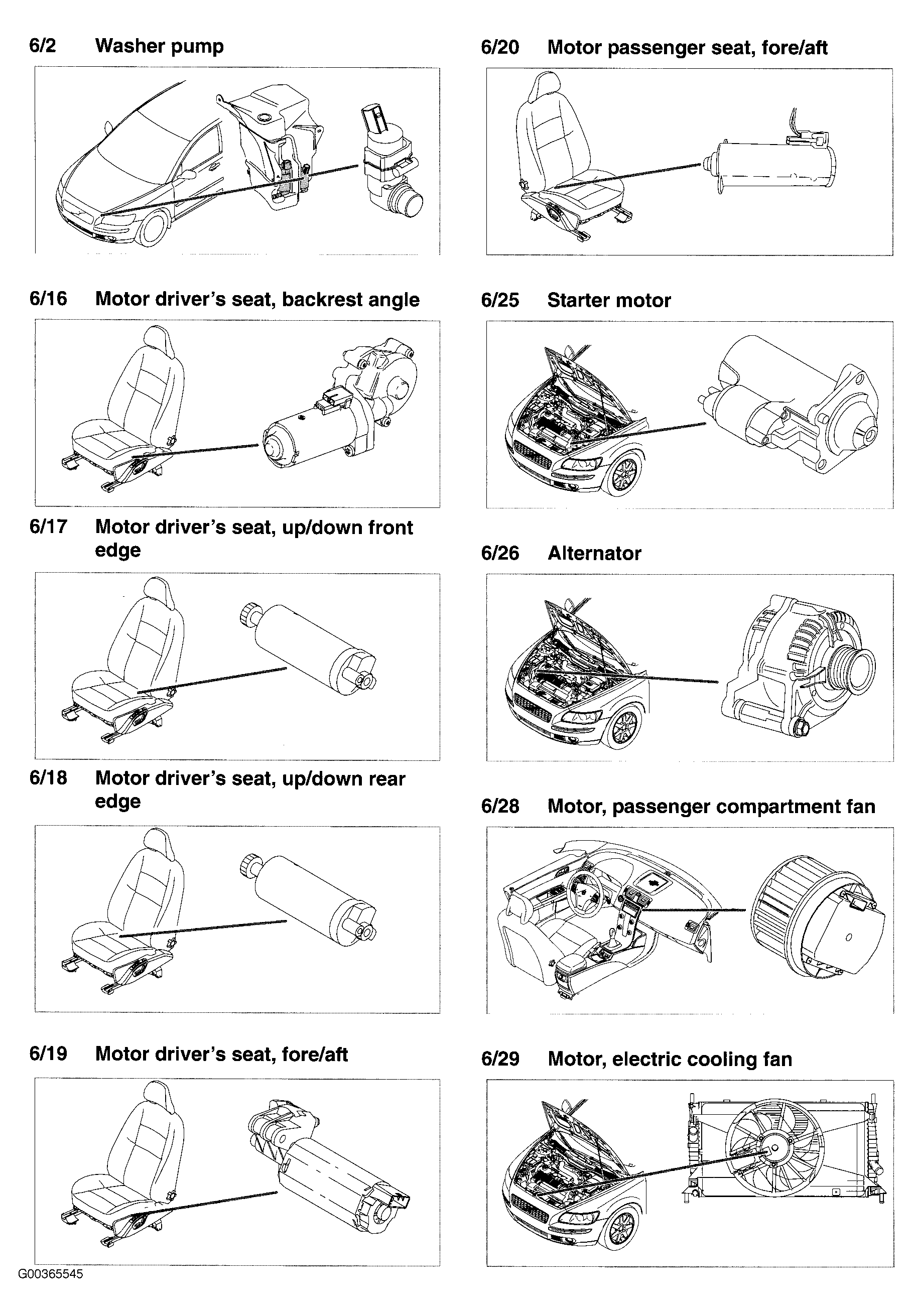

Fig 26: Components 6/2 To 6/29
G00365545Courtesy of VOLVO CARS OF NORTH AMERICA.

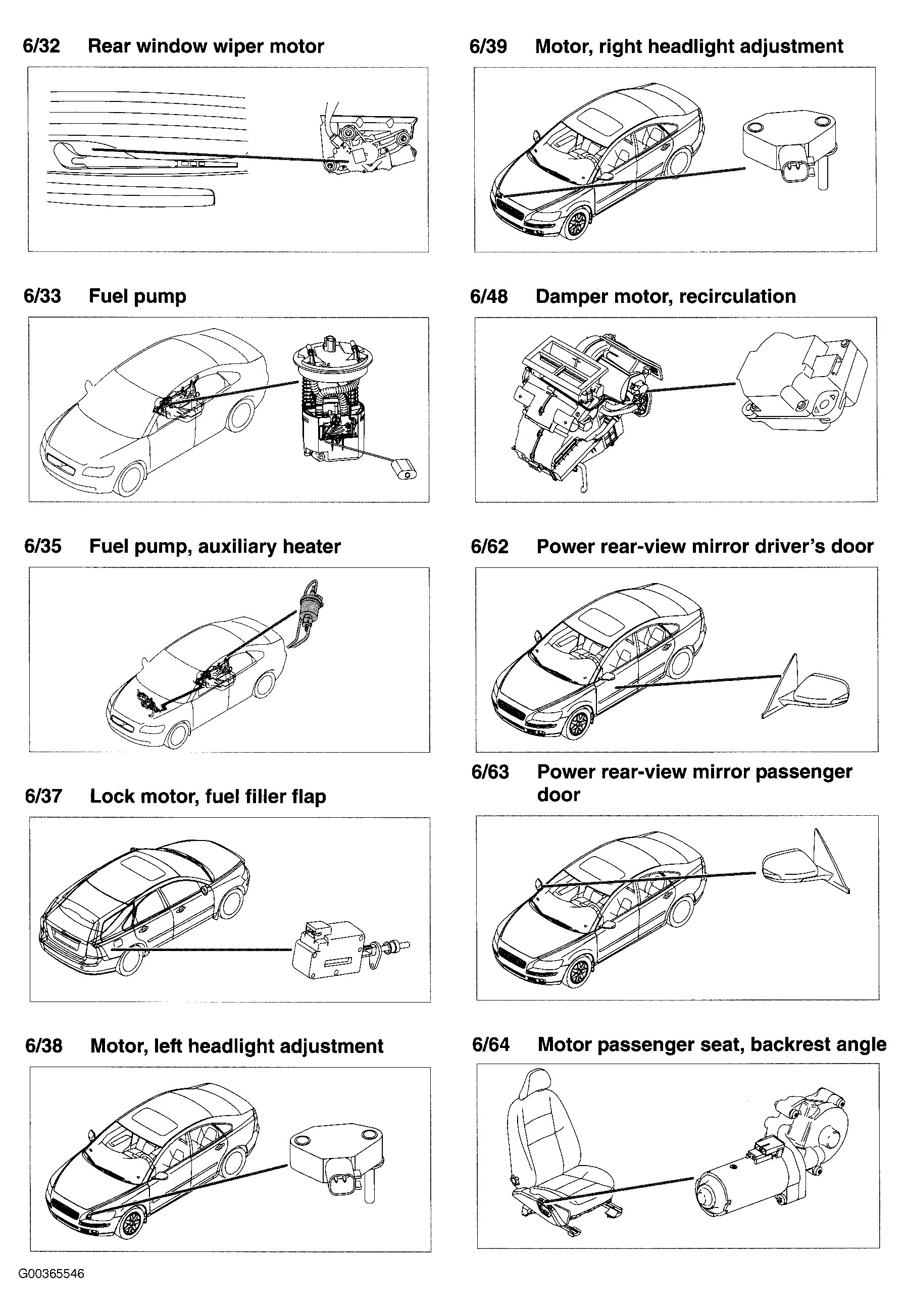

Fig 27: Components 6/32 To 6/64
G00365546Courtesy of VOLVO CARS OF NORTH AMERICA.

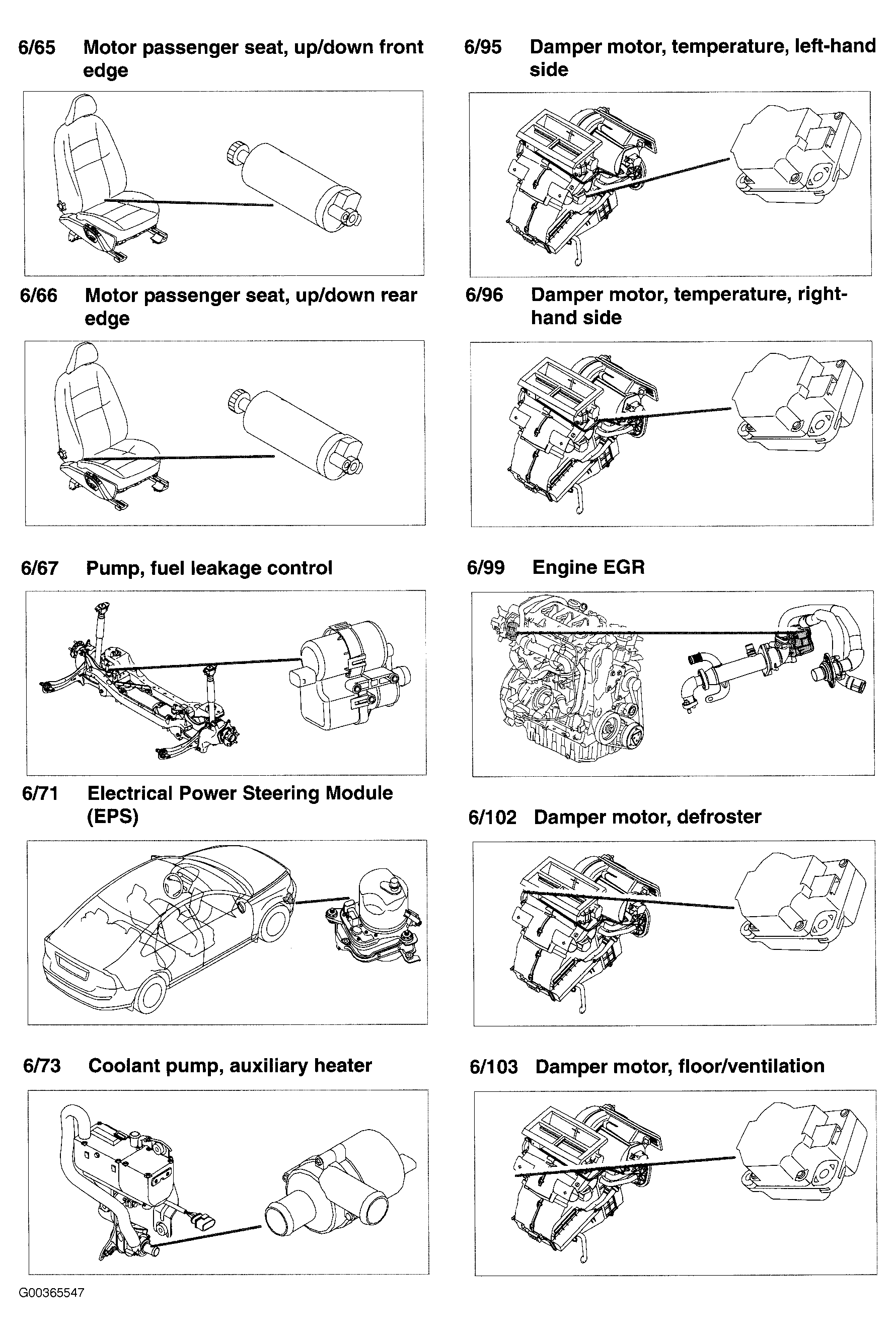

Fig 28: Components 6/65 To 6/103
G00365547Courtesy of VOLVO CARS OF NORTH AMERICA.

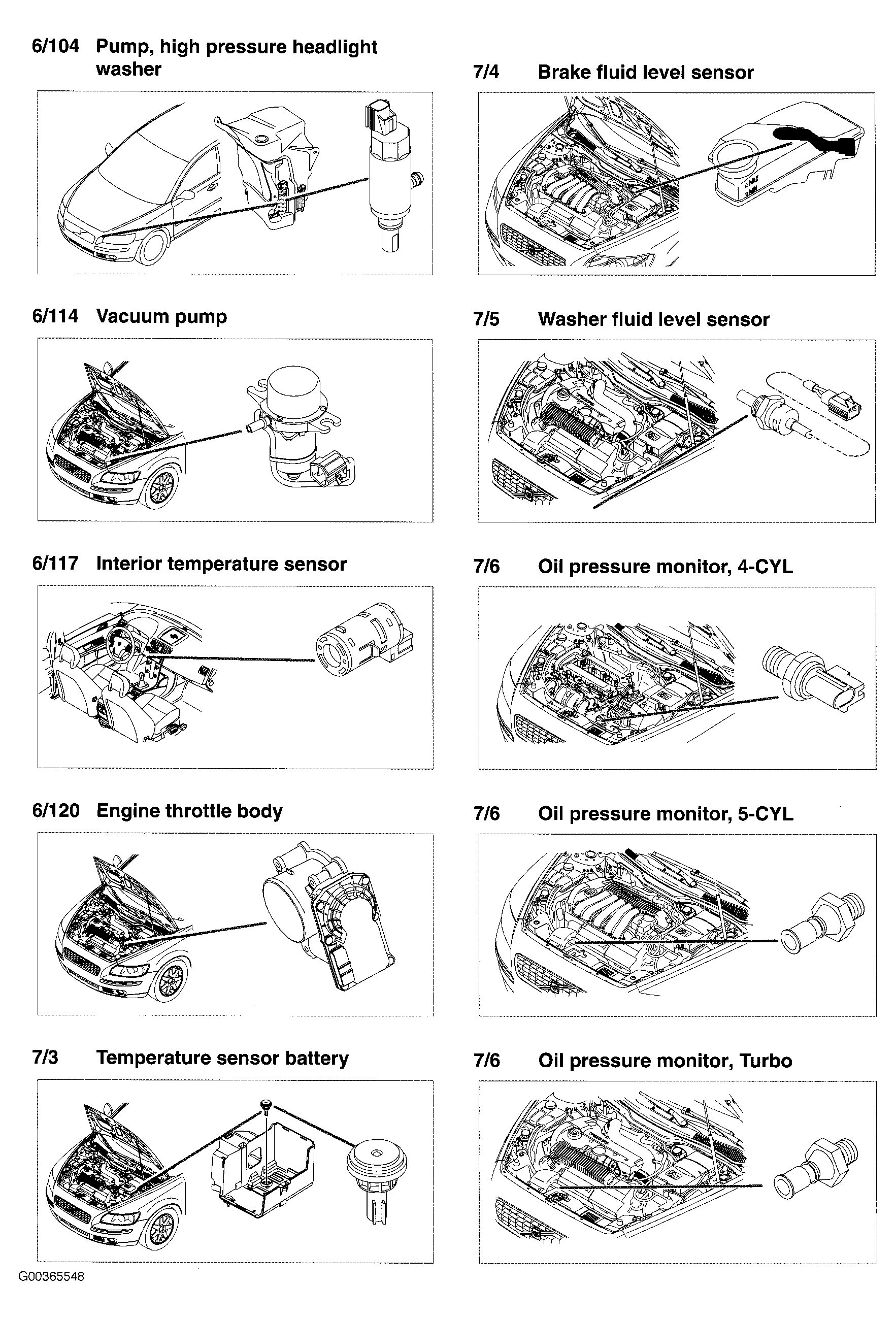

Fig 29: Components 6/104 To 7/6
G00365548Courtesy of VOLVO CARS OF NORTH AMERICA.

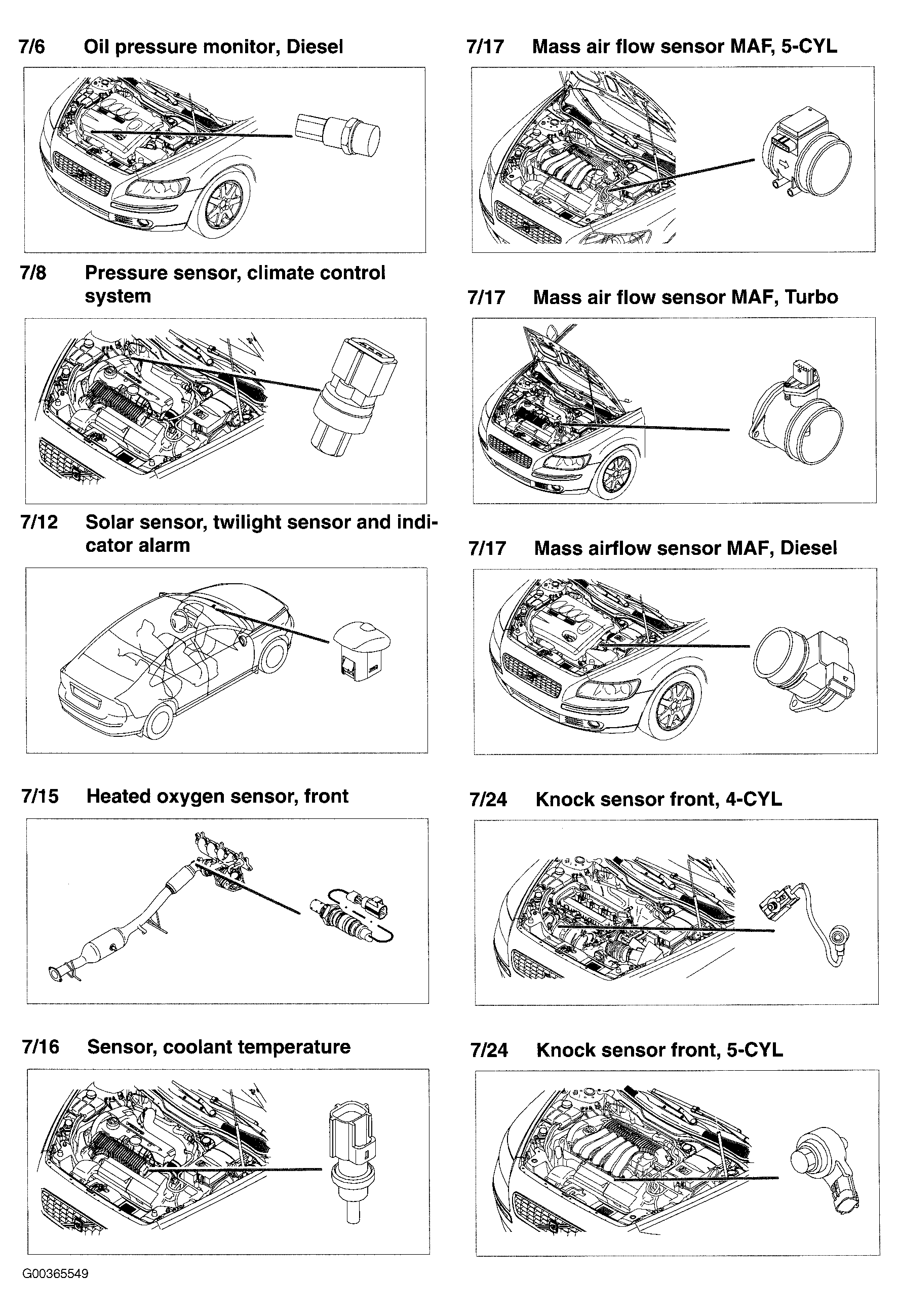

Fig 30: Components 7/6 To 7/24
G00365549Courtesy of VOLVO CARS OF NORTH AMERICA.

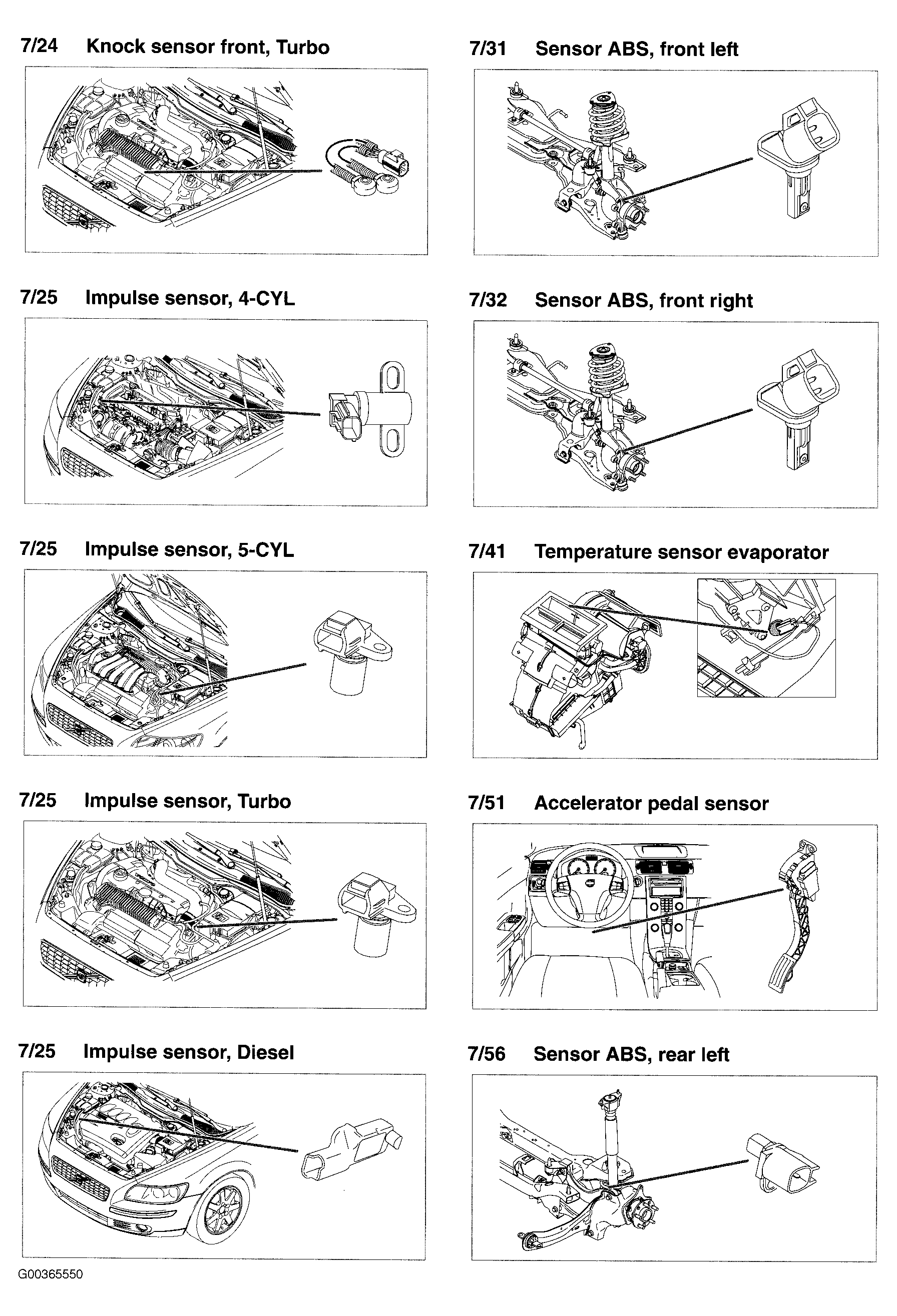

Fig 31: Components 7/24 To 7/56
G00365550Courtesy of VOLVO CARS OF NORTH AMERICA.

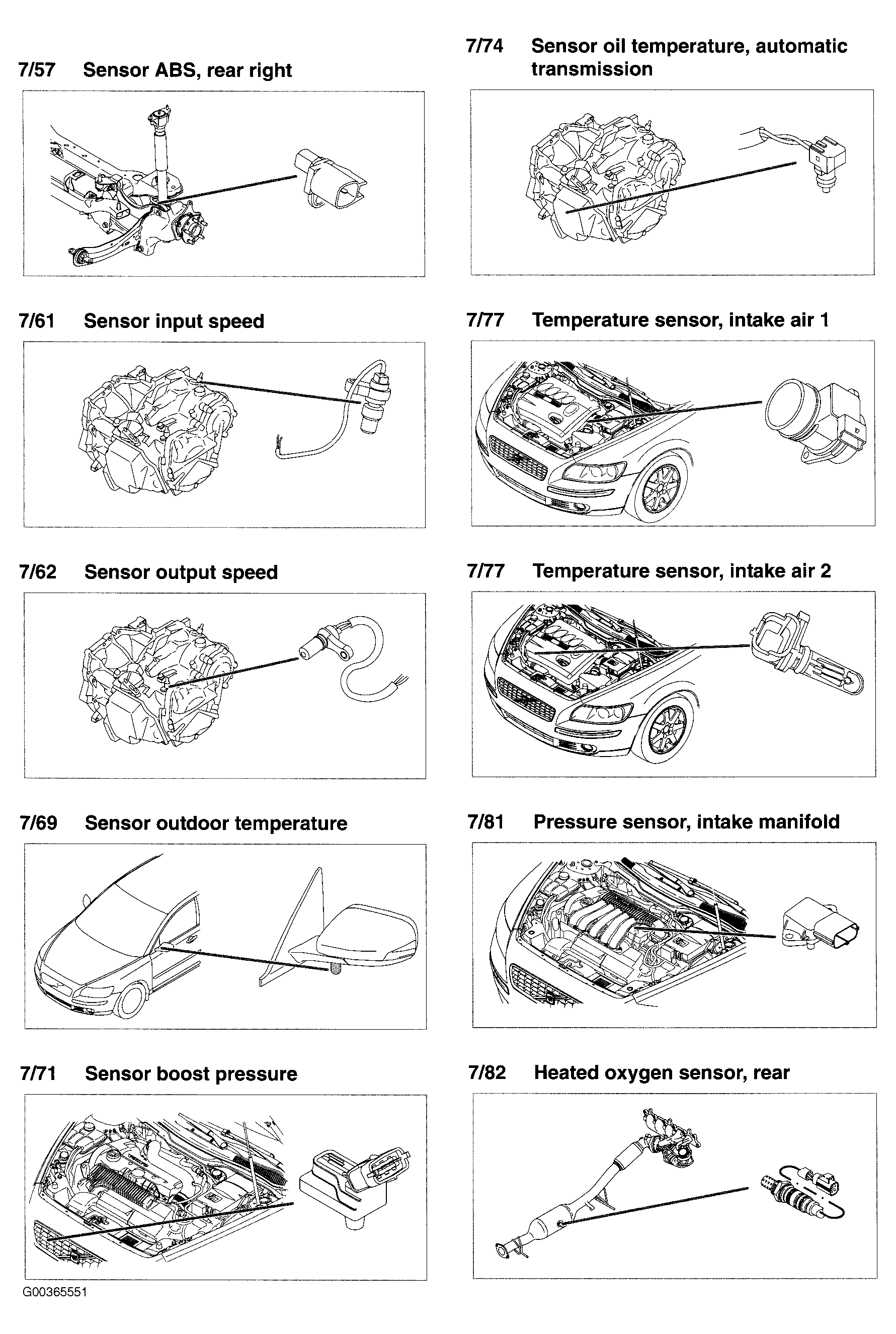

Fig 32: Components 7/57 To 7/82
G00365551Courtesy of VOLVO CARS OF NORTH AMERICA.

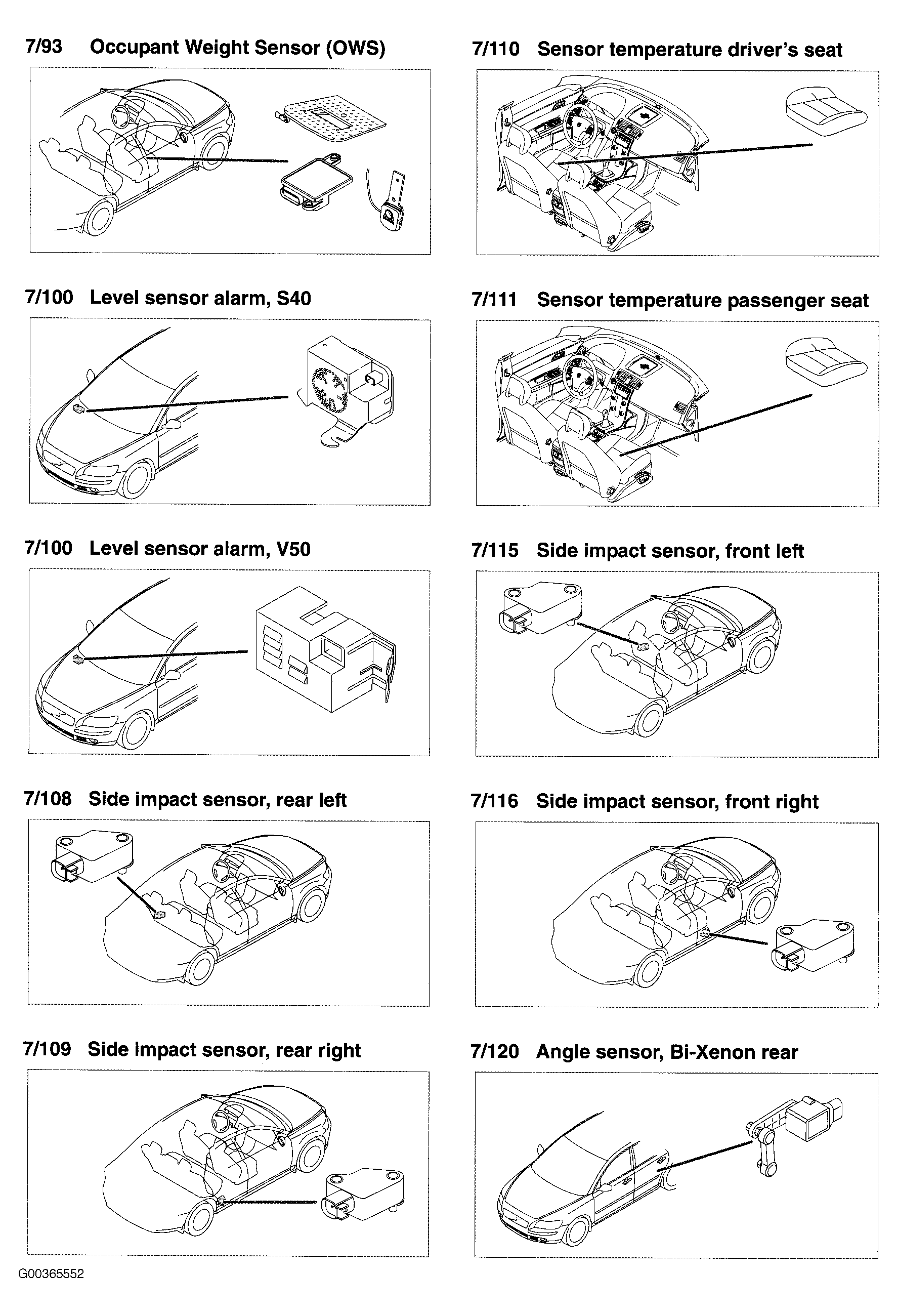

Fig 33: Components 7/93 To 7/120
G00365552Courtesy of VOLVO CARS OF NORTH AMERICA.

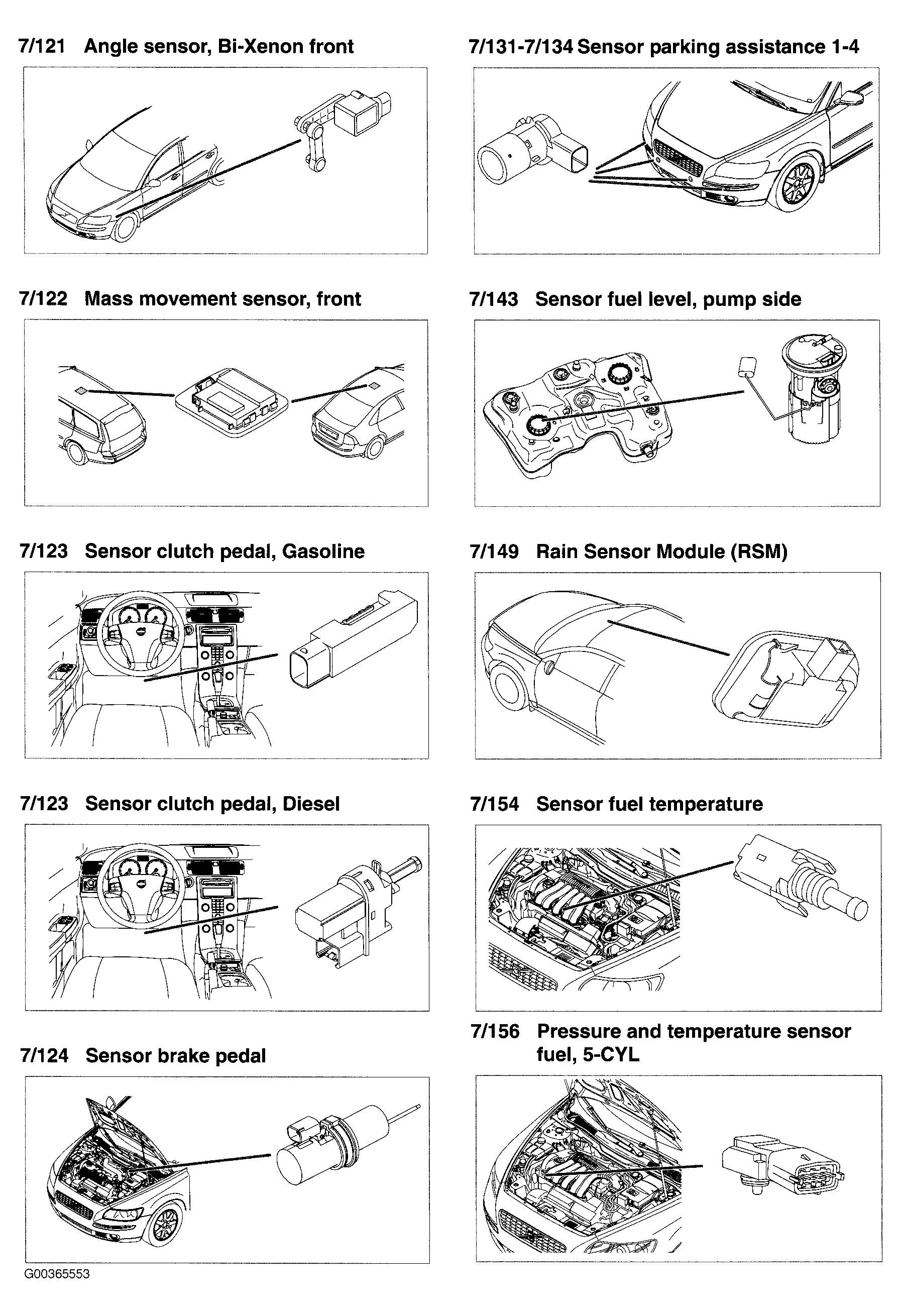

Fig 34: Components 7/121 To 7/156
G00365553Courtesy of VOLVO CARS OF NORTH AMERICA.

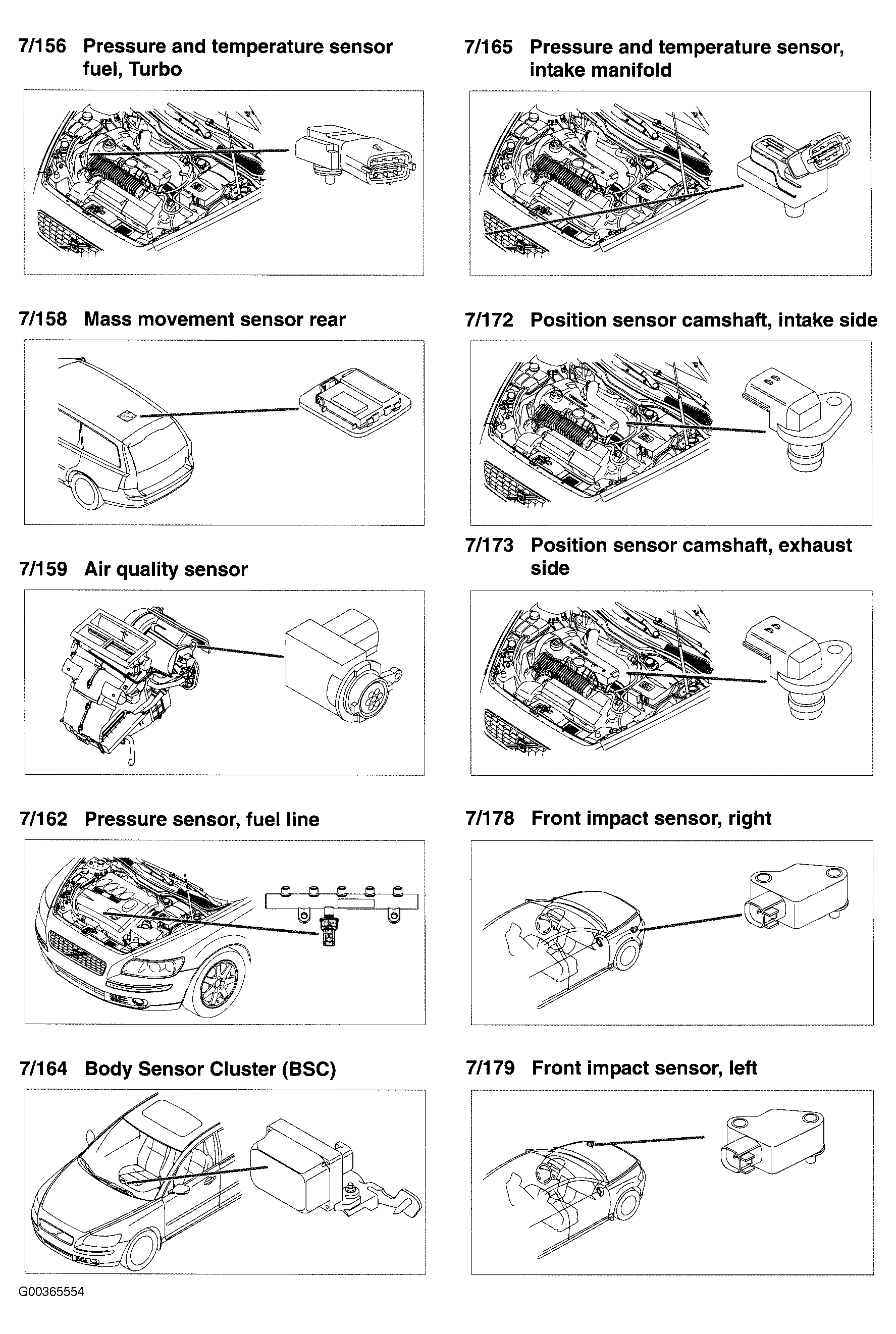

Fig 35: Components 7/156 To 7/179
G00365554Courtesy of VOLVO CARS OF NORTH AMERICA.

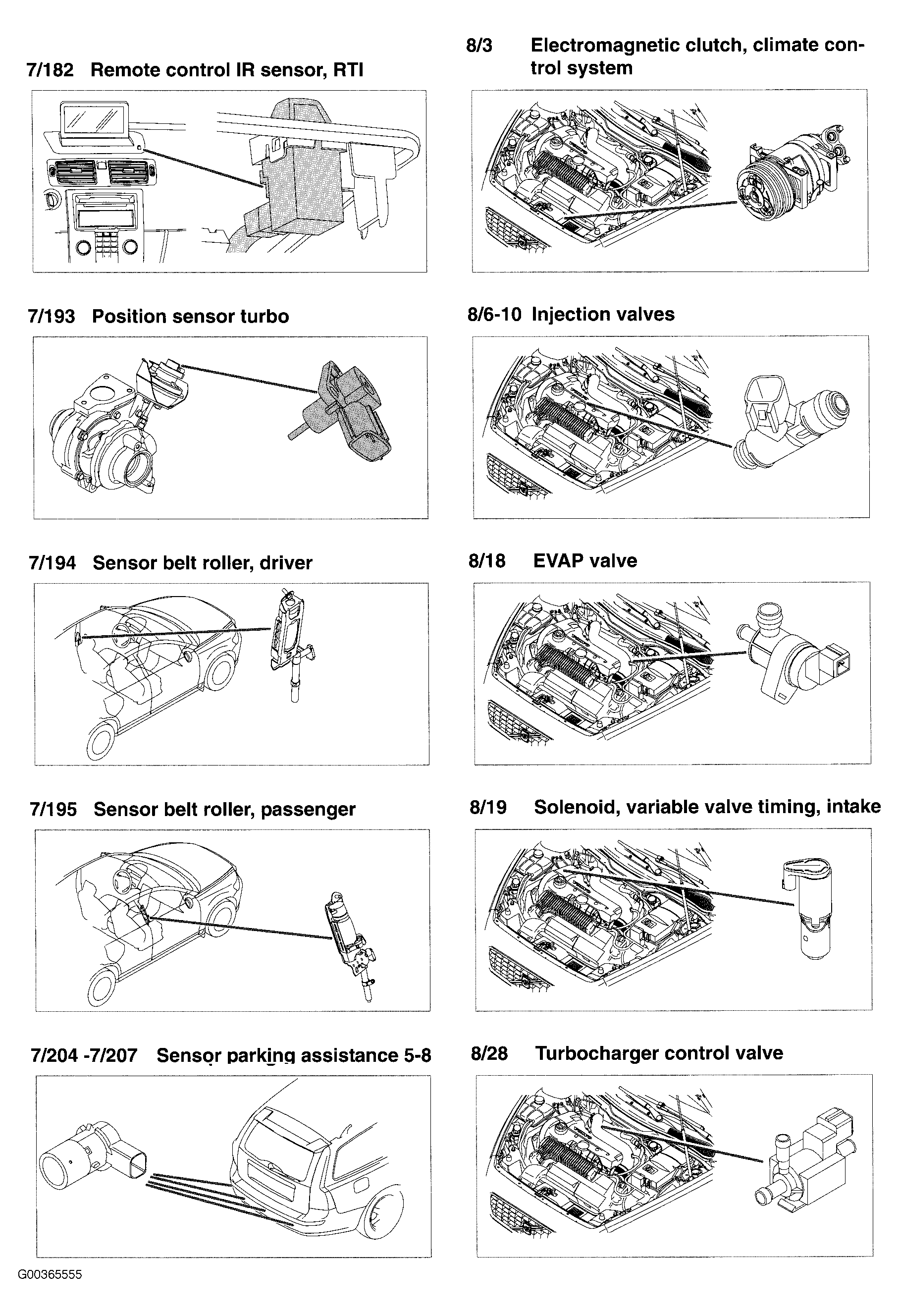

Fig 36: Components 7/182 To 8/28
G00365555Courtesy of VOLVO CARS OF NORTH AMERICA.

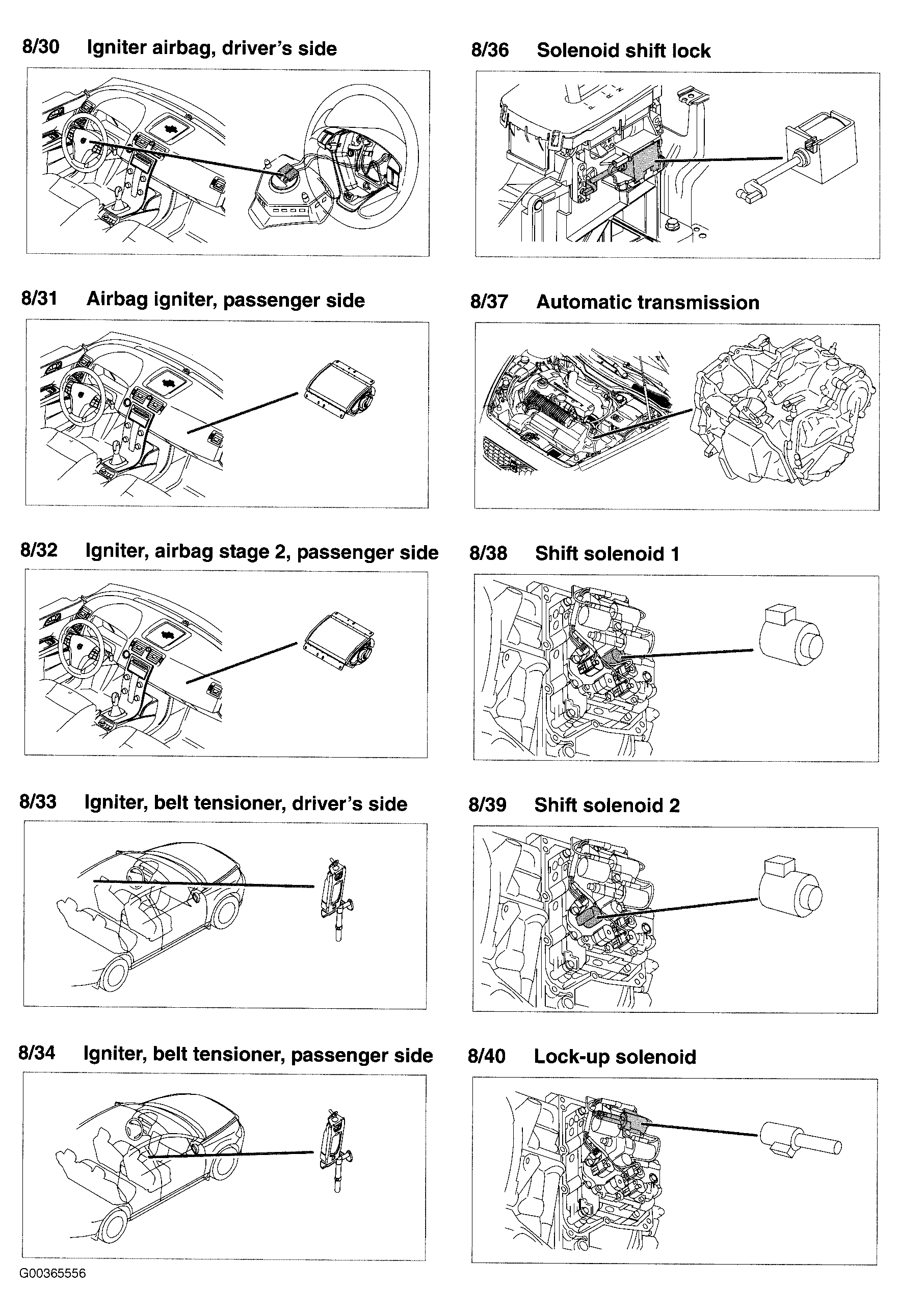

Fig 37: Components 8/30 To 8/40
G00365556Courtesy of VOLVO CARS OF NORTH AMERICA.

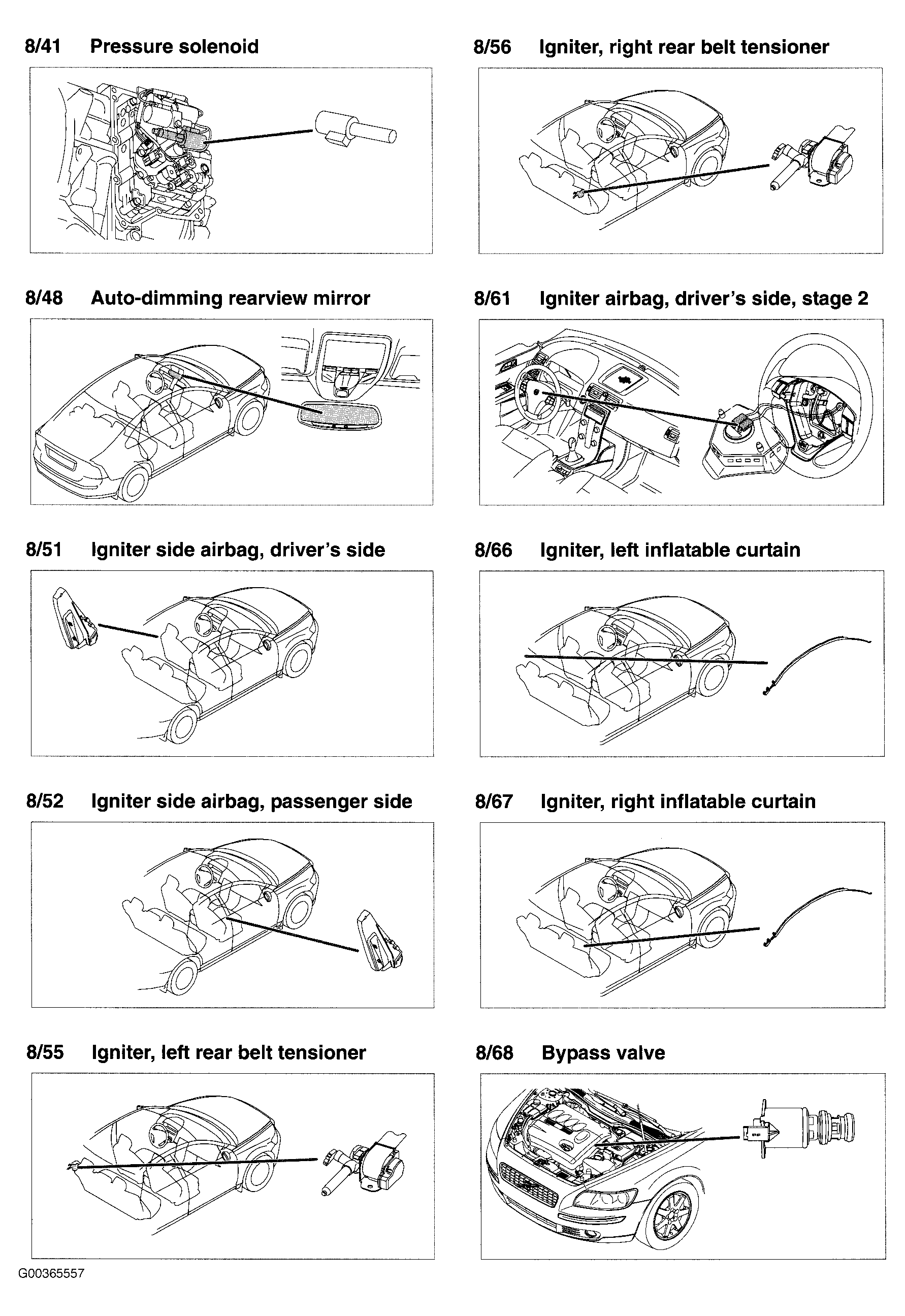

Fig 38: Components 8/41 To 8/68
G00365557Courtesy of VOLVO CARS OF NORTH AMERICA.

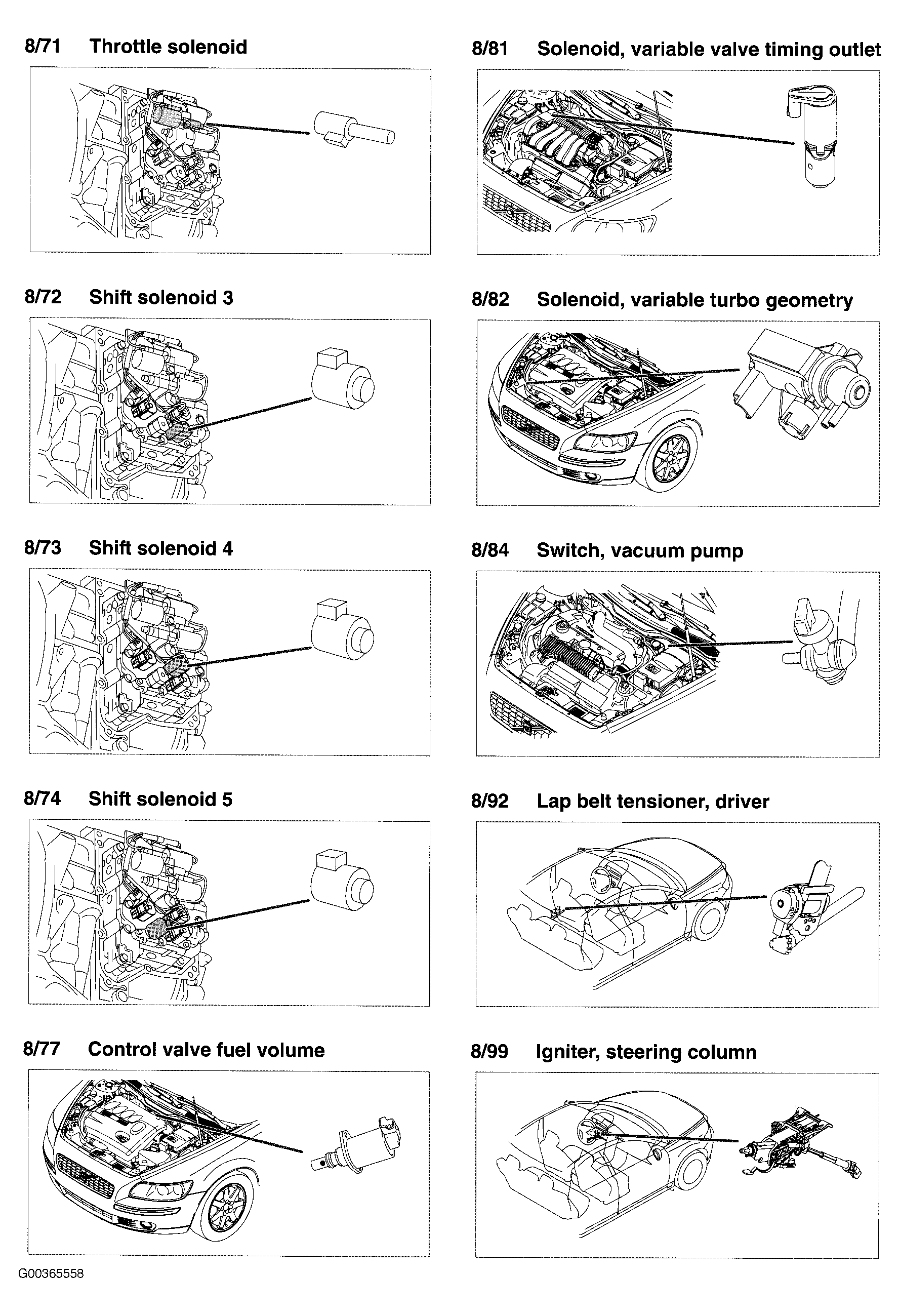

Fig 39: Components 8/71 To 8/99
G00365558Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 40: Components 8/119 To 8/133
G00365559Courtesy of VOLVO CARS OF NORTH AMERICA.

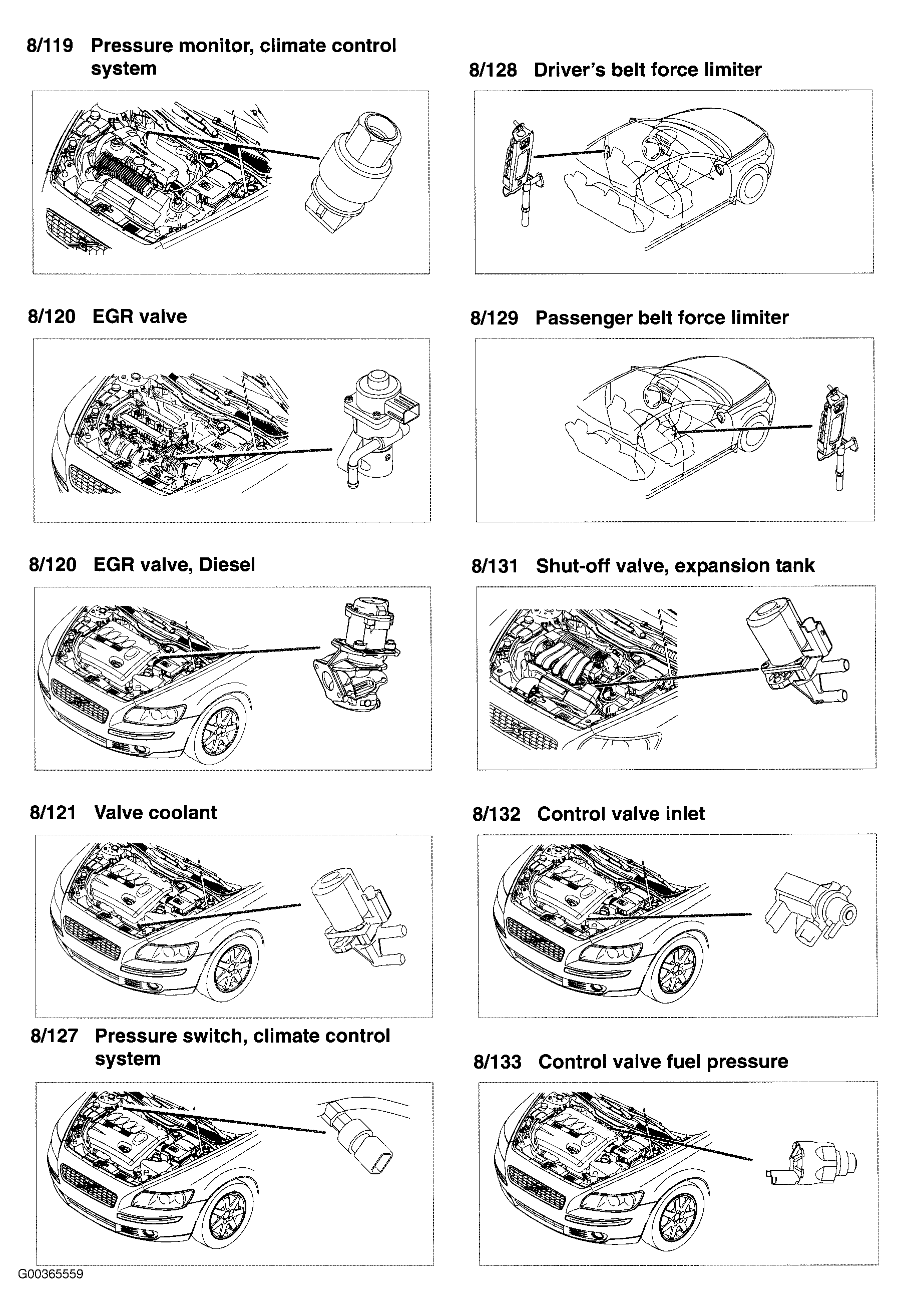

Fig 41: Components 8/134 To 9/25
G00365560Courtesy of VOLVO CARS OF NORTH AMERICA.

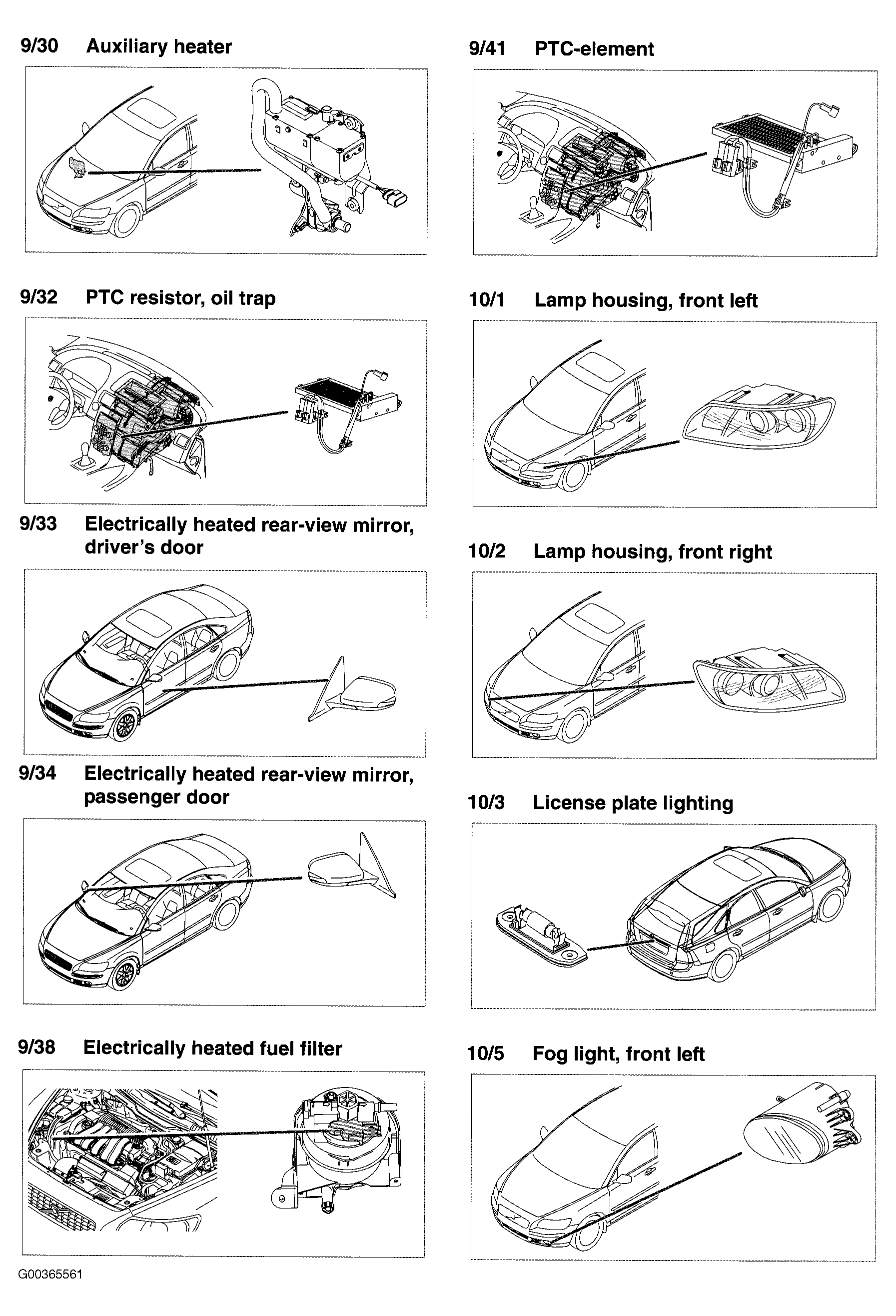

Fig 42: Components 9/30 To 10/5
G00365561Courtesy of VOLVO CARS OF NORTH AMERICA.

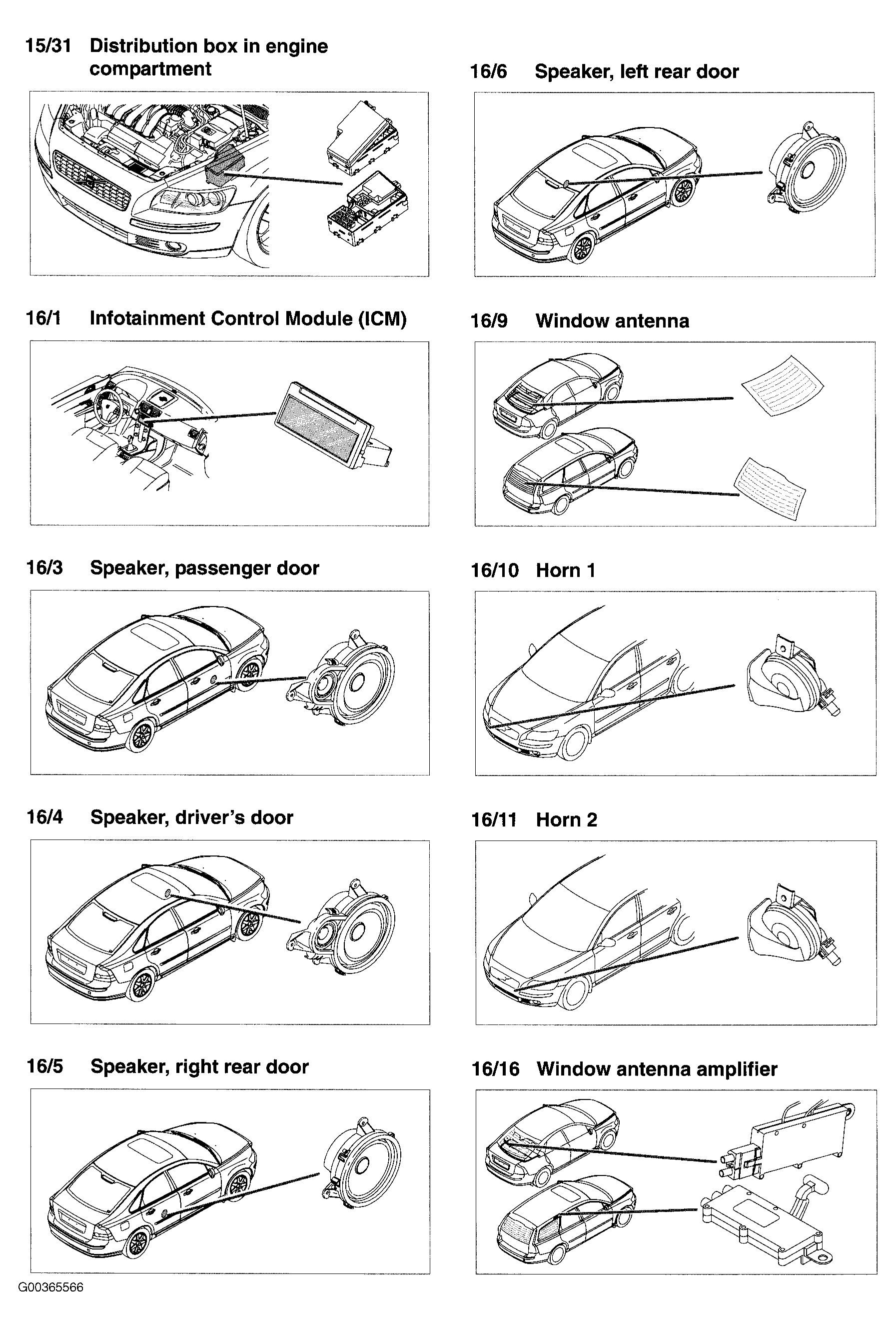

Fig 43: Components 15/31 To 16/16
G00365566Courtesy of VOLVO CARS OF NORTH AMERICA.

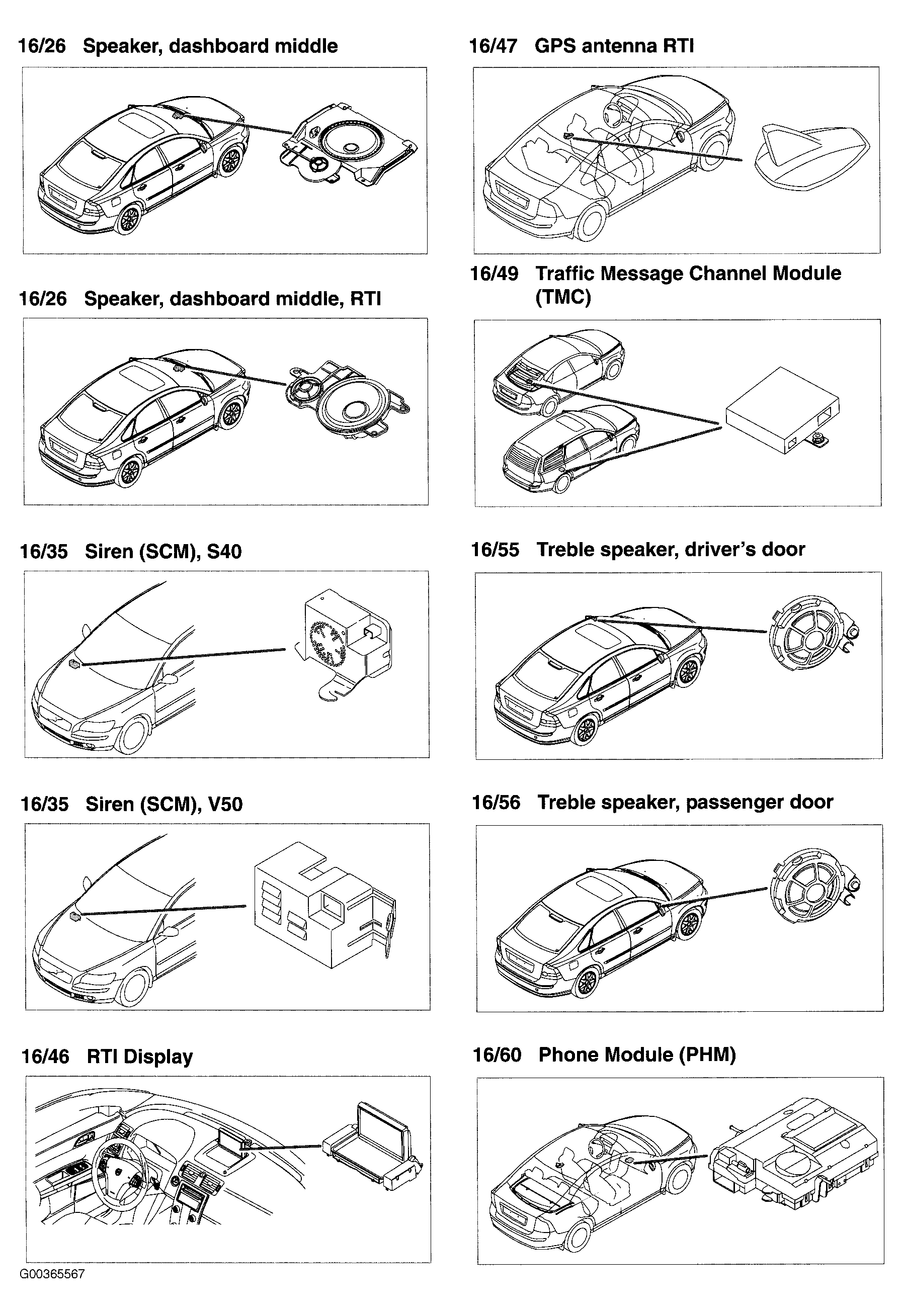

Fig 44: Components 16/26 To 16/60
G00365567Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 45: Components 16/62 To 16/126
G00365568Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 46: Components 16/127 To 16/139
G00365569Courtesy of VOLVO CARS OF NORTH AMERICA.

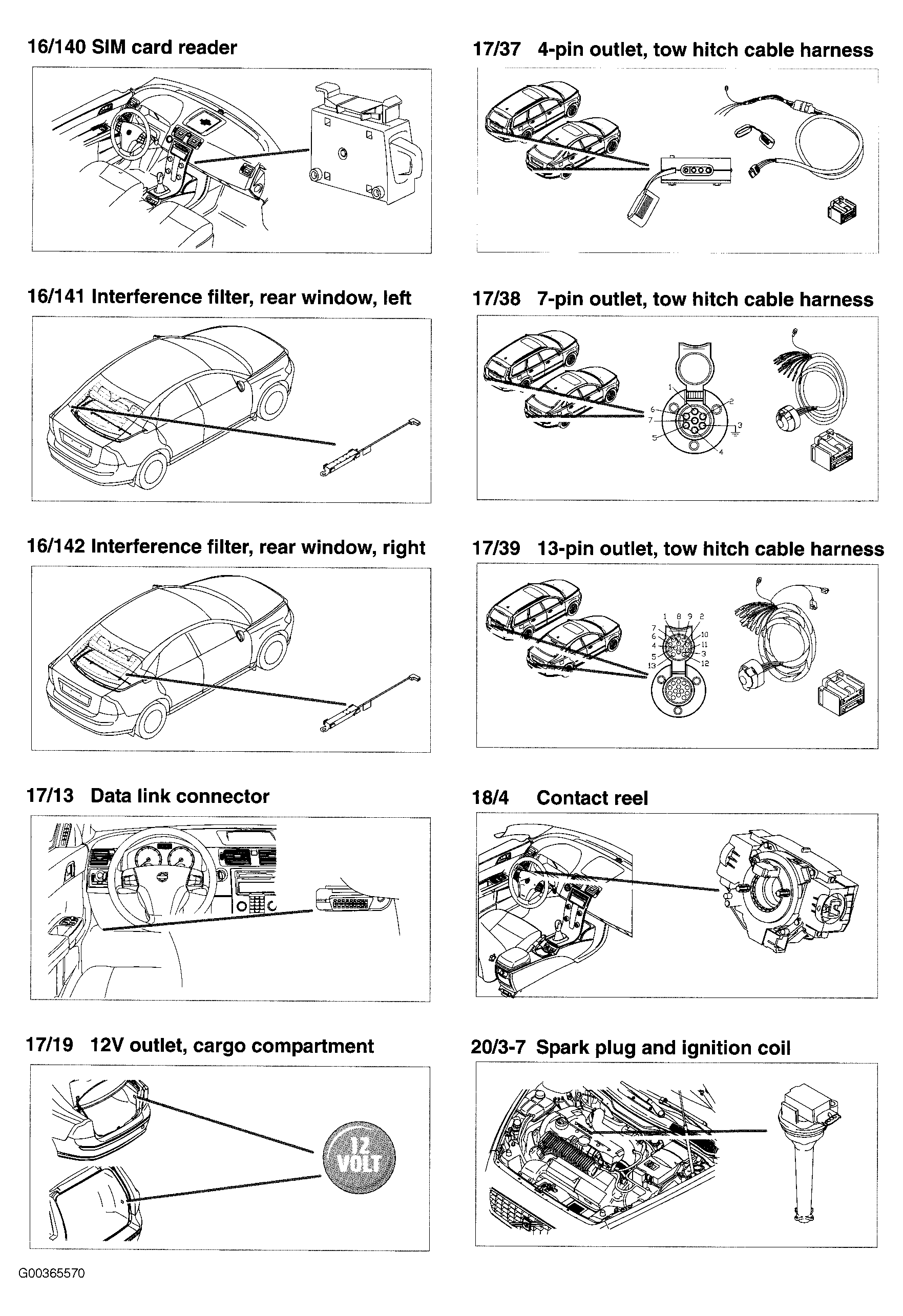

Fig 47: Components 16/140 To 20/3-7
G00365570Courtesy of VOLVO CARS OF NORTH AMERICA.

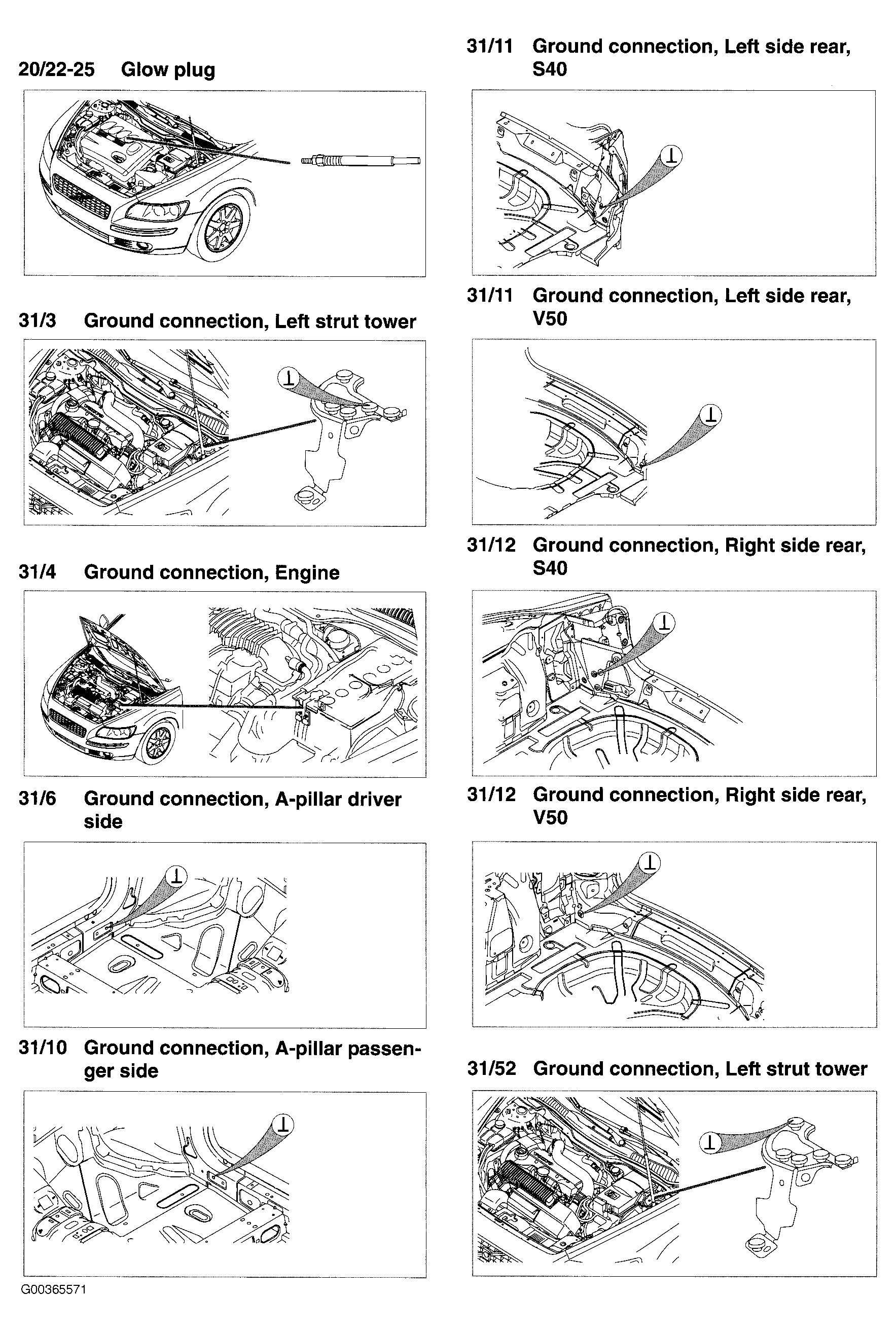

Fig 48: Components 20/22 To 31/52
G00365571Courtesy of VOLVO CARS OF NORTH AMERICA.

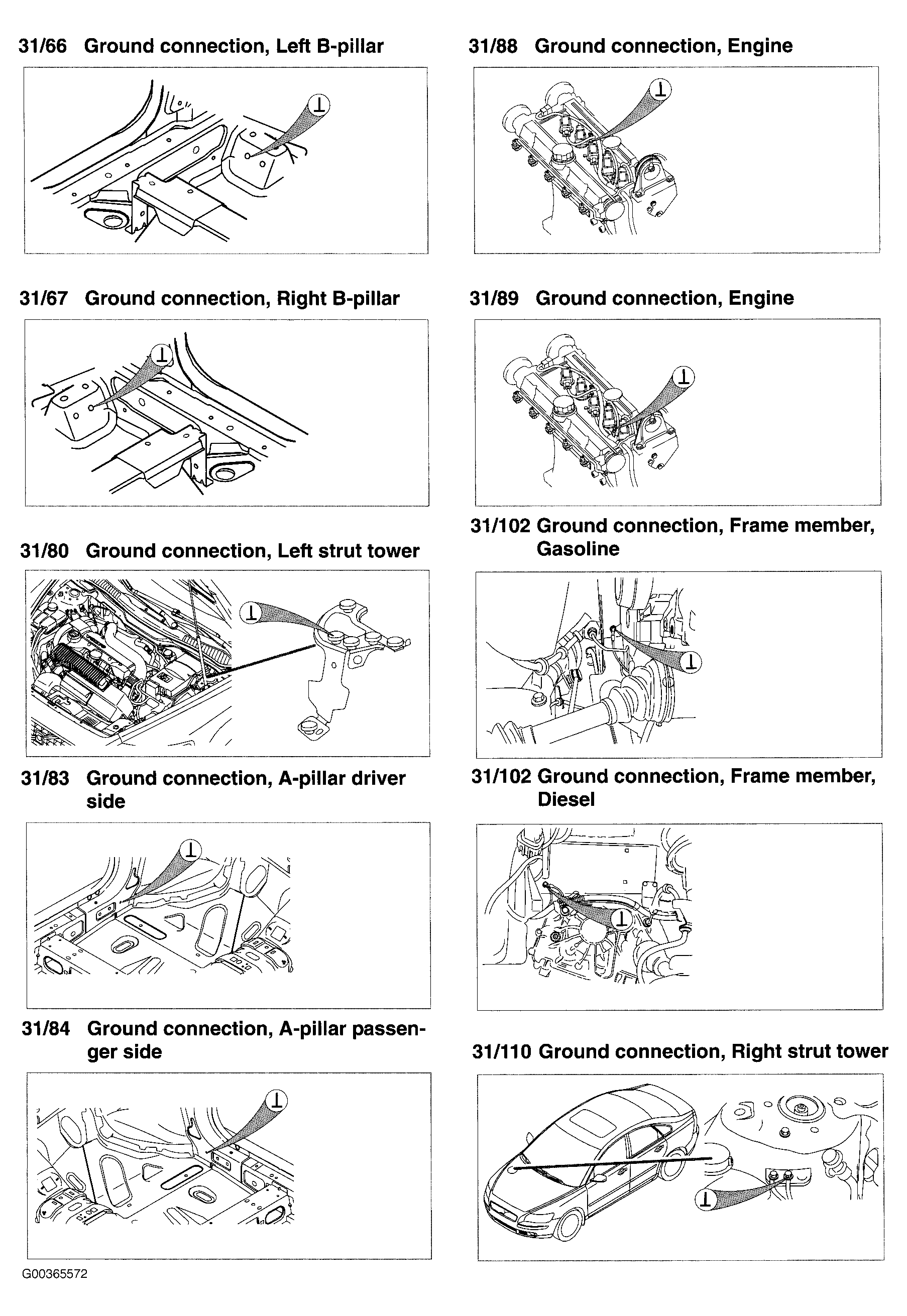

Fig 49: Components 31/66 To 31/110
G00365572Courtesy of VOLVO CARS OF NORTH AMERICA.

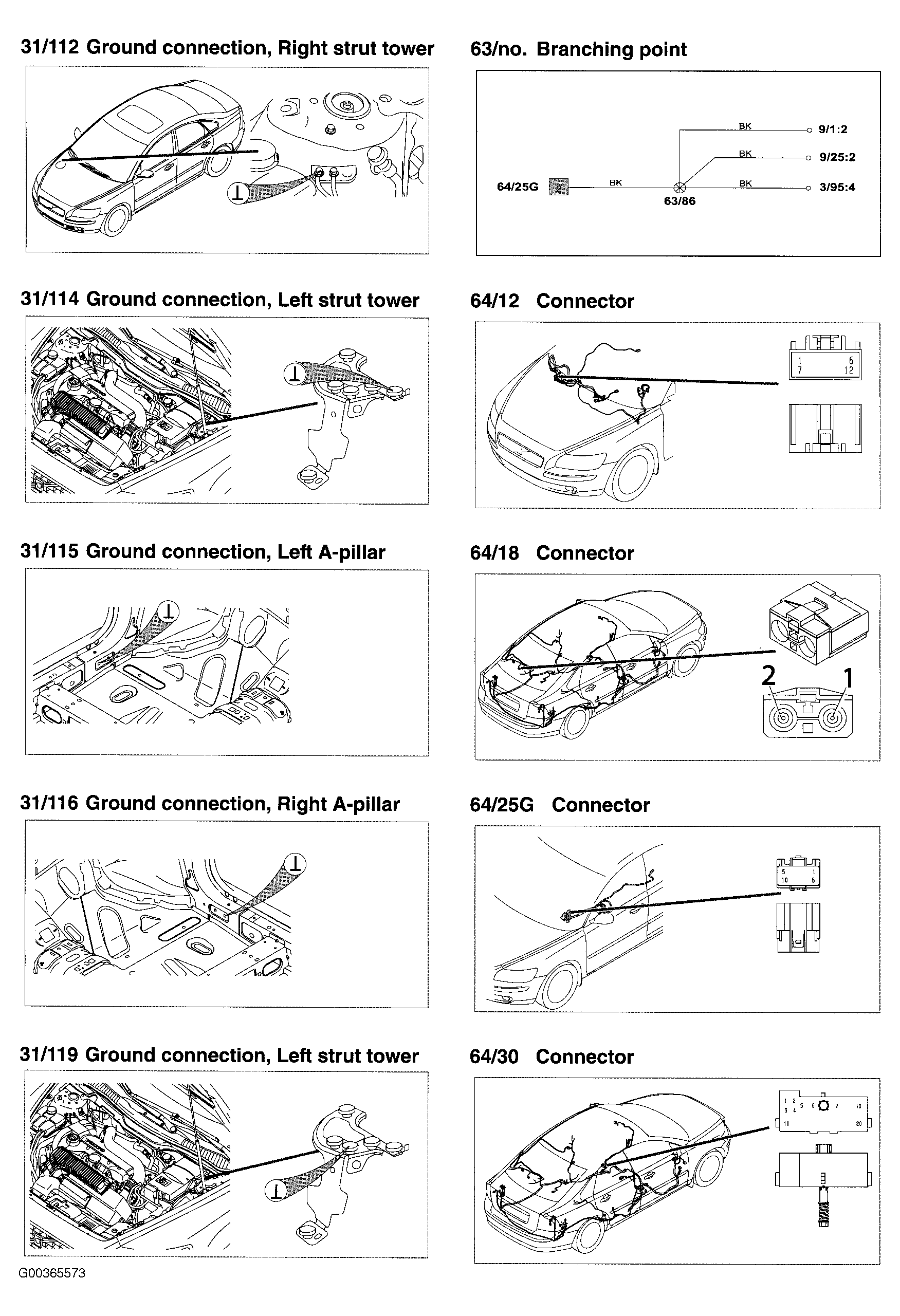

Fig 50: Components 31/112 To 64/30
G00365573Courtesy of VOLVO CARS OF NORTH AMERICA.

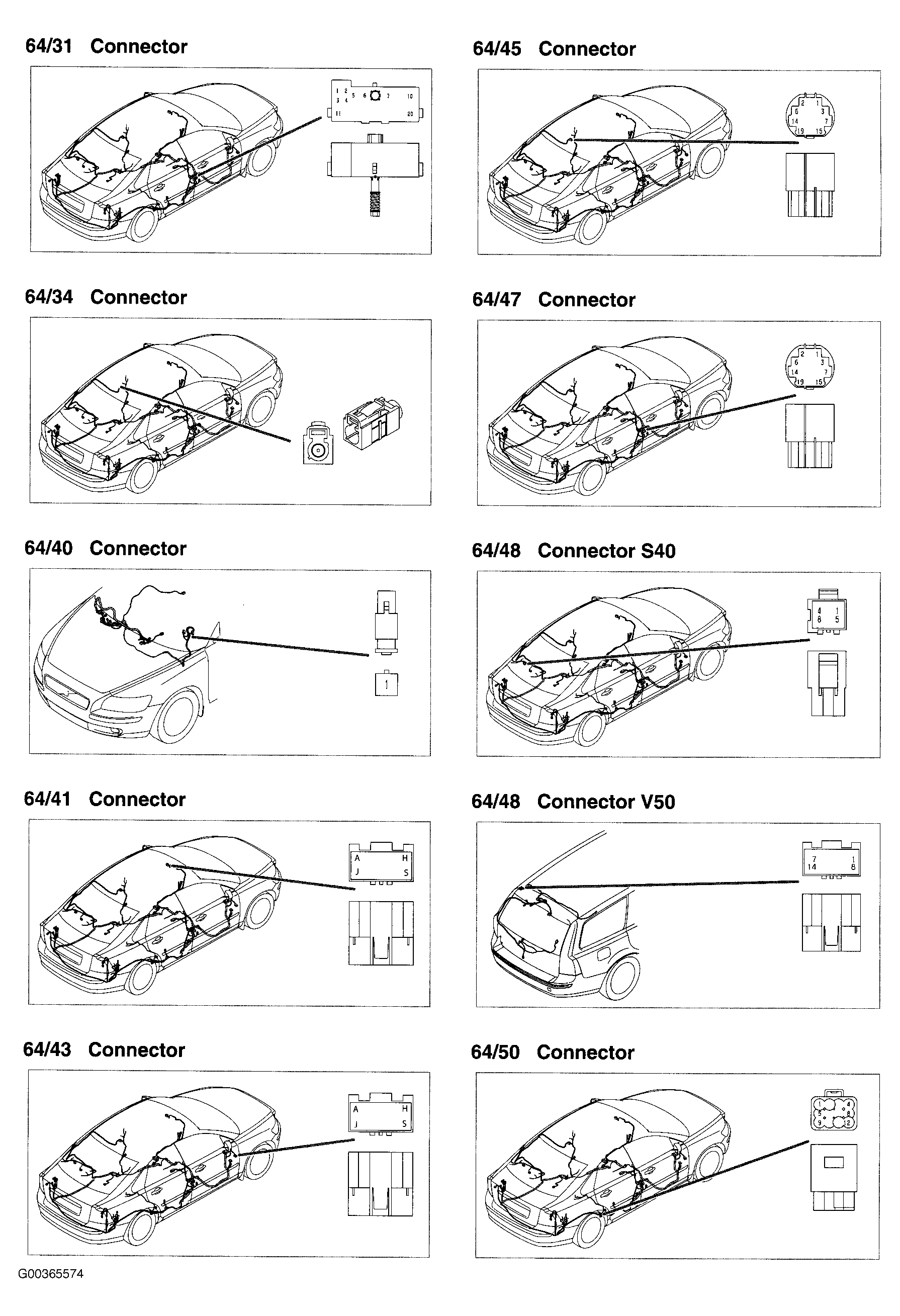

Fig 51: Components 64/31 To 64/50
G00365574Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 52: Components 64/51 To 64/545

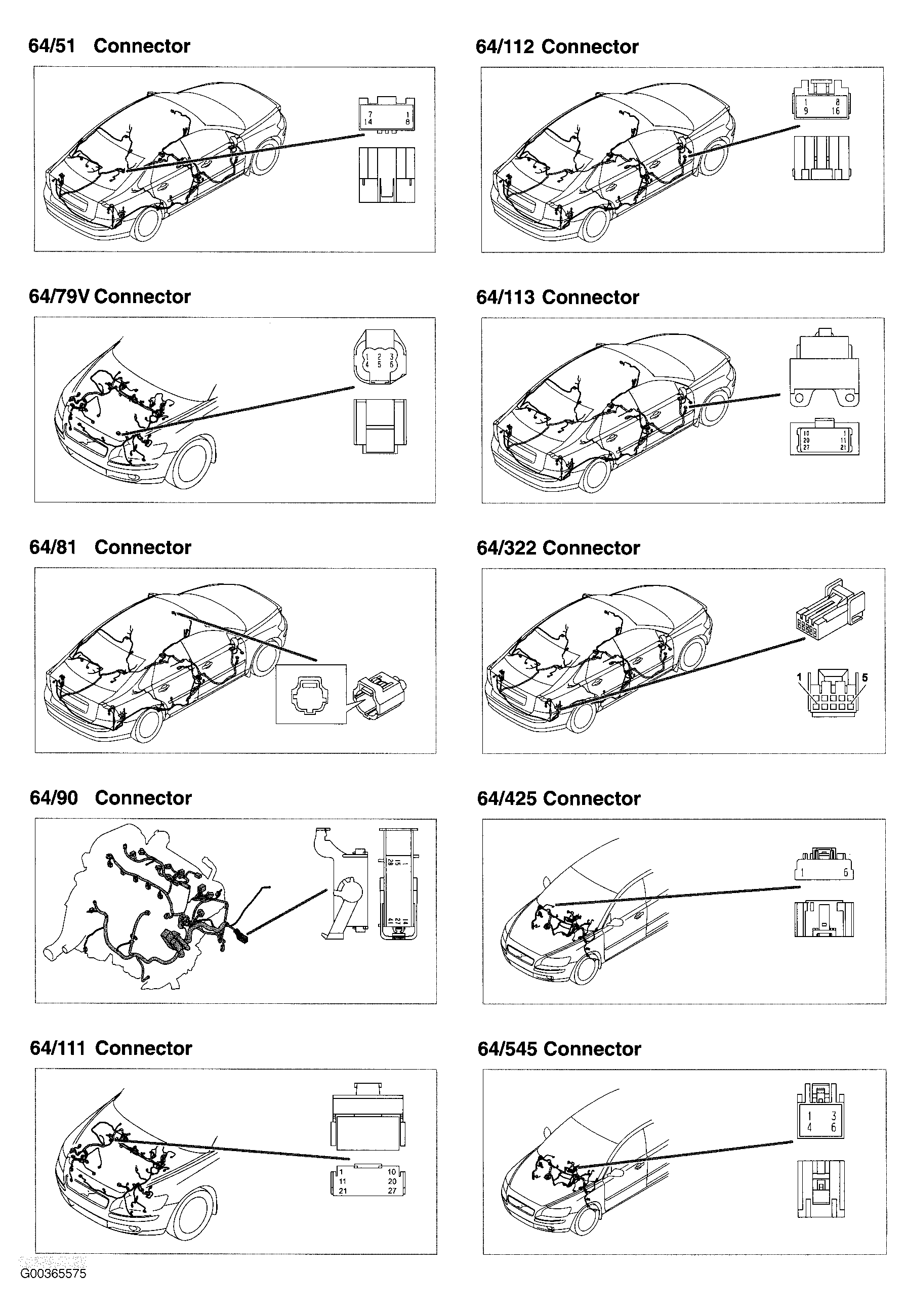

G00365575Courtesy of VOLVO CARS OF NORTH AMERICA.

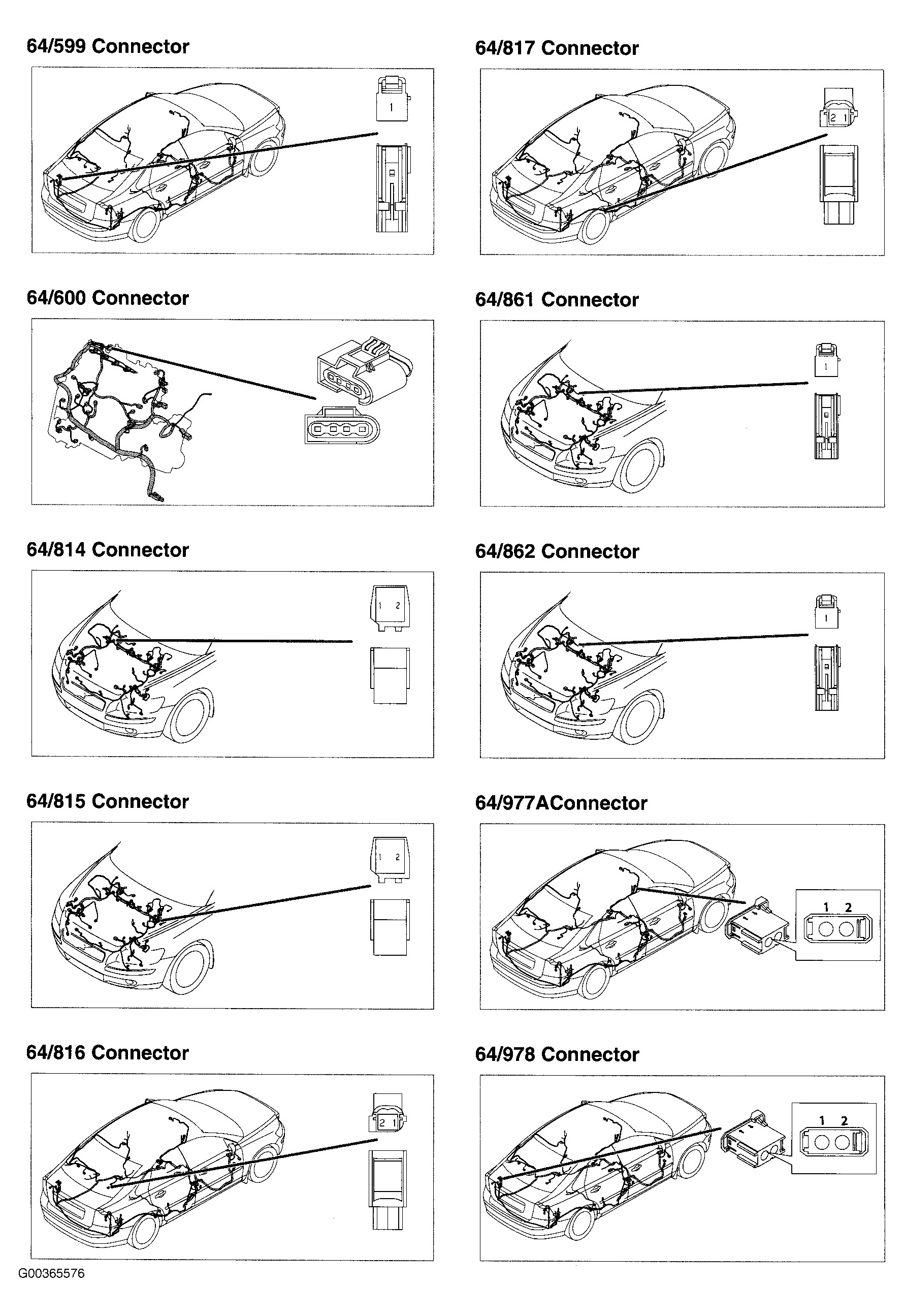

Fig 53: Components 64/599 To 64/978
G00365576Courtesy of VOLVO CARS OF NORTH AMERICA.
