Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine (2.4L)
G00422353Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Engine (2.5L Turbo)
G00360077Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Engine Compartment
G00422354Courtesy of VOLVO CARS OF NORTH AMERICA.

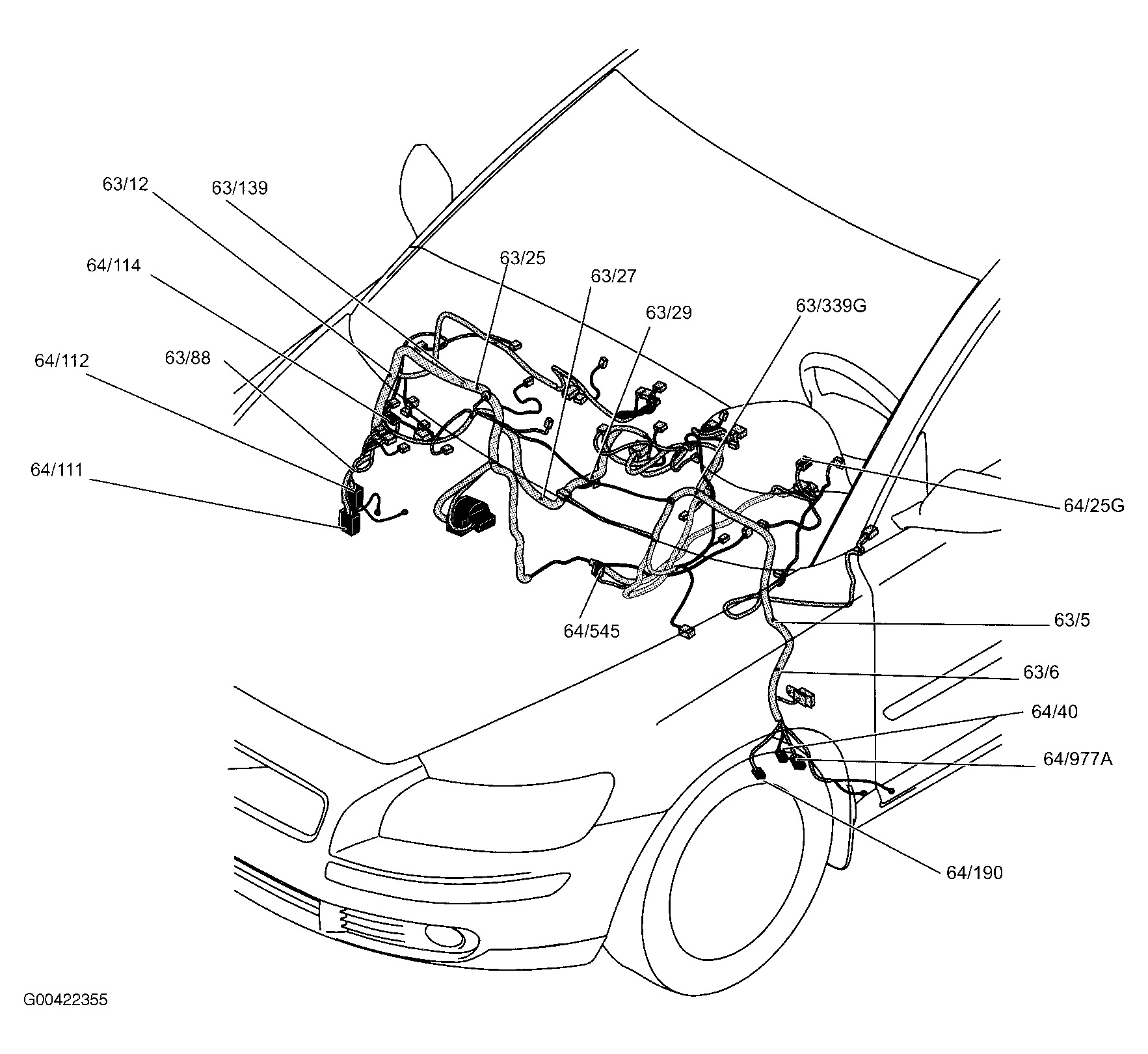

Fig 4: Dash
G00422355Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Vehicle Overview (S40)
G00360082Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 6: Vehicle Overview (V50)
G00360083Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 7: Roof (S40)
G00360084Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 8: Roof (V50)
G00360085Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 9: Passenger Door
G00360088Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 10: Right Rear Door
G00360089Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 11: Left Rear Door
G00360090Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 12: Trunk
G00360091Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 13: Tailgate
G00360092Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Components 1/1 To 2/64
G00365535Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Components 2/80 To 2/192
G00365536Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Components 2/193 To 3/27
G00365537Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 17: Components 3/35 To 3/75
G00365538Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 18: Components 3/76 To 3/93
G00365539Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 19: Components 3/94 To 3/155
G00365540Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 20: Components 3/156 To 3/256
G00365541Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 21: Components 3/258 To 4/46
G00365542Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 22: Components 4/46 To 4/93
G00365543Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 23: Components 4/102 To 6/1
G00365544Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 24: Components 6/2 To 6/29
G00365545Courtesy of VOLVO CARS OF NORTH AMERICA.

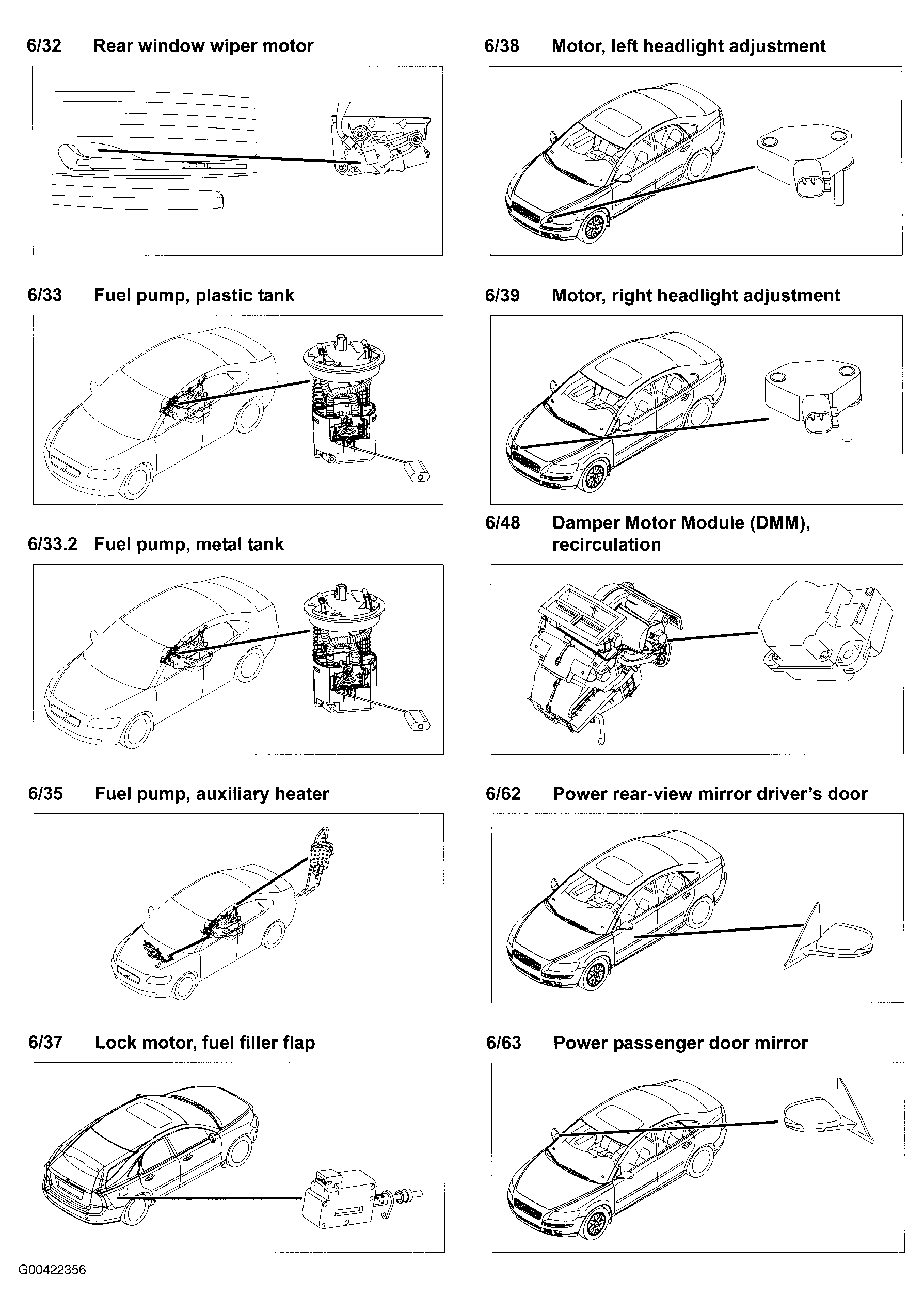

Fig 25: Components 6/32 To 6/63
G00422356Courtesy of VOLVO CARS OF NORTH AMERICA.

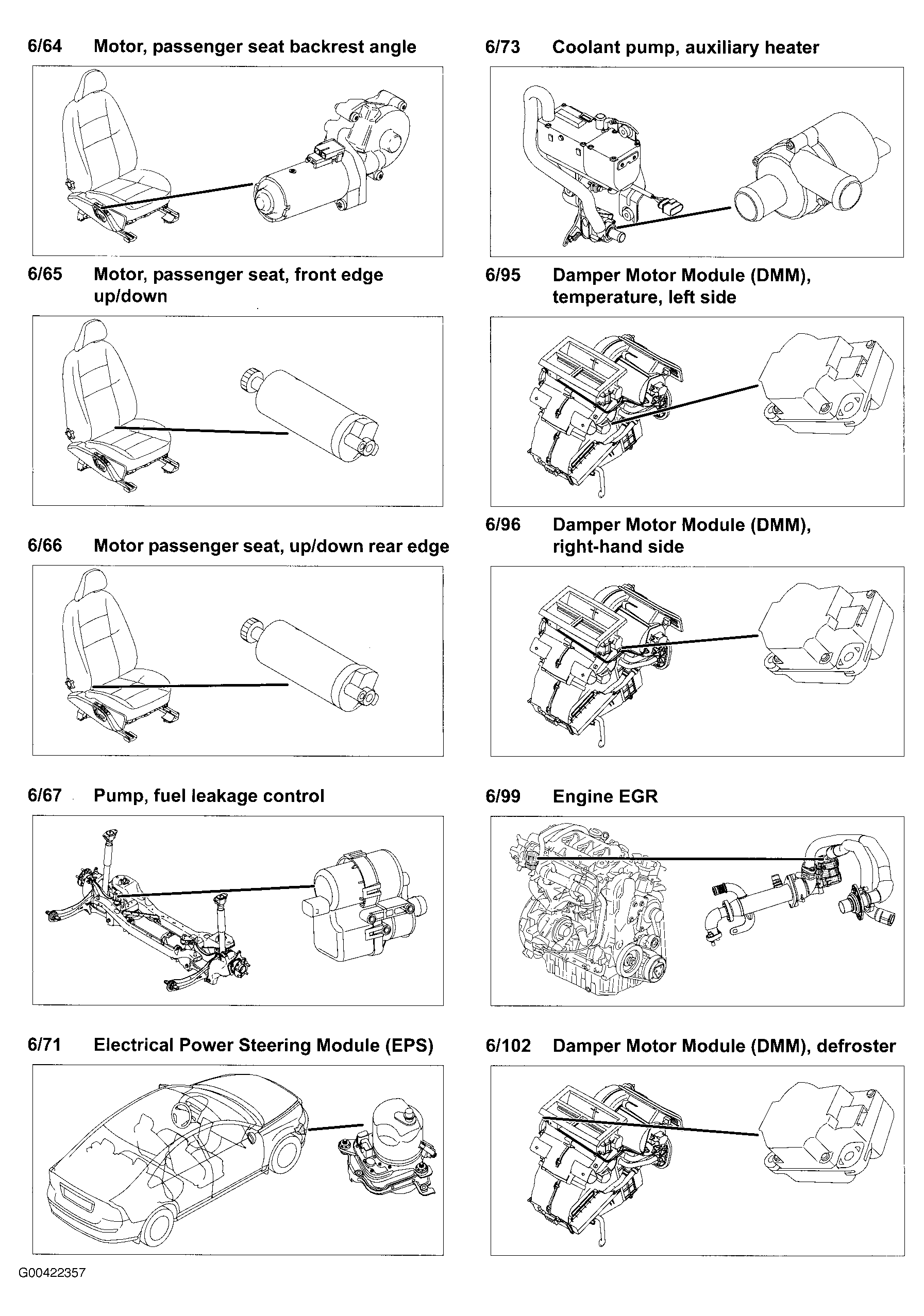

Fig 26: Components 6/64 To 6/102
G00422357Courtesy of VOLVO CARS OF NORTH AMERICA.

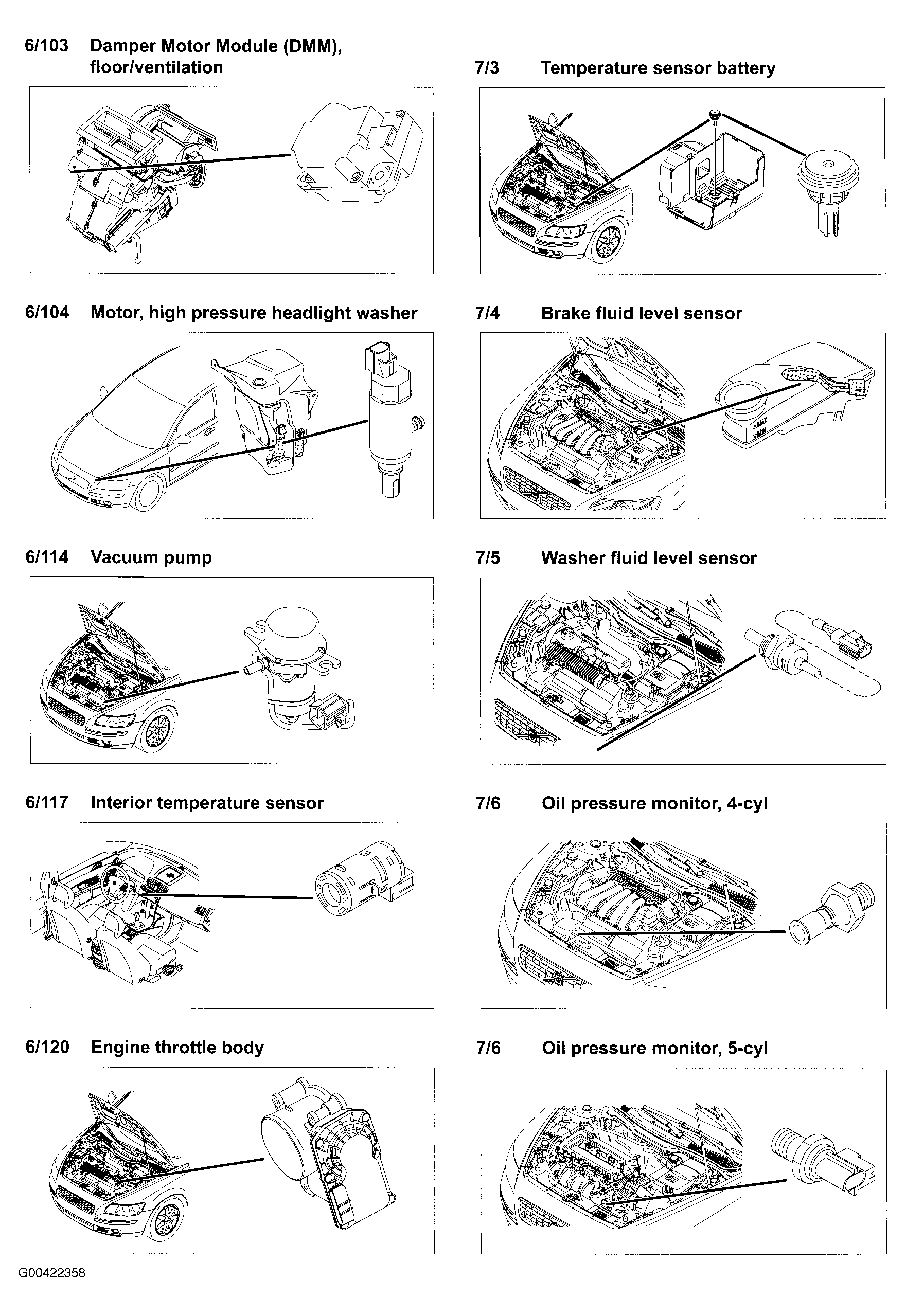

Fig 27: Components 6/103 To 7/6
G00422358Courtesy of VOLVO CARS OF NORTH AMERICA.

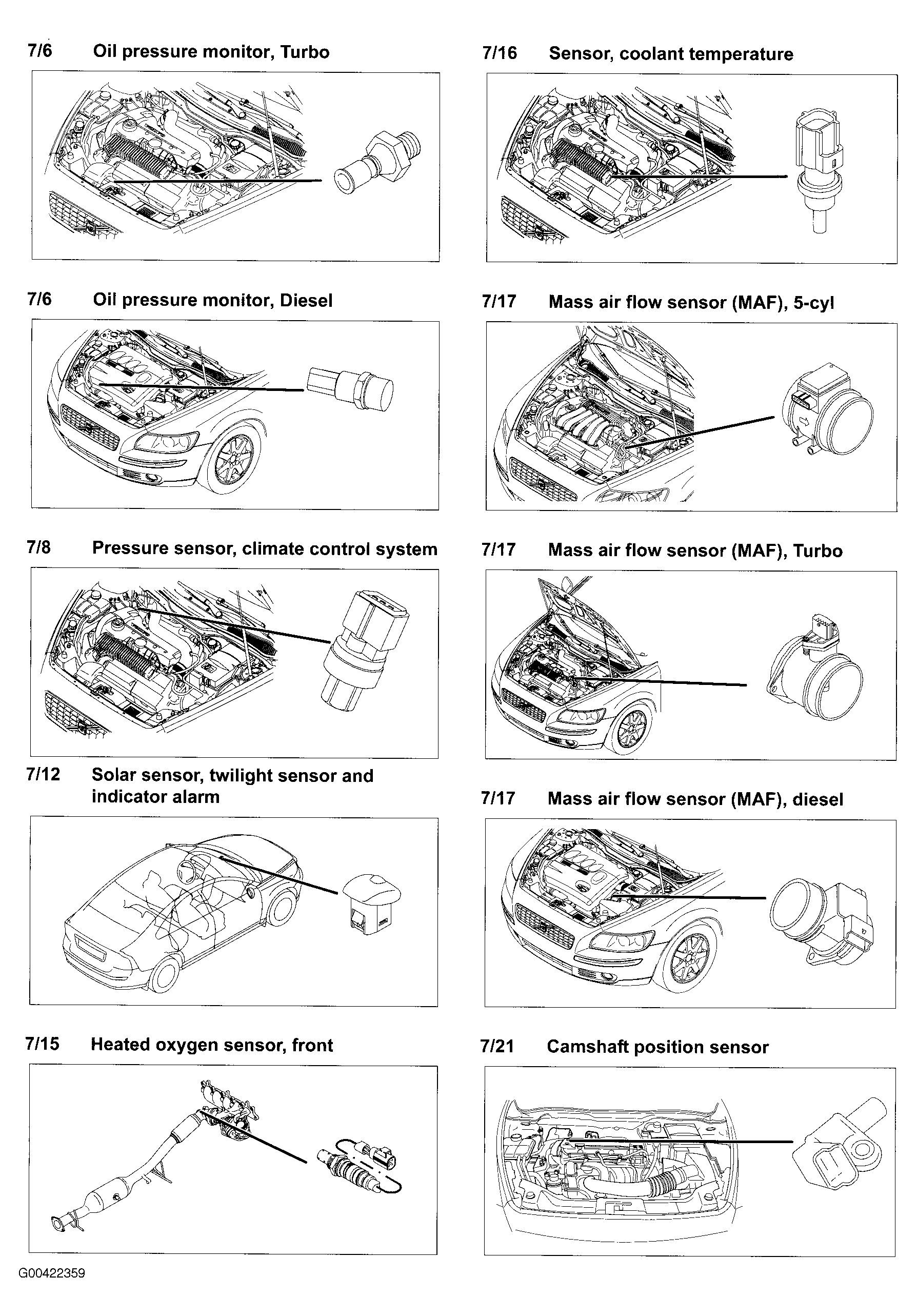

Fig 28: Components 7/6 To 7/21
G00422359Courtesy of VOLVO CARS OF NORTH AMERICA.

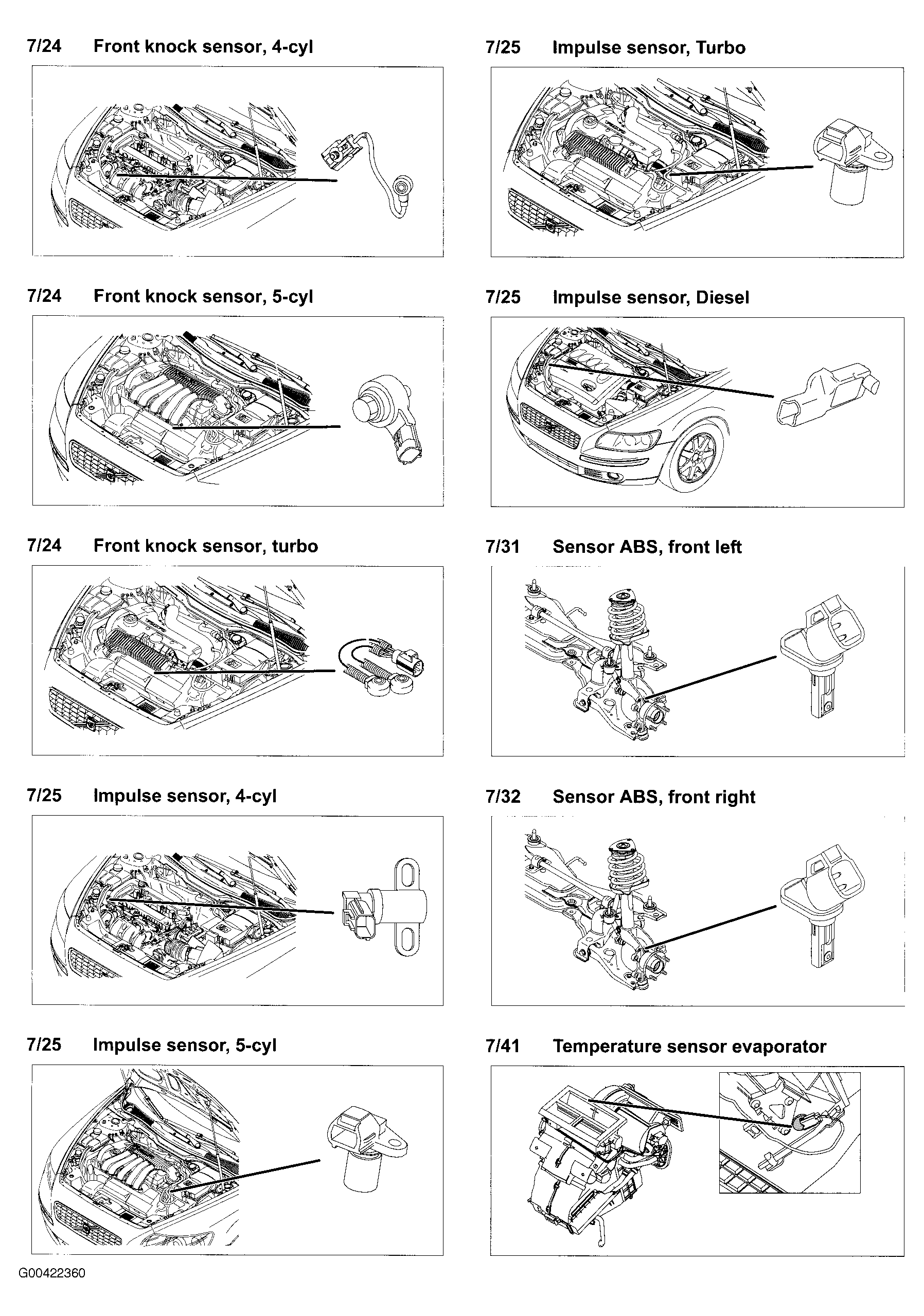

Fig 29: Components 7/24 To 7/41
G00422360Courtesy of VOLVO CARS OF NORTH AMERICA.

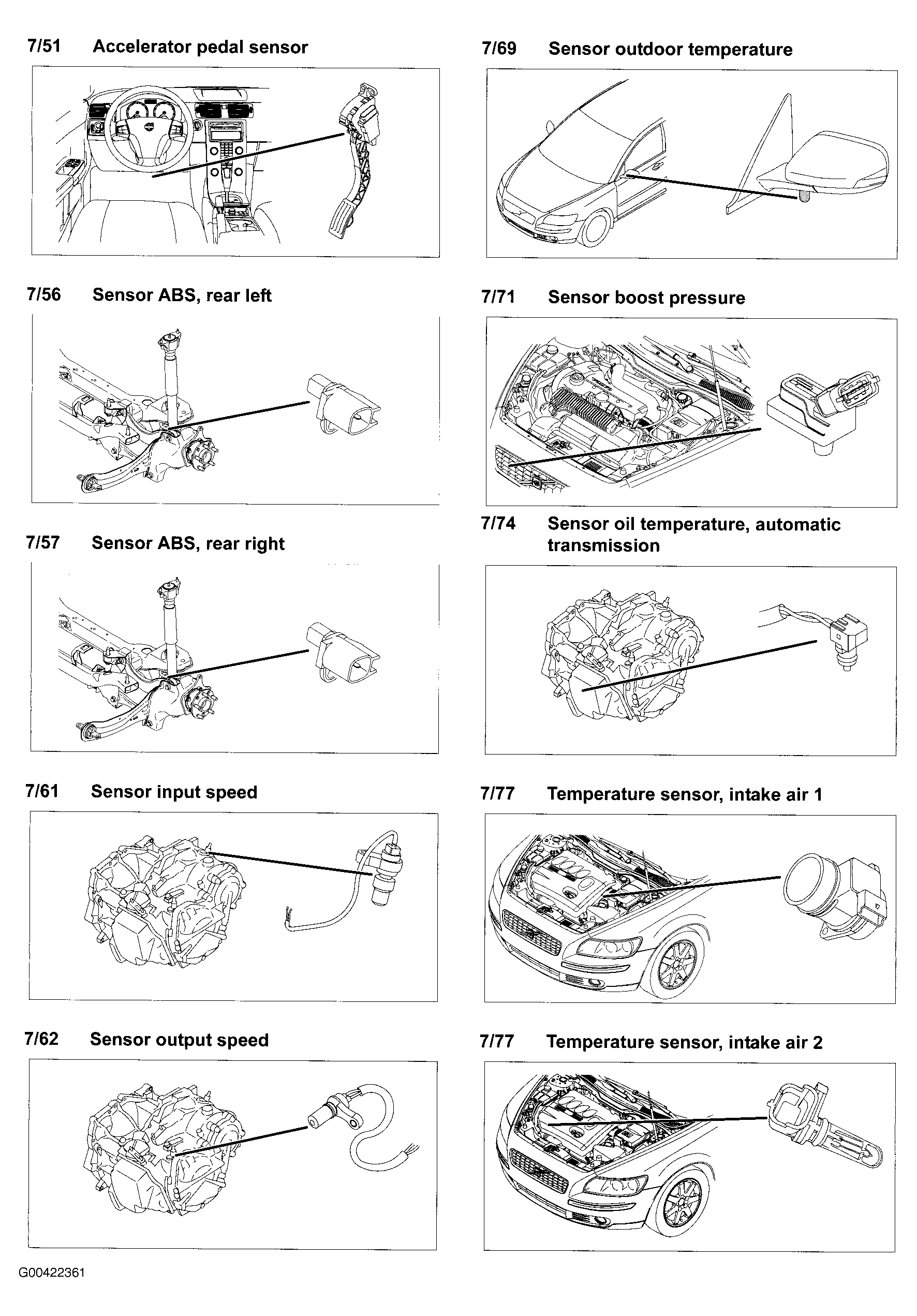

Fig 30: Components 7/51 To 7/77
G00422361Courtesy of VOLVO CARS OF NORTH AMERICA.

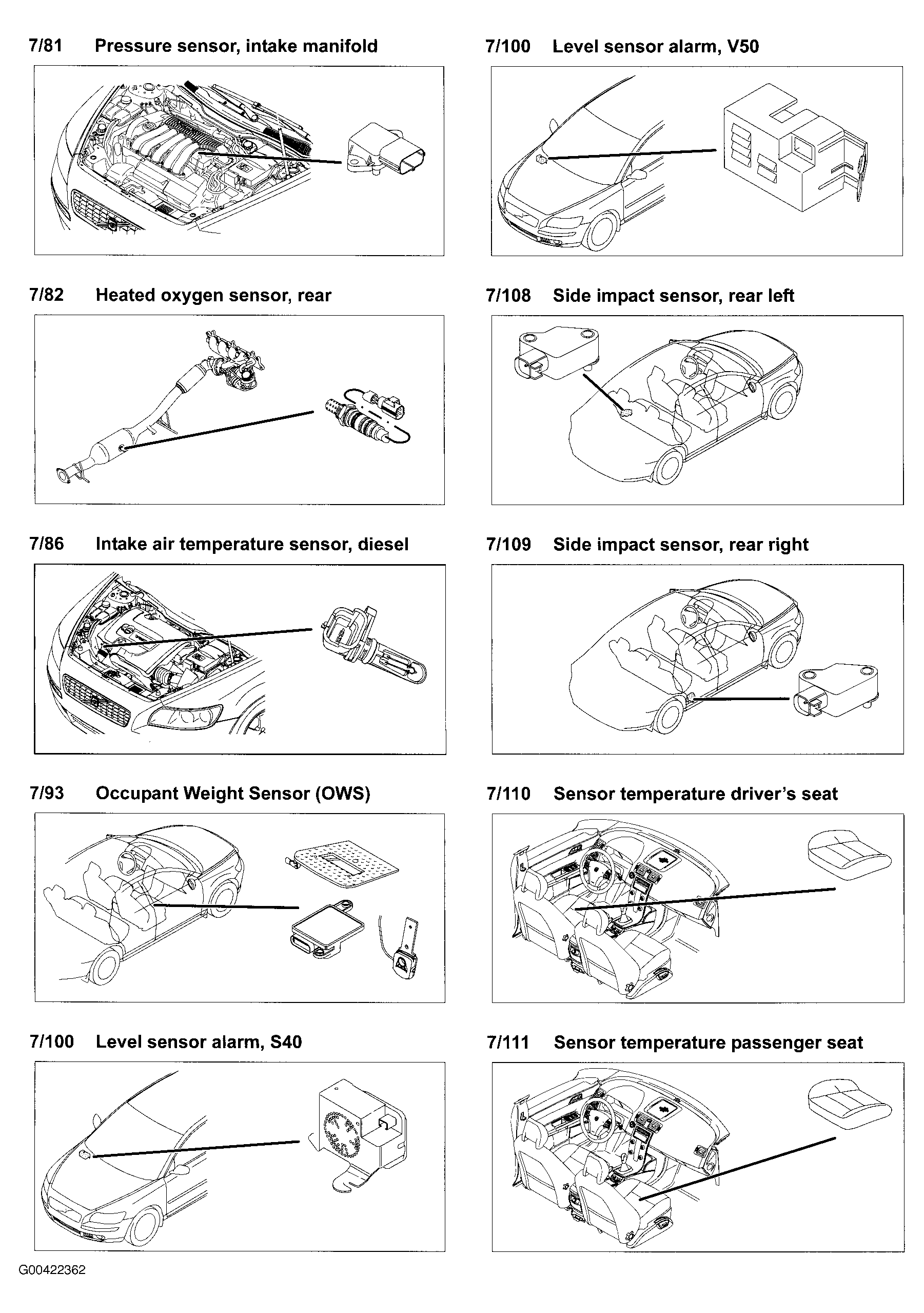

Fig 31: Components 7/81 To 7/111
G00422362Courtesy of VOLVO CARS OF NORTH AMERICA.

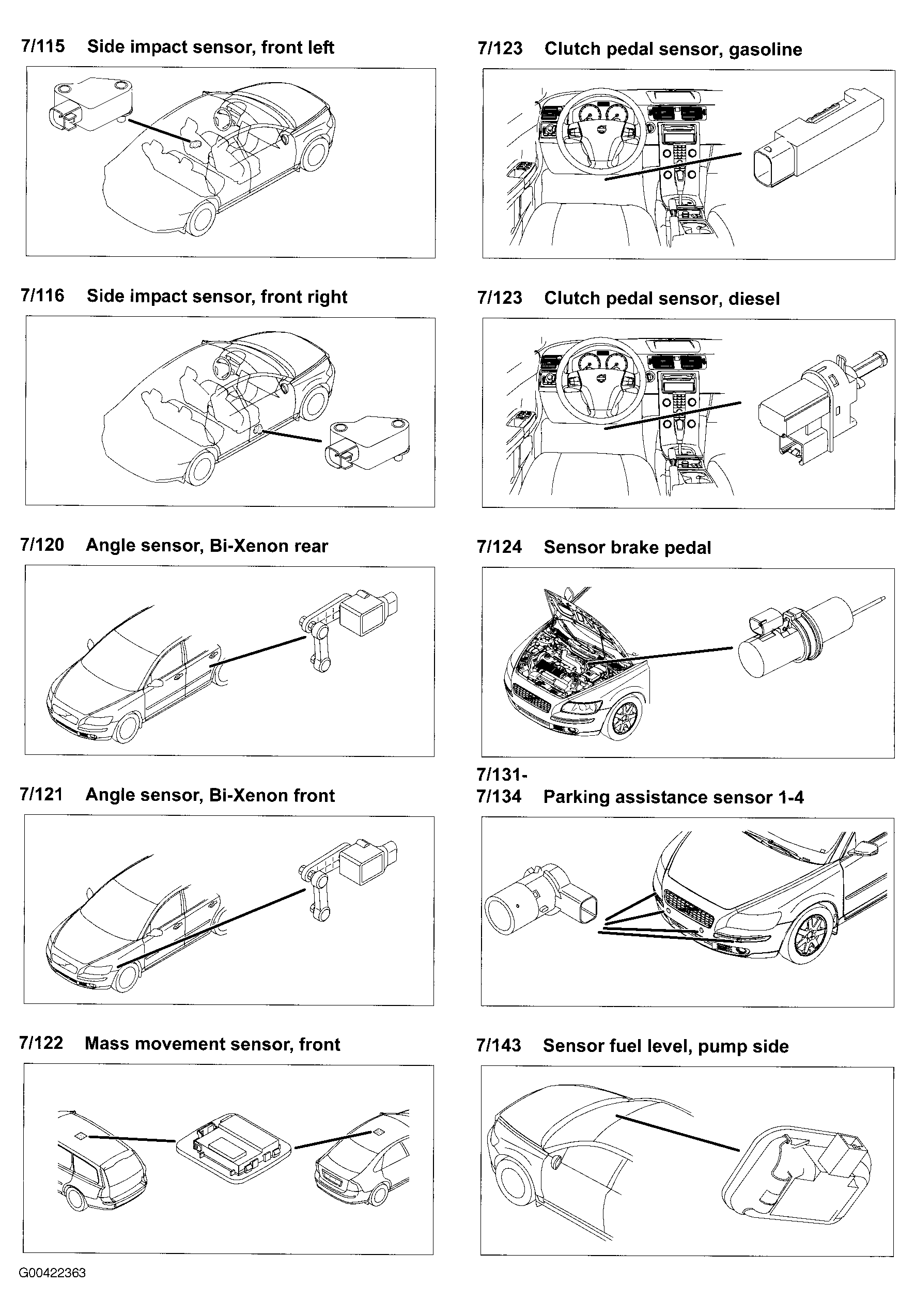

Fig 32: Components 7/115 To 7/143
G00422363Courtesy of VOLVO CARS OF NORTH AMERICA.

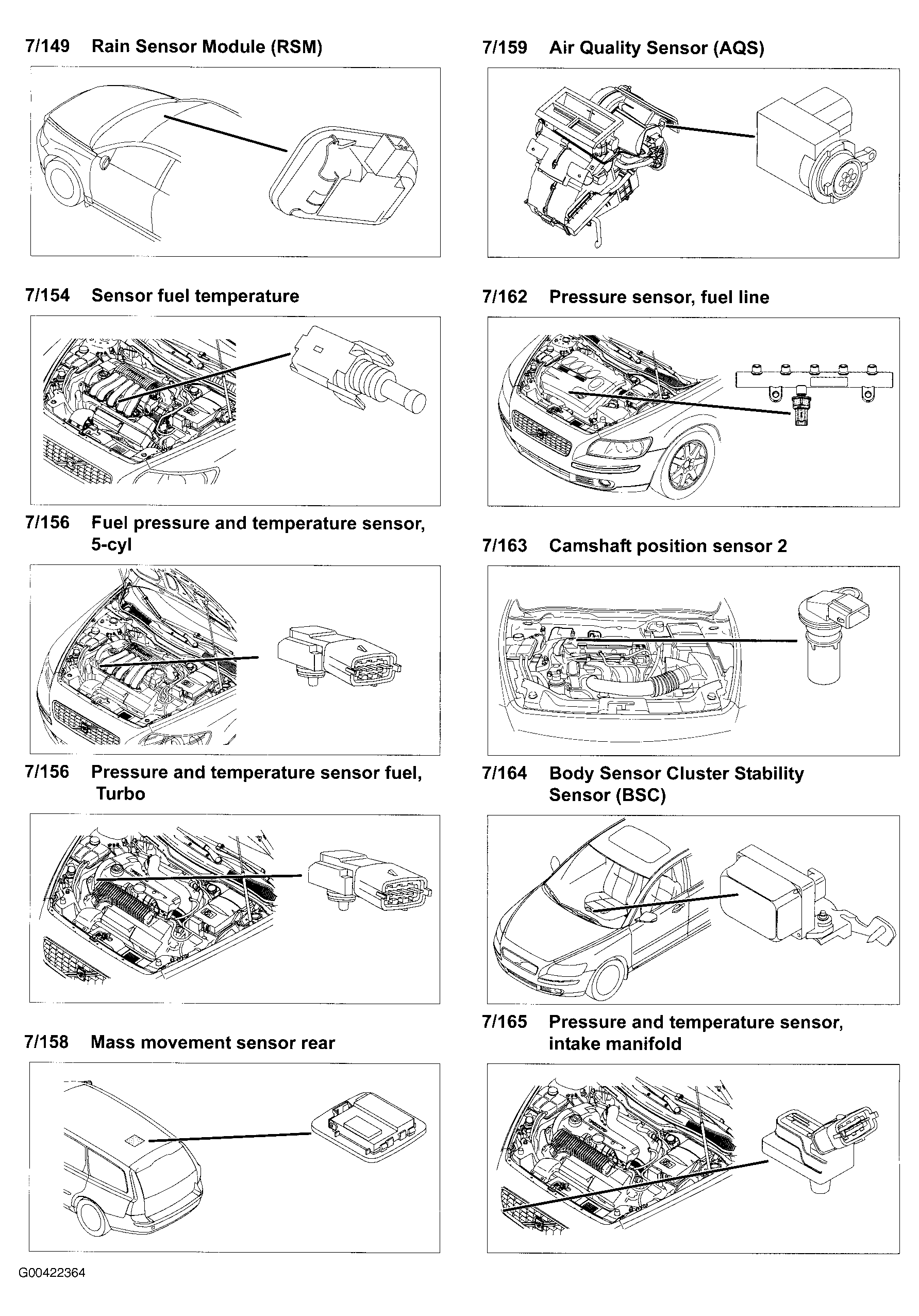

Fig 33: Components 7/149 To 7/165
G00422364Courtesy of VOLVO CARS OF NORTH AMERICA.

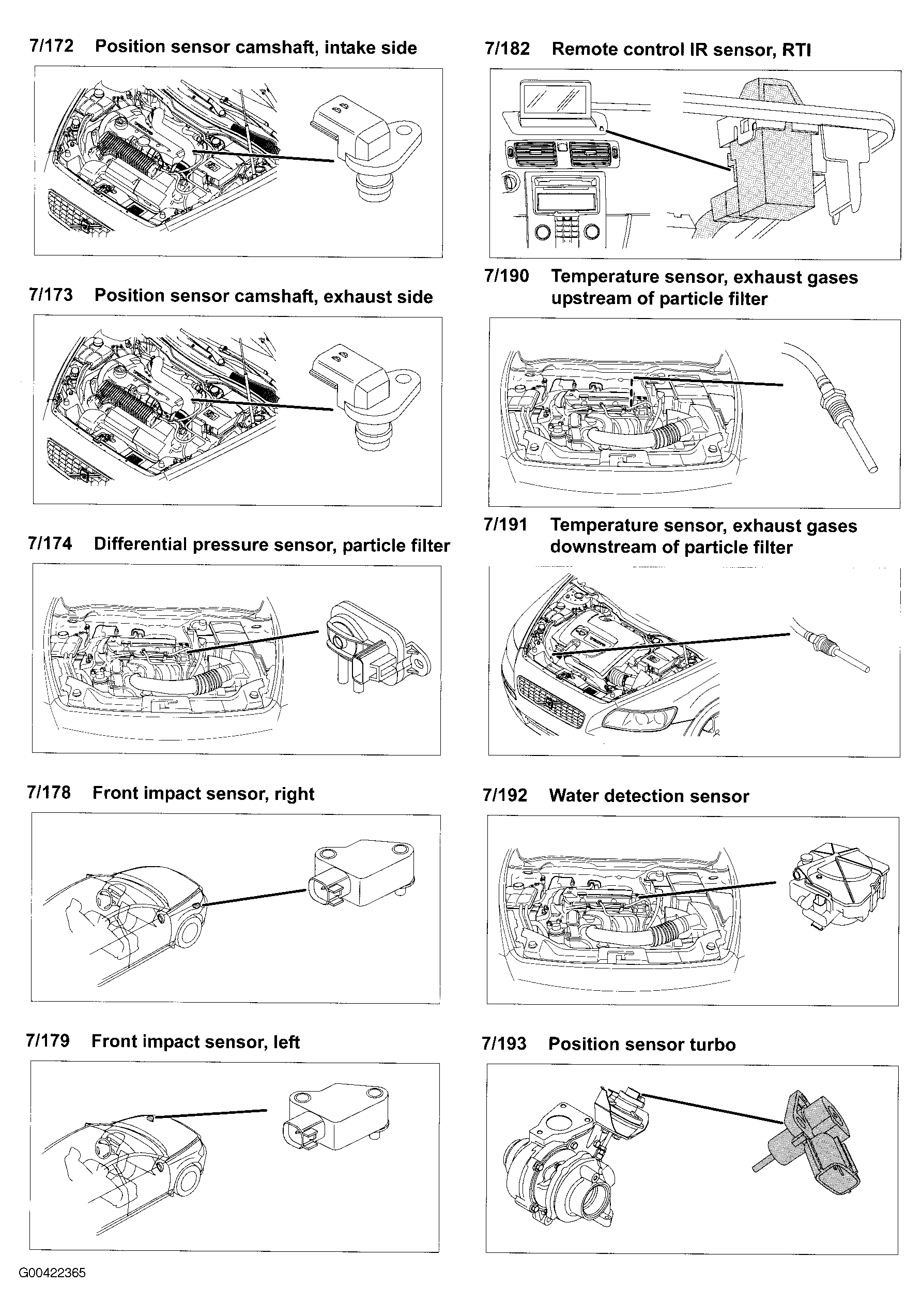

Fig 34: Components 7/172 To 7/193
G00422365Courtesy of VOLVO CARS OF NORTH AMERICA.

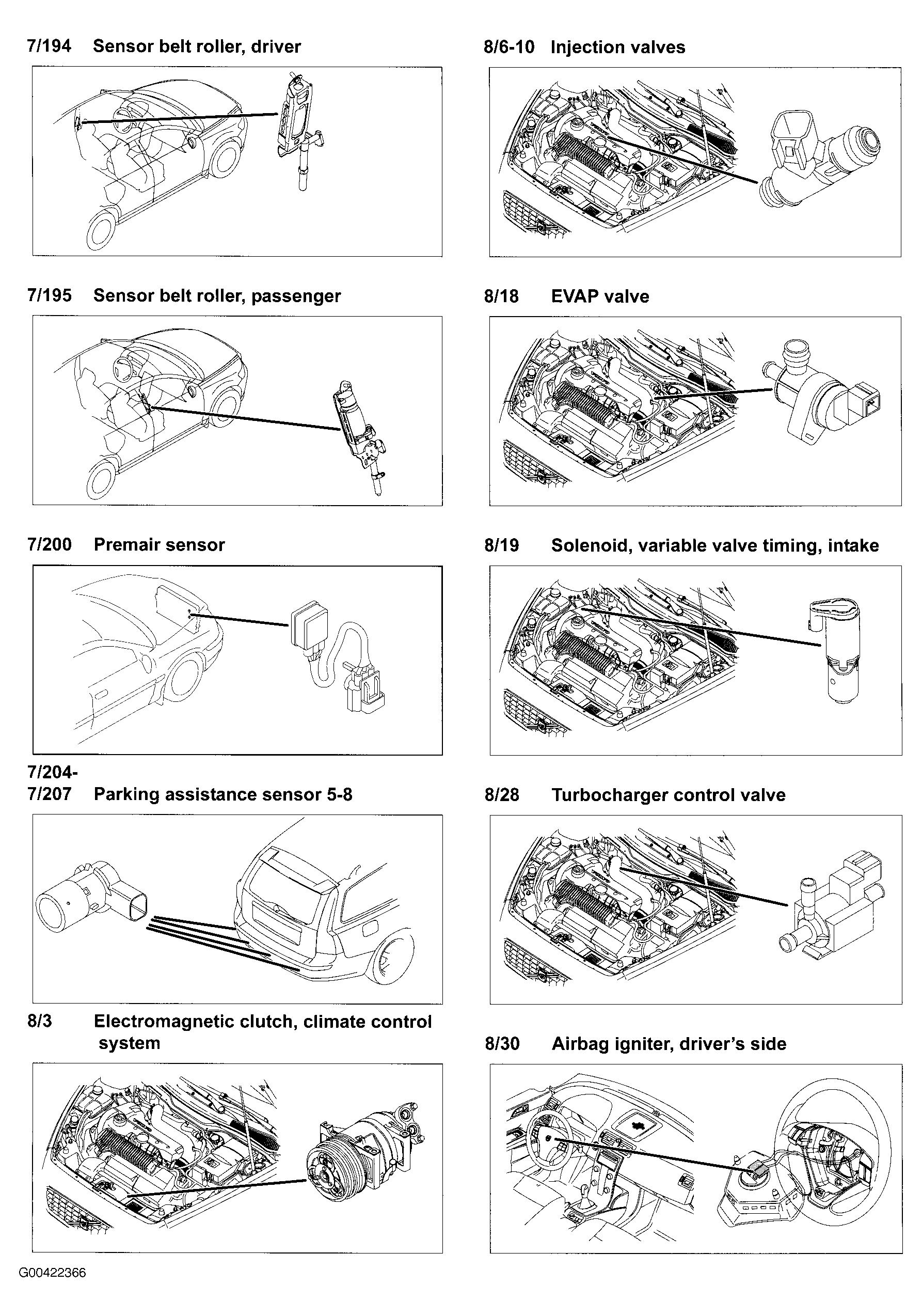

Fig 35: Components 7/194 To 8/30
G00422366Courtesy of VOLVO CARS OF NORTH AMERICA.

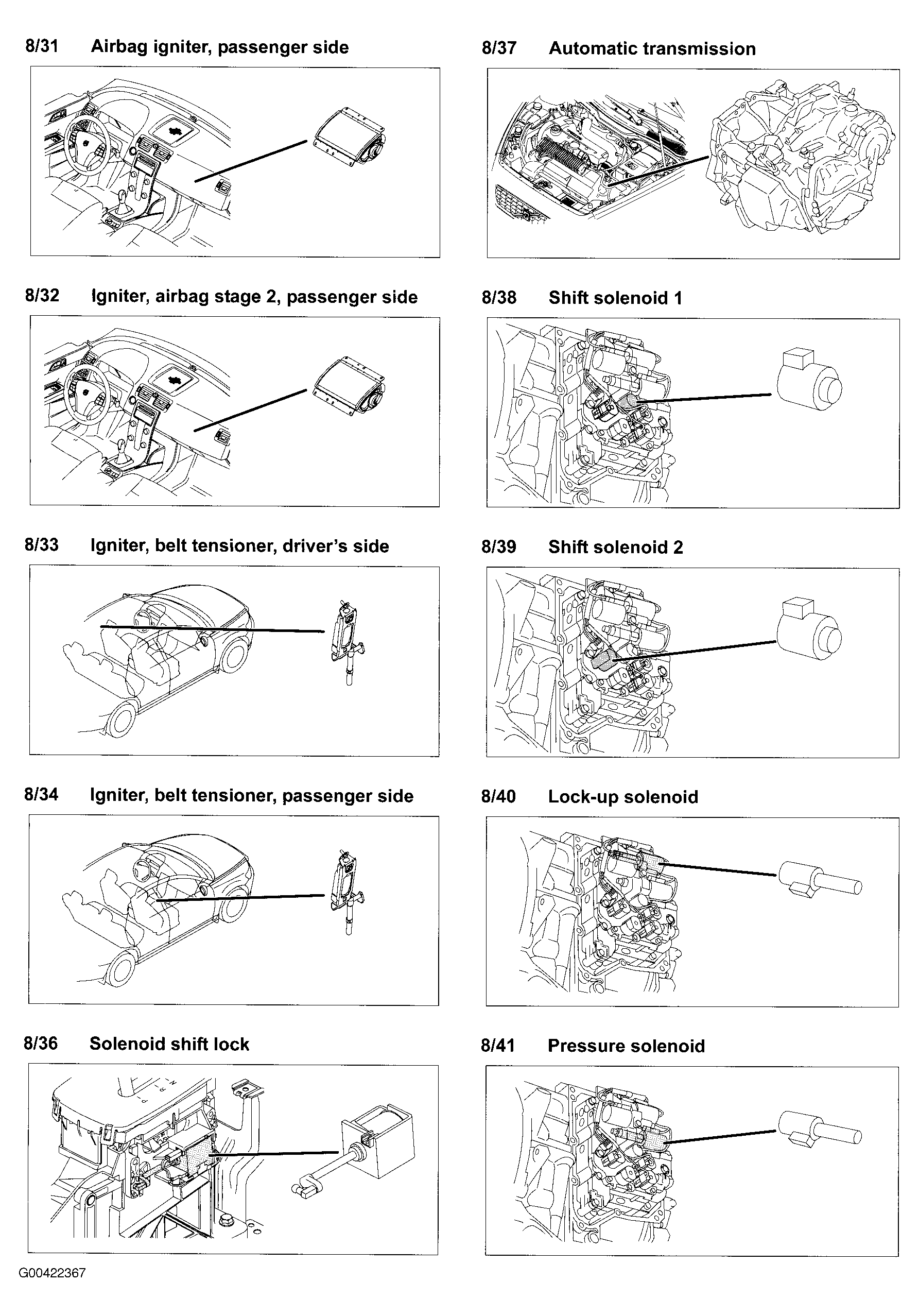

Fig 36: Components 8/31 To 8/41
G00422367Courtesy of VOLVO CARS OF NORTH AMERICA.

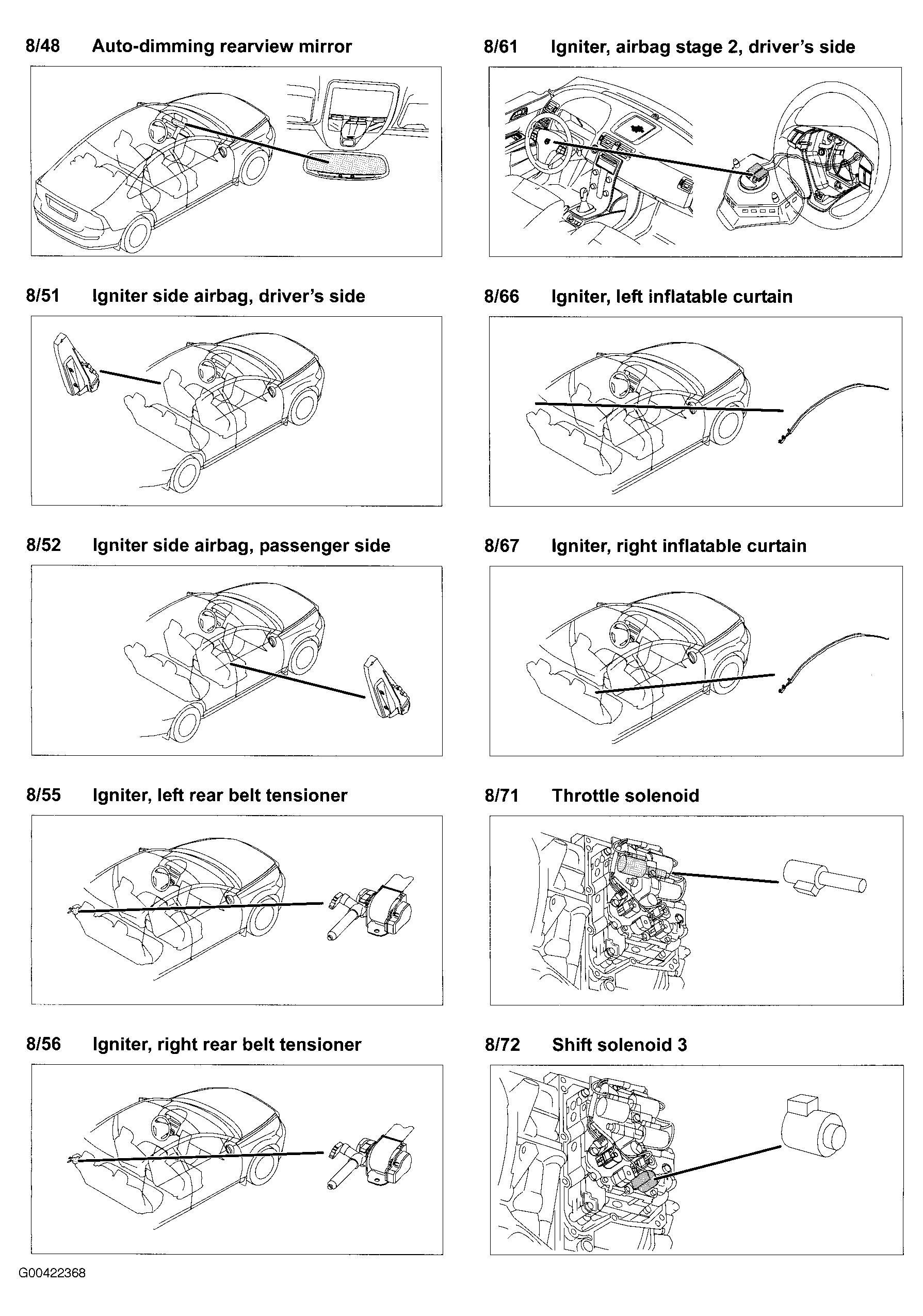

Fig 37: Components 8/48 To 8/72
G00422368Courtesy of VOLVO CARS OF NORTH AMERICA.

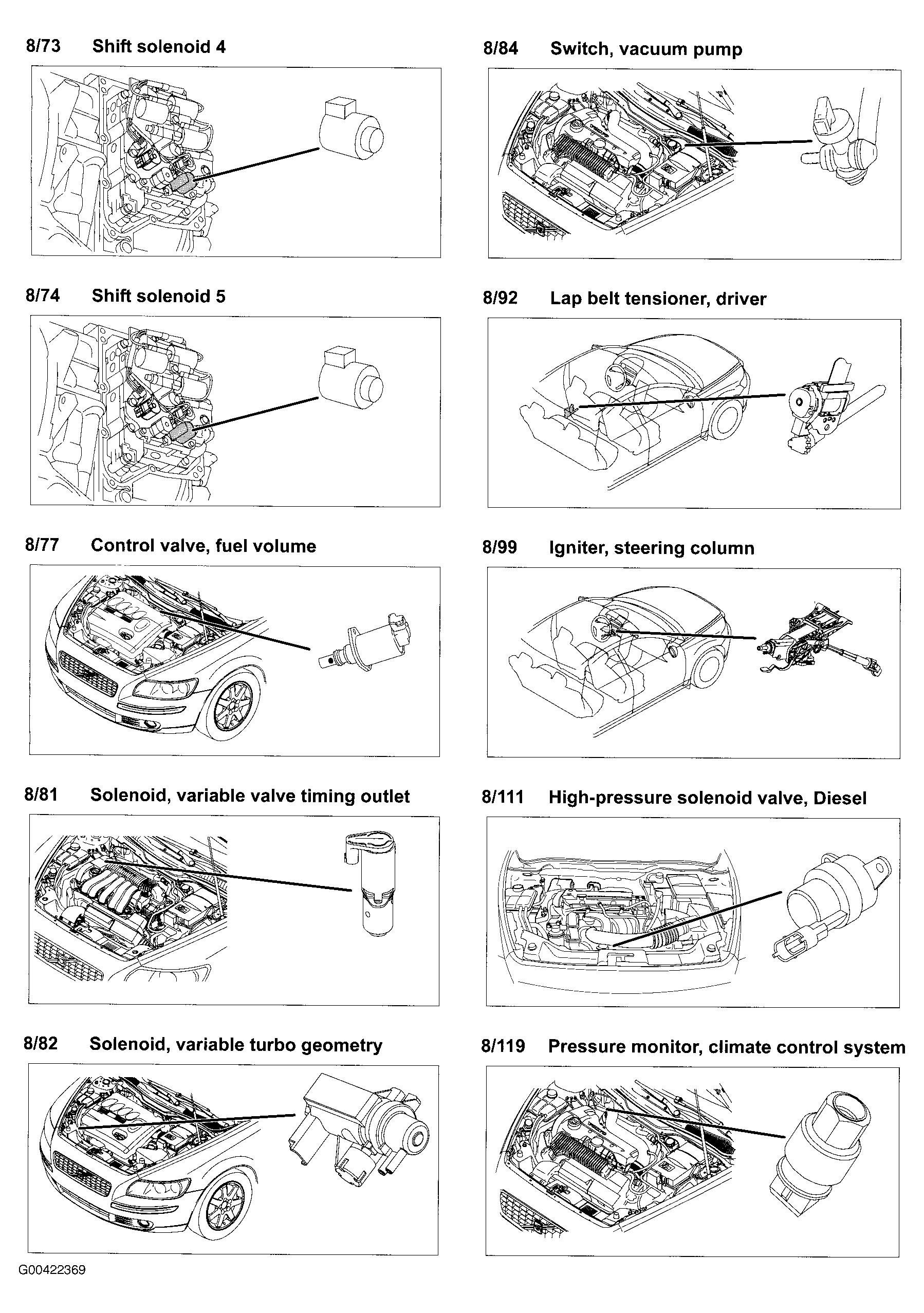

Fig 38: Components 8/73 To 8/119
G00422369Courtesy of VOLVO CARS OF NORTH AMERICA.

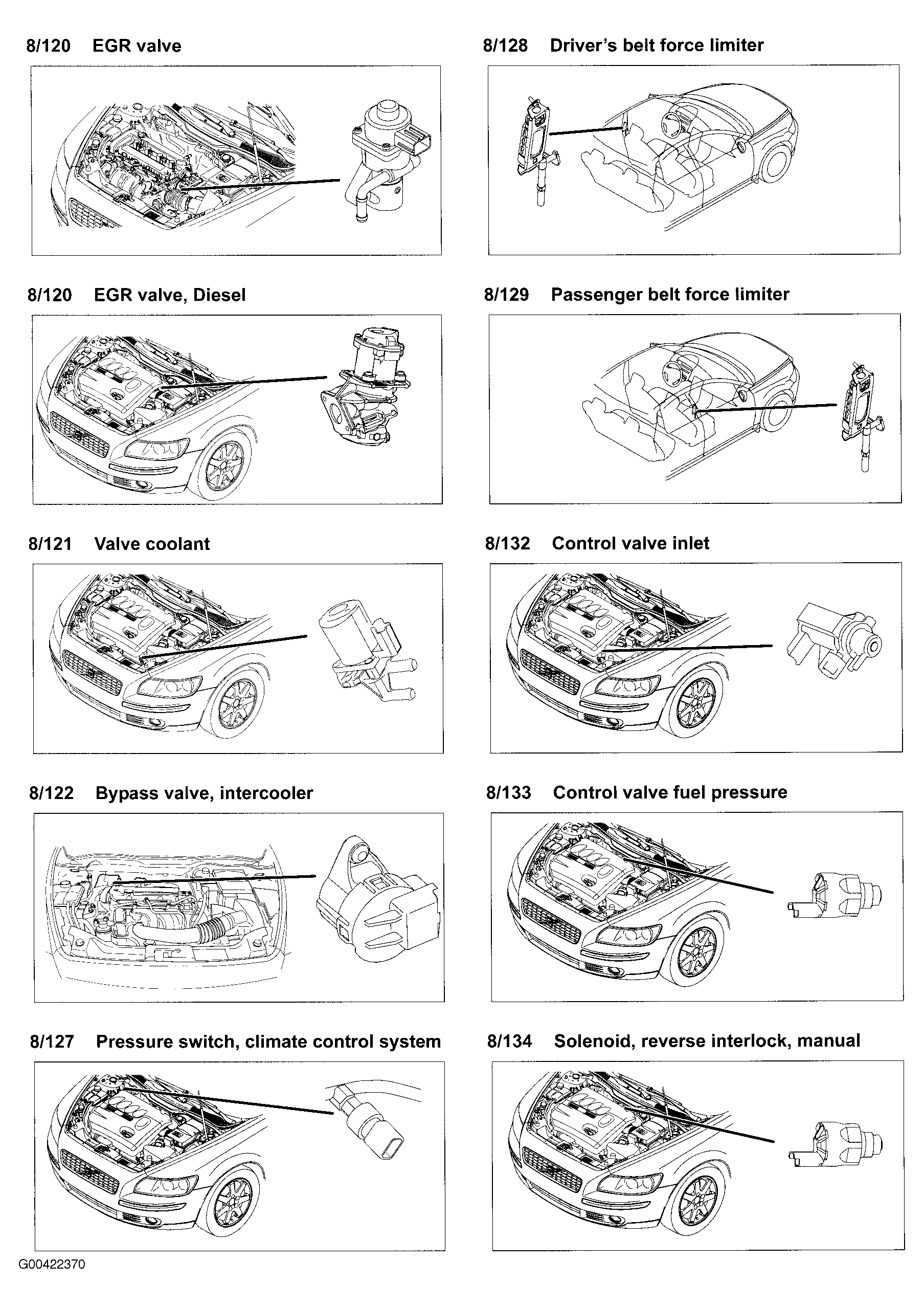

Fig 39: Components 8/120 To 8/134
G00422370Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 40: Components 9/1 To 9/30
G00422371Courtesy of VOLVO CARS OF NORTH AMERICA.

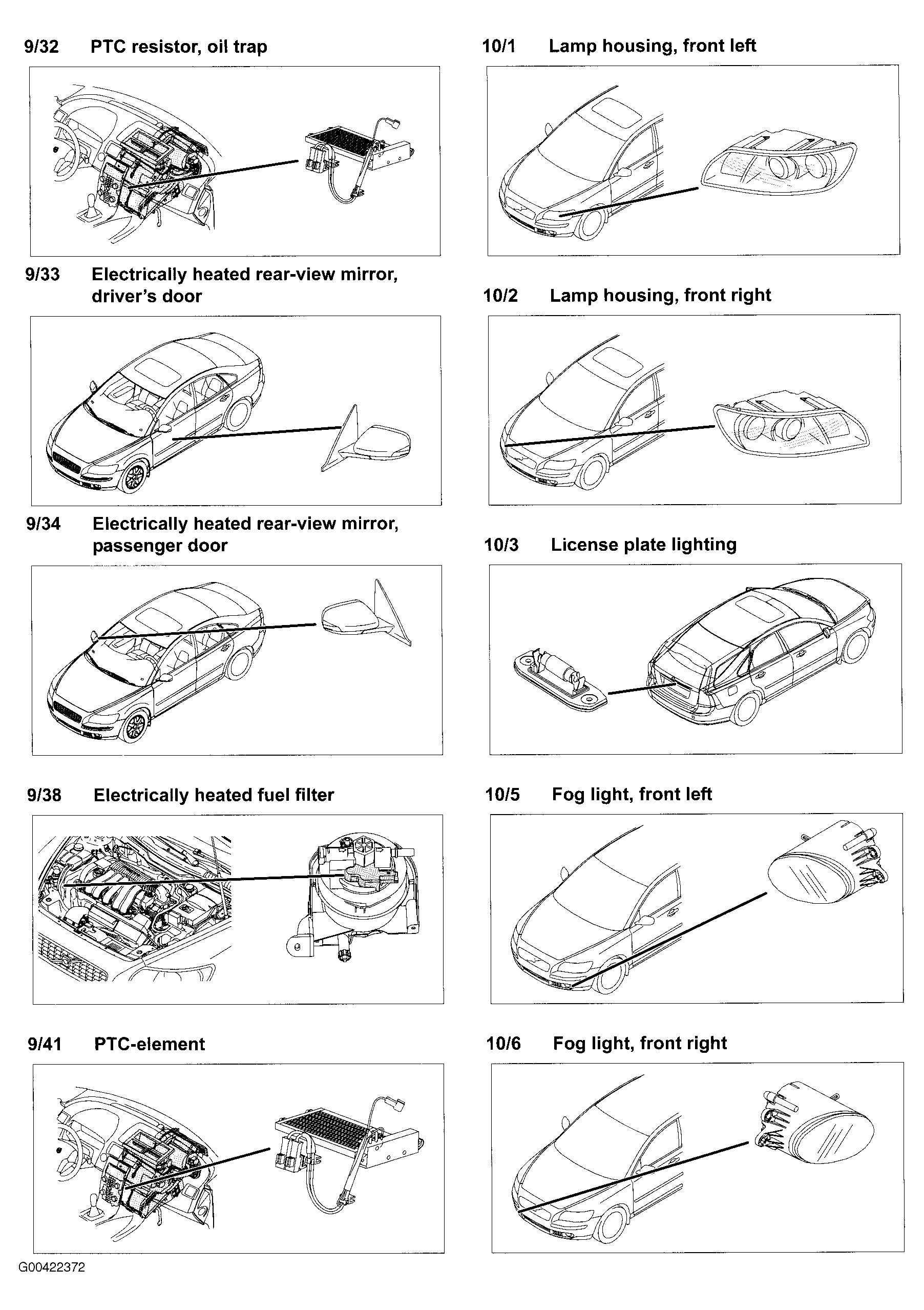

Fig 41: Components 9/32 To 10/6
G00422372Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 42: Components 10/70 To 16/1
G00422373Courtesy of VOLVO CARS OF NORTH AMERICA.

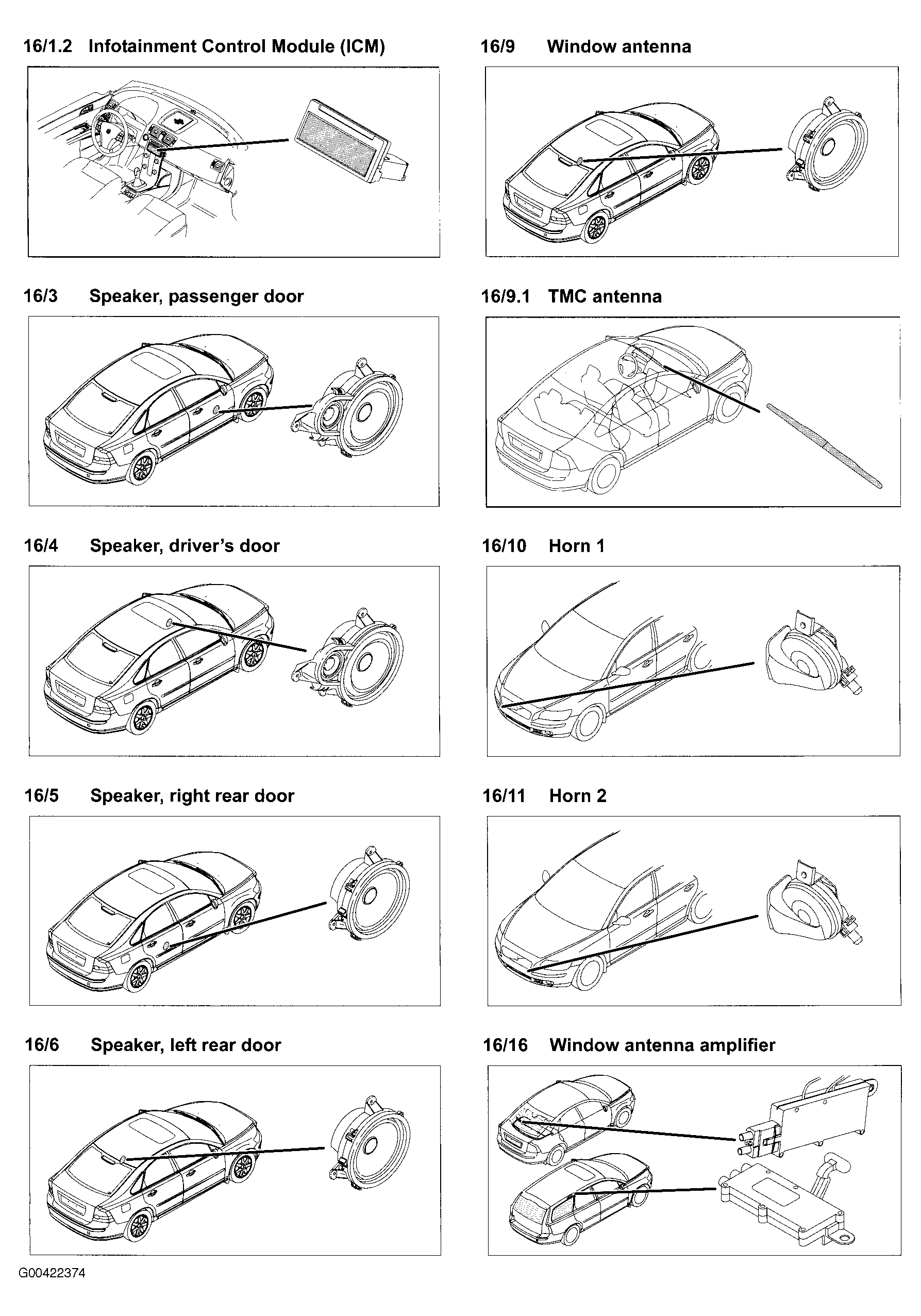

Fig 43: Components 16/1.2 To 16/16
G00422374Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 44: Components 16/26 To 16/49.1
G00422375Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 45: Components 16/55 To 16/108
G00422376Courtesy of VOLVO CARS OF NORTH AMERICA.

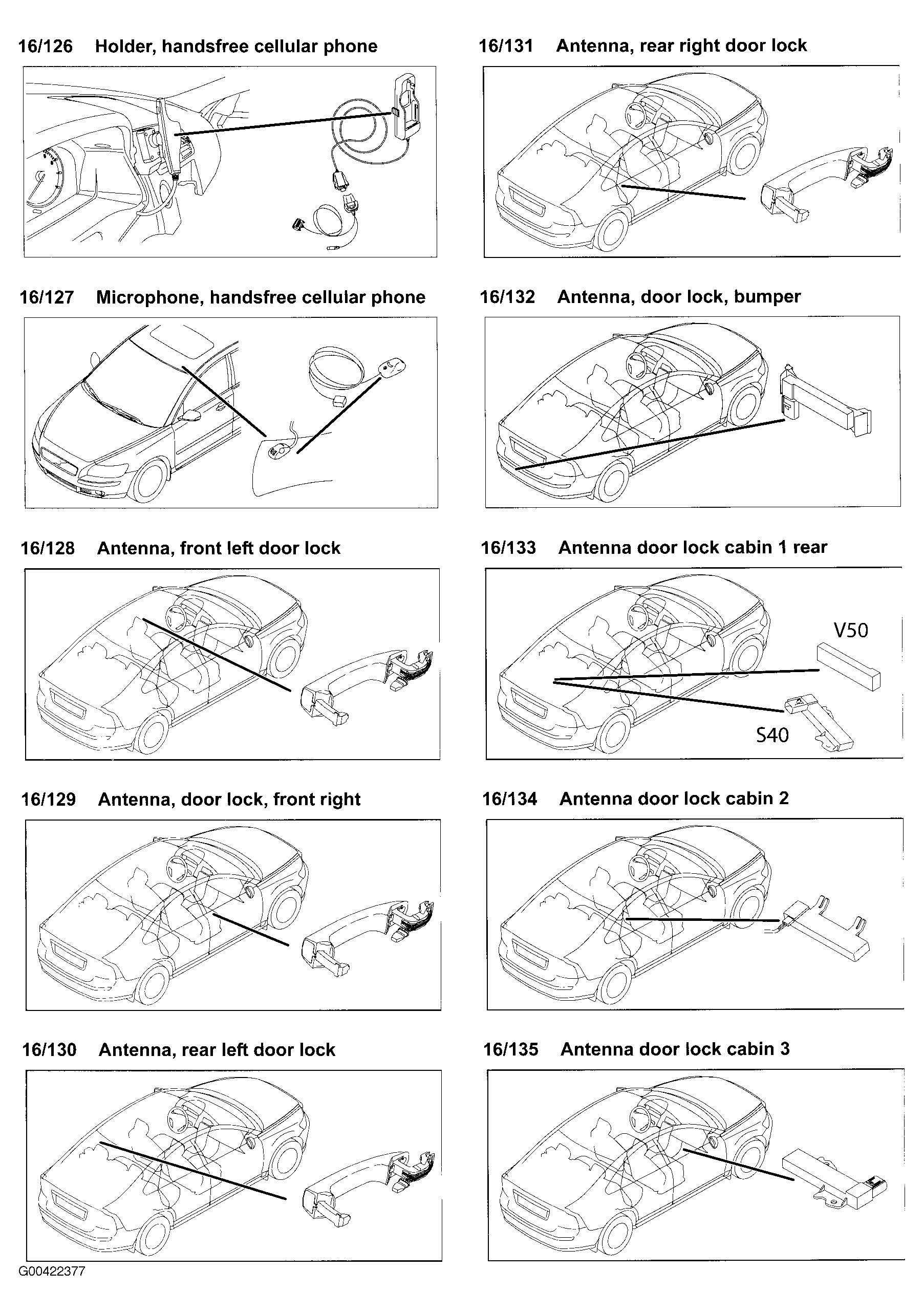

Fig 46: Components 16/126 To 16/135
G00422377Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 47: Components 16/136 To 17/37
G00422378Courtesy of VOLVO CARS OF NORTH AMERICA.

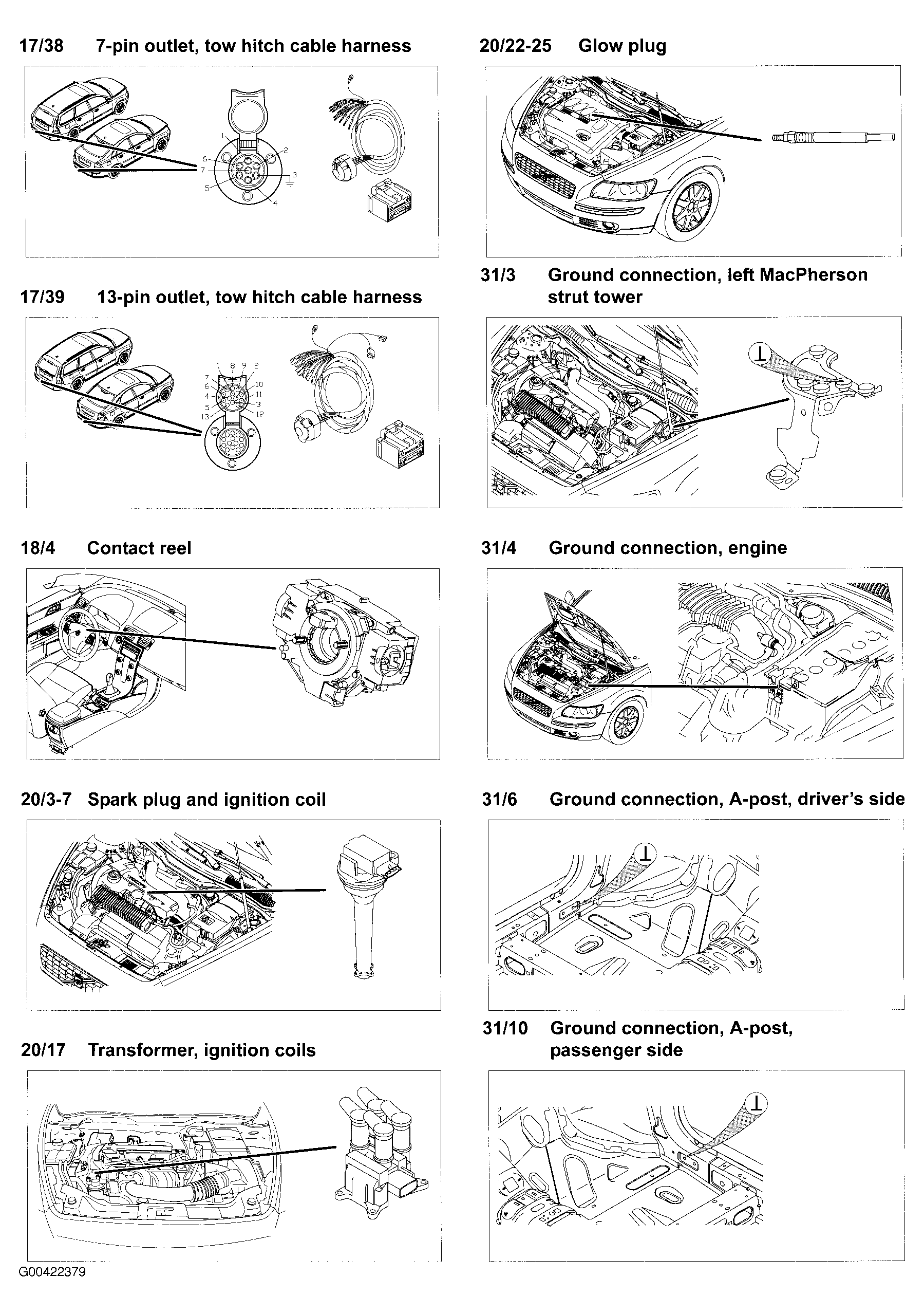

Fig 48: Components 17/38 To 31/10
G00422379Courtesy of VOLVO CARS OF NORTH AMERICA.

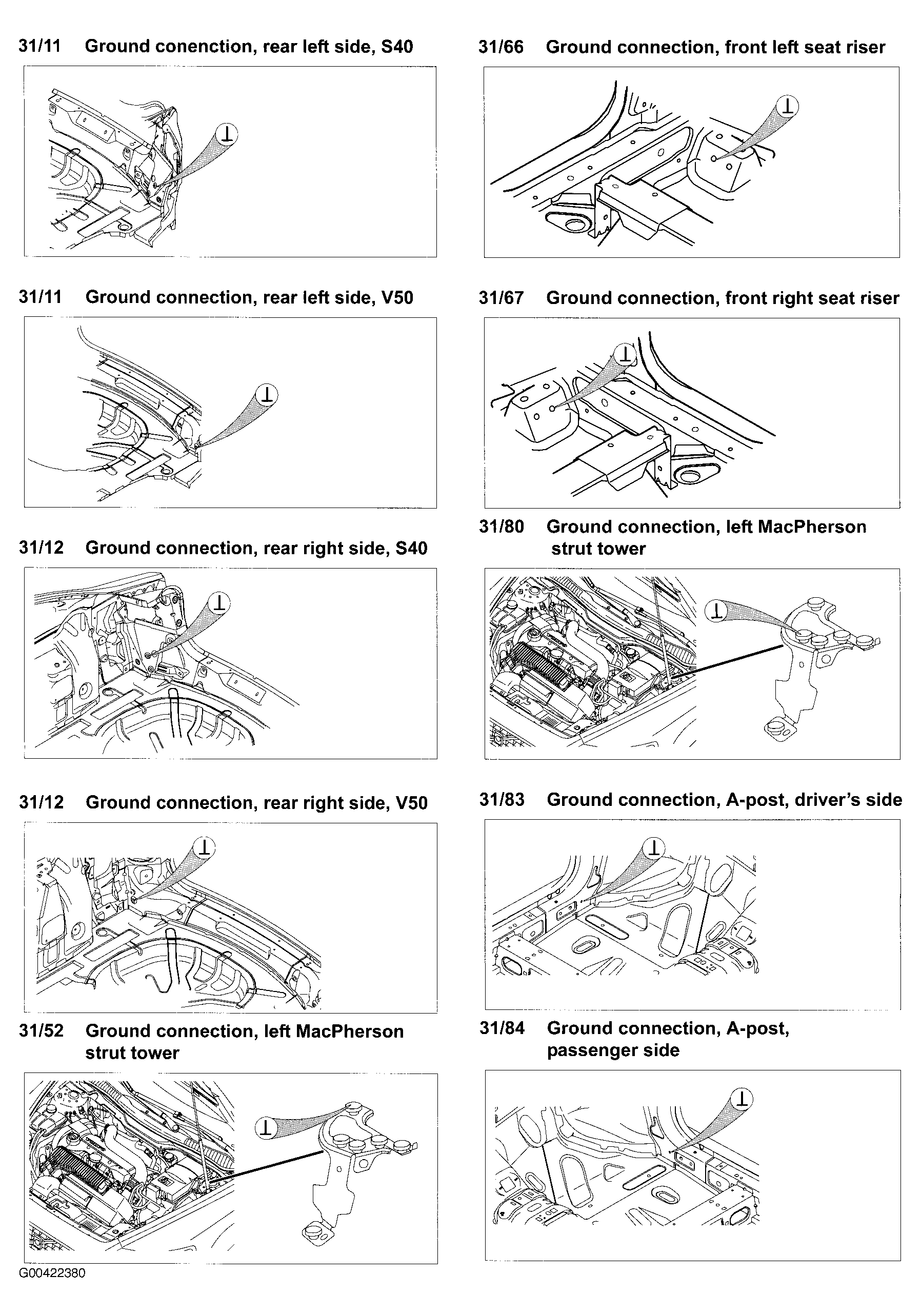

Fig 49: Components 31/11 To 31/84
G00422380Courtesy of VOLVO CARS OF NORTH AMERICA.

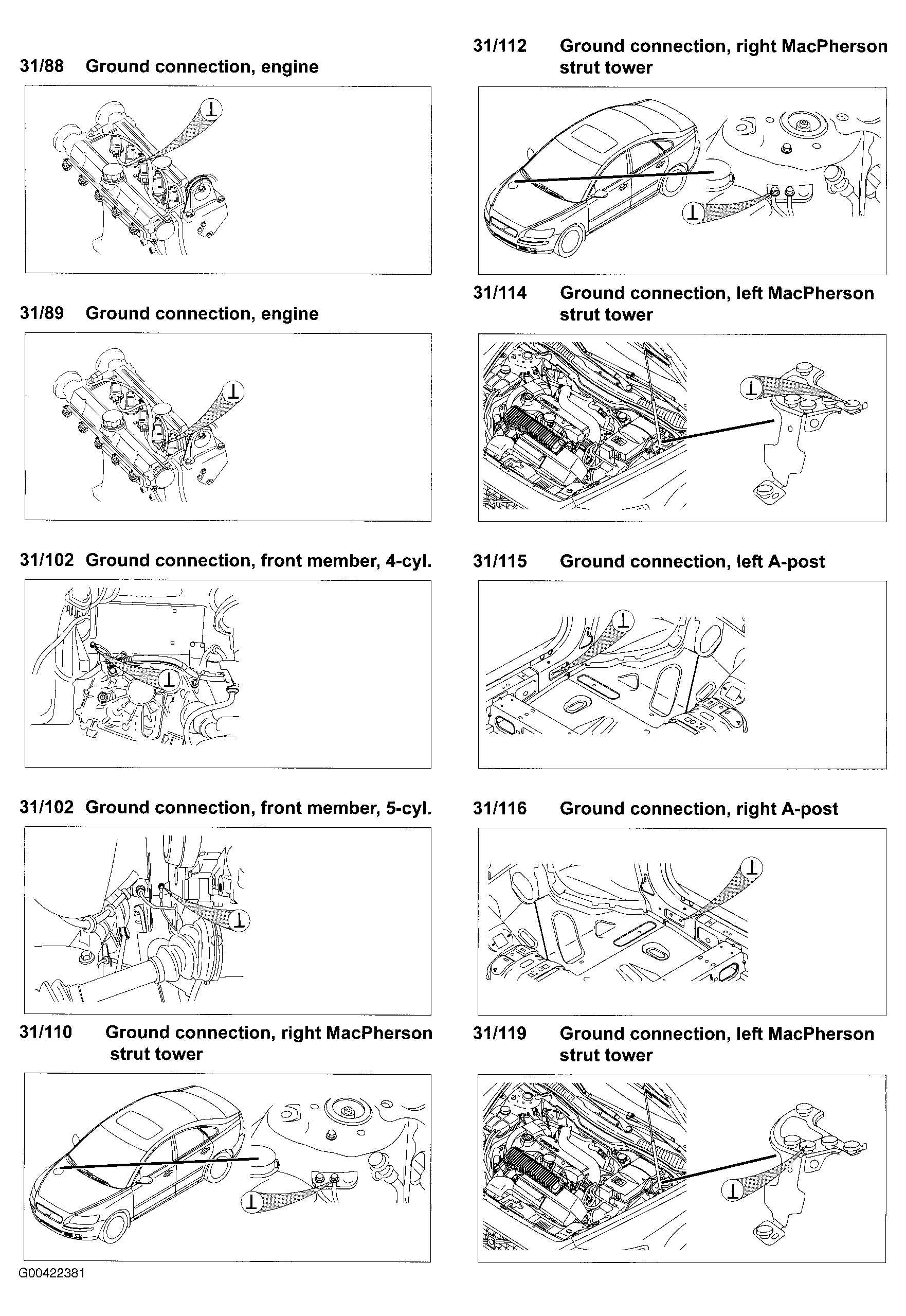

Fig 50: Components 31/88 To 31/119
G00422381Courtesy of VOLVO CARS OF NORTH AMERICA.

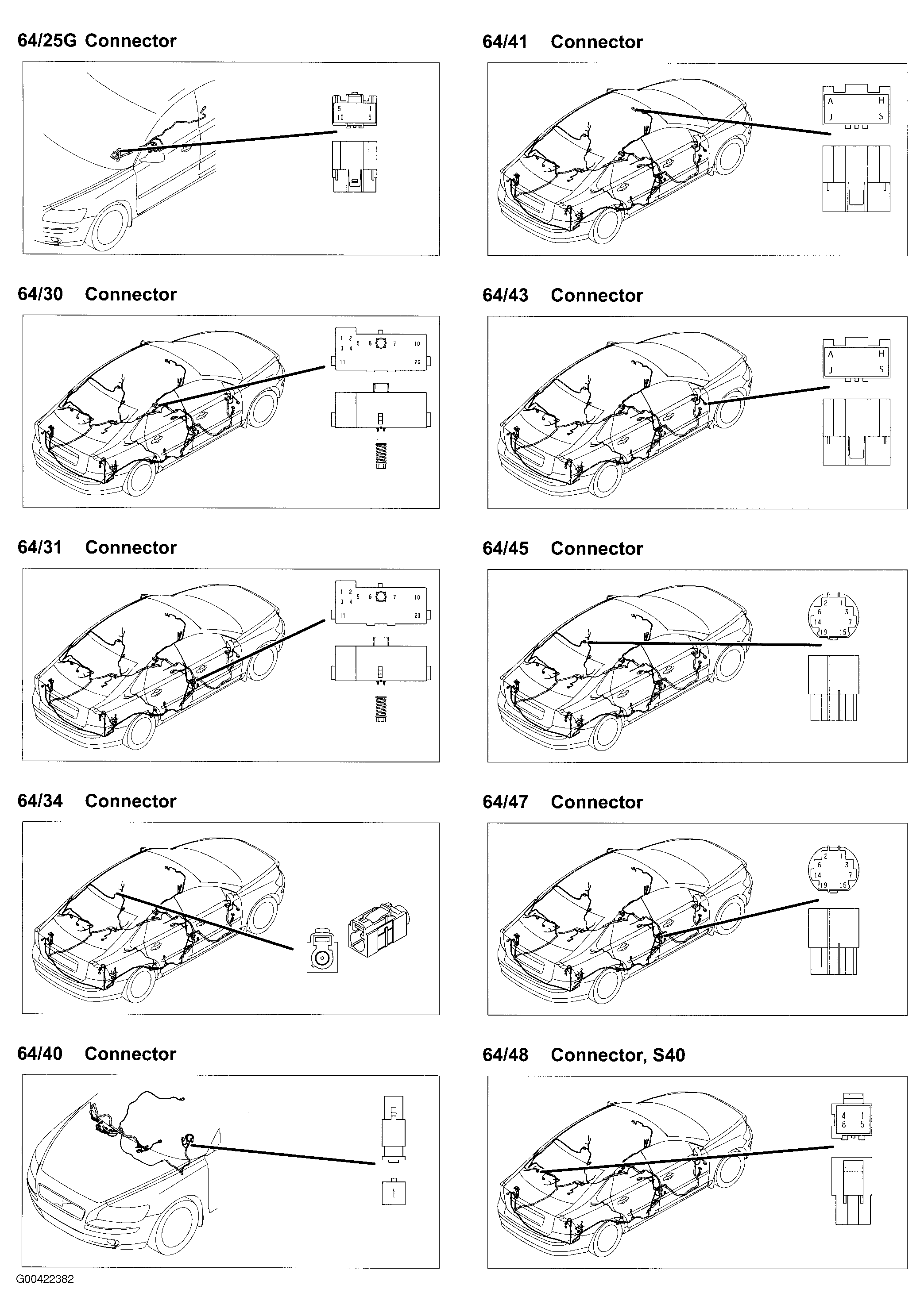

Fig 51: Components 64/25 To 64/48
G00422382Courtesy of VOLVO CARS OF NORTH AMERICA.

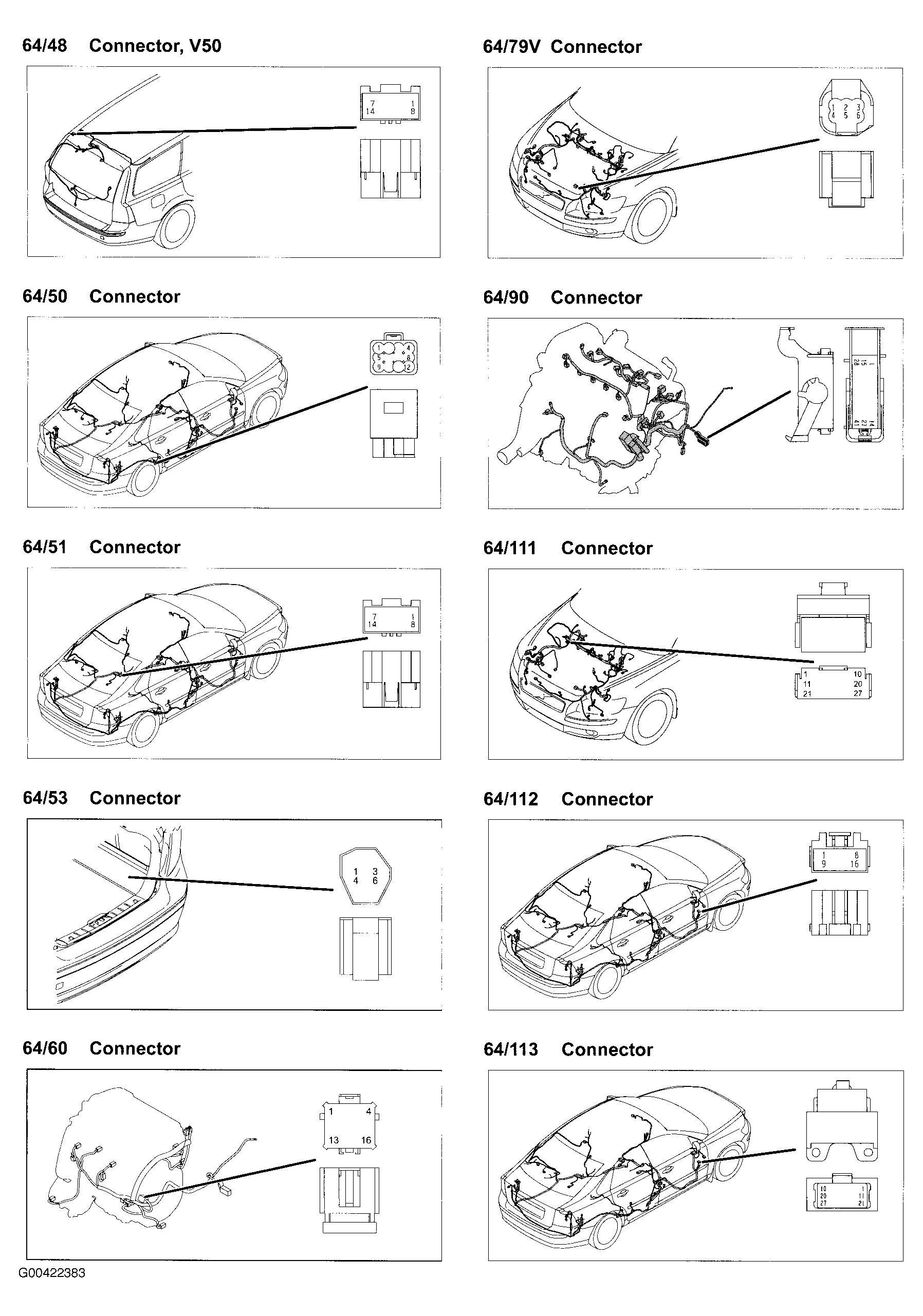

Fig 52: Components 64/48 To 64/113
G00422383Courtesy of VOLVO CARS OF NORTH AMERICA.

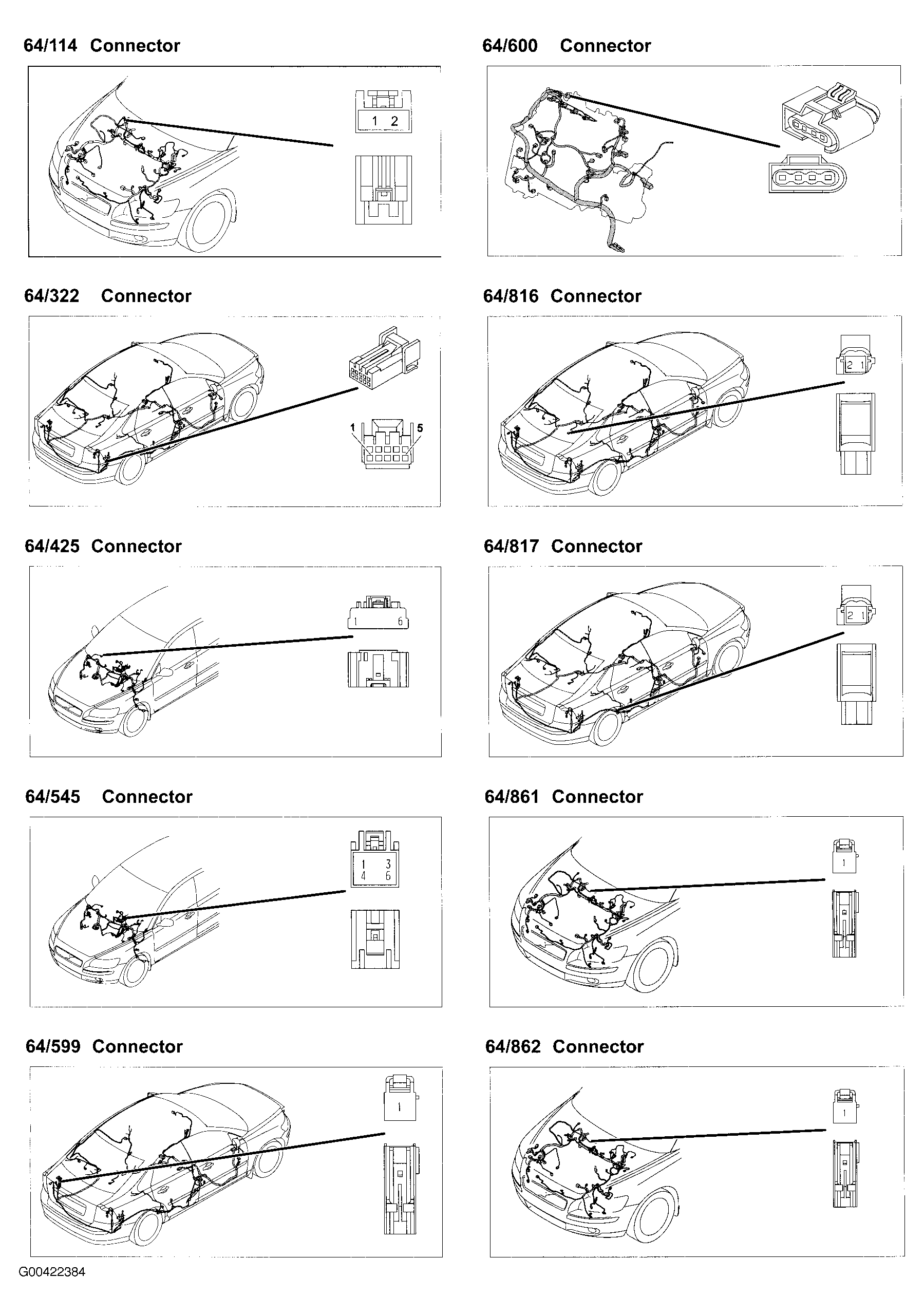

Fig 53: Components 64/114 To 64/862
G00422384Courtesy of VOLVO CARS OF NORTH AMERICA.

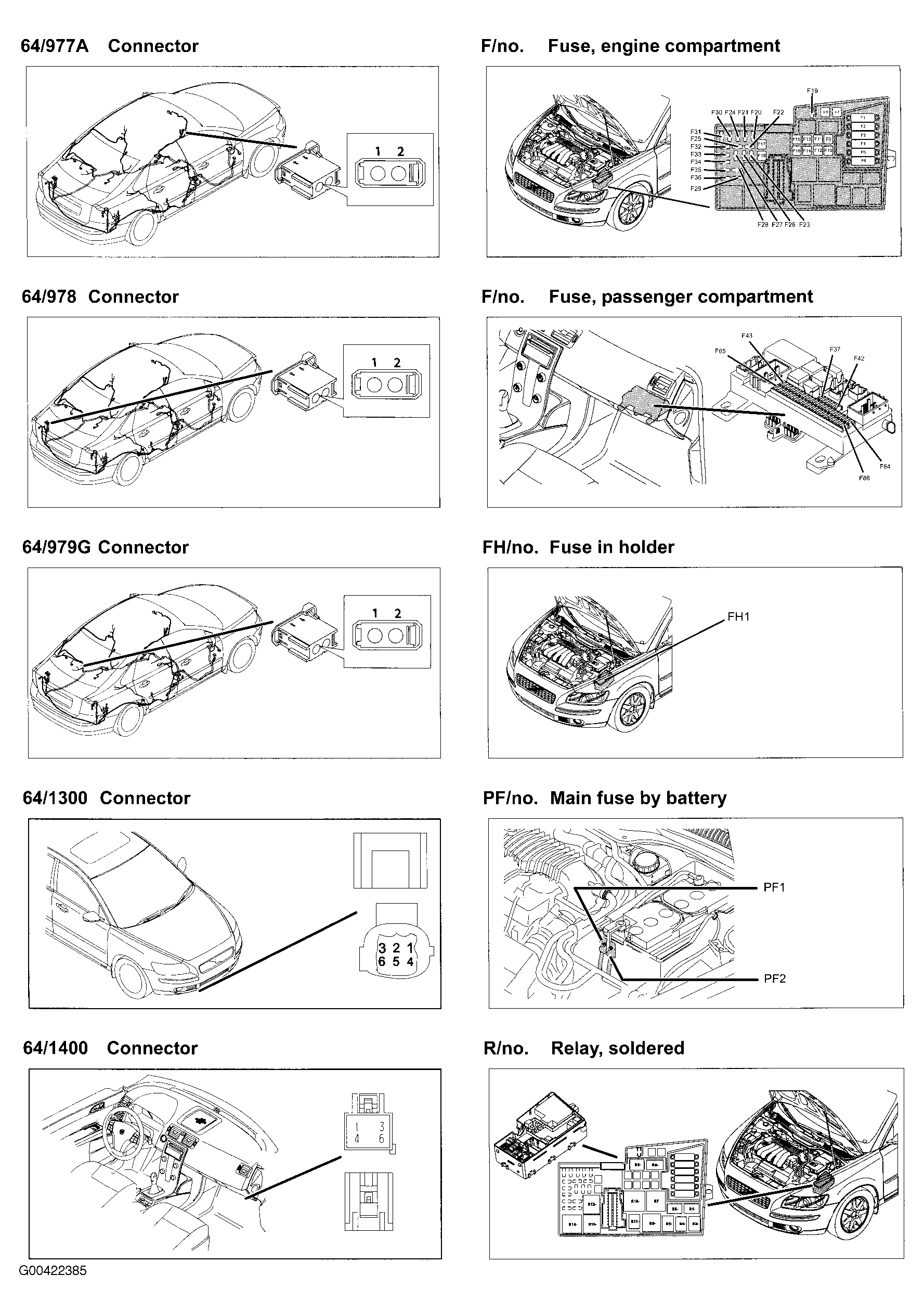

Fig 54: Components 64/977A To 64/1400
G00422385Courtesy of VOLVO CARS OF NORTH AMERICA.
