Rear Fender: Installation

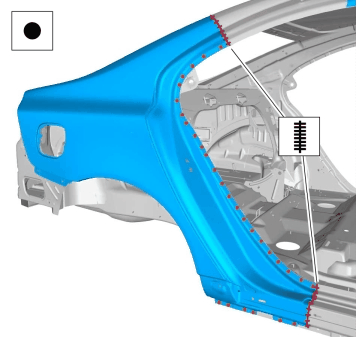

Fig 1: Outer Rear Fender Panel Installation Weld Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

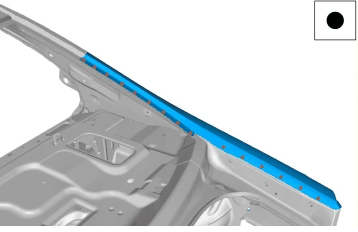

Fig 2: Outer Rear Fender Panel Installation Weld Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

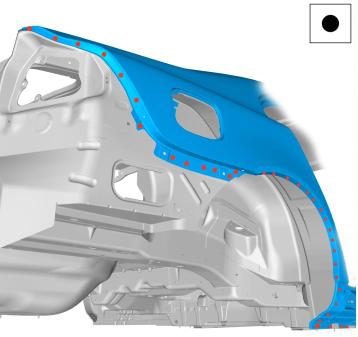

Fig 3: Outer Rear Fender Panel Installation Weld Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; see RUSTPROOFING .

Install the following items:

• Rear section; see REAR SECTION, EXPOSING
• Side section; see SIDE SECTION, EXPOSING
