Location Of Components

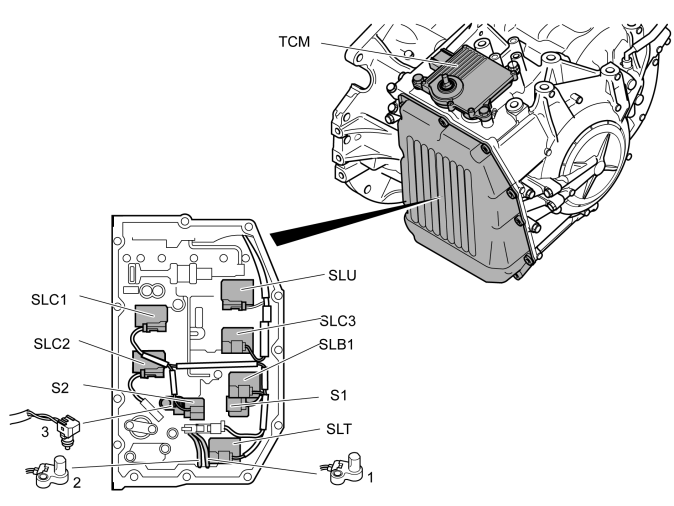

Fig 1: Locating Transmission Input And Output Speed Senors And Oil Temperature Sensor
GLL165982Courtesy of VOLVO CARS CORPORATION
  1. Transmission input speed sensor:
  2. Transmission output speed sensor:
  3. Oil temperature sensor.
