Body Side: B-Post: Install

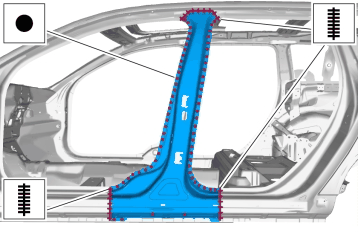

Fig 1: B-Post Reinforcement Weld Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

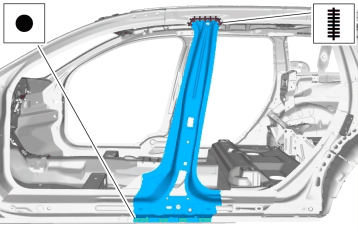

Fig 2: B-Post Reinforcement Weld Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Reinstall the seal with Use:  Seal, 6817640

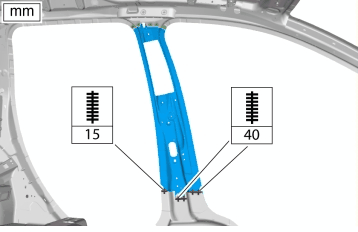

Fig 3: Outer B-Post Weld Locations

Courtesy of VOLVO CARS CORPORATION

Install the hinge. See DOOR HALF HINGE

Follow the instructions regarding body sealing, sealant schedule; refer to BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .
