Location Of The Components In The Climate Control System

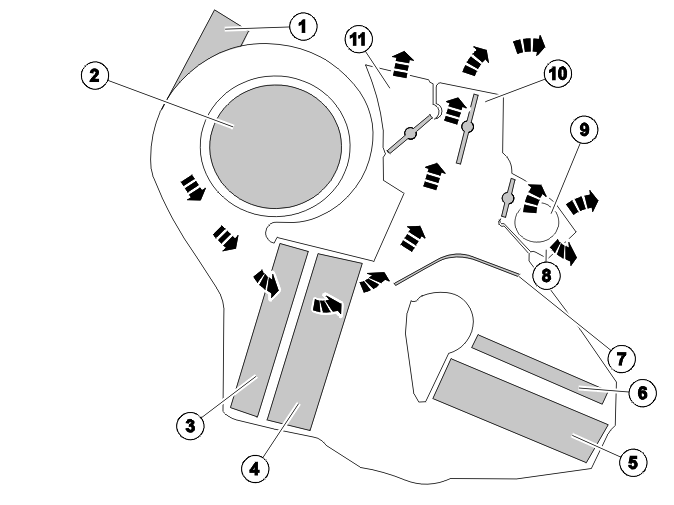

Fig 1: Identifying Climate Control System Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: The illustration of the climate control system is drawn from the side.

1. Air intake
2. Blower fan
3. Filter
4. Evaporator
5. Heat exchanger
6. PTC element
7. Temperature shutter
8. Air duct to floor rear
9. Air duct to floor front
10. Air duct to dashboard vents
11. Defroster.
