Collision - Body Panel Replacement: B-Post: Installation

Courtesy of VOLVO CARS CORPORATION

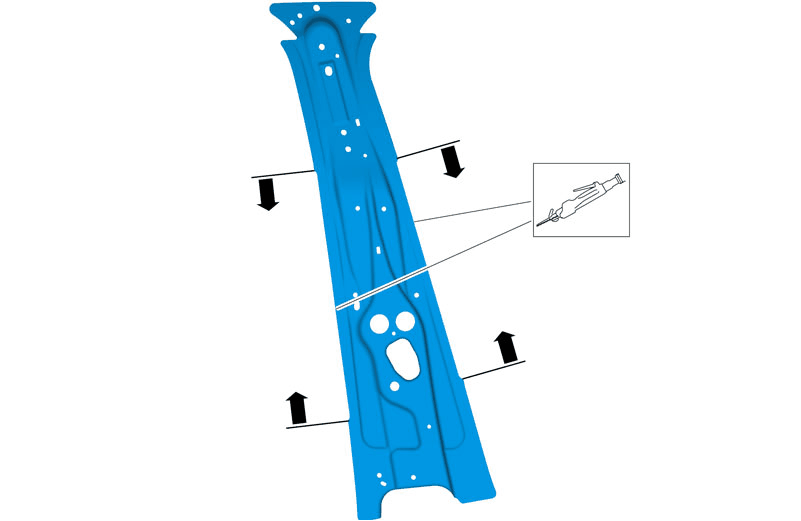

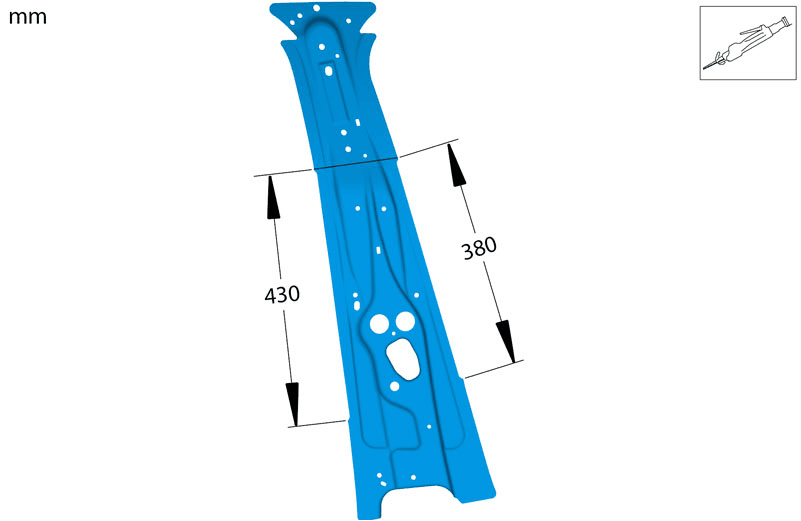

Fig 1: B-Pillar Preparation Cut Line Measurements And Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

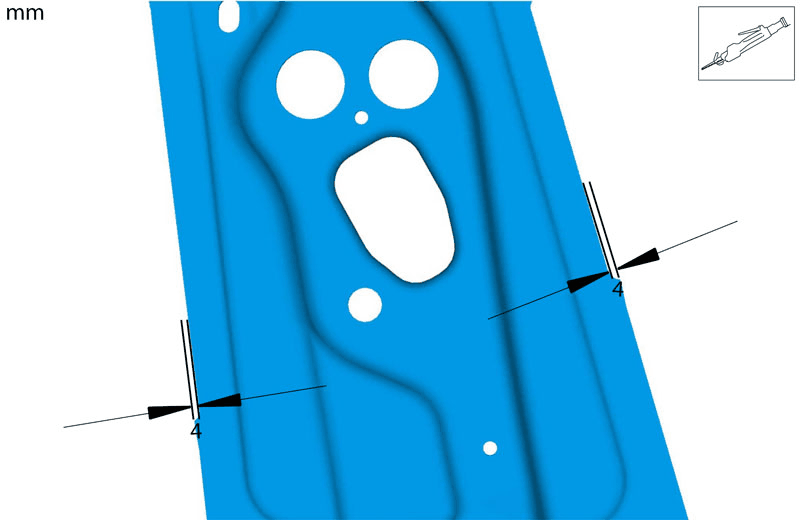

Fig 2: B-Pillar Preparation Cut Line Measurements And Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

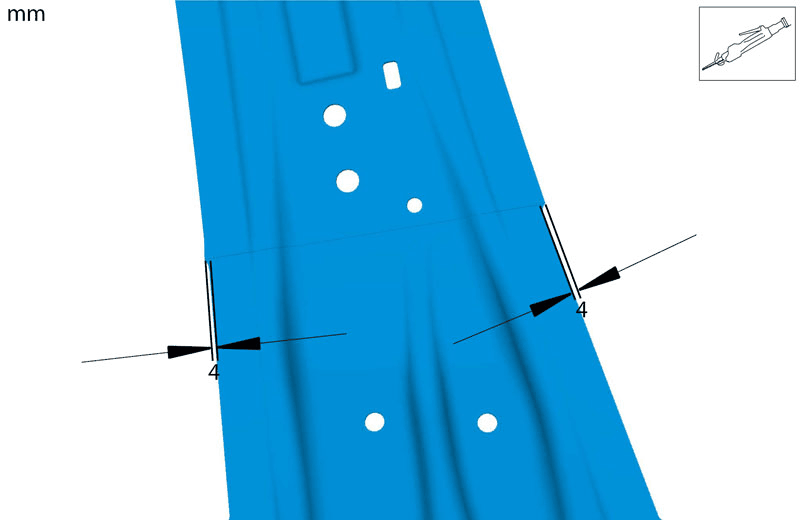

Fig 3: B-Pillar Preparation Cut Line Measurements And Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

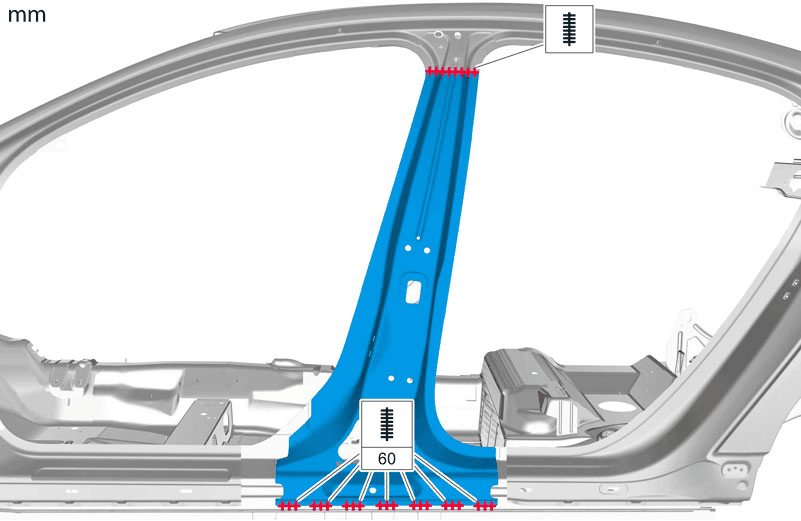

Fig 4: B-Pillar Installation Weld Specifications And Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

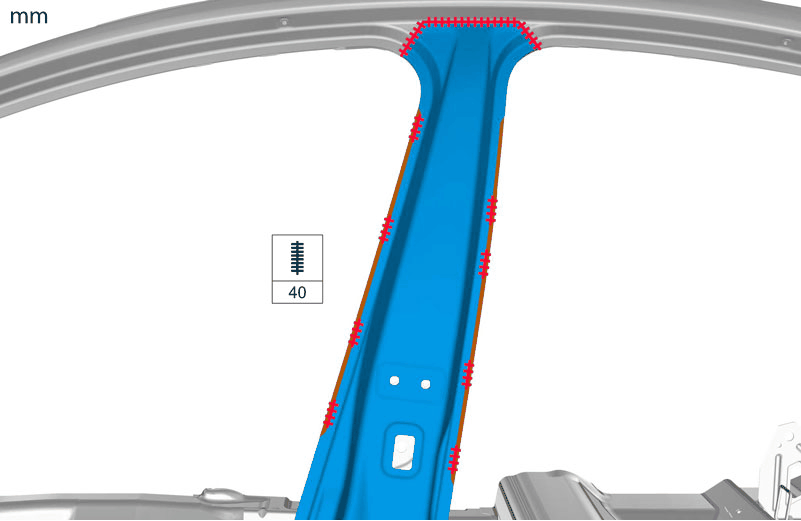

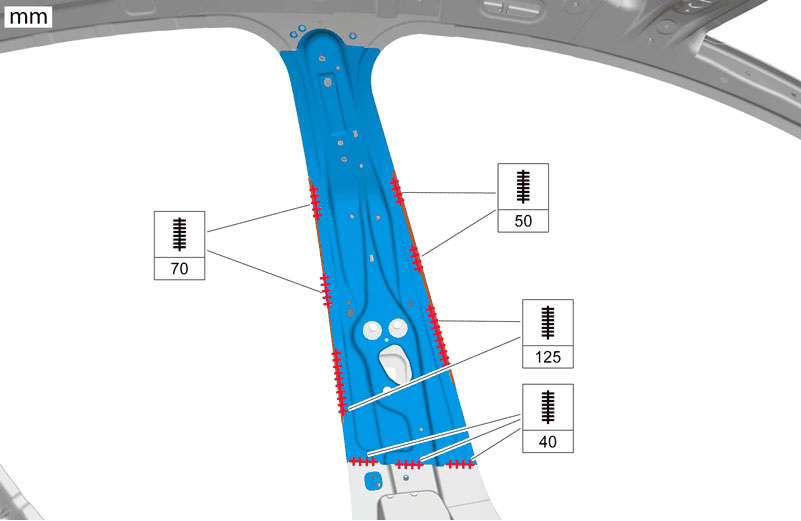

Fig 5: B-Pillar Installation Weld Specifications And Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

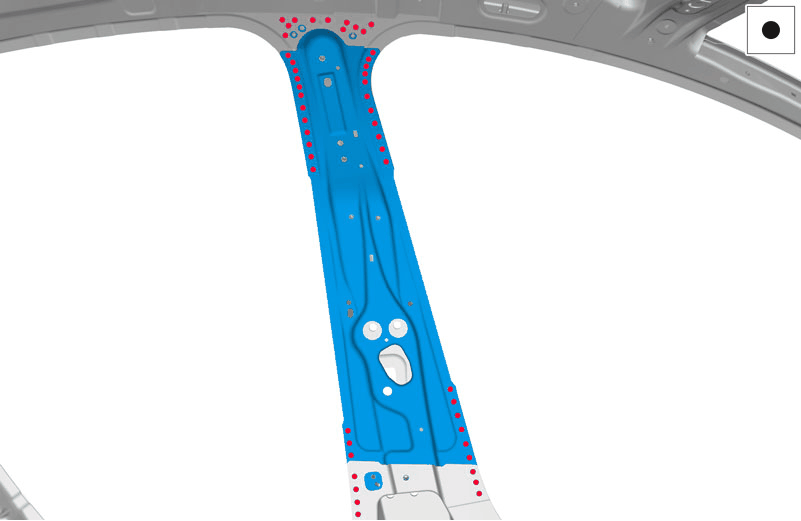

Fig 6: B-Pillar Installation Weld Specifications And Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

Use:  Seal, 6817640

Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding body sealant; refer to BODY SEAL, SEALING DIAGRAM .

Assemble side; refer to SIDE SECTION, EXPOSING .

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .

See information about paint; refer to PAINT .
