Transferring Components

If necessary

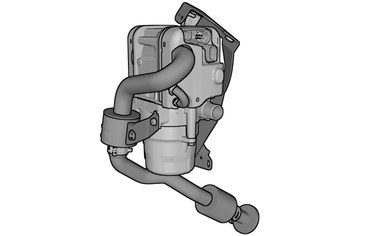

GLL1024176

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

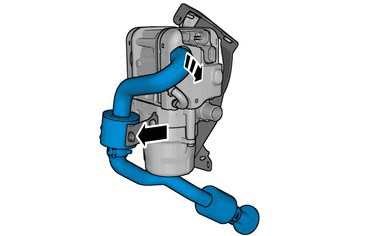

GLL1021649

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the part carefully

Remove the hose.

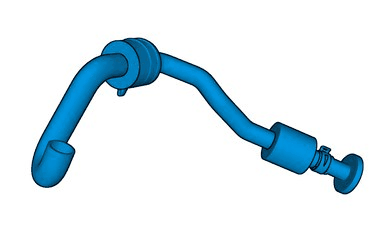

GLL1000188

Courtesy of VOLVO CARS CORPORATION

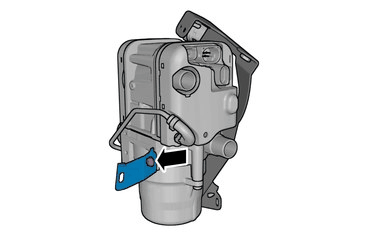

GLL1011717

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Bracket, to Coolant heater, 8Nm

Remove the marked part.

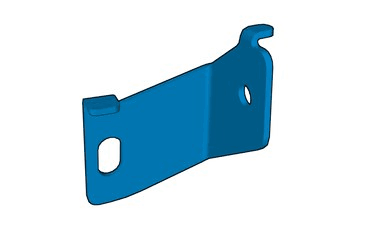

GLL1021350

Courtesy of VOLVO CARS CORPORATION

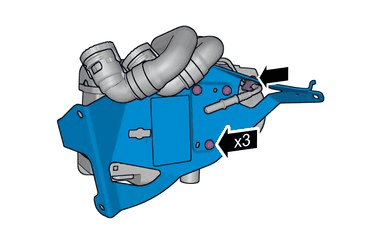

GLL1032680

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

Remove the screws.

Torque: Bracket, to Coolant heater, 8Nm

Remove the marked part.

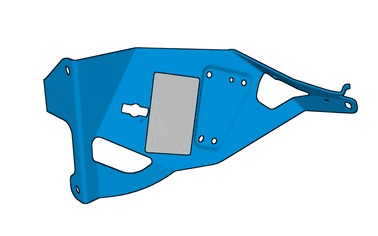

GLL1039263

Courtesy of VOLVO CARS CORPORATION

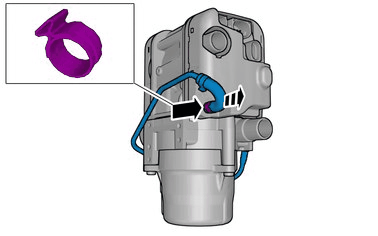

GLL1015521

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Undo the hose from the connection.

Remove the marked part.

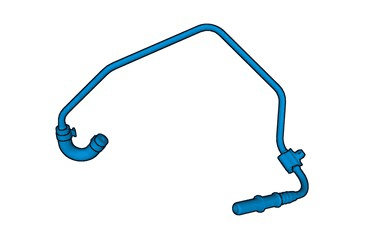

GLL1041172

Courtesy of VOLVO CARS CORPORATION

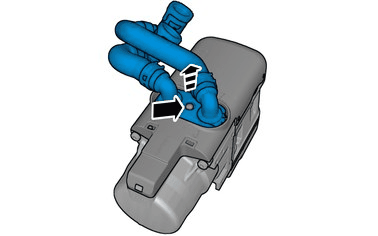

GLL1041615

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

Remove the screw.

Torque: Connecting piece, to Fuel operated auxiliary heater, 7.5Nm

Remove the marked part.

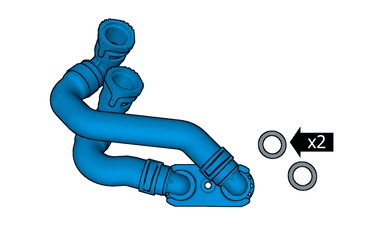

GLL1014243

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

NOTE:

Use new seals.

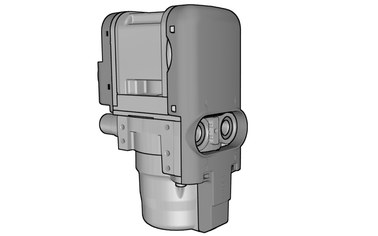

GLL1029294

Courtesy of VOLVO CARS CORPORATION
