Home >> Volvo >> 2011 >> S60 >> Repair and Diagnosis >> General Information >> OEM General Information >> Administration >> Design And Function >> STOPLAMP Switch >> Removal

STOPLAMP Switch: Removal

See information on component position brake light switch, refer to: LOCATION OF COMPONENTS, STOPLAMP SWITCH

GLL103059Courtesy of VOLVO CARS CORPORATION

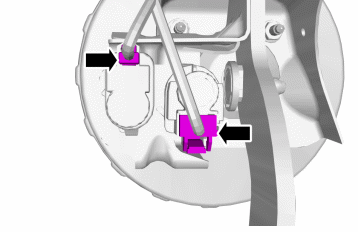

GLL159493Courtesy of VOLVO CARS CORPORATION

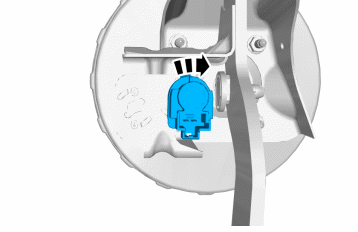

GLL159494Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the brake pedal remains in the rest position.

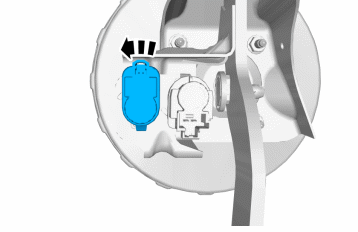

GLL159495Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the brake pedal remains in the rest position.

CAUTION:

Both switches must be removed before installing a new switch.
