Body Side: A-Pillar: Installation

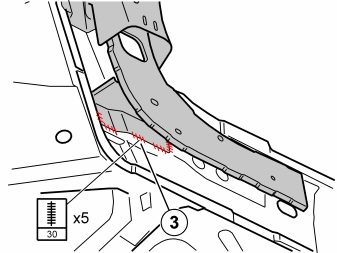

Fig 1: A-Pillar Reinforcement Installation Weld Counts, Specifications, And Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

When welding body components, see WELDING, GENERAL .

Replace foam with weld. See "3 " in Fig 1.

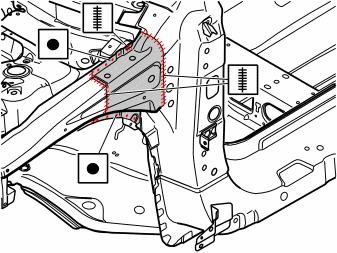

Fig 2: A-Pillar Reinforcement Installation Weld Counts, Specifications, And Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Install the sill reinforcement. See: BODY SILL REINFORCEMENT then continue with the outside of the A-post.

Apply collision foam. See: BODY SEAL, SEALING DIAGRAM .

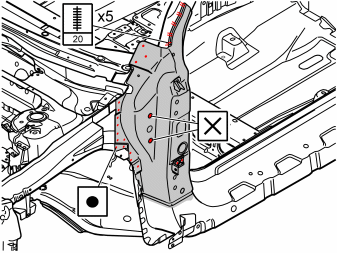

Fig 3: Lower A-Pillar Installation Weld Counts, Specifications, And Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

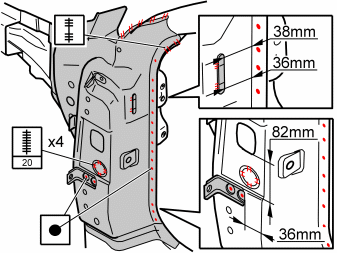

Fig 4: Lower A-Pillar Installation Weld Counts, Specifications, And Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

Install the sill. See: DOOR SILL .

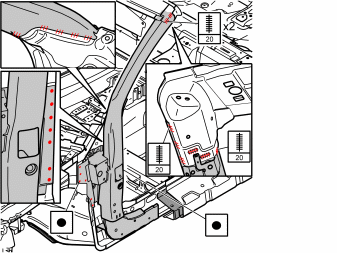

Fig 5: Lower A-Pillar Installation Weld Counts, Specifications, And Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

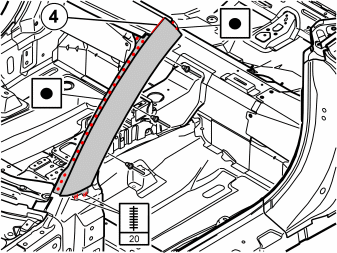

Fig 6: Upper A-Pillar Installation Weld Counts, Specifications, And Locations

Courtesy of VOLVO CARS CORPORATION

Apply sound insulation foam. See: BODY SEAL, SEALING DIAGRAM .

Weld on.

Braze the joint at "4 " shown in Fig 6.

Rustproof. See: RUSTPROOFING .
