Body Side Inner: Installation

Installing components

When welding body components, see WELDING, GENERAL .

For material information, see SHEET METAL, MATERIAL INFORMATION .

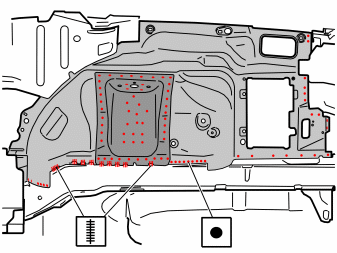

Fig 1: Body Side Inner Weld Specifications And Locations (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

Install:

• inner body side as shown in the illustration
• the wheel arch. See: WHEEL ARCH REAR
• outer rear fender, see FENDER
• components, see SIDE SECTION, EXPOSING and REAR SECTION, EXPOSING (2006) , REAR SECTION, EXPOSING (2007) , or REAR SECTION, EXPOSING (2008-2012)

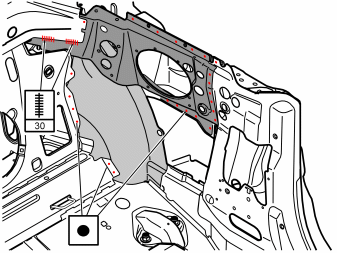

Fig 2: Body Side Inner Weld Specifications And Locations (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

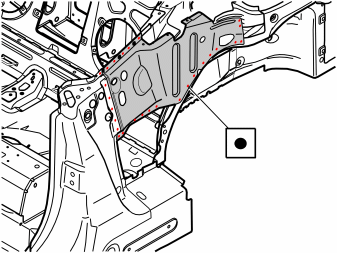

Fig 3: Body Side Inner Weld Specifications And Locations (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

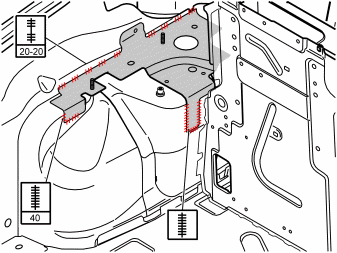

Fig 4: Body Side Inner Weld Specifications And Locations (4 Of 4)

Courtesy of VOLVO CARS CORPORATION

Sealing and rustproofing

Seal. See: BODY SEAL, SEALING DIAGRAM .

Rustproof. See: RUSTPROOFING
