Modification When Replacing Start/Stop Button (TJ27113)
Publication date: 2013-01-11Reference number: TJ27113
MODIFICATION WHEN REPLACING START/STOP BUTTON
TECHNICAL SERVICE BULLETIN
Reference Number(s): TJ27113, Date of Issue:
January 11, 2013
| VOLVO: | 2012-2013 S80, XC70; 2011-2013 XC60 |
| SECTION: | Contact; Switch |
| GROUP: | 3646 |
| NO.: | |
| RELATED REF. NUMBER(S): | TJ27113 |
ATTACHMENT
ATTACHMENT DESCRIPTION
| File Name | File Size |
|---|---|
| S80_XC70.pdf | 0.1985 MB |
| XC60.pdf | 0.0974 MB |
VEHICLE TYPE
VEHICLE TYPE
| Type | Eng | Eng Desc | Sales | Body | Gear | Steer | Model Year | Plant | Chassis range | Struc Week Range |
|---|---|---|---|---|---|---|---|---|---|---|
| 124 | 2012-2013 | 0151001-0170289 | 201120-201247 | |||||||
| 136 | 2012-2013 | 0118001-0159887 | 201120-201247 | |||||||
| 156 | 2011-2013 | 0175379-0421700 | 201046-201247 |
CSC CUSTOMER SYMPTOM CODES
CODE DESCRIPTION - CSC
| Code | Description |
|---|---|
| 7B | Starting/Engine does not start/Engine does not turn/No clicking sound at start attempt |
| IV | Text window and warning symbol/Text message |
DTC
Diagnostic Trouble Codes
TEXT
DESCRIPTION
The Start/Stop button has been superseded with a slightly different design. When replacing an old version of the start/stop button with the new version, modification of the bezel is required for proper fit.
Old part number: 31318791
New part number: 31394113
PRODUCT MODIFICATION
The new button was introduced into production from structure week 2012w48.
SERVICE

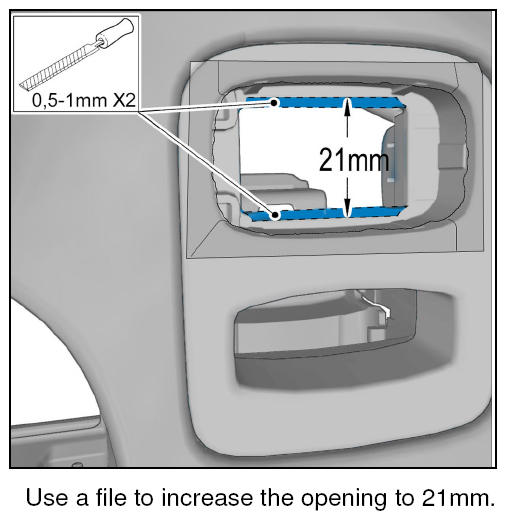

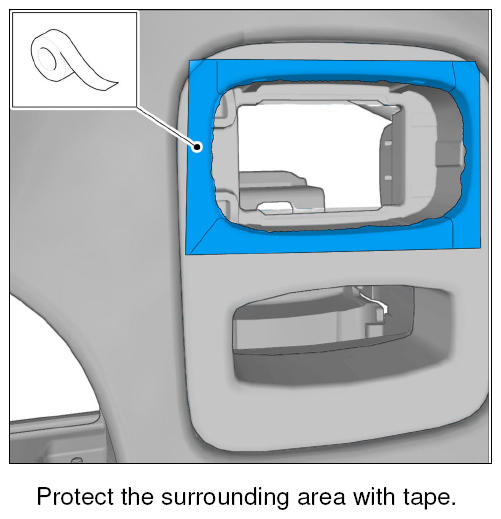

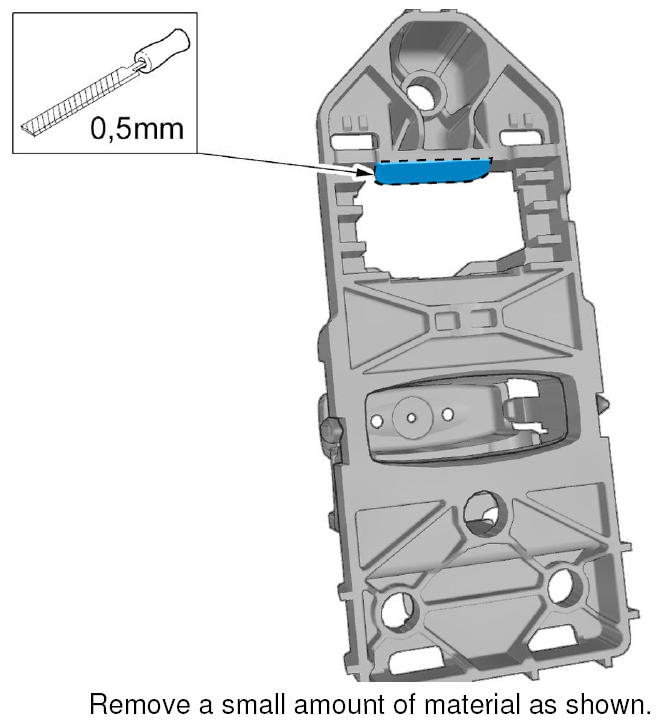

Modify the bezel before mounting the button. See below.
VSTG OPERATION NUMBER
98455-2, XC60: 0.3 hours, S80/XC70: 0.4 hours
To view TJ attachments continue to information below:
