Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove shock absorber fork, refer to: SHOCK ABSORBER FORK

Courtesy of VOLVO CARS CORPORATION

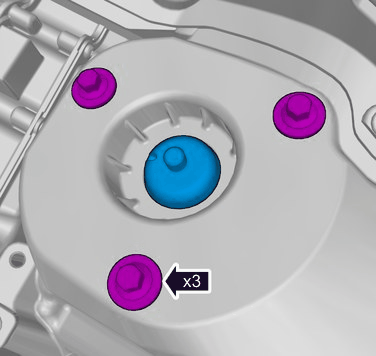

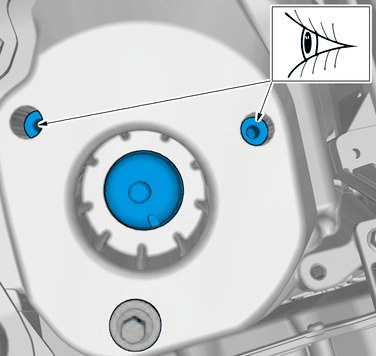

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

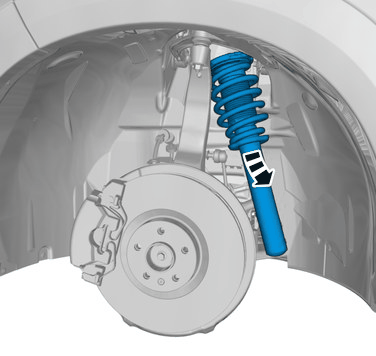

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

If necessary

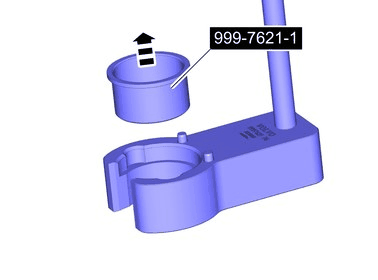

Remove part of component according to image.

Courtesy of VOLVO CARS CORPORATION

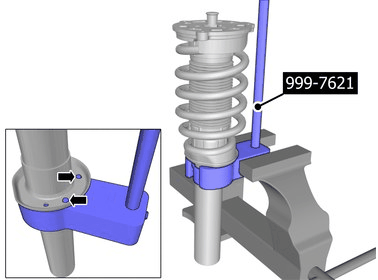

CAUTION:

Make sure that the component is positioned correctly.

Special Tool: 999 7621

Courtesy of VOLVO CARS CORPORATION

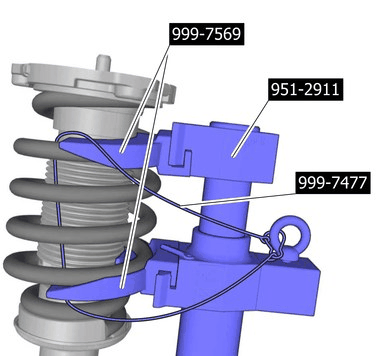

WARNING:

The safety wire must be installed while the spring is compressed.

Special Tool: 951 2911 , Special Tool: 999 7477 and Special Tool: 999 7569

Courtesy of VOLVO CARS CORPORATION

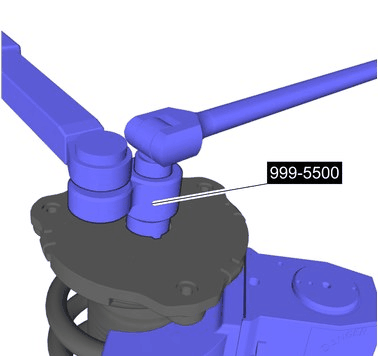

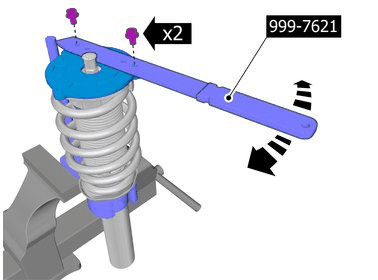

Remove the nut.

Special Tool: 999 5500

Torque: Bearing front shock absorber to shock absorber, 60Nm

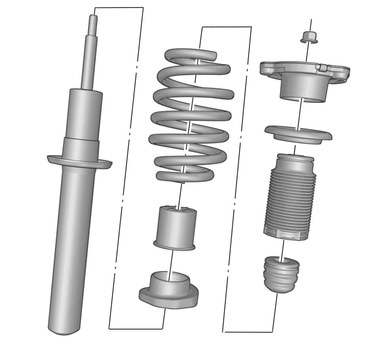

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling the compressed spring.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

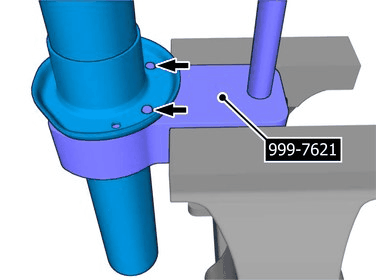

CAUTION:

Make sure that the component is positioned correctly.

Courtesy of VOLVO CARS CORPORATION

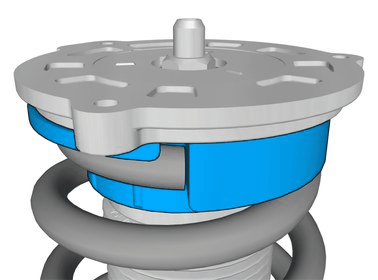

NOTE:

The component can only be installed in 1 position.

Courtesy of VOLVO CARS CORPORATION

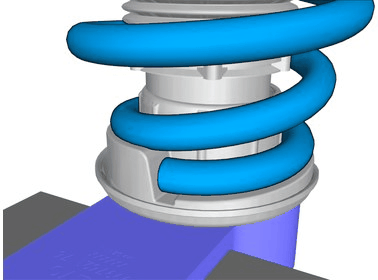

NOTE:

Make sure that the spring is correctly located in the lower spring seat.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

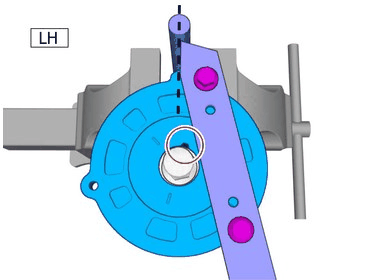

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

CAUTION:

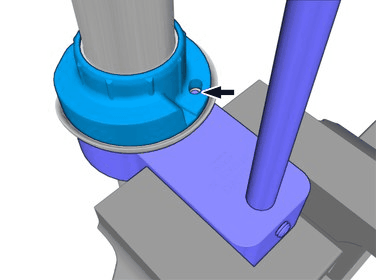

Make sure that the installation marks are aligned.

Locate relevant marking.

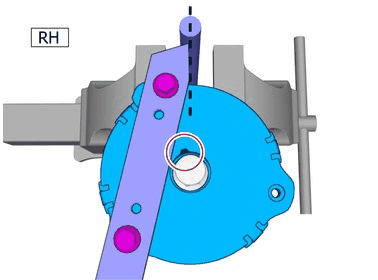

APPLIES TO THE RIGHT-HAND SIDE

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the installation marks are aligned.

Locate relevant marking.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure at the installation that the component has not become twisted.

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is centered.

Torque: Front shock absorber bearing, to Body, 24Nm
