Cell Module B: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Courtesy of VOLVO CARS CORPORATION

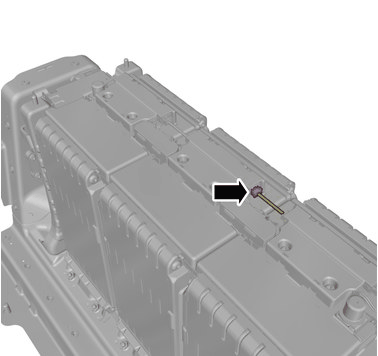

Disconnect the connector.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

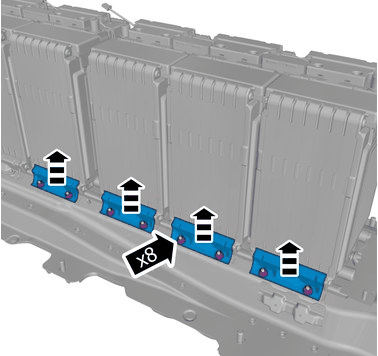

Remove the nuts.

Remove the marked part.

Torque: High voltage battery console nut, 12Nm

Courtesy of VOLVO CARS CORPORATION

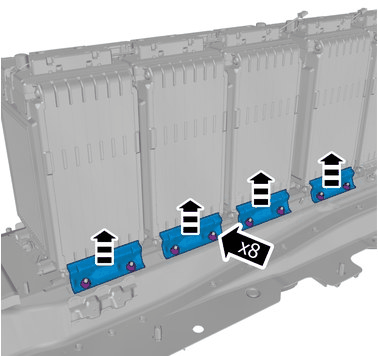

Remove the nuts.

Remove the marked detail/details.

Torque: High voltage battery console nut, 12Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Remove the marked part.

Torque: High voltage battery console nut, 12Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

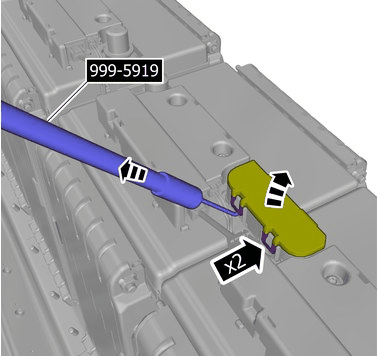

Release the catches.

Fold marked part aside.

Special Tool: 999 5919 PULLER Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

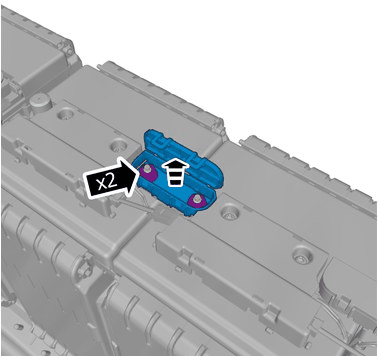

Remove the nuts.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

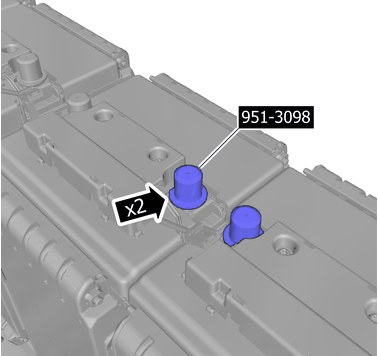

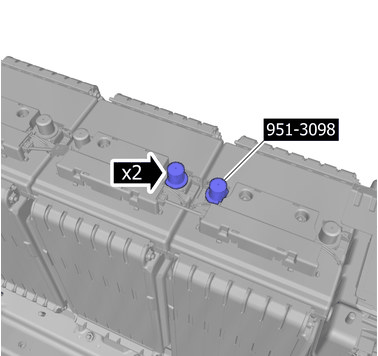

Special Tool: 951 3098 Insulation protection Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

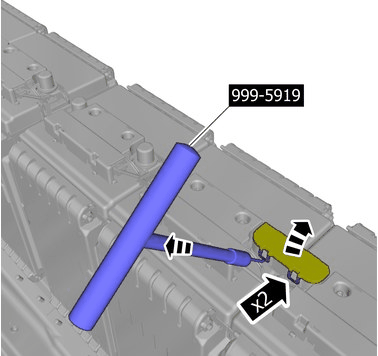

Release the catches.

Fold marked part aside.

Special Tool: 999 5919 PULLER Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

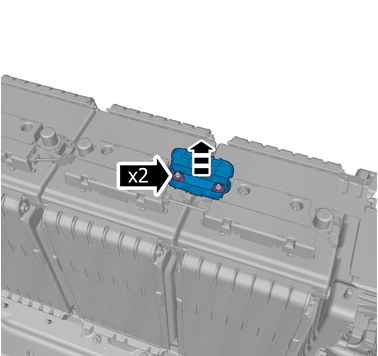

Remove the nuts.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Torque: High voltage bus bar, to Battery terminal, 9Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 3098 Insulation protection Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

IF NOTHING ELSE IS STATED, THE USE OF RUBBER GLOVES WILL NOT BE NEEDED IN THE FOLLOWING METHOD STEPS.

Courtesy of VOLVO CARS CORPORATION

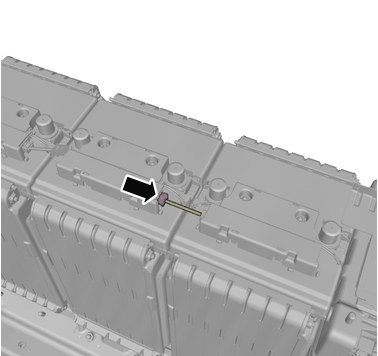

Disconnect the connector.

Loosen the wiring harness or move it to the side.

Courtesy of VOLVO CARS CORPORATION

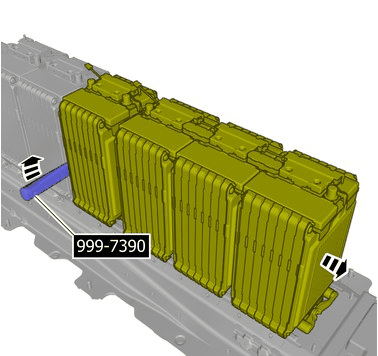

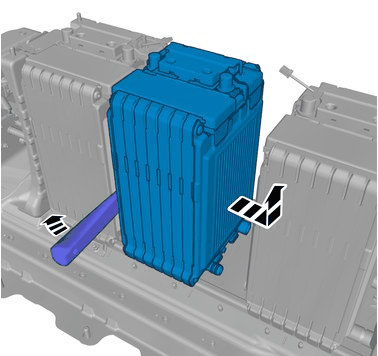

CAUTION:

Take extra care when handling the components.

Lift the marked component forward.

Special Tool: 999 7390 Key

Courtesy of VOLVO CARS CORPORATION

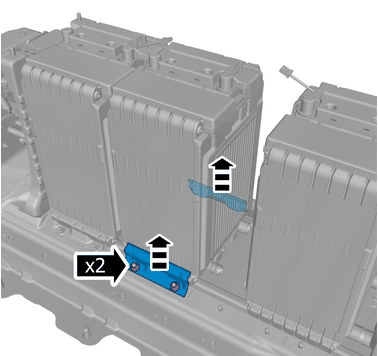

Remove the nuts.

Remove the marked detail/details.

Torque: High voltage battery console nut, 12Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Remove the marked part.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

IF NOTHING ELSE IS STATED, THE USE OF RUBBER GLOVES WILL NOT BE NEEDED IN THE FOLLOWING METHOD STEPS.

Courtesy of VOLVO CARS CORPORATION

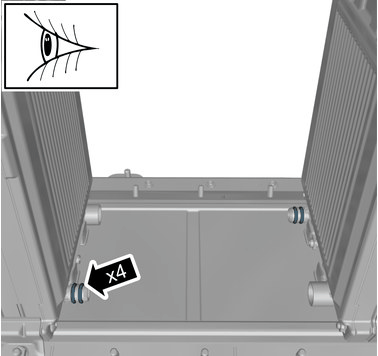

CAUTION:

Take extra care not to damage the seal.

The item is to be reused.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.

The item is to be reused.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the replaced component has been drained of fluid before repacking it in the box for return.

NOTE:

Use suitable paper to absorb any escaping fluid.

Special Tool: 951 2578 Plug kit in bag

Blow clean using compressed air

VEHICLES LATE VERSION

The following steps are performed on new component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Torque: Screw, cell module protective cover, 3Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Remove the marked part.

Torque: Nut, cell module protective cover, 6Nm
