Cell Module F: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Courtesy of VOLVO CARS CORPORATION

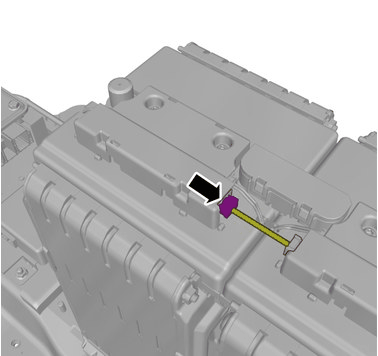

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Fold marked part aside.

Special Tool: 999 5919 PULLER Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

Remove the marked part.

Torque: High voltage bus bar, to Battery terminal, 9Nm

Courtesy of VOLVO CARS CORPORATION

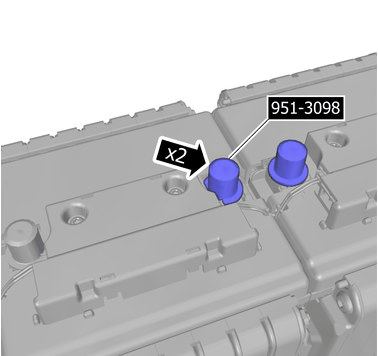

Special Tool: 951 3098 Insulation protection Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

IF NOTHING ELSE IS STATED, THE USE OF RUBBER GLOVES WILL NOT BE NEEDED IN THE FOLLOWING METHOD STEPS.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use suitable paper to absorb any escaping fluid.

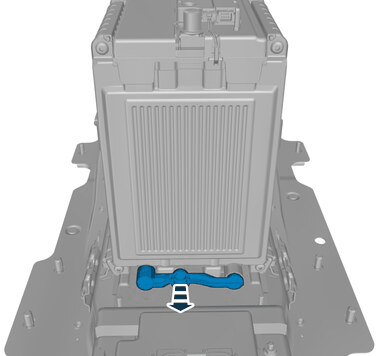

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

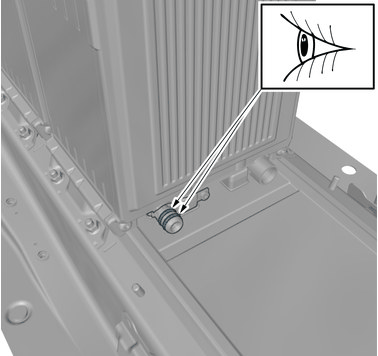

CAUTION:

Take extra care not to damage the seal.

The item is to be reused.

Courtesy of VOLVO CARS CORPORATION

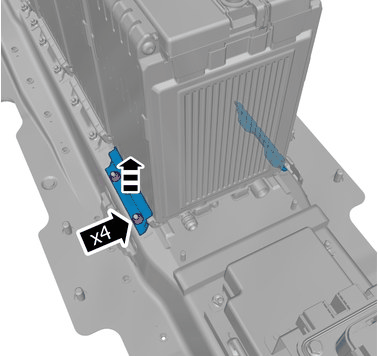

Remove the nuts.

Remove the marked detail/details.

Torque: High voltage battery console nut, 12Nm

Courtesy of VOLVO CARS CORPORATION

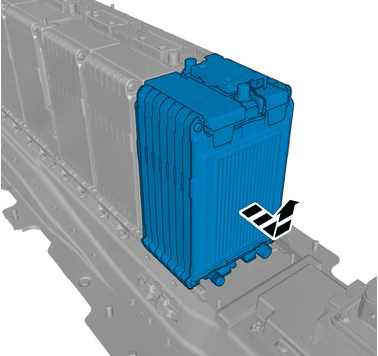

CAUTION:

Take extra care when handling the component.

NOTE:

Use suitable paper to absorb any escaping fluid.

Remove the marked detail/details.

Special Tool: 981 4135 Gloves Special Tool: 981 5250 Face shield

IF NOTHING ELSE IS STATED, THE USE OF RUBBER GLOVES WILL NOT BE NEEDED IN THE FOLLOWING METHOD STEPS.

Courtesy of VOLVO CARS CORPORATION

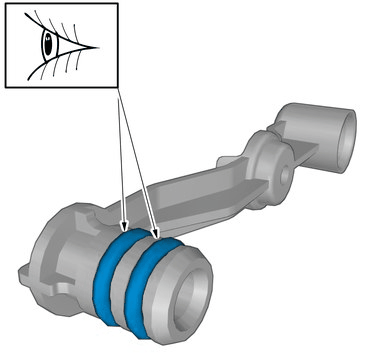

CAUTION:

Take extra care not to damage the seal.

The item is to be reused.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the seal.

The item is to be reused.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the replaced component has been drained of fluid before repacking it in the box for return.

NOTE:

Use suitable paper to absorb any escaping fluid.

Special Tool: 951 2578 Plug kit in bag

Blow clean using compressed air

VEHICLES LATE VERSION

The following steps are performed on new component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Torque: Screw, cell module protective cover, 3Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Remove the marked part.

Torque: Nut, cell module protective cover, 6Nm
